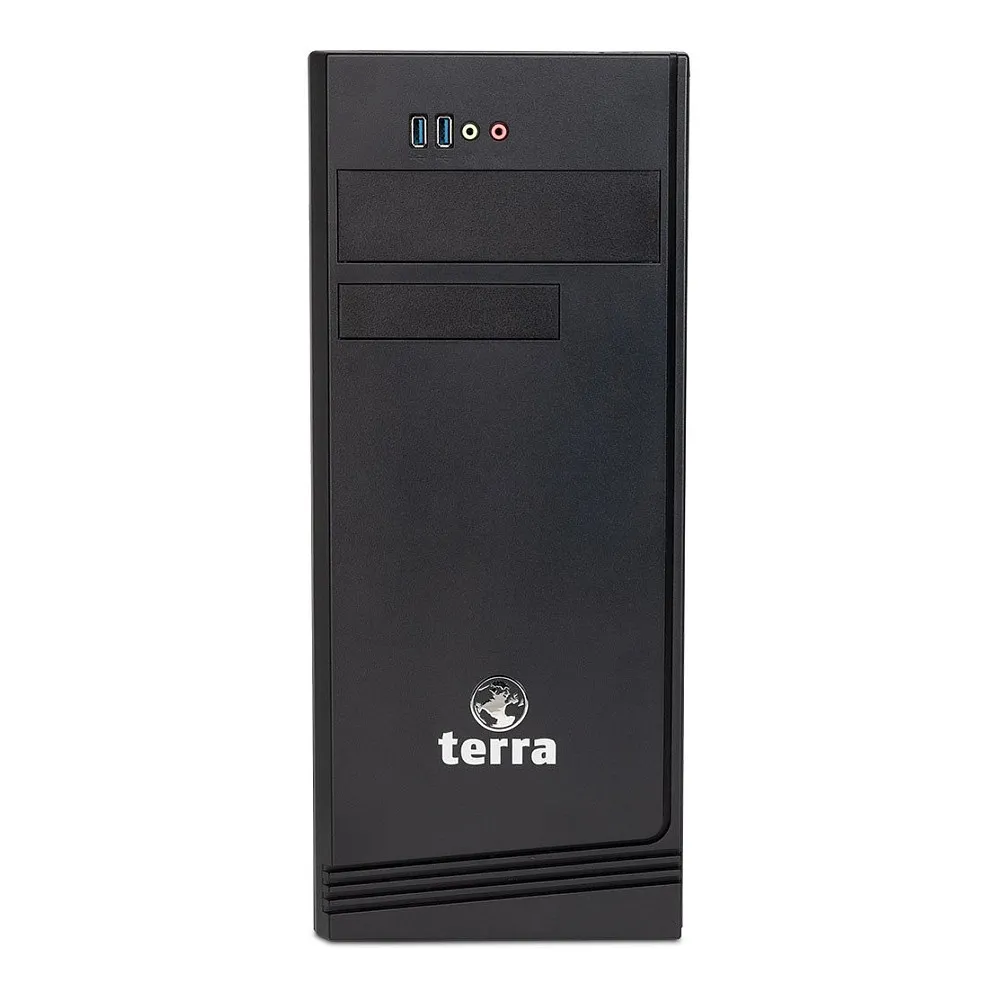

TERRA PC-BUSINESS 6000 vPro GREENLINE. Processor family: Intel® Core™ i5, Processor model: i5-14500. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 500 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 770. Operating system installed: Windows 11 Pro. Power supply: 400 W. Chassis type: Midi Tower. Product type: PC. Weight: 8 kg. Product colour: Black
Processor
Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: Intel® Core™ i5 (14th gen)
Processor model: i5-14500
Processor cores: 14
Processor threads: 20
Processor boost frequency: 5 GHz
Performance cores: 6
Efficient cores: 8
Performance-core Max Turbo Frequency: 5 GHz
Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 2.6 GHz
Efficient-core base frequency: 1.9 GHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor socket: LGA 1700
Processor base power: 65 W
Maximum turbo power: 154 W
Memory
Internal memory: 16 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 5600 MHz
Storage
Total storage capacity: 500 GB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 500 GB
Number of SSDs installed: 1
SSD capacity: 500 GB
SSD interface: PCI Express
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Storage options: 6x SATA 6Gb/s ports ¦ 2x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)¦ 1x M.2 Socket E 2230 CNVI für WLAN + Bluetooth
Feature: RAID support
RAID levels: 5, 1, 0, 10
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 770
Number of external displays supported: 3
Resolution description: HDMI 4K @60Hz ¦ DP 4K @60Hz
Graphics card HDMI ports quantity: 1
Graphics card DisplayPorts quantity: 2
Performance
Market positioning: Business
Motherboard chipset: Intel Q670
Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 7.1 channels
Sound pressure level: 23.8 dB
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
LAN controller: Intel® I219-LM
Ports & interfaces
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
DisplayPorts quantity: 2
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
Number of rear USB ports: 6
Number of front USB ports: 2
Number of front audio ports: 2
Number of rear audio ports: 1
Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Expansion slots: 1x PCIe 4.0/3.0 x16 slot ¦ 2x PCIe 3.0 x1 slots
Power
Power supply: 400 W
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Power consumption (typical): 19 W
Power consumption (standby): 1 W
Power consumption (off): 0.25 W
Power consumption (long idle): 19 W
80 PLUS certification: 80 PLUS Bronze
Design
Chassis type: Midi Tower
Product colour: Black
Feature: Intel® vPro™ Platform Eligibility
Software
Operating system installed: Windows 11 Pro
Compatible operating systems: Windows 10, Windows 11
Audio
Audio system: High Definition Audio
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Operating relative humidity (H-H): 10 – 75%
Weight & dimensions
Width: 180 mm
Depth: 420 mm
Height: 435 mm
Weight: 8 kg
Packaging content
Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included
Cables included: AC
Feature: Manual
Keyboard
Keyboard connectivity: Wired
Keyboard language: German
Features
Motherboard manufacturer: Asus PRIME Q670M-C CSM ¦ Business Series ¦ Designed für den 24/7 Betrieb
Other features
Locale: German
Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: Intel® Core™ i5 (14th gen)
Processor model: i5-14500
Processor cores: 14
Processor threads: 20
Processor boost frequency: 5 GHz
Performance cores: 6
Efficient cores: 8
Performance-core Max Turbo Frequency: 5 GHz
Efficient-core Max Turbo Frequency: 3.7 GHz
Performance-core base frequency: 2.6 GHz
Efficient-core base frequency: 1.9 GHz
Processor cache: 24 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Processor socket: LGA 1700
Processor base power: 65 W
Maximum turbo power: 154 W
Memory
Internal memory: 16 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 4x DIMM
Memory clock speed: 5600 MHz
Storage
Total storage capacity: 500 GB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 500 GB
Number of SSDs installed: 1
SSD capacity: 500 GB
SSD interface: PCI Express
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Storage options: 6x SATA 6Gb/s ports ¦ 2x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)¦ 1x M.2 Socket E 2230 CNVI für WLAN + Bluetooth
Feature: RAID support
RAID levels: 5, 1, 0, 10
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 770
Number of external displays supported: 3
Resolution description: HDMI 4K @60Hz ¦ DP 4K @60Hz
Graphics card HDMI ports quantity: 1
Graphics card DisplayPorts quantity: 2
Performance
Market positioning: Business
Motherboard chipset: Intel Q670
Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Audio output channels: 7.1 channels
Sound pressure level: 23.8 dB
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
LAN controller: Intel® I219-LM
Ports & interfaces
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
DisplayPorts quantity: 2
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
Number of rear USB ports: 6
Number of front USB ports: 2
Number of front audio ports: 2
Number of rear audio ports: 1
Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Expansion slots: 1x PCIe 4.0/3.0 x16 slot ¦ 2x PCIe 3.0 x1 slots
Power
Power supply: 400 W
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Power consumption (typical): 19 W
Power consumption (standby): 1 W
Power consumption (off): 0.25 W
Power consumption (long idle): 19 W
80 PLUS certification: 80 PLUS Bronze
Design
Chassis type: Midi Tower
Product colour: Black
Feature: Intel® vPro™ Platform Eligibility
Software
Operating system installed: Windows 11 Pro
Compatible operating systems: Windows 10, Windows 11
Audio
Audio system: High Definition Audio
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Operating relative humidity (H-H): 10 – 75%
Weight & dimensions
Width: 180 mm
Depth: 420 mm
Height: 435 mm
Weight: 8 kg
Packaging content
Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included
Cables included: AC
Feature: Manual
Keyboard
Keyboard connectivity: Wired
Keyboard language: German
Features
Motherboard manufacturer: Asus PRIME Q670M-C CSM ¦ Business Series ¦ Designed für den 24/7 Betrieb
Other features
Locale: German
