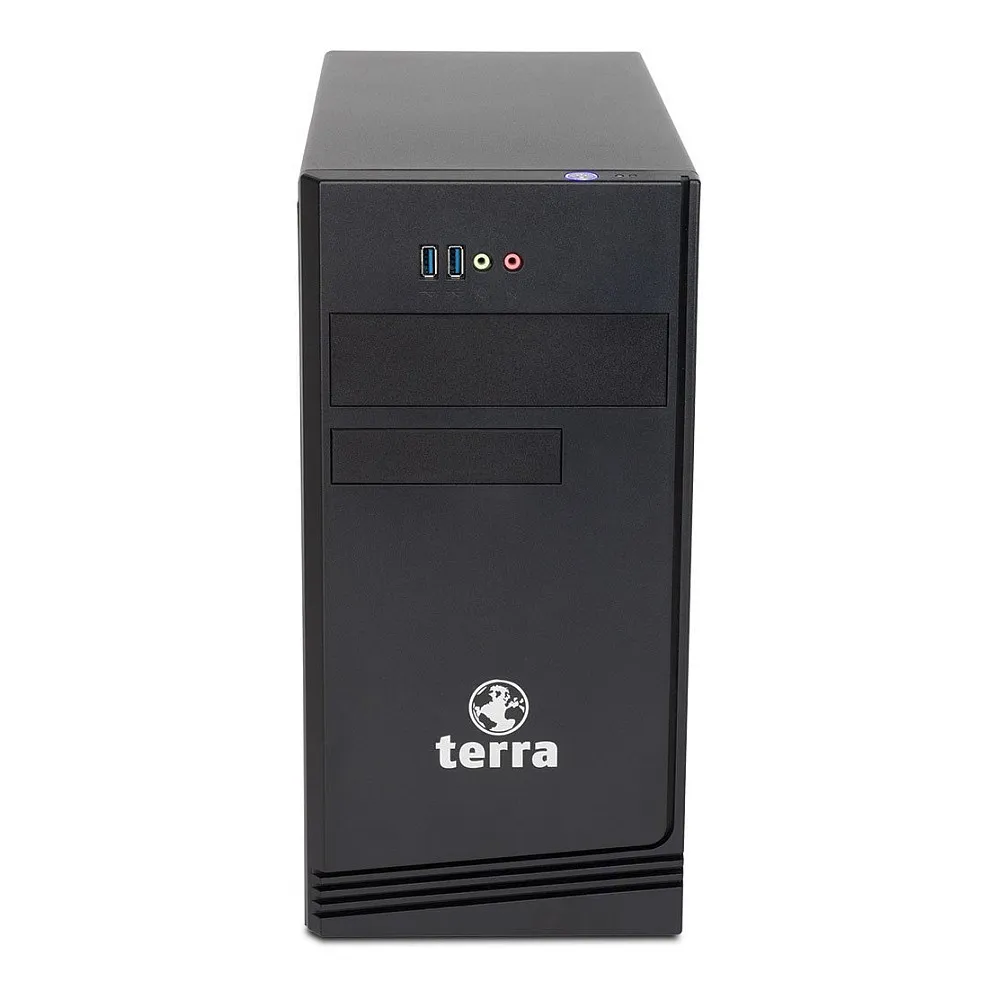

TERRA PC-BUSINESS 6000

Processor
Processor manufacturer: AMD
Processor family: AMD Ryzen™ 5
Processor generation: AMD Ryzen PRO 8000 Series
Processor model: 8600G
Processor cores: 6
Processor threads: 12
Processor boost frequency: 5 GHz
Processor frequency: 4.3 GHz
Processor cache: 16 MB
Processor cache type: L2 & L3
Number of processors installed: 1
Processor socket: Socket AM5
Processor base power: 65 W
Neural processor unit (NPU)
Neural processor unit (NPU): AMD Ryzen AI
NPU performance up to: 16 TOPs
Memory
Internal memory: 16 GB
Maximum internal memory: 96 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 1 x 16 GB
Memory slots: 2x DIMM
Memory clock speed: 4800 MHz
Storage
Total storage capacity: 500 GB
Storage media: SSD
Optical drive type: No
Total SSDs capacity: 500 GB
Number of SSDs installed: 1
SSD capacity: 500 GB
SSD interface: PCI Express 4.0
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Feature: RAID support
RAID levels: 1, 0, 10
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: AMD
On-board graphics card family: AMD Radeon Graphics
On-board graphics card model: AMD Radeon 760M
Feature: On-board graphics card 6K support
Feature: On-board graphics card 8K support
Number of external displays supported: 4
Graphics card HDMI ports quantity: 1
Graphics card DisplayPorts quantity: 1
Graphics card DVI-D ports quantity: 1
Graphics card VGA (D-Sub) ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000 Mbit/s
Ports & interfaces
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: DVI port
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
PS/2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: Combo headphone/mic port
Number of rear USB ports: 6
Number of front USB ports: 2
Number of front audio ports: 2
Number of rear audio ports: 1
Expansion slots
PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Design
Chassis type: Mini Tower
Product colour: Black
Performance
Market positioning: Business
Motherboard chipset: AMD A620
Audio output channels: 8.0 channels
Feature: Trusted Platform Module (TPM)
Product type: PC
Trusted Platform Module (TPM) version: 2.0
Sound pressure level: 22.7 dB
Software
Operating system installed: Windows 11 Pro
Compatible operating systems: Windows 10, Windows 11
Power
Power supply: 350 W
Power supply input voltage: 230 V
Power supply input frequency: 50 Hz
Power consumption (typical): 18 W
Power consumption (standby): 1 W
80 PLUS certification: 80 PLUS Bronze
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Operating relative humidity (H-H): 10 – 75%
Certificates
Compliance certificates: CE
Weight & dimensions
Width: 180 mm
Depth: 384 mm
Height: 375 mm
Weight: 7 kg
Packaging content
Feature: Mouse included
Mouse connectivity: Wired
Feature: Keyboard included
Cables included: AC
Feature: Manual
Keyboard
Keyboard connectivity: Wired
Keyboard language: German
Audio
Audio system: High Definition Audio
Other features
Motherboard manufacturer: ASUS Pro A620M-C-CSM 24-7 ready
Expansion slots: 1x PCIe 4.0 x16¦ 2x PCI 3.0 x1¦ 1x PCI
Storage options: 2x M.2 (Key M) 2280/2260/2242, PCIe 4.0 x4 mode, 4x SATA 6Gb/s ports ¦ Supports SATA & PCIe Raid 0/1/10
Resolution description: HDMI max. 4096 x 2160 @ 60Hz ¦ DP max. 7680 x 4320 @60Hz ¦ VGA max. 1920×1200
Locale: German
Power consumption (off): 0.25 W
