TERRA MINISERVER G6 E-2434/32/2×960/C/WS2025E. Processor family: Intel® Xeon®, Processor frequency: 3.4 GHz, Processor model: E-2434. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1.92 TB. Ethernet LAN. Power supply: 450 W. Operating system installed: Windows Server 2025 Essentials. Chassis type: Mini Tower
The TERRA MINISERVERS are perfect for small businesses or departments who appreciate central data administration and the shared use of information and resources.
Due to the compact construction the TERRA MINISERVER can be used in every office, in every environment.
Due to the compact construction the TERRA MINISERVER can be used in every office, in every environment.
Processor
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: E-2434
Processor frequency: 3.4 GHz
Processor boost frequency: 5 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Motherboard chipset: Intel C262
Memory channels supported by processor: Dual
Number of processors installed: 1
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Memory
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x DIMM
Feature: ECC
Maximum internal memory: 64 GB
Storage
Total storage capacity: 1.92 TB
Supported HDD sizes: 2.5,3.5″
Number of SSDs installed: 2
SSD capacity: 960 GB
SSD interface: SATA III
Supported SSD sizes: 2.5″, 3.5″
Feature: RAID support
RAID levels: 1
Supported RAID controllers: Broadcom MegaRAID 9550-8i
Feature: Hot-swap
Optical drive type: No

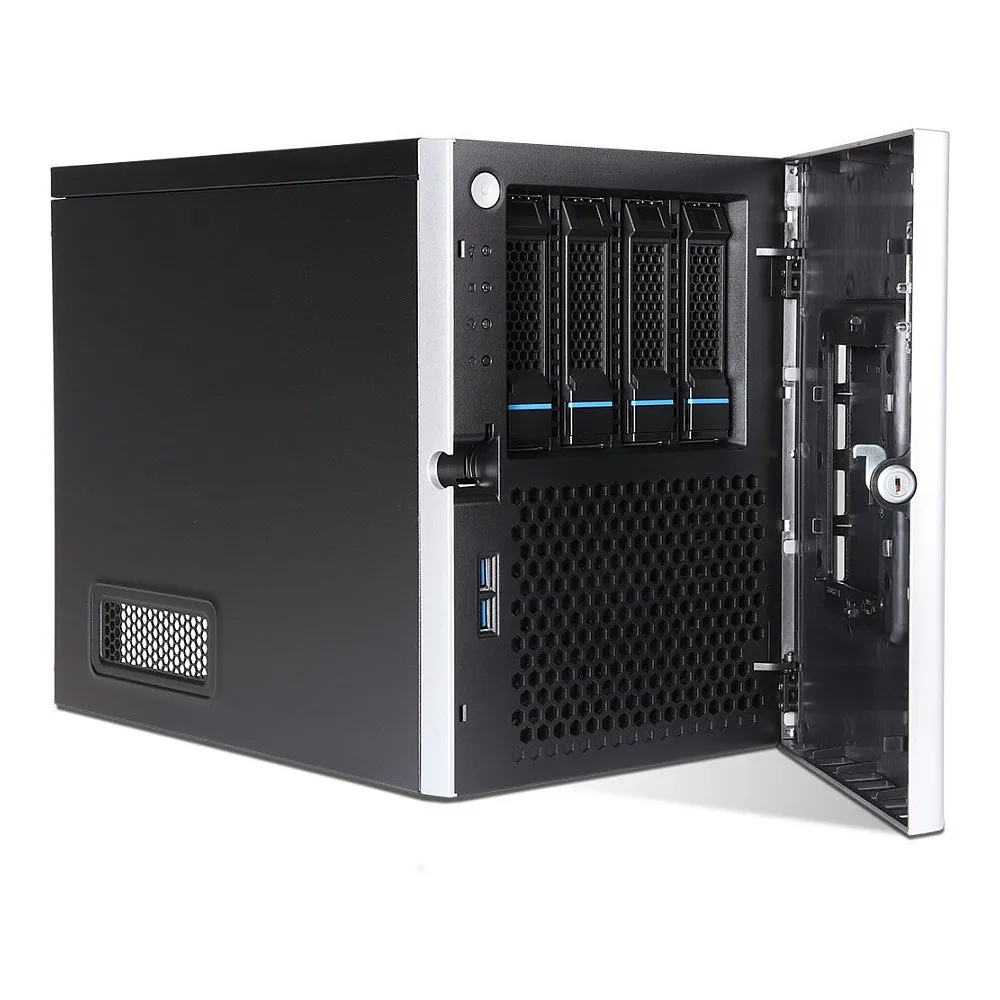

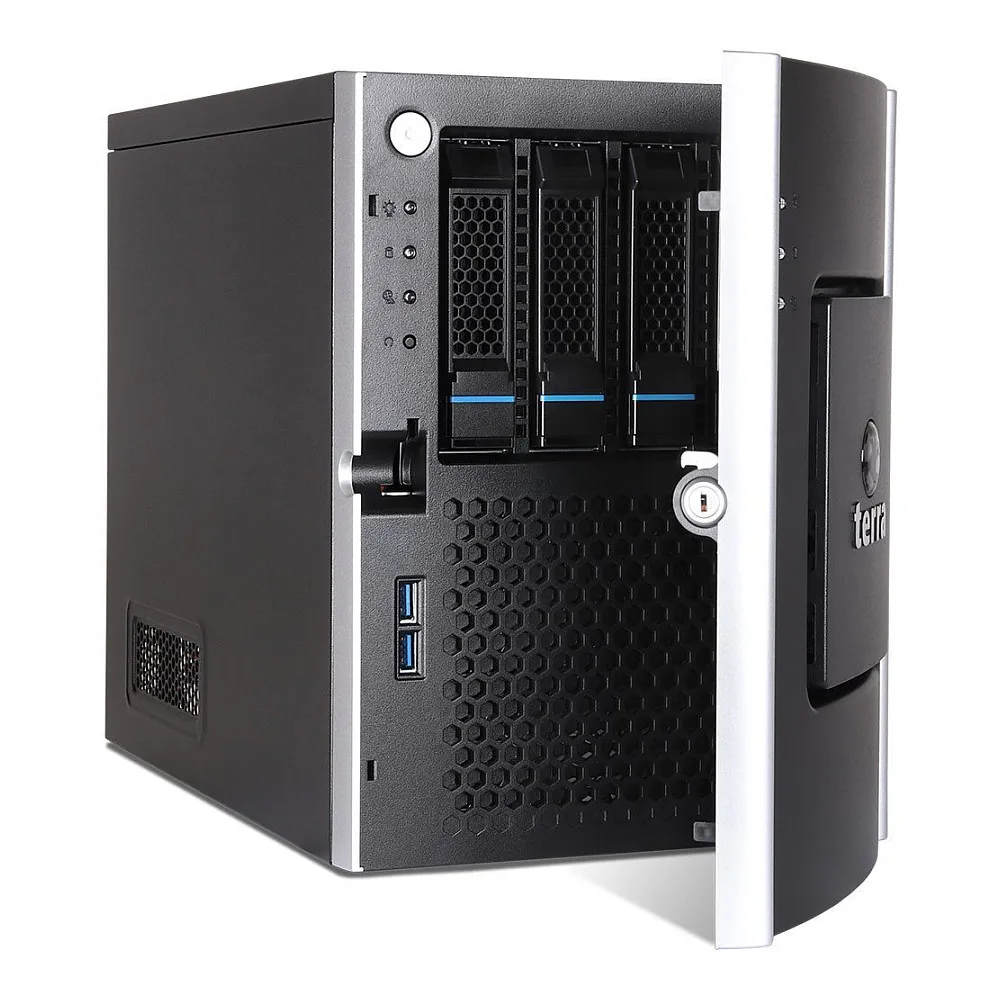

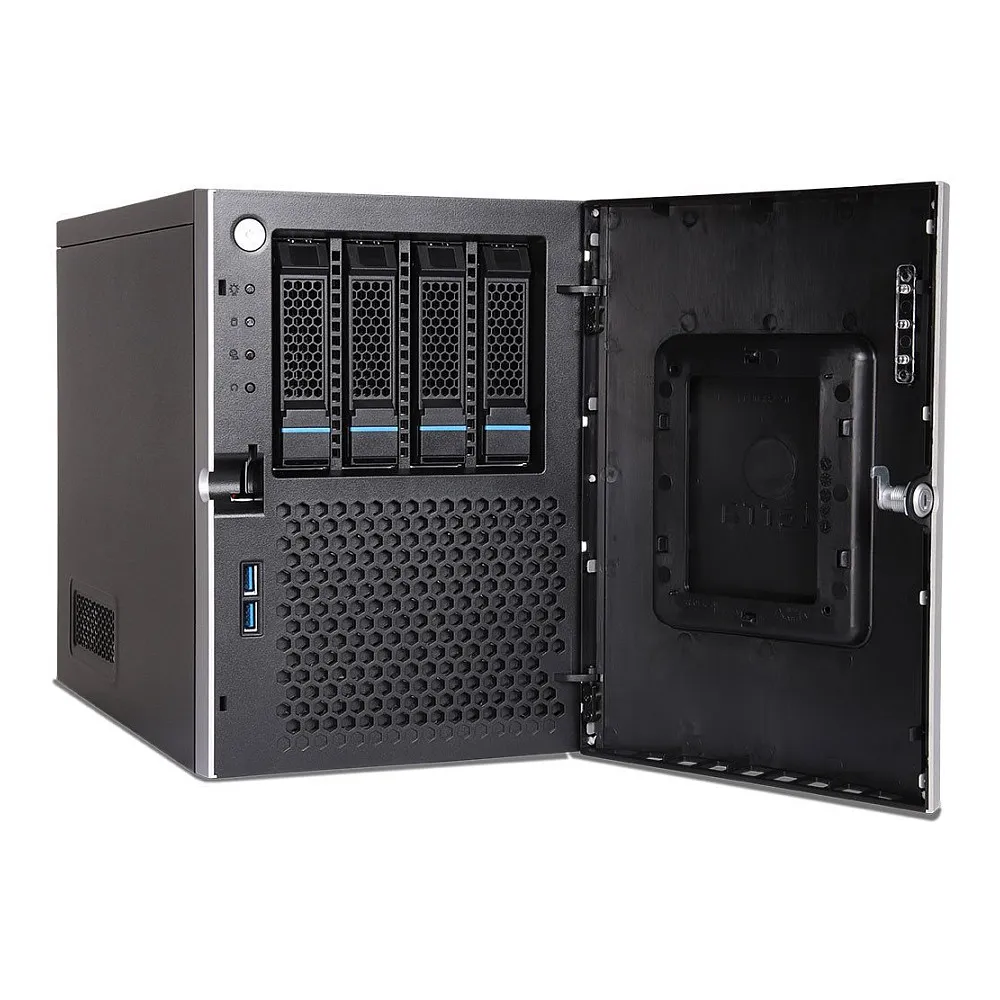

Internal drive bays: 4x 3.5″/2.5″ (HotSwap-fähig) ¦ 2x 2.5″ (für Festeinbau von SSDs)
Graphics
Feature: On-board graphics card
On-board graphics card family: Aspeed
On-board graphics card model: Aspeed AST2600
Maximum graphics card memory: 64 MB
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Number of LAN controllers: 2
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
Total number of SATA connectors: 6
Design
Chassis type: Mini Tower
Cooling type: Active
Performance
Remote administration: Ja
Feature: Trusted Platform Module (TPM)
Software
Operating system installed: Windows Server 2025 Essentials
Compatible operating systems: Windows Server 2019¦
Operating system language: Multilingual
Power
Power supply: 450 W
Number of redundant power supplies supported: 1
Number of redundant power supplies installed: 1
Number of main power supplies: 1
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Operating relative humidity (H-H): 10 – 75%
Certificates
Certification: CE, production according to ISO9001 in Germany
Weight & dimensions
Width: 200 mm
Depth: 340 mm
Height: 270 mm
Technical details
Compliance certificates: CE
Other features
Motherboard manufacturer: Asus P13R-I
Memory type: 2x DDR5 PC4800, UB ECC
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: E-2434
Processor frequency: 3.4 GHz
Processor boost frequency: 5 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Motherboard chipset: Intel C262
Memory channels supported by processor: Dual
Number of processors installed: 1
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Memory
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x DIMM
Feature: ECC
Maximum internal memory: 64 GB
Storage
Total storage capacity: 1.92 TB
Supported HDD sizes: 2.5,3.5″
Number of SSDs installed: 2
SSD capacity: 960 GB
SSD interface: SATA III
Supported SSD sizes: 2.5″, 3.5″
Feature: RAID support
RAID levels: 1
Supported RAID controllers: Broadcom MegaRAID 9550-8i
Feature: Hot-swap
Optical drive type: No
Internal drive bays: 4x 3.5″/2.5″ (HotSwap-fähig) ¦ 2x 2.5″ (für Festeinbau von SSDs)
Graphics
Feature: On-board graphics card
On-board graphics card family: Aspeed
On-board graphics card model: Aspeed AST2600
Maximum graphics card memory: 64 MB
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Number of LAN controllers: 2
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
Total number of SATA connectors: 6
Design
Chassis type: Mini Tower
Cooling type: Active
Performance
Remote administration: Ja
Feature: Trusted Platform Module (TPM)
Software
Operating system installed: Windows Server 2025 Essentials
Compatible operating systems: Windows Server 2019¦
Operating system language: Multilingual
Power
Power supply: 450 W
Number of redundant power supplies supported: 1
Number of redundant power supplies installed: 1
Number of main power supplies: 1
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Operating relative humidity (H-H): 10 – 75%
Certificates
Certification: CE, production according to ISO9001 in Germany
Weight & dimensions
Width: 200 mm
Depth: 340 mm
Height: 270 mm
Technical details
Compliance certificates: CE
Other features
Motherboard manufacturer: Asus P13R-I
Memory type: 2x DDR5 PC4800, UB ECC
