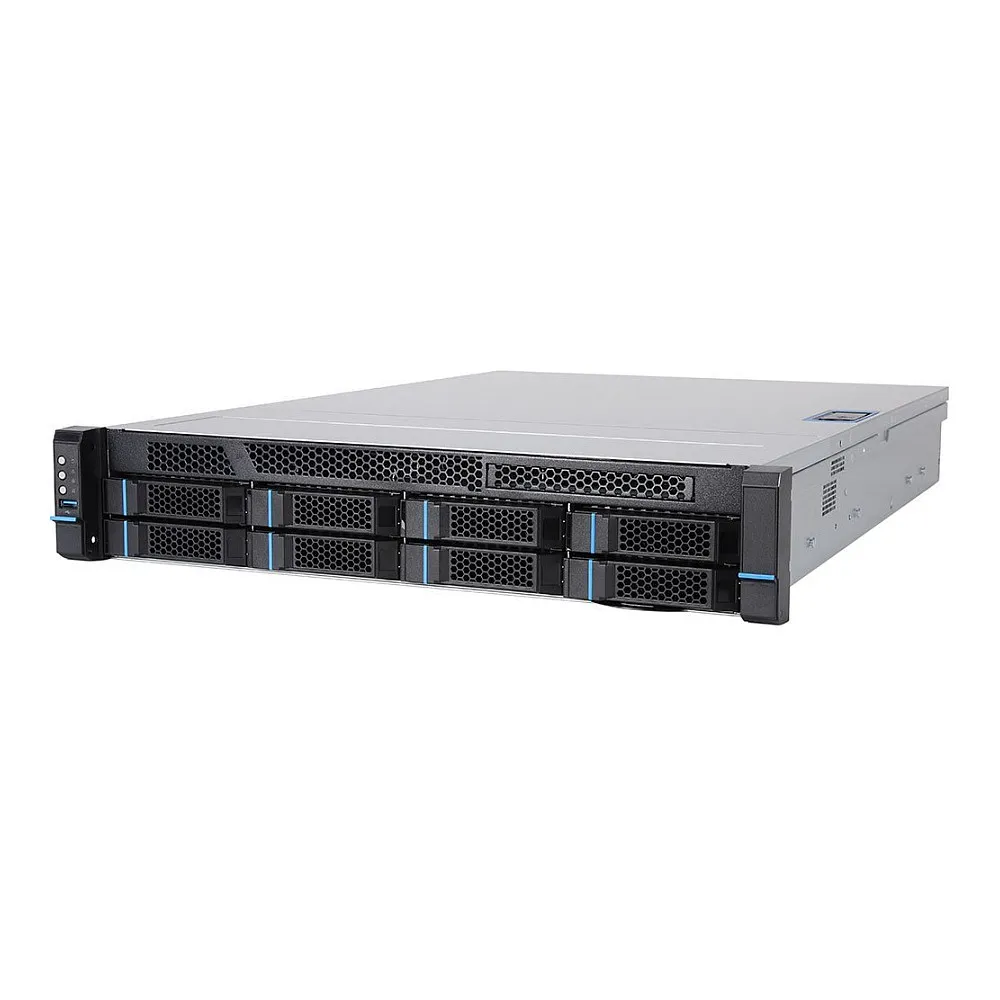

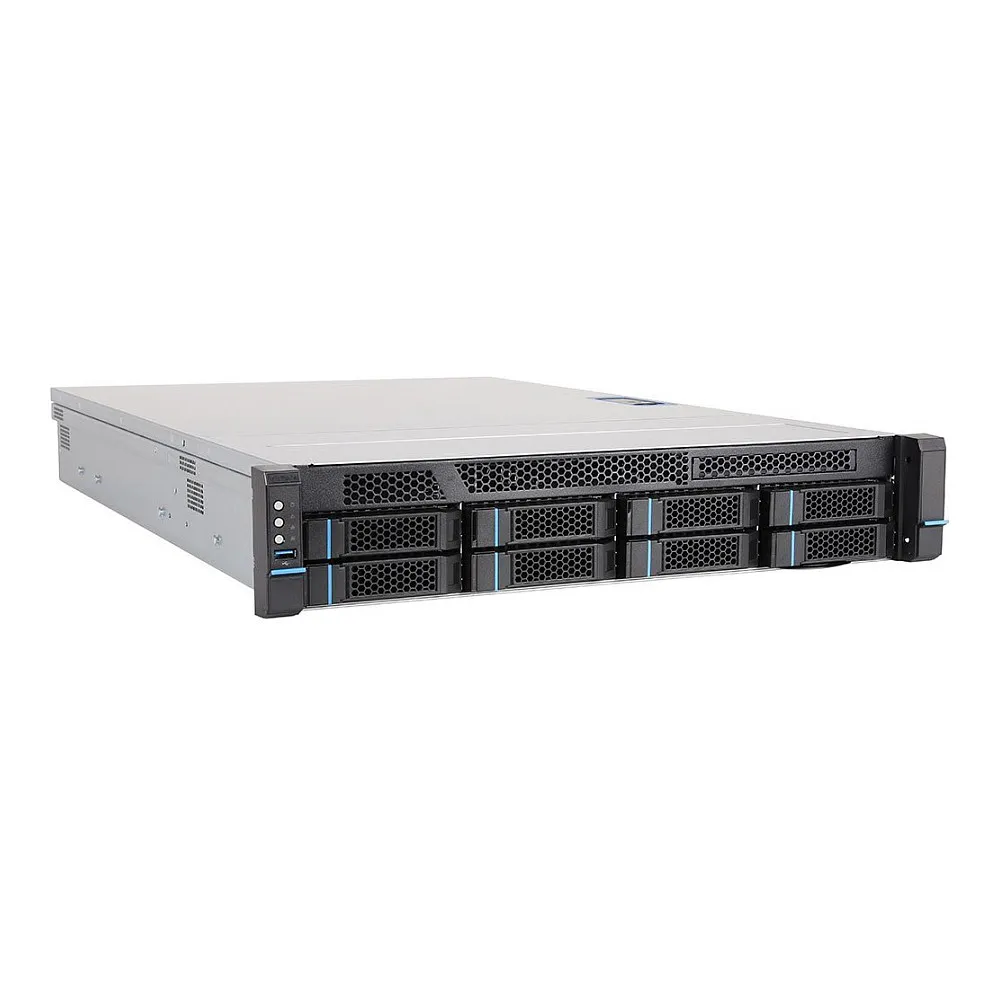

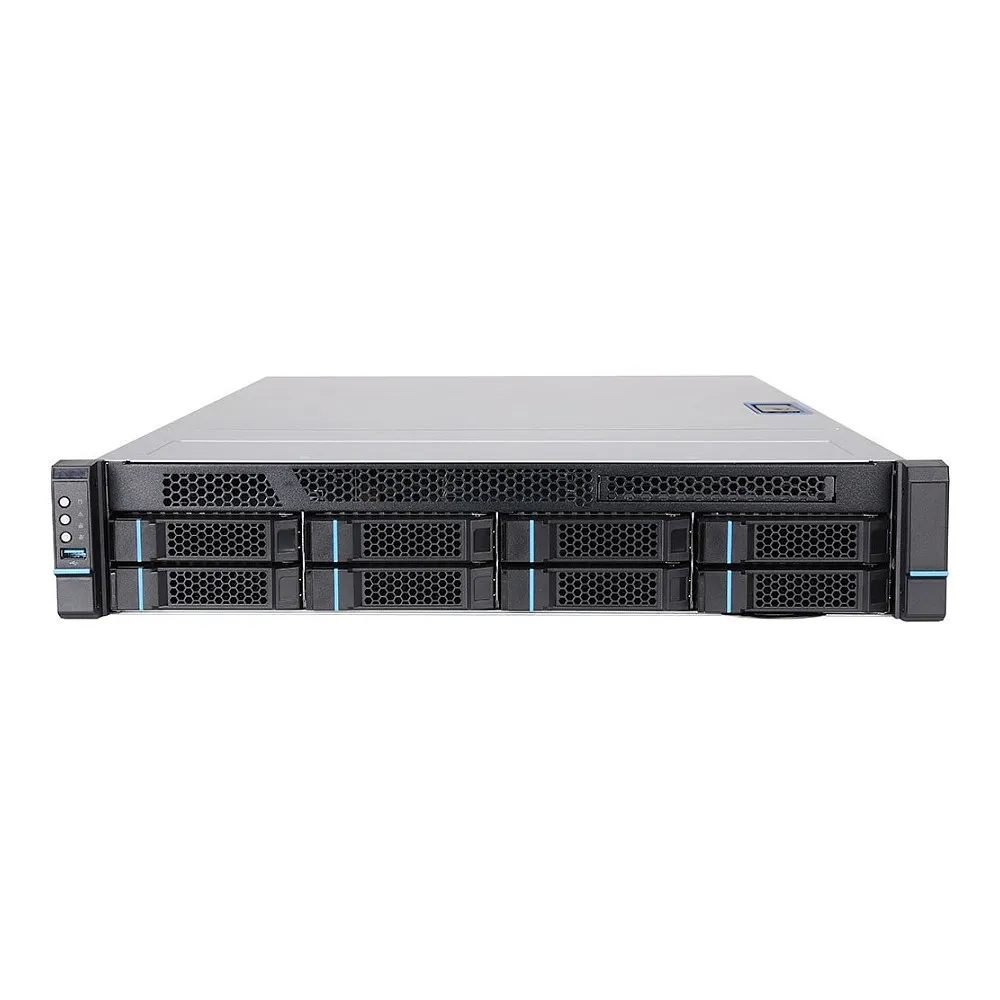

TERRA SERVER 3230 G6 6369P/64/2×1.9/C/RPSU. Processor family: Intel® Xeon®, Processor frequency: 3.3 GHz, Processor model: 6369P. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 3.84 TB. Ethernet LAN. Power supply: 800 W, Redundant power supply (RPS) support. Chassis type: Rack
Processor
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: 6369P
Processor frequency: 3.3 GHz
Processor boost frequency: 5.7 GHz
Performance cores: 8
Processor cores: 8
Processor cache: 24 MB
Motherboard chipset: Intel C266
Memory channels supported by processor: Dual
Number of processors installed: 1
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Memory
Internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Feature: ECC
Maximum internal memory: 128 GB
Storage
Total storage capacity: 3.84 TB
Number of SSDs installed: 2
SSD capacity: 3.84 TB
SSD interface: SATA III
Feature: RAID support
RAID levels: 1
Supported RAID controllers: Broadcom MegaRAID 9560-8i
Number of 5.25″ bays: 1
Optical drive type: No
Internal drive bays: 8x 3.5″/2.5″
Graphics
Feature: On-board graphics card
On-board graphics card family: Aspeed
On-board graphics card model: Aspeed AST2600
Maximum graphics card memory: 64 MB
Network
LAN controller: Intel X710-AT2
Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
VGA (D-Sub) ports quantity: 1
Expansion slots
PCI Express x8 (Gen 4.x) slots: 2
PCI Express x8 (Gen 5.x) slots: 1
Design
Chassis type: Rack
Cooling type: Active
Feature: Rack mounting
Performance
Remote administration: Ja
Software
Operating system installed: No
Compatible operating systems: Windows Server 2019¦
Power
Feature: Redundant power supply (RPS) support
Power supply: 800 W
Number of main power supplies: 2
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Operating relative humidity (H-H): 10 – 75%
Weight & dimensions
Width: 438 mm
Depth: 660 mm
Height: 87 mm
Technical details
Compliance certificates: CE
Other features
Motherboard manufacturer: Asus P13R-E/10G-2T
Memory type: 4x DDR5 PC4400, UB ECC
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: 6369P
Processor frequency: 3.3 GHz
Processor boost frequency: 5.7 GHz
Performance cores: 8
Processor cores: 8
Processor cache: 24 MB
Motherboard chipset: Intel C266
Memory channels supported by processor: Dual
Number of processors installed: 1
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Memory
Internal memory: 64 GB
Internal memory type: DDR5-SDRAM
Feature: ECC
Maximum internal memory: 128 GB
Storage
Total storage capacity: 3.84 TB
Number of SSDs installed: 2
SSD capacity: 3.84 TB
SSD interface: SATA III
Feature: RAID support
RAID levels: 1
Supported RAID controllers: Broadcom MegaRAID 9560-8i
Number of 5.25″ bays: 1
Optical drive type: No
Internal drive bays: 8x 3.5″/2.5″
Graphics
Feature: On-board graphics card
On-board graphics card family: Aspeed
On-board graphics card model: Aspeed AST2600
Maximum graphics card memory: 64 MB
Network
LAN controller: Intel X710-AT2
Feature: Ethernet LAN
Ethernet interface type: 10 Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
VGA (D-Sub) ports quantity: 1
Expansion slots
PCI Express x8 (Gen 4.x) slots: 2
PCI Express x8 (Gen 5.x) slots: 1
Design
Chassis type: Rack
Cooling type: Active
Feature: Rack mounting
Performance
Remote administration: Ja
Software
Operating system installed: No
Compatible operating systems: Windows Server 2019¦
Power
Feature: Redundant power supply (RPS) support
Power supply: 800 W
Number of main power supplies: 2
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Operating relative humidity (H-H): 10 – 75%
Weight & dimensions
Width: 438 mm
Depth: 660 mm
Height: 87 mm
Technical details
Compliance certificates: CE
Other features
Motherboard manufacturer: Asus P13R-E/10G-2T
Memory type: 4x DDR5 PC4400, UB ECC
