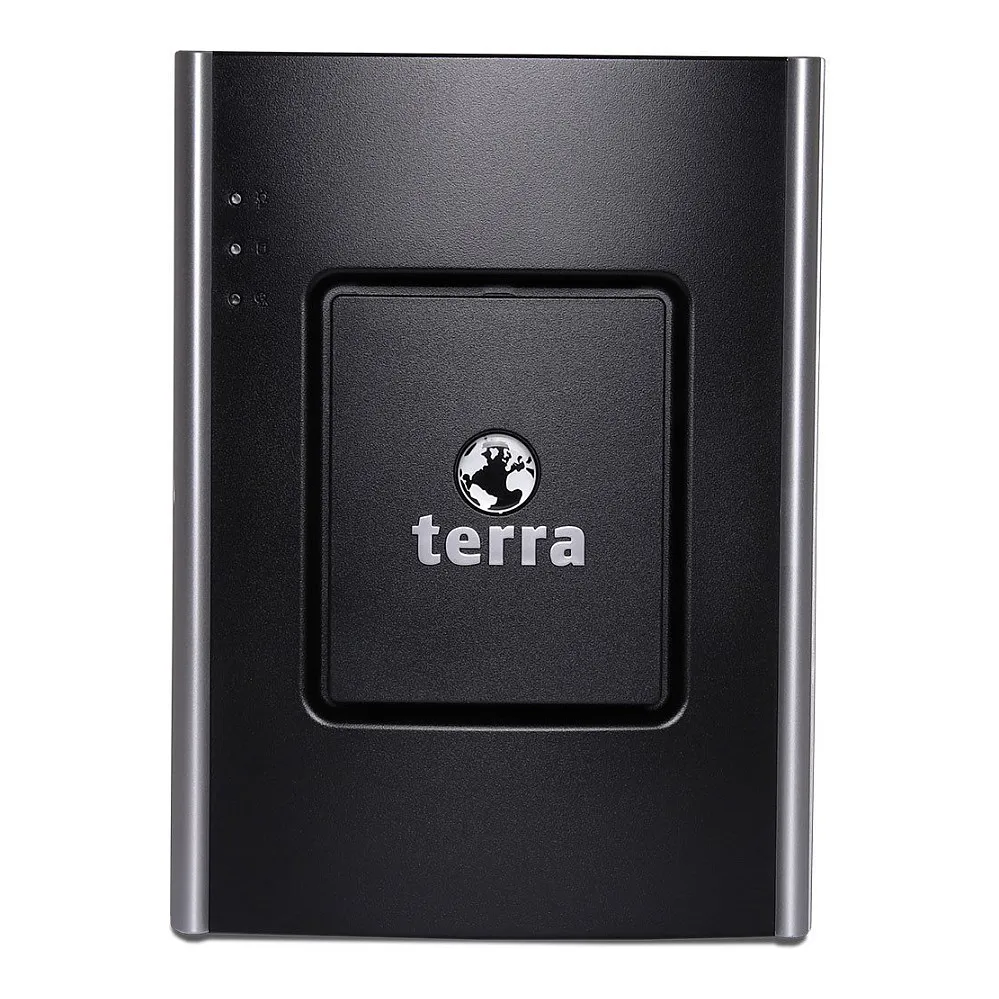

TERRA 1100373. Processor family: Intel® Xeon®, Processor frequency: 3.4 GHz, Processor model: E-2434. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1.92 TB. Ethernet LAN. Power supply: 450 W. Chassis type: Mini Tower
Processor
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: E-2434
Processor frequency: 3.4 GHz
Processor boost frequency: 5 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Motherboard chipset: Intel C262
Memory channels supported by processor: Dual
Number of processors installed: 1
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Memory
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x DIMM
Feature: ECC
Maximum internal memory: 64 GB
Storage
Total storage capacity: 1.92 TB
Supported HDD sizes: 2.5,3.5″
Number of SSDs installed: 2
SSD capacity: 960 GB
SSD interface: SATA III
Supported SSD sizes: 2.5″, 3.5″
Feature: RAID support
RAID levels: 1
Supported RAID controllers: Onboard-Controller
Feature: Hot-swap
Optical drive type: No

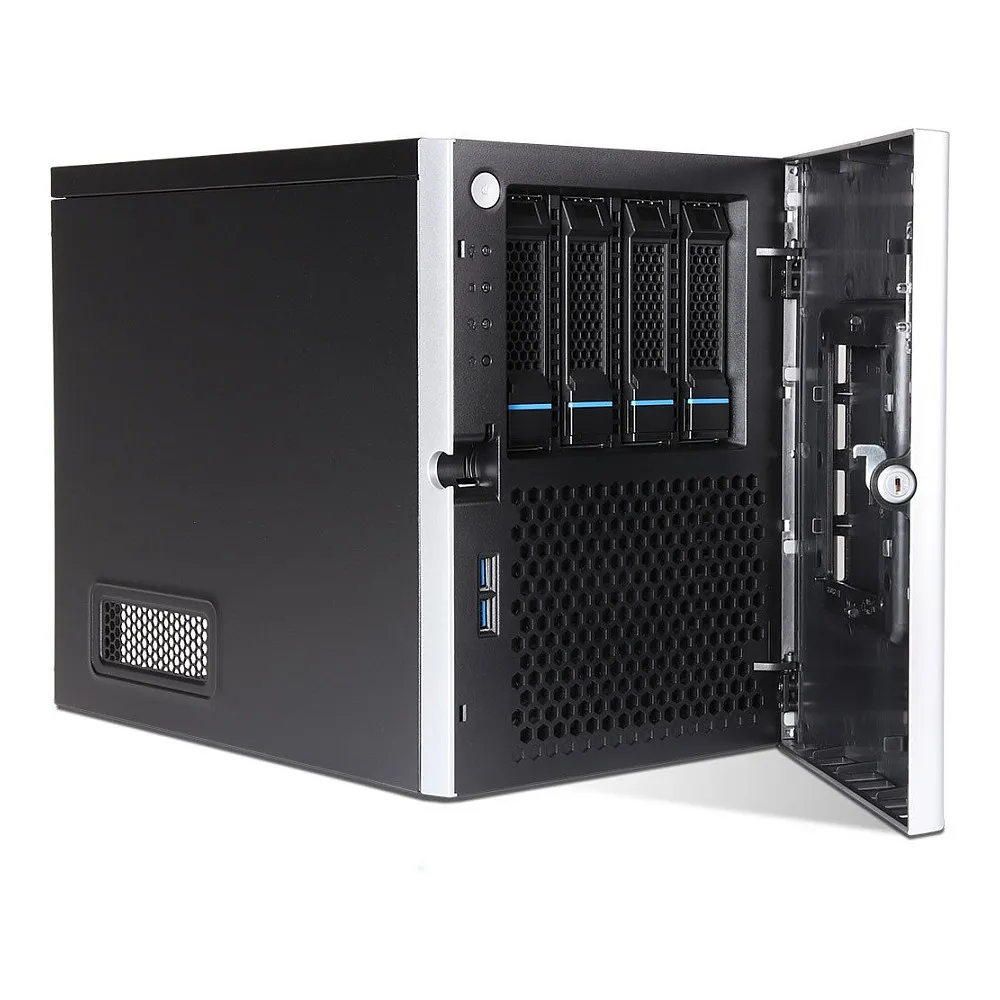

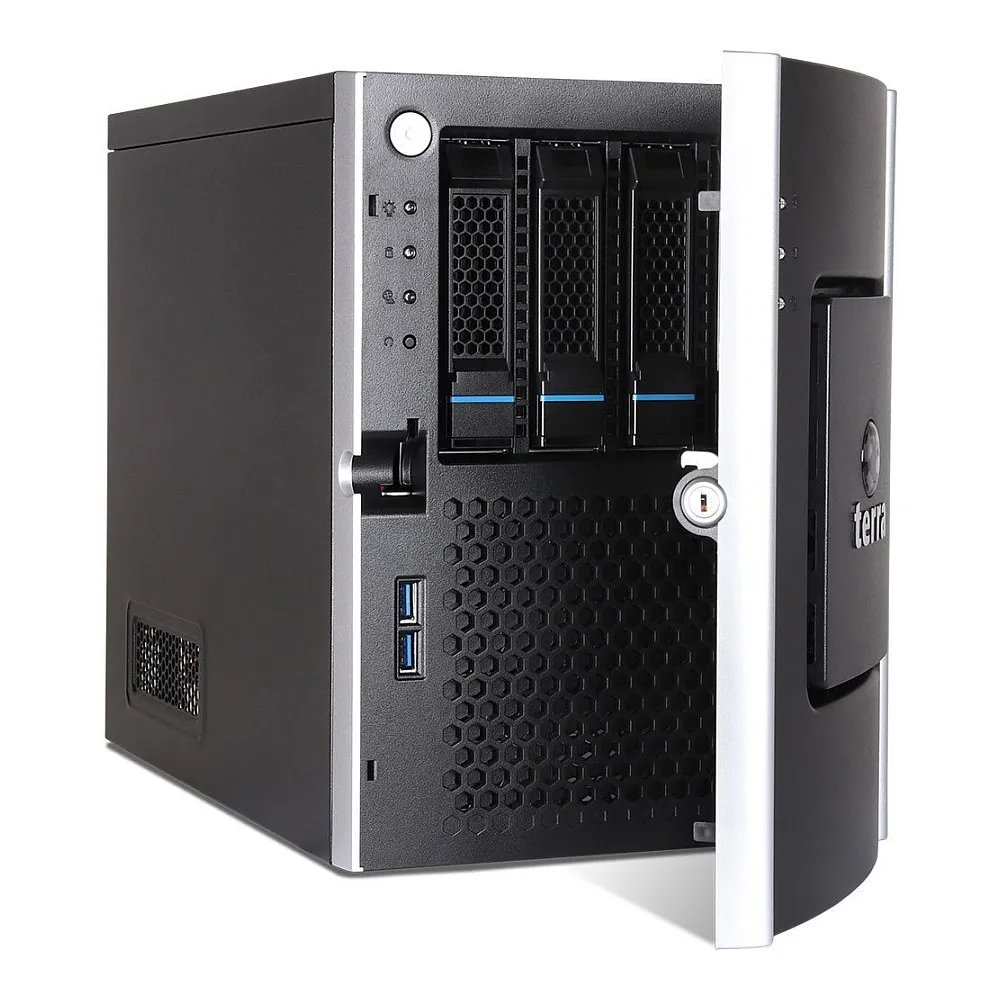

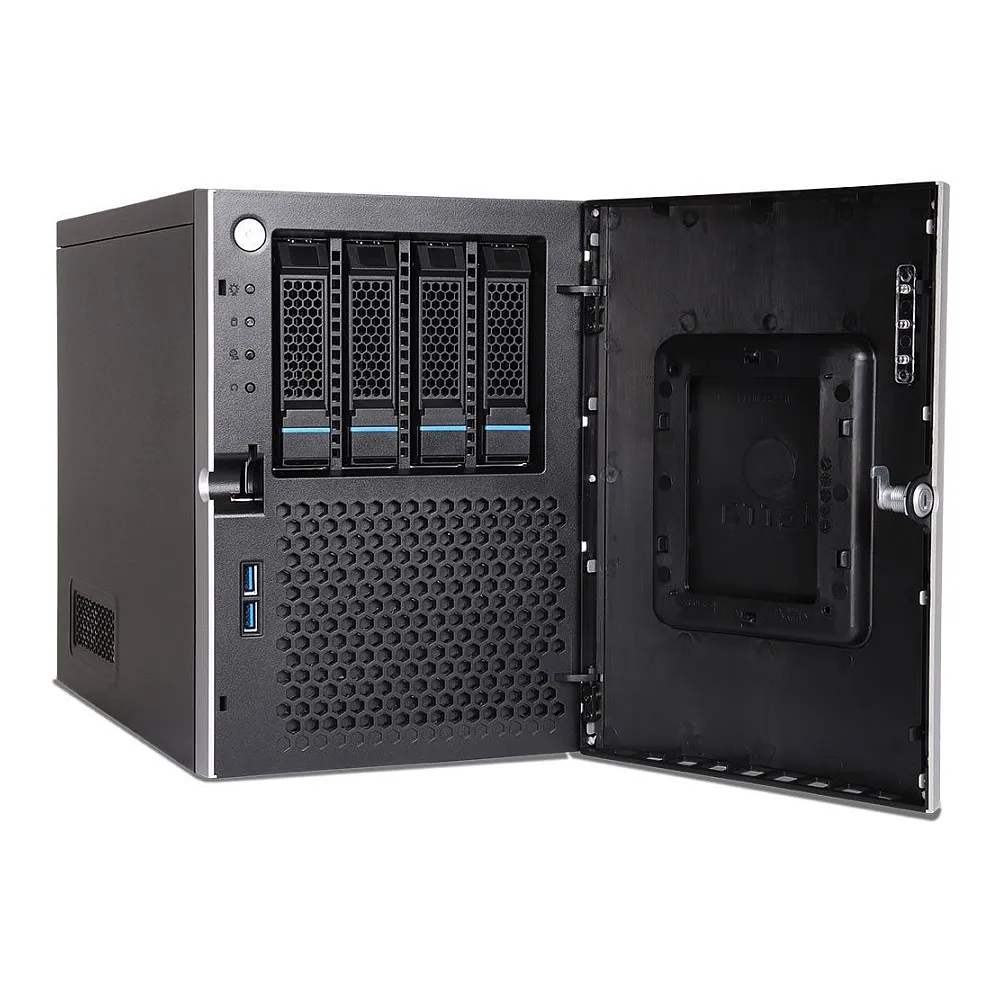

Internal drive bays: 4x 3.5″/2.5″ (HotSwap-fähig) ¦ 2x 2.5″ (für Festeinbau von SSDs)
Graphics
Feature: On-board graphics card
On-board graphics card family: Aspeed
On-board graphics card model: Aspeed AST2600
Maximum graphics card memory: 64 MB
Network
LAN controller: Intel I210-AT2
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
Total number of SATA connectors: 6
Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Design

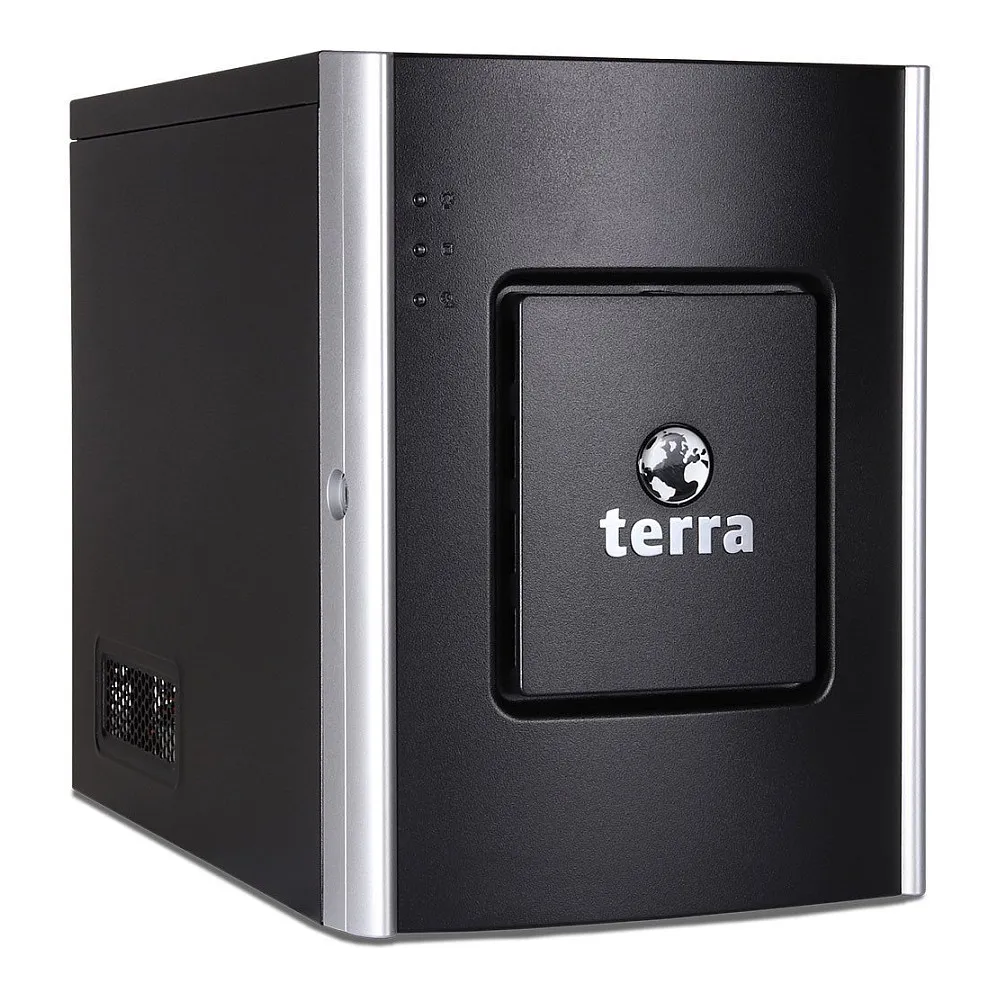

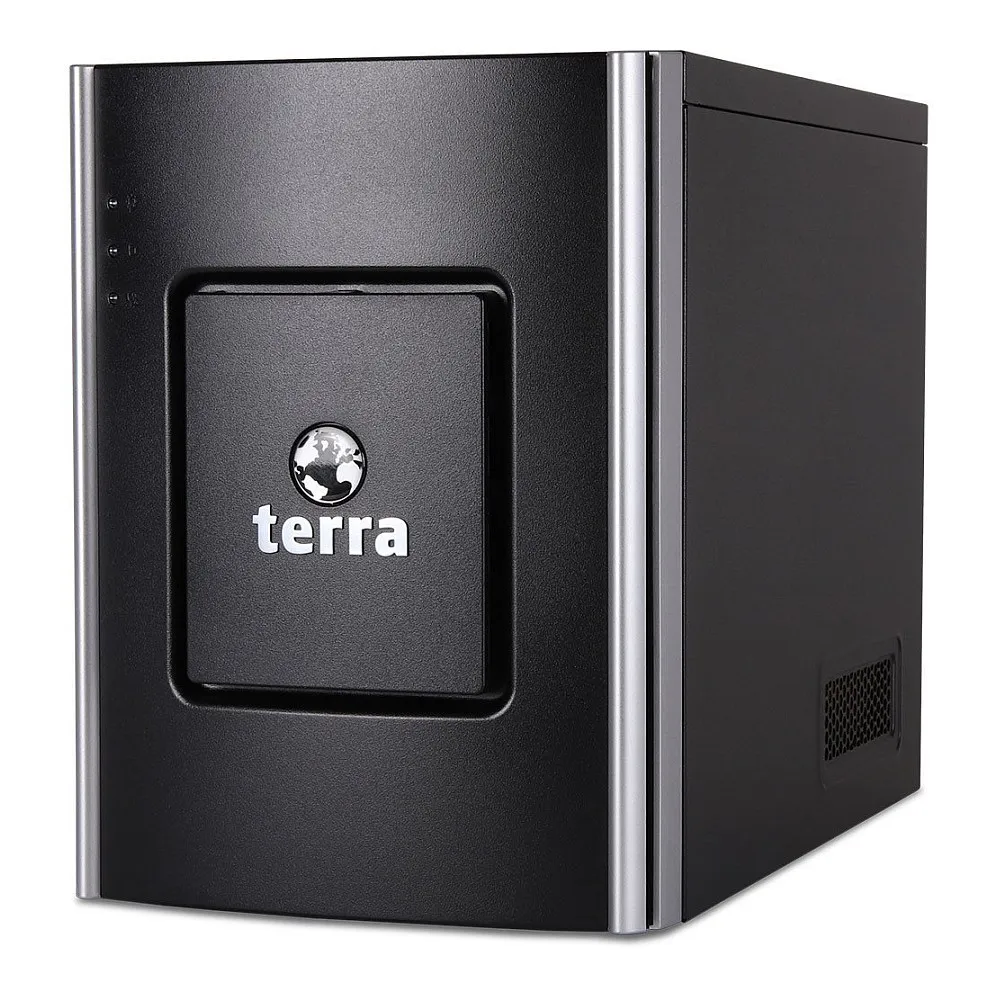

Chassis type: Mini Tower
Product colour: Black
Cooling type: Active
Performance
Remote administration: Ja
Feature: Trusted Platform Module (TPM)
Software
Operating system installed: No
Compatible operating systems: Windows Server 2019¦
Operating system language: Multilingual
Power
Power supply: 450 W
Number of main power supplies: 1
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Operating relative humidity (H-H): 10 – 75%
Weight & dimensions
Width: 200 mm
Depth: 340 mm
Height: 270 mm
Technical details
Compliance certificates: CE
Other features
Motherboard manufacturer: Asus P13R-I
Memory type: 2x DDR5 PC4800, UB ECC
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: E-2434
Processor frequency: 3.4 GHz
Processor boost frequency: 5 GHz
Performance cores: 4
Processor cores: 4
Processor cache: 12 MB
Motherboard chipset: Intel C262
Memory channels supported by processor: Dual
Number of processors installed: 1
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Memory
Internal memory: 32 GB
Internal memory type: DDR5-SDRAM
Memory slots: 2x DIMM
Feature: ECC
Maximum internal memory: 64 GB
Storage
Total storage capacity: 1.92 TB
Supported HDD sizes: 2.5,3.5″
Number of SSDs installed: 2
SSD capacity: 960 GB
SSD interface: SATA III
Supported SSD sizes: 2.5″, 3.5″
Feature: RAID support
RAID levels: 1
Supported RAID controllers: Onboard-Controller
Feature: Hot-swap
Optical drive type: No
Internal drive bays: 4x 3.5″/2.5″ (HotSwap-fähig) ¦ 2x 2.5″ (für Festeinbau von SSDs)
Graphics
Feature: On-board graphics card
On-board graphics card family: Aspeed
On-board graphics card model: Aspeed AST2600
Maximum graphics card memory: 64 MB
Network
LAN controller: Intel I210-AT2
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
Total number of SATA connectors: 6
Expansion slots
PCI Express x16 (Gen 5.x) slots: 1
Design
Chassis type: Mini Tower
Product colour: Black
Cooling type: Active
Performance
Remote administration: Ja
Feature: Trusted Platform Module (TPM)
Software
Operating system installed: No
Compatible operating systems: Windows Server 2019¦
Operating system language: Multilingual
Power
Power supply: 450 W
Number of main power supplies: 1
Power supply input voltage: 100 – 240 V
Power supply input frequency: 50/60 Hz
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Operating relative humidity (H-H): 10 – 75%
Weight & dimensions
Width: 200 mm
Depth: 340 mm
Height: 270 mm
Technical details
Compliance certificates: CE
Other features
Motherboard manufacturer: Asus P13R-I
Memory type: 2x DDR5 PC4800, UB ECC
