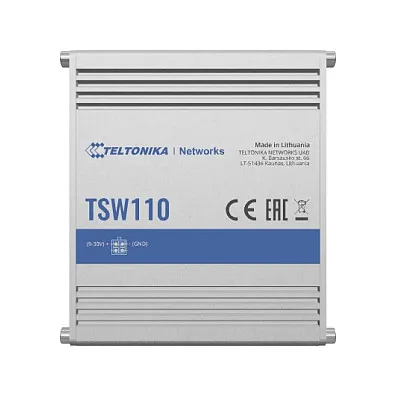

Teltonika TSW110. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 30 V. Power over Ethernet (PoE)
PLUG-N-PLAY
No additional configuration needed
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
STATUS LEDS
1 x Power, 10 x Ethernet
9-30 V
Wide range of supported power supply voltages
GIGABIT ETH
5 x Gigabit Ethernet with speeds up to 1000 Mbps
Management features
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 0.128 MB
Design
Product colour: Blue, Grey
Housing material: Aluminium
LED indicators: Yes
International Protection (IP) code: IP30
Feature: DIN rail mounting
Power
Feature: Power supply included
AC input voltage: 100 – 240 V
DC input voltage: 30 V
Power consumption (typical): 1.8 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 100 mm
Depth: 85 mm
Height: 30 mm
Weight: 227 g
Packaging content
Feature: Quick start guide
Packaging data
Package type: Box
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 0.128 MB
Design
Product colour: Blue, Grey
Housing material: Aluminium
LED indicators: Yes
International Protection (IP) code: IP30
Feature: DIN rail mounting
Power
Feature: Power supply included
AC input voltage: 100 – 240 V
DC input voltage: 30 V
Power consumption (typical): 1.8 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 100 mm
Depth: 85 mm
Height: 30 mm
Weight: 227 g
Packaging content
Feature: Quick start guide
Packaging data
Package type: Box
