Teltonika TSF000. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3p, IEEE 802.3q, IEEE 802.3af, IEEE…. DC input voltage: 7 – 57 V. Power over Ethernet (PoE). Form factor: Desktop

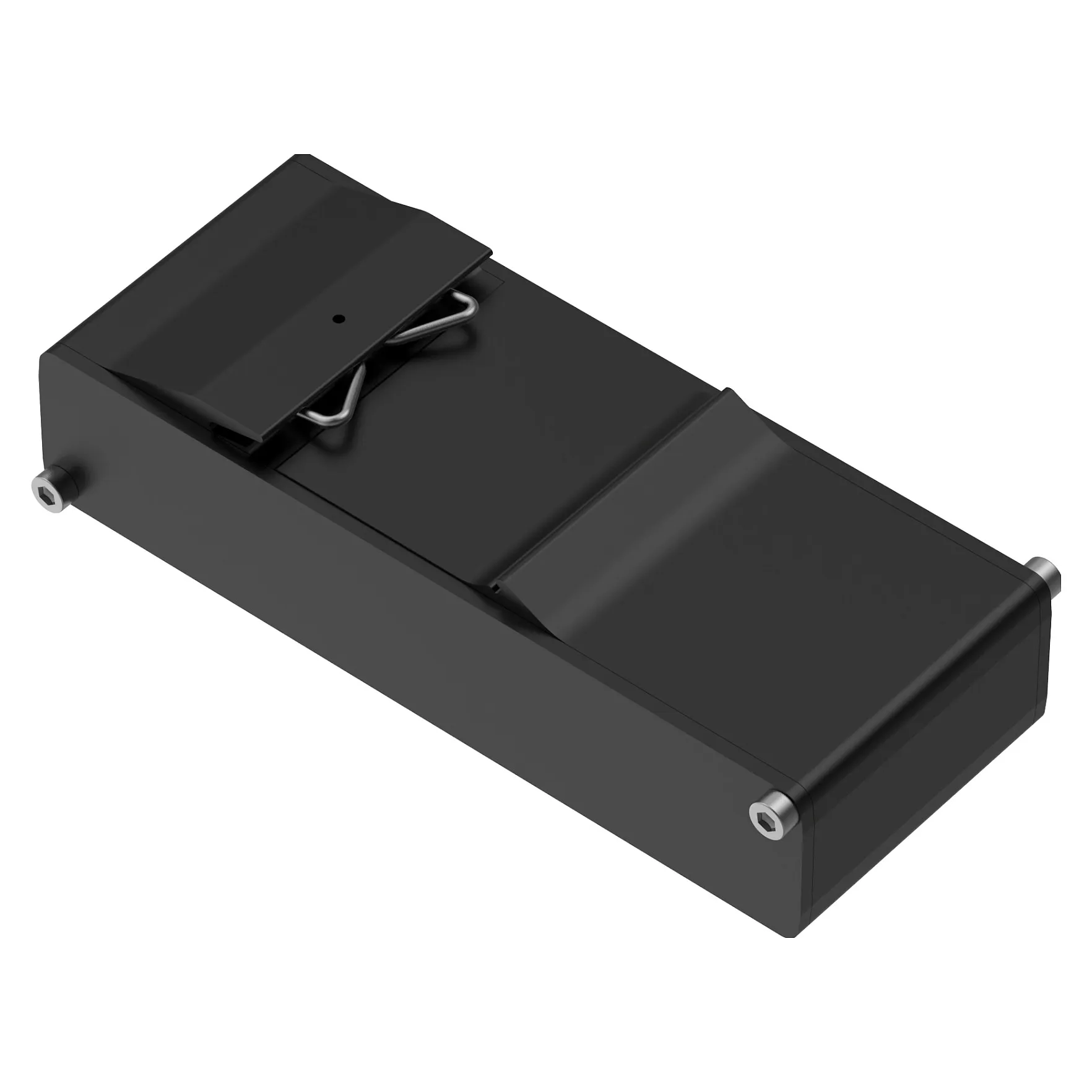

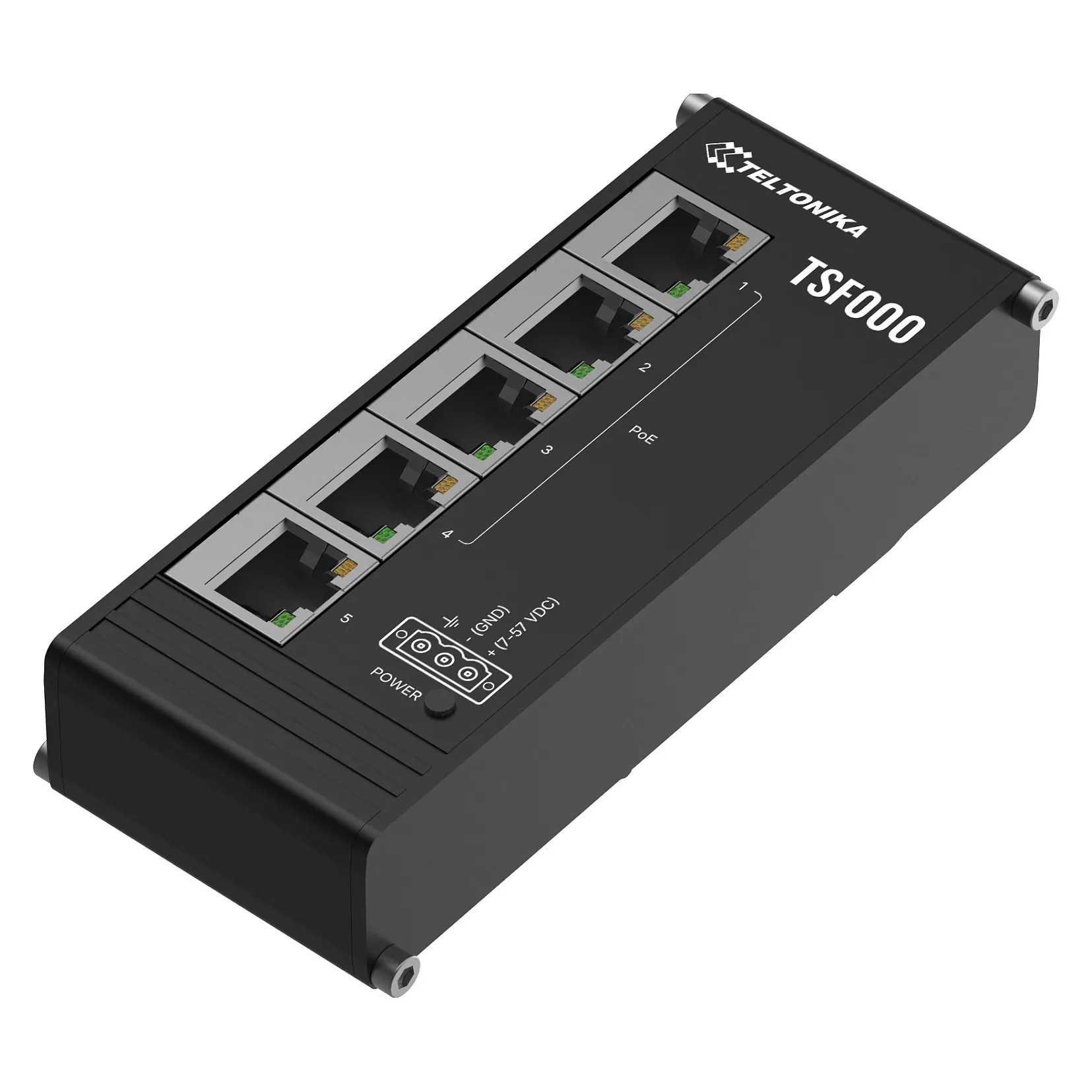

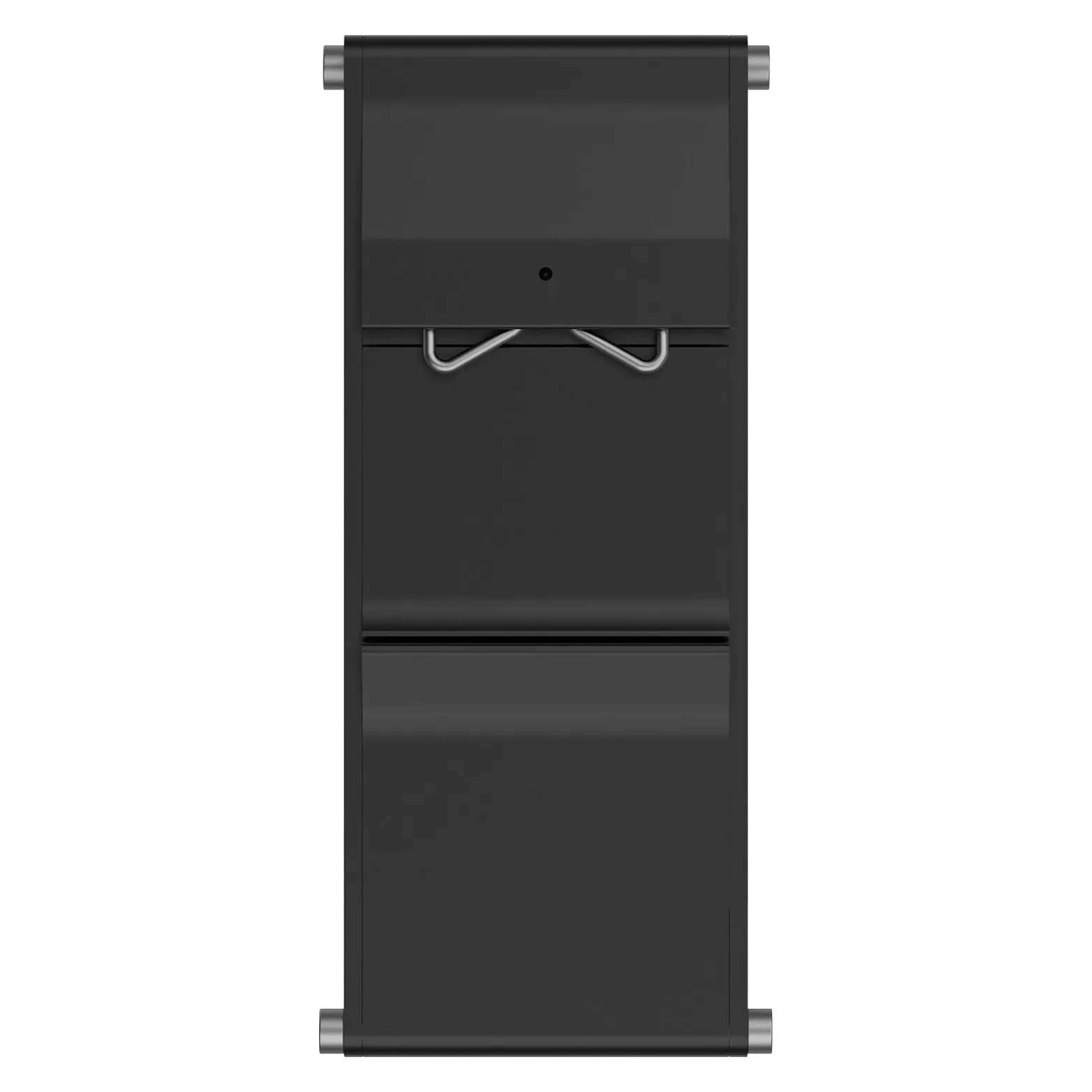

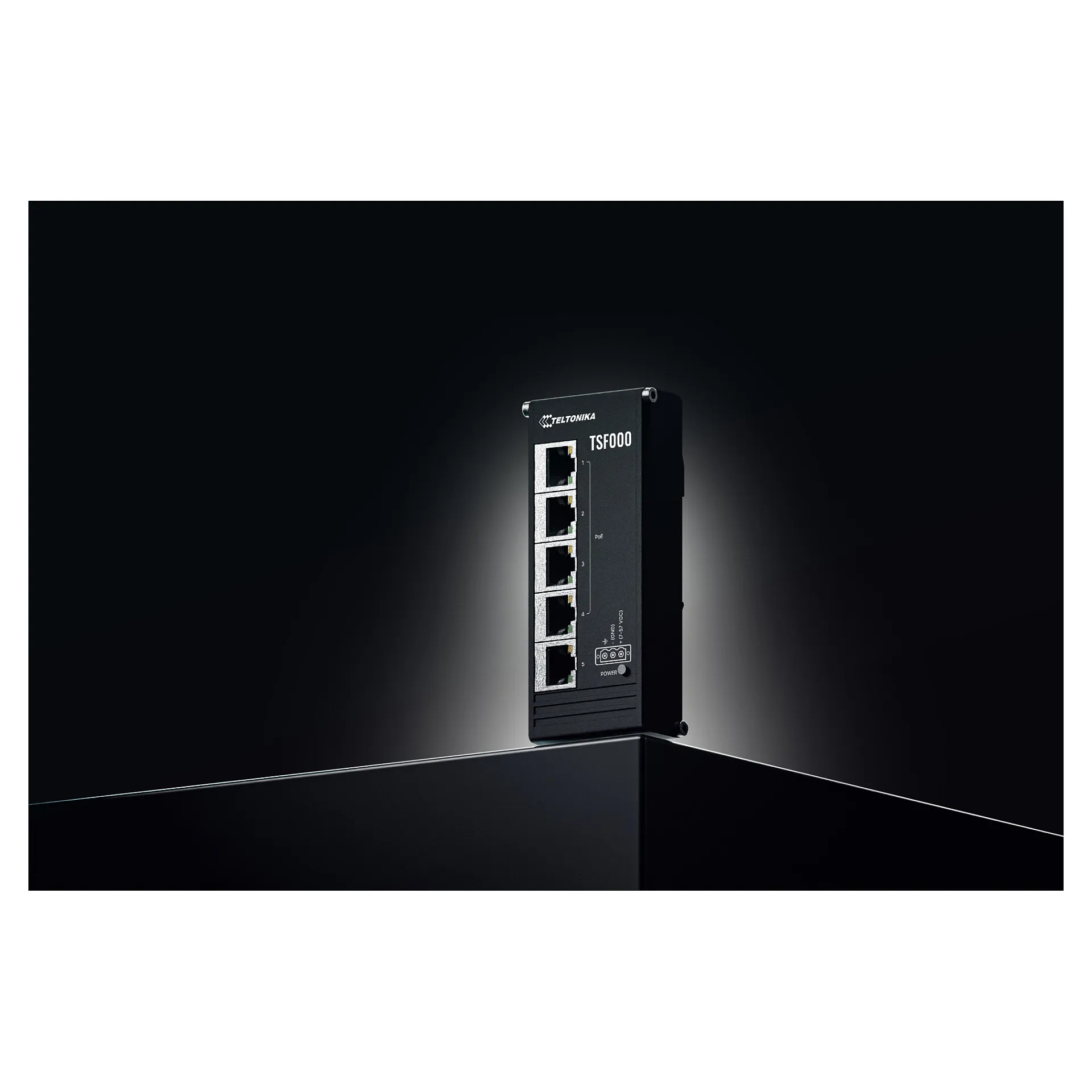

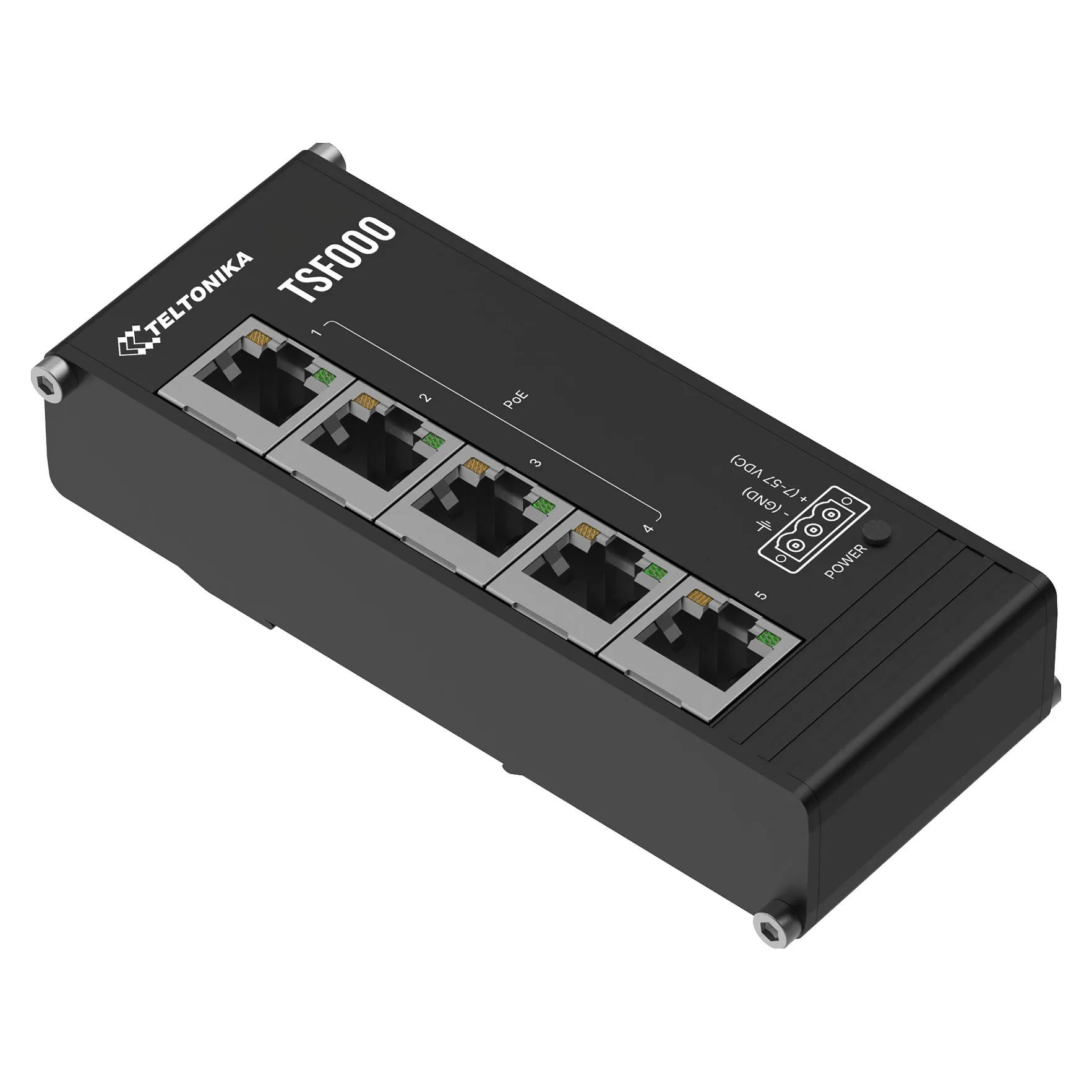

The TSF000 is a compact unmanaged Ethernet switch designed for tight industrial spaces. It features 4× PoE+ outputs with a 120 W power budget, a low-profile housing, DIN rail mount, and 5 x Ethernet ports for stable, reliable industrial connectivity. With a flexible 7 – 57 VDC power input, this switch simplifies powering and linking multiple devices in IoT automation, office spaces, and surveillance systems.
Management features
Switch type: Unmanaged
Ports & interfaces

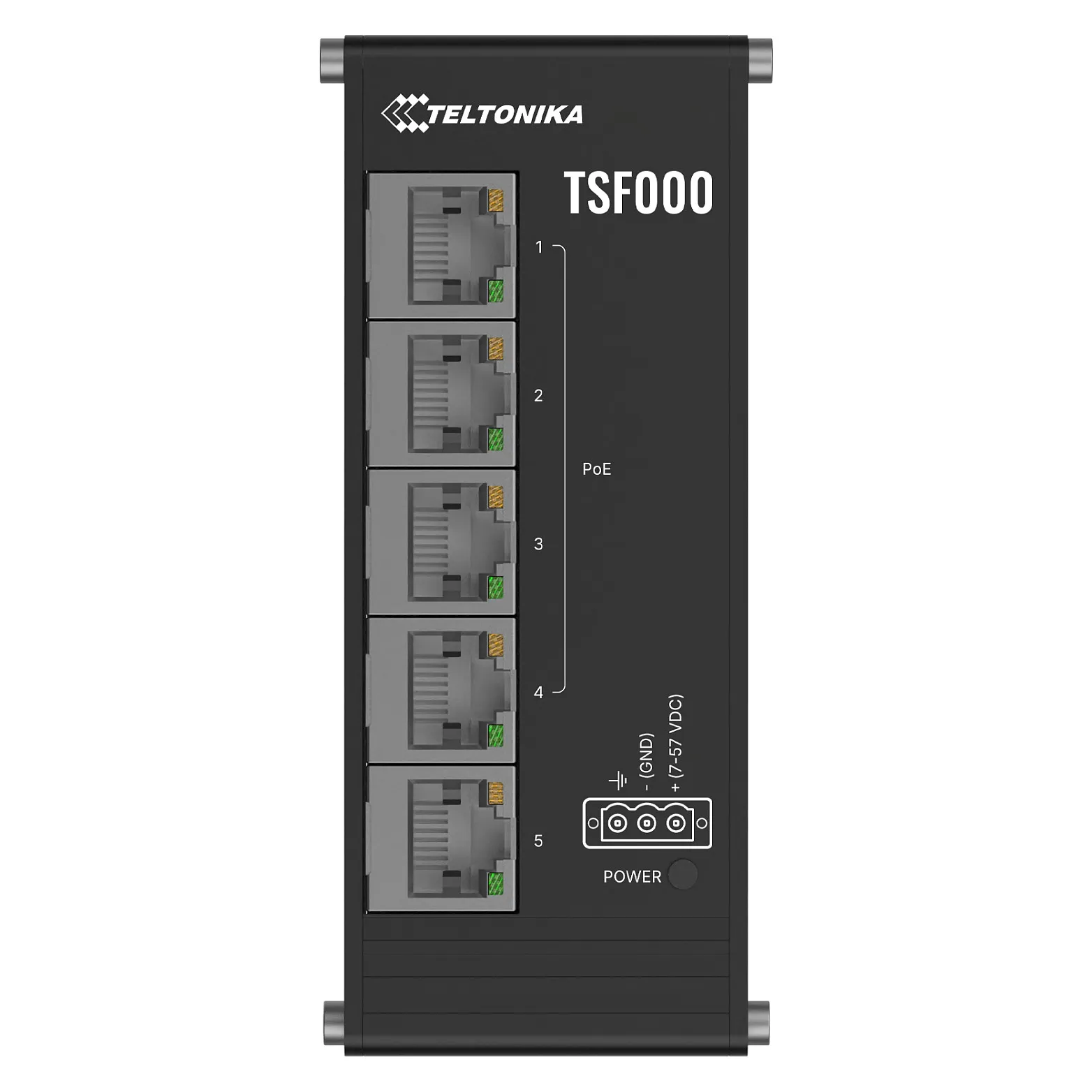

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Network
Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3p, IEEE 802.3q, IEEE 802.3af, IEEE 802.3at
Feature: 10G support
Data transmission
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9216
Packet buffer memory: 0.128 MB
Design
Form factor: Desktop
Product colour: Black
Housing material: Aluminium
LED indicators: Power, Status
International Protection (IP) code: IP30
Power
Power source: DC/PoE

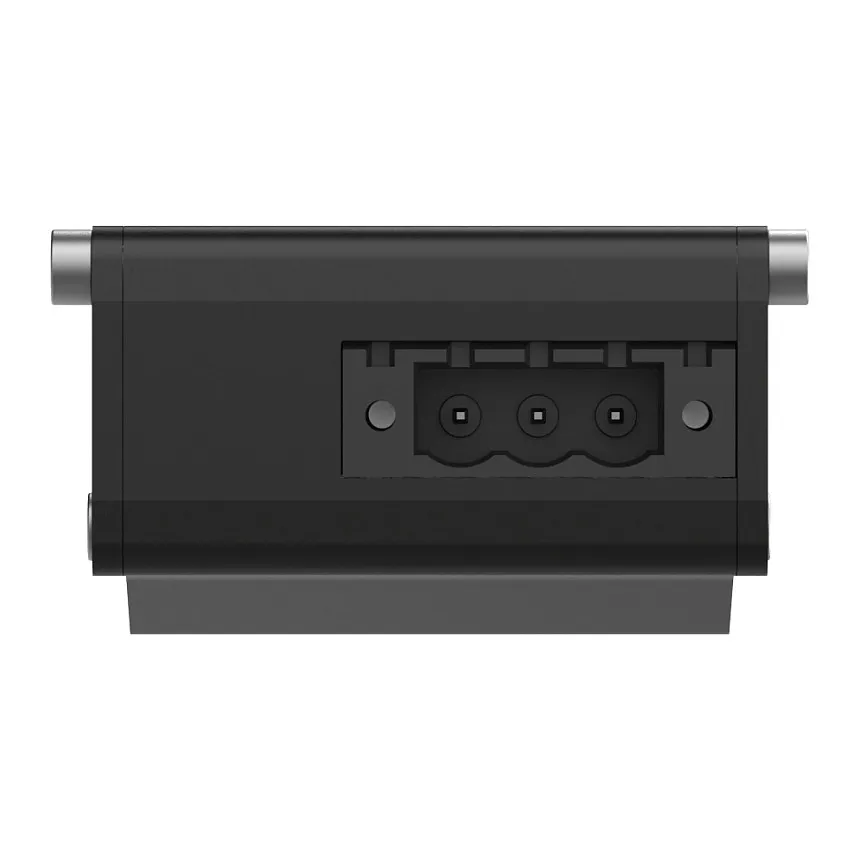

DC input voltage: 7 – 57 V
Power consumption (typical): 1 W
Power consumption (max): 1.5 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 113 mm
Depth: 50 mm
Height: 28 mm
Weight: 142 g
Certificates
Certification: CE, UKCA, RCM, CB, FCC, IC, WEEE
