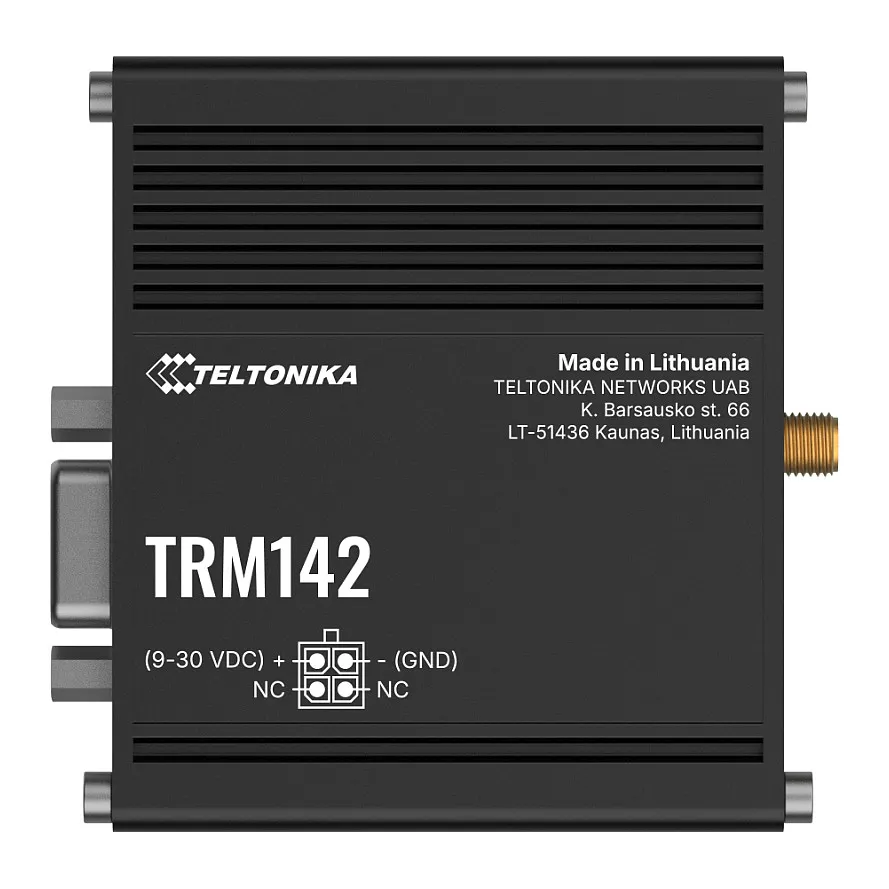

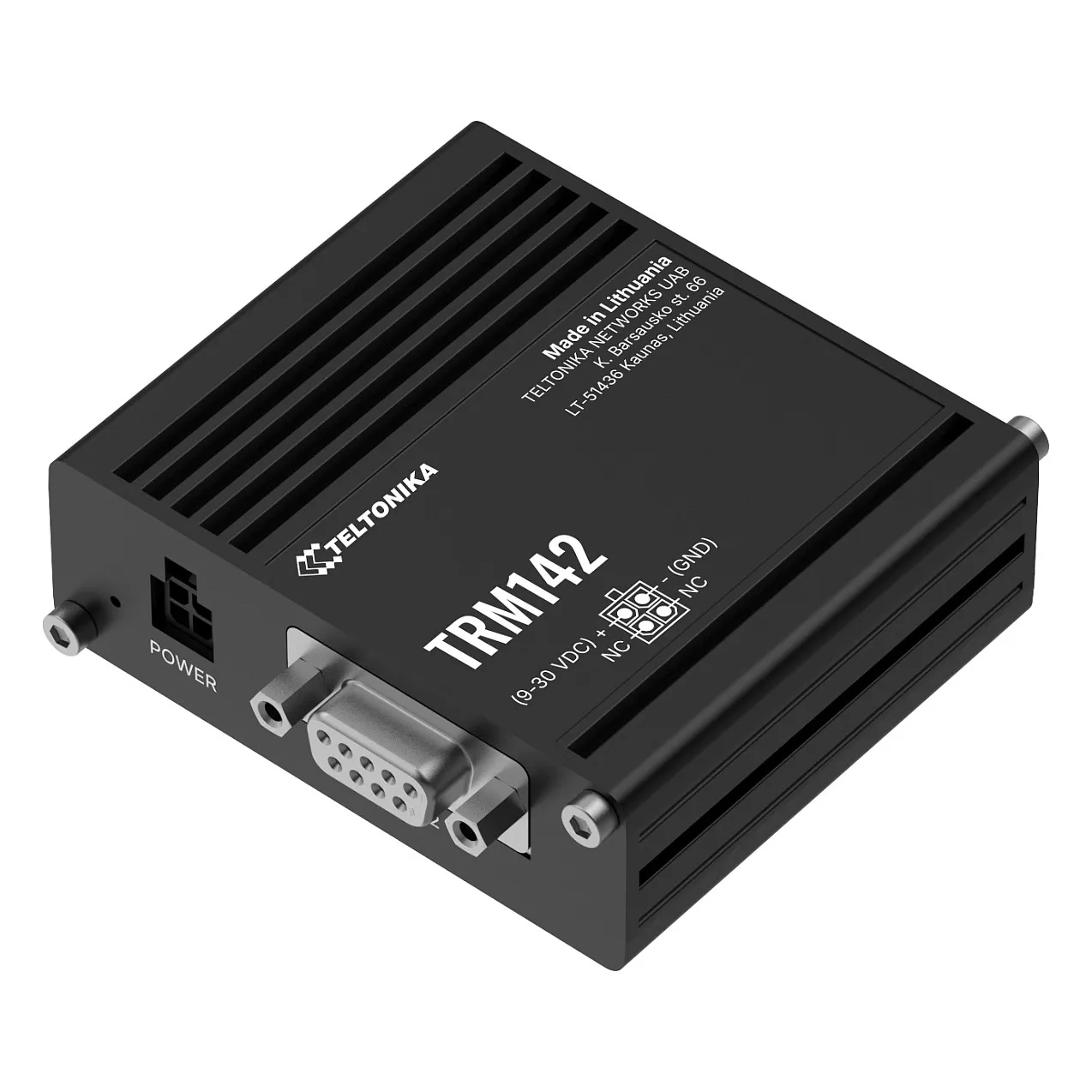

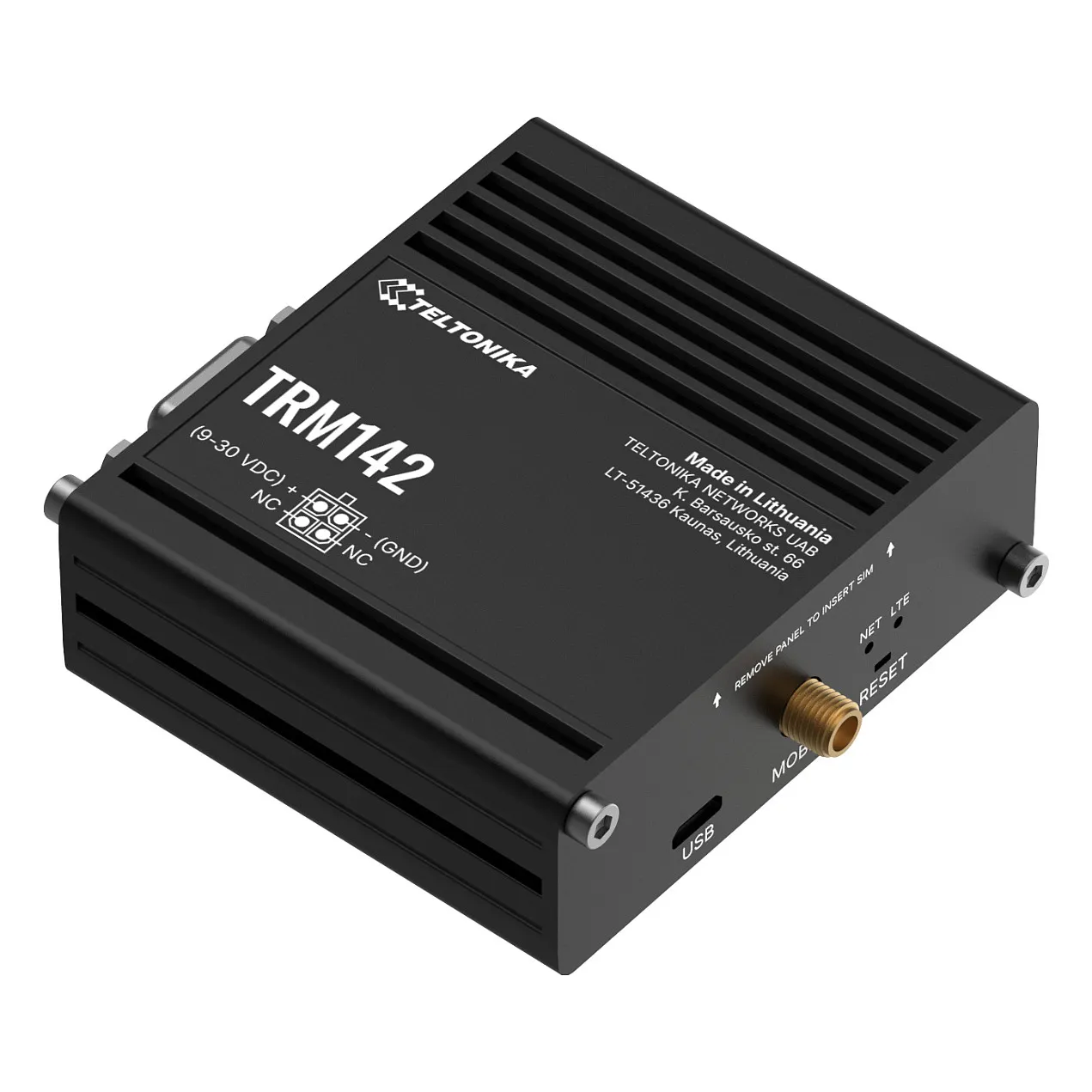

Teltonika TRM142. Device type: Cellular network modem, Product colour: Black, Housing material: Aluminium. Data network: 2G, 3G, 4G, 2G standards: Edge, GPRS, 3G standards: HSPA+, HSUPA, WCDMA. USB port type: Micro-USB B, Serial interface type: DB9, RS-232. Compliance certificates: CB, CE, EAC, RCM, UKCA, WEEE. Packaging content: 1x Mobile antenna (swivel, SMA male) Micro-USB cable (0.8 m) 1x hex key QSG (Quick Start Guide)
The TRM142 is a compact industrial modem designed to upgrade legacy equipment with 4G network. Equipped with LTE Cat 4 connectivity, it ensures efficient and reliable data transfer for critical applications. The device is designed to modernise and provide 4G LTE communication for legacy devices such as alarm systems, legacy controllers and similar equipment which uses serial interfaces for external communication.
Device type: Cellular network modem
Product colour: Black
Housing material: Aluminium
Mounting: DIN-rail/Wall mounting
Market positioning: Industrial
Feature: Reset button
LED indicators: Network, Power
Mobile network
Data network: 2G, 3G, 4G
2G standards: Edge, GPRS
3G standards: HSPA+, HSUPA, WCDMA
4G standard: LTE-TDD & LTE-FDD
Number of SIM cards: 1
SIM card type: MiniSIM
Ports & interfaces

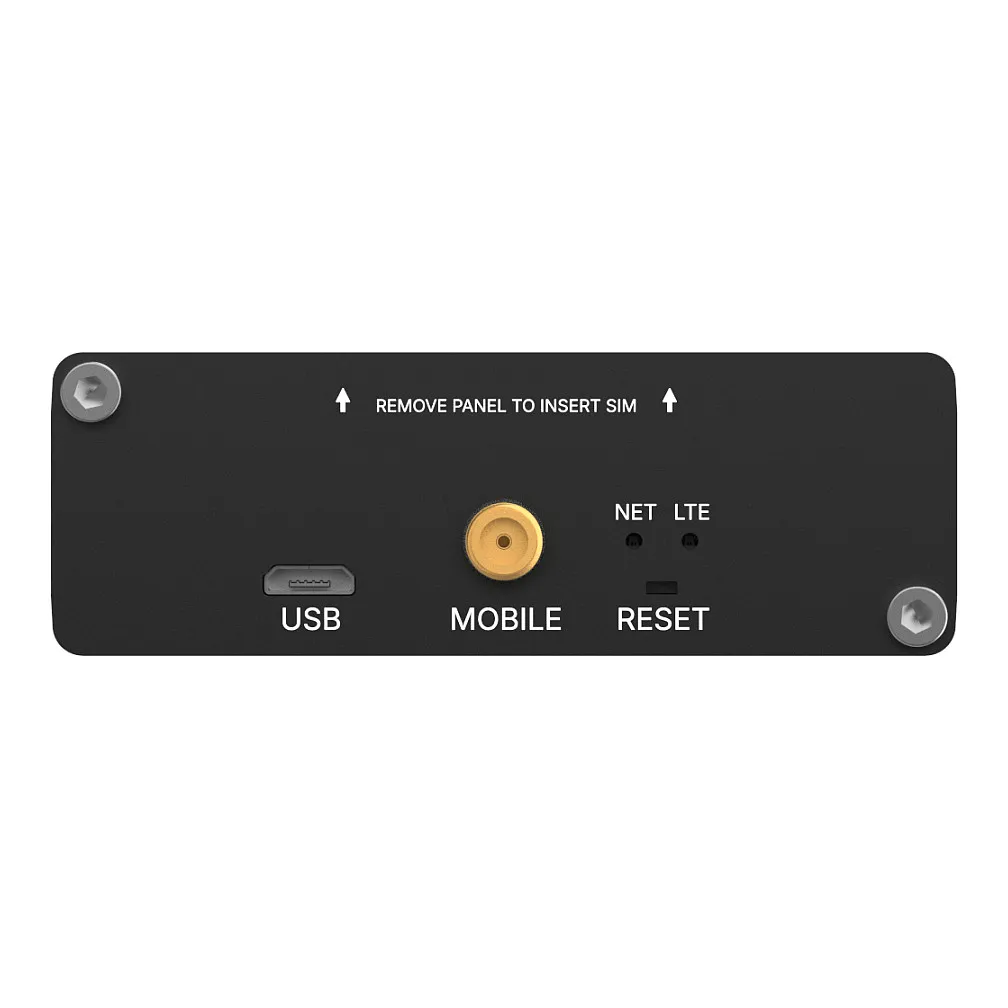

USB port type: Micro-USB B
Feature: USB port

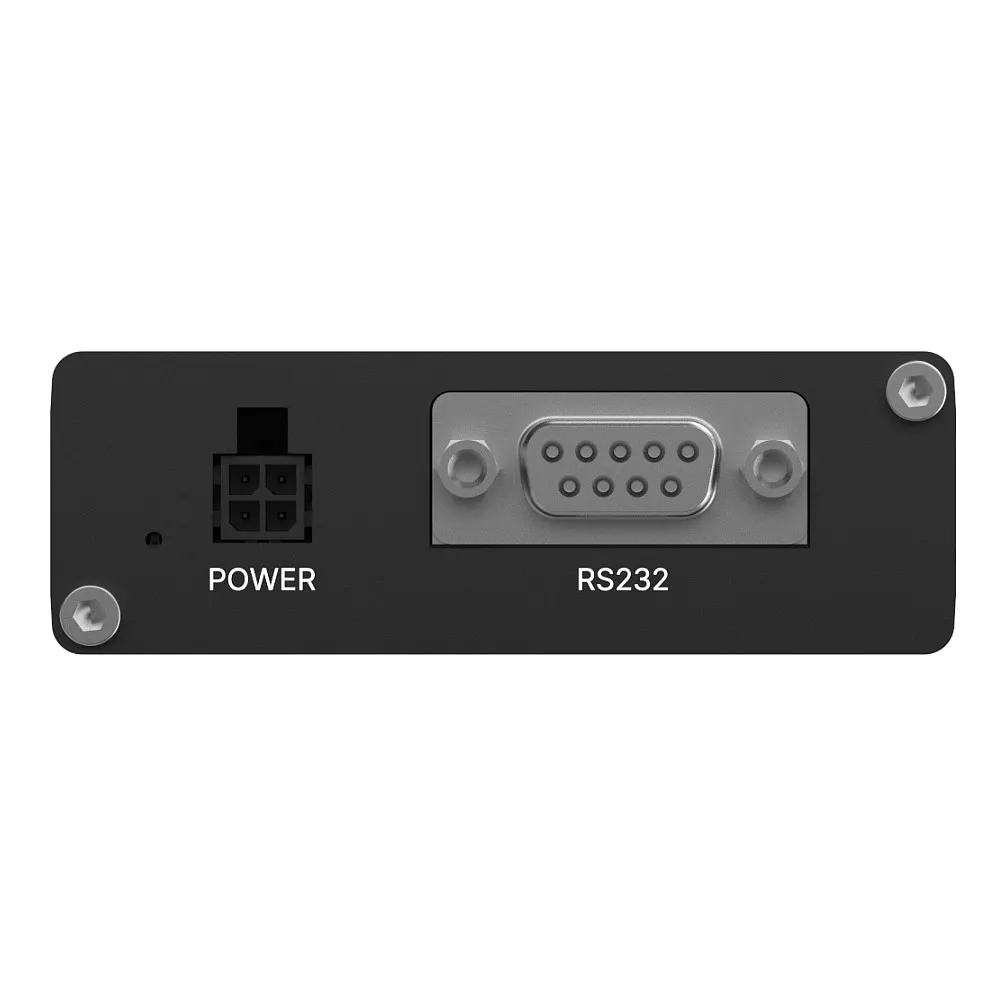

Serial interface type: DB9, RS-232
Serial ports quantity: 1
Certificates
Compliance certificates: CB, CE, EAC, RCM, UKCA, WEEE
Packaging content
Packaging content: 1x Mobile antenna (swivel, SMA male)Micro-USB cable (0.8 m)1x hex keyQSG (Quick Start Guide)
Performance
Antenna connector type: SMA
Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Power
Power source type: DC
Input voltage: 9 – 30 V
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 75.9 mm
Depth: 74.5 mm
Height: 25 mm
Weight: 135 g
Logistics data
Country of origin: Lithuania
