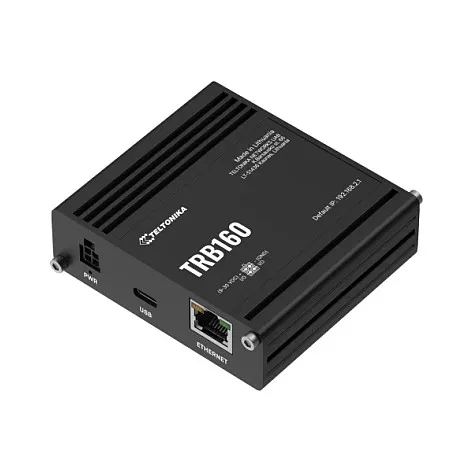

Teltonika TRB160 4G LTE Cat6 IoT-Gateway. Product colour: Steel, Enclosure material: Aluminium, International Protection (IP) code: IP30. Antenna type: External, Antenna connector type: SMA. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor model: Cortex-A7. Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP,…, Data link protocols: HTTP(S), MQTT, Azure MQTT, Kinesis. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, Mobile network generation: 4G
The TRB160 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE Cat 6, Gigabit Ethernet, and a virtual network interface via USB Type-C for simultaneous powering and network data provision. This IoT gateway can reach cellular speeds of up to 300 Mbps with carrier aggregation in a broad range of applications and supports a wide range of industrial-grade protocols for M2M communication.
Design
Product colour: Steel
Enclosure material: Aluminium
International Protection (IP) code: IP30
Enclosure International Protection (IP) code: IP30
Features
Antenna type: External
Antenna connector type: SMA
Antennas quantity: 1
Feature: Short Message Service (SMS)
Performance
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A7
Processor frequency: 1200 MHz
Internal memory: 128 MB
Flash memory: 256 MB
Protocols
Data link protocols: HTTP(S), MQTT, Azure MQTT, Kinesis
Feature: DMZ support
Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
4G LTE category: 4
Mobile network generation: 4G
Data network: 3G, 4G
Cabling technology: 10/100/1000Base-T(X)
Feature: Dynamic DNS (DDNS)
Security
Firewall security: Yes
Feature: VLAN support
Feature: Network address translation (NAT)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Management features
Feature: Quality of Service (QoS) support
Power
Power consumption (max): 3.3 W
Input voltage: 5 V
Feature: Power over Ethernet (PoE)
DC input voltage: 9 – 30 V
Weight & dimensions
Width: 74.2 mm
Depth: 83 mm
Height: 25 mm
Weight: 172 g
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Product colour: Steel
Enclosure material: Aluminium
International Protection (IP) code: IP30
Enclosure International Protection (IP) code: IP30
Features
Antenna type: External
Antenna connector type: SMA
Antennas quantity: 1
Feature: Short Message Service (SMS)
Performance
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A7
Processor frequency: 1200 MHz
Internal memory: 128 MB
Flash memory: 256 MB
Protocols
Data link protocols: HTTP(S), MQTT, Azure MQTT, Kinesis
Feature: DMZ support
Network
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
4G LTE category: 4
Mobile network generation: 4G
Data network: 3G, 4G
Cabling technology: 10/100/1000Base-T(X)
Feature: Dynamic DNS (DDNS)
Security
Firewall security: Yes
Feature: VLAN support
Feature: Network address translation (NAT)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)
Management features
Feature: Quality of Service (QoS) support
Power
Power consumption (max): 3.3 W
Input voltage: 5 V
Feature: Power over Ethernet (PoE)
DC input voltage: 9 – 30 V
Weight & dimensions
Width: 74.2 mm
Depth: 83 mm
Height: 25 mm
Weight: 172 g
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
