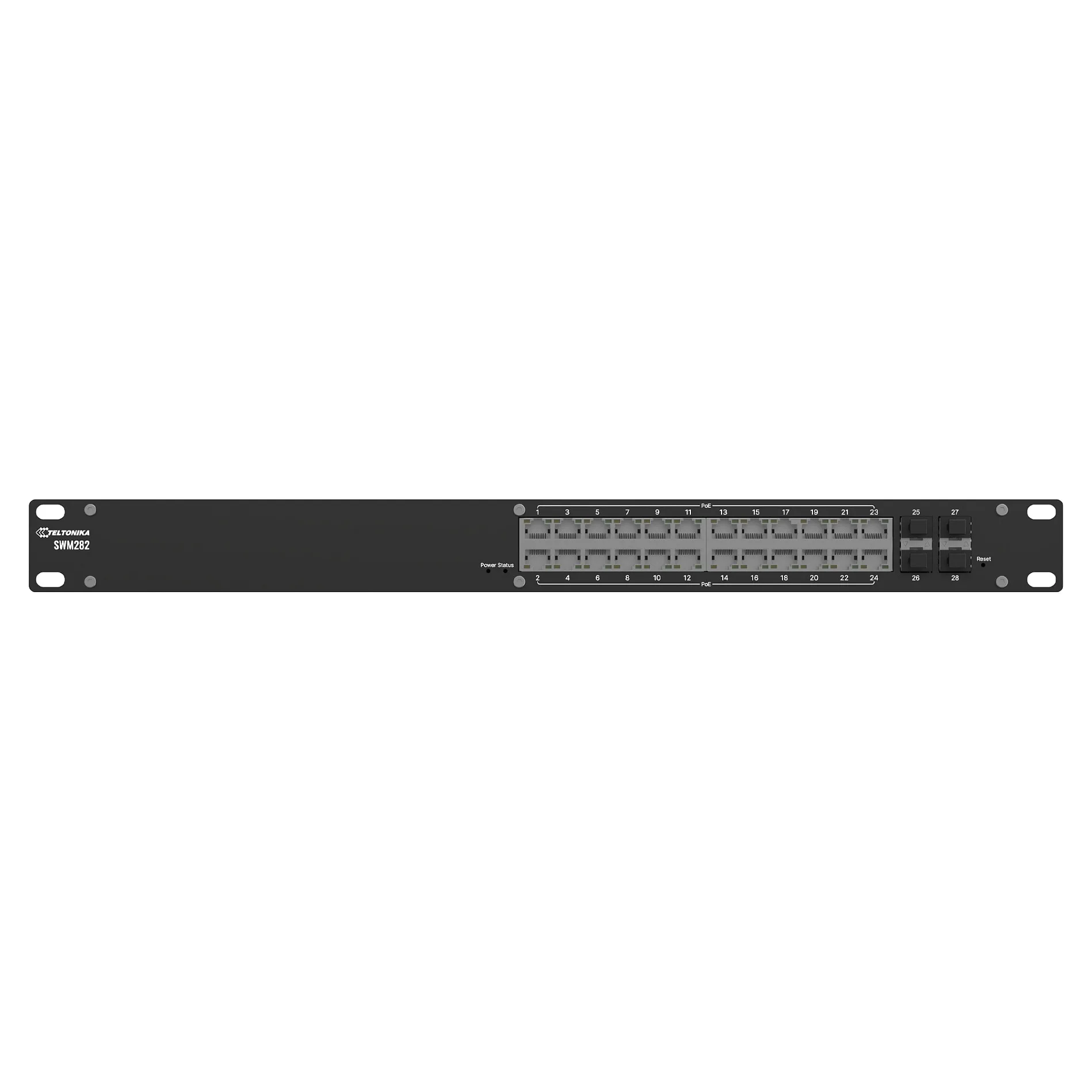

Teltonika SWM282. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af, IEEE…. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting
The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.
Management features
Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic shaping
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Power connector: AC-in jack
Network
Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1Q
Feature: Port mirroring
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Data transmission
Switching capacity: 56 Gbit/s
Forwarding rate: 83.33 Mpps
MAC address table: 8000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 0.512 MB
Security
DHCP features: DHCP server, DHCP client, DHCPv6 client
Feature: MAC address filtering
Feature: Loop protection
Authentication type: RADIUS, TACACS+
Queue scheduling algorithms: SP, WFQ, Weighted Round Robin (WRR)
Design
Feature: Rack mounting
Product colour: Black
Housing material: Aluminium
Feature: Reset button
International Protection (IP) code: IP30
Performance
Feature: Built-in processor
Processor frequency: 500 MHz
Memory type: DDR3-SDRAM
Internal memory: 128 MB
Flash memory: 16 MB
Feature: Firmware upgradeable
Power
Power source: AC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 330 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Active PoE, PoE+
Power over Ethernet (PoE) modes: Alternative A
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 300 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 483 mm
Depth: 234 mm
Height: 44 mm
Weight: 2.29 kg
Packaging content
Feature: Quick start guide
Packaging data
Package type: Box
Certificates
Compliance certificates: CE, UKCA, CB, RCM, Federal Communications Commission (FCC), Industry Canada (IC)
Switch type: Managed
Switch layer: L2+
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Traffic shaping
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Power connector: AC-in jack
Network
Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.1Q
Feature: Port mirroring
Feature: Rate limiting
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Data transmission
Switching capacity: 56 Gbit/s
Forwarding rate: 83.33 Mpps
MAC address table: 8000 entries
Feature: Static route
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 0.512 MB
Security
DHCP features: DHCP server, DHCP client, DHCPv6 client
Feature: MAC address filtering
Feature: Loop protection
Authentication type: RADIUS, TACACS+
Queue scheduling algorithms: SP, WFQ, Weighted Round Robin (WRR)
Design
Feature: Rack mounting
Product colour: Black
Housing material: Aluminium
Feature: Reset button
International Protection (IP) code: IP30
Performance
Feature: Built-in processor
Processor frequency: 500 MHz
Memory type: DDR3-SDRAM
Internal memory: 128 MB
Flash memory: 16 MB
Feature: Firmware upgradeable
Power
Power source: AC
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 330 W
Power over Ethernet (PoE)
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Active PoE, PoE+
Power over Ethernet (PoE) modes: Alternative A
Power over Ethernet plus (PoE+) ports quantity: 24
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 300 W
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 483 mm
Depth: 234 mm
Height: 44 mm
Weight: 2.29 kg
Packaging content
Feature: Quick start guide
Packaging data
Package type: Box
Certificates
Compliance certificates: CE, UKCA, CB, RCM, Federal Communications Commission (FCC), Industry Canada (IC)
