Teltonika RUTXR1. Device type: Cellular network router, Product colour: Grey, Housing material: Steel. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), WLAN data transfer rates supported: 867 Mbit/s, Wi-Fi frequency: 5 GHz. Data network: 3G, 4G, HSUPA, LTE, WCDMA, 3G standards: DC-HSDPA, HSUPA, WCDMA, 4G standard: LTE. USB port type: USB Type-A, Serial interface type: RS-232
5 x Gigabit Ethernet ports
DUAL SIM
With auto failover, backup WAN and other switching scenarios
SFP
SFP port for long-range Fiber-optic communication
RMS
Compatible with Teltonika Remote Management System
WIFI
Wave-2 802.11ac Dual Band WIFI
4G LTE CAT 6
Cellular speeds up to 300Mbps with Carrier Aggregation

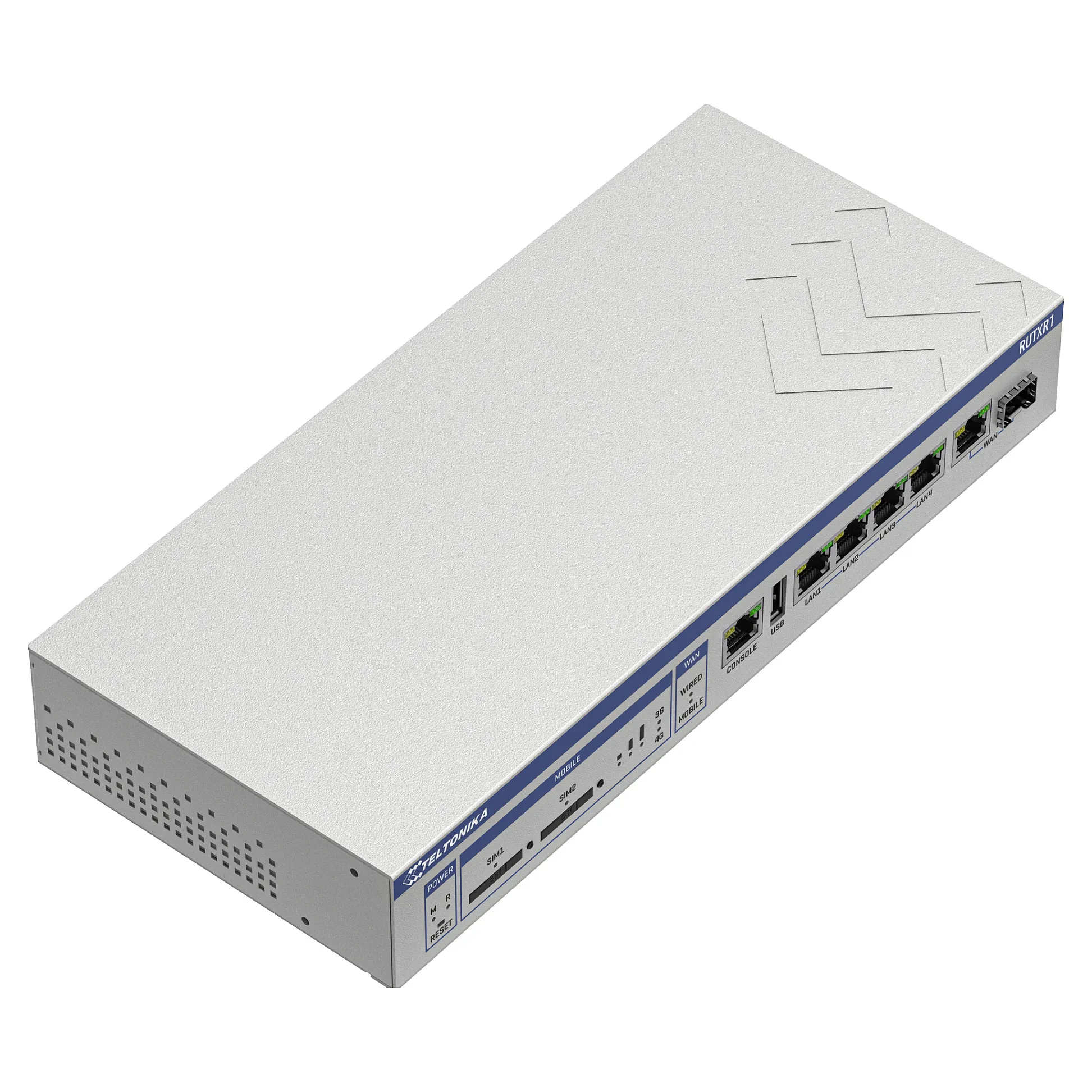

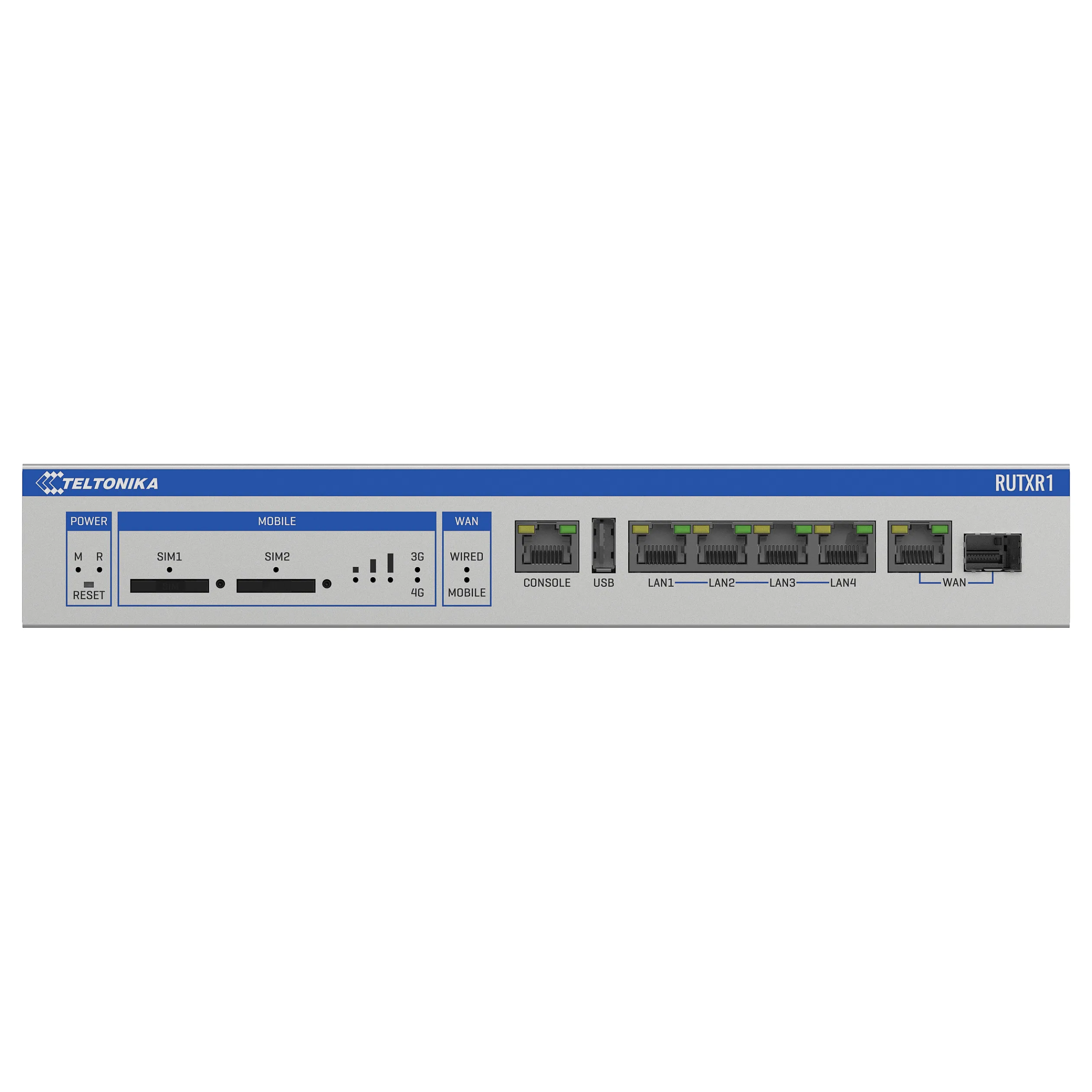

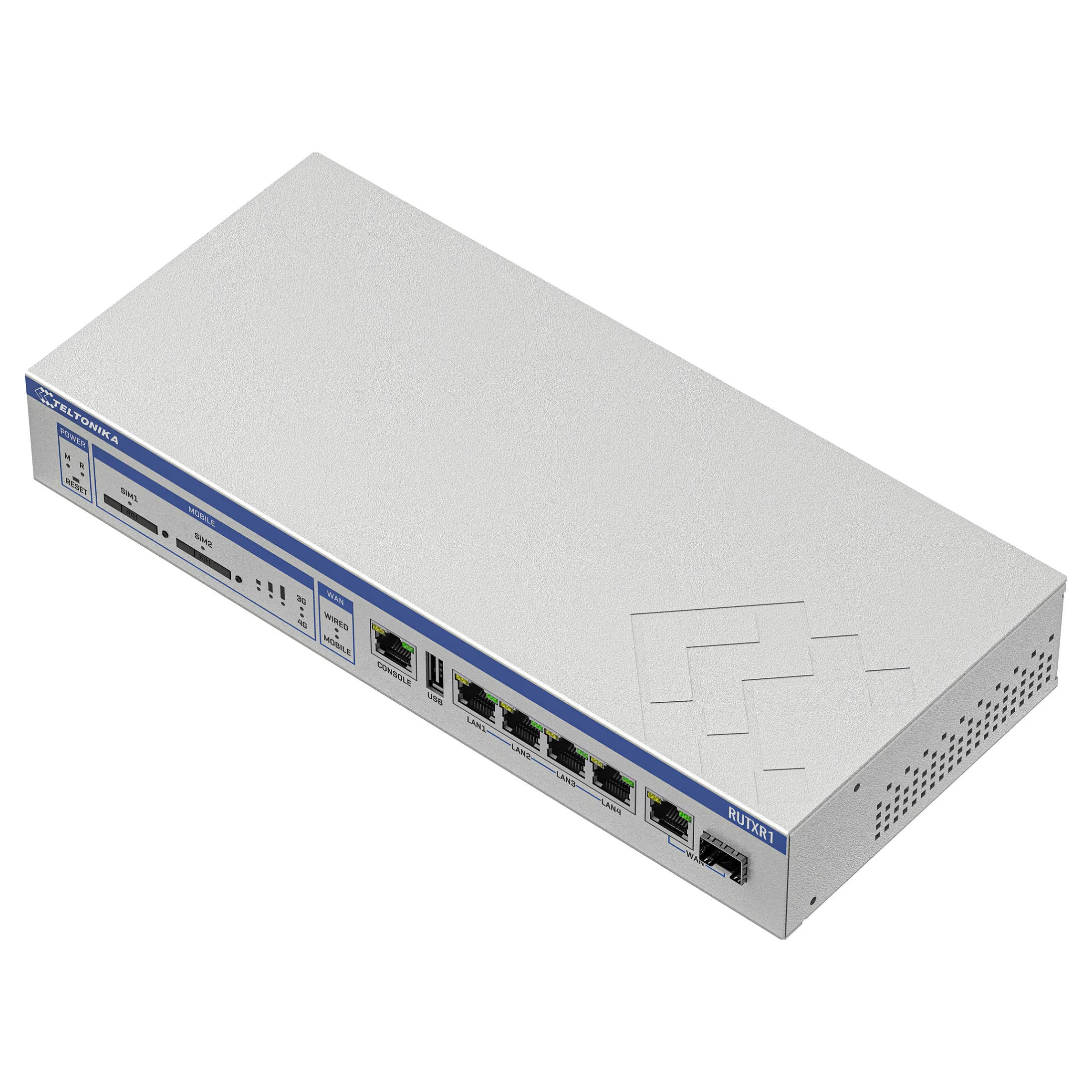

RUTXR1 is our first-ever rack-mounted LTE Cat6 router with redundant power supplies and WAN interfaces, which can be conveniently placed in a server cabinet. It is equipped with dual SIM, USB, and Wave-2 802.11ac Dual Band WIFI. But what makes this product stand out from the rest of Teltonika Networks products are the SFP WAN and dedicated console ports. The unique feature set of this product allows using it as a primary product in a small or home office with LTE backup capabilities, powerful WiFi, and no need for an additional SFP to Ethernet converter.
This feature-rich device is powered by RutOS and is a perfect choice, where a speedy and ultra-reliable connection is required!
Device type: Cellular network router
Product colour: Grey
Housing material: Steel
Feature: Reset button
LED indicators: Data, Power, Signal strength, Status, WAN
Ethernet LAN features
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: DHCP client
Feature: DHCP server
Feature: IP routing
Feature: Auto MDI/MDI-X
Wireless LAN features
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported: 867 Mbit/s
Wi-Fi frequency: 5 GHz
Mobile network
Data network: 3G, 4G, HSUPA, LTE, WCDMA
3G standards: DC-HSDPA, HSUPA, WCDMA
4G standard: LTE
Number of SIM cards: 2
SIM card type: MiniSIM
Feature: Short Message Service (SMS)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 5
USB port type: USB Type-A
Feature: USB port
USB 2.0 ports quantity: 1
Serial interface type: RS-232
Security
Security algorithms: AES-CCMP, HTTPS, SSH, SSL/TLS, TLS, WEP, WPA2-EAP, WPA2-Enterprise, WPA2-PSK
Feature: Network address translation (NAT)
Feature: Firewall
Feature: URL filtering
Feature: DMZ support
Feature: Port forwarding
VPN support: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
Performance
Feature: Built-in processor
Processor frequency: 0.717 GHz
RAM capacity: 0.256 GB
RAM type: DDR3
Internal storage capacity: 0.256 GB
Feature: Web-based management
Antenna type: External
Feature: Detachable antenna(s)
Power
Power source type: DC
Output voltage: 9 – 50 V
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 272 mm
Depth: 122.6 mm
Height: 43.7 mm
Weight: 1.05 kg
Packaging data
Package width: 355 mm
Package depth: 60 mm
Package height: 175 mm
Logistics data
Harmonized System (HS) code: 85176990
