Teltonika RUTM10. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: AES-CCMP, EAP-TLS, OWE, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE, Authentication method: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts…, Firewall security: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI;…. Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP,…. Product type: Industrial router, Product colour: Black
WIRED WI-FI ROUTER
The RUTM10 is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The RUTM10 can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router’s support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.
– INTERFACES

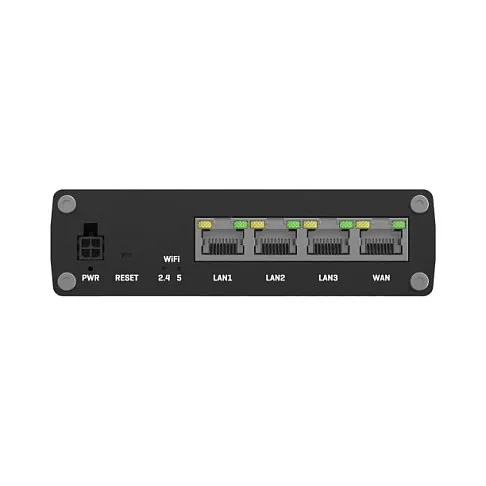

4 x Gigabit RJ45 ports with up to 128 tag/port-based VLANs supported
– WI-FI 5
Dual-band Wi-Fi with mesh and fast-roaming functionalities
– VPN
Numerous VPN Protocols supported, including OpenVPN, IPsec, and Tailscale
– M2M PROTOCOLS
Multiple industrial protocols supported, including MQTT, Modbus, DNP3, DLMS
Feature: Ethernet WAN
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: Auto MDI/MDI-X
Feature: Port forwarding
Feature: Load balancing system
Feature: Dynamic DNS (DDNS)
Feature: Policy-based routing
Feature: SSID-based VLAN assignment
Feature: Static route
Feature: Support Samba (storage)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Feature: USB port
USB 2.0 ports quantity: 1
Management features
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: Intelligent Mesh technology
Feature: MU-MIMO technology
Security
Security algorithms: AES-CCMP, EAP-TLS, OWE, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE
Feature: Firewall
Firewall security: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Feature: DDoS protection
Feature: MAC address filtering
Feature: DMZ support
Feature: Network address translation (NAT)
Protocols
Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2
Design
Product colour: Black
Feature: Indication light
Product type: Industrial router
Antenna
Antenna design: External
Features
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor architecture: MIPS
Processor frequency: 880 MHz
Processor cores: 2
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 256 MB
Operating system installed: RutOS
Power
Power source type: DC
Power consumption (typical): 3.51 W
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 115 mm
Depth: 95.2 mm
Height: 32.2 mm
Weight: 359 g
