Teltonika RUT976. Device type: Cellular network router, Product colour: Black, Mounting: DIN-rail/Wall mounting. Ethernet LAN interface type: Gigabit Ethernet, Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP,…. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Data network: 4G, 5G, 4G standard: LTE, 5G standard: Sub6 SA. Compatible memory cards: MicroSD (TransFlash), Maximum memory card size: 2 TB

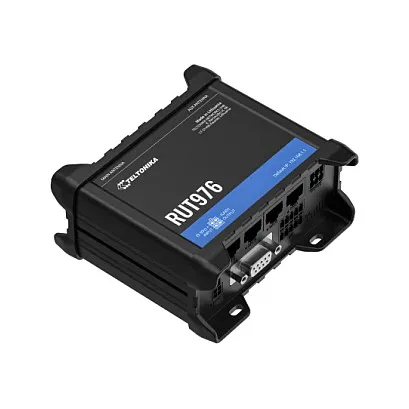

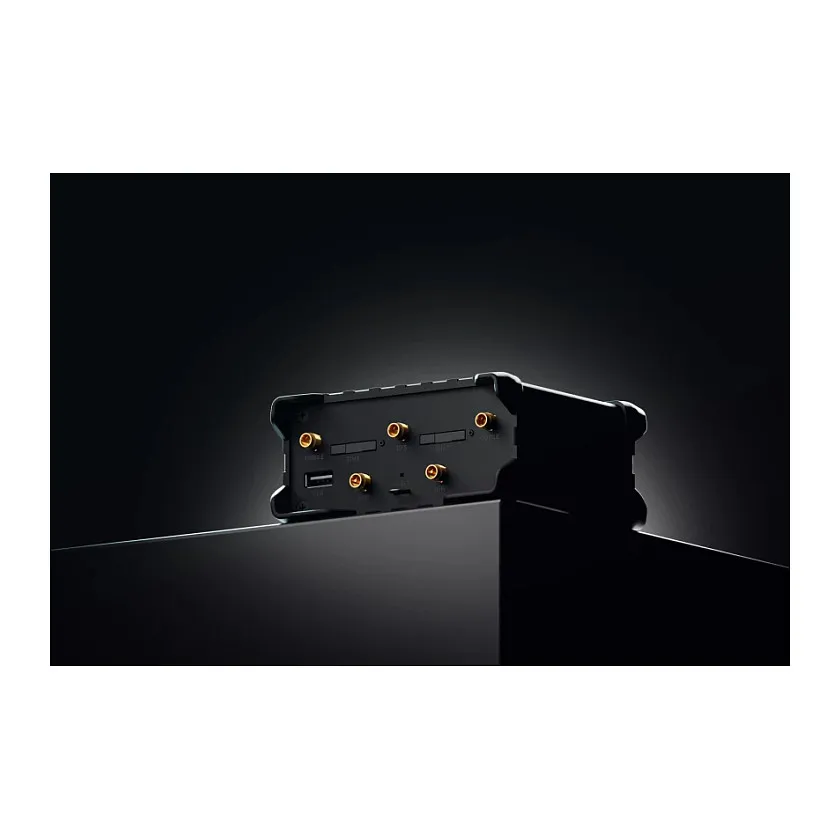

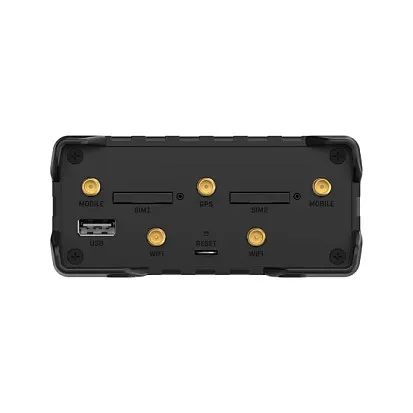

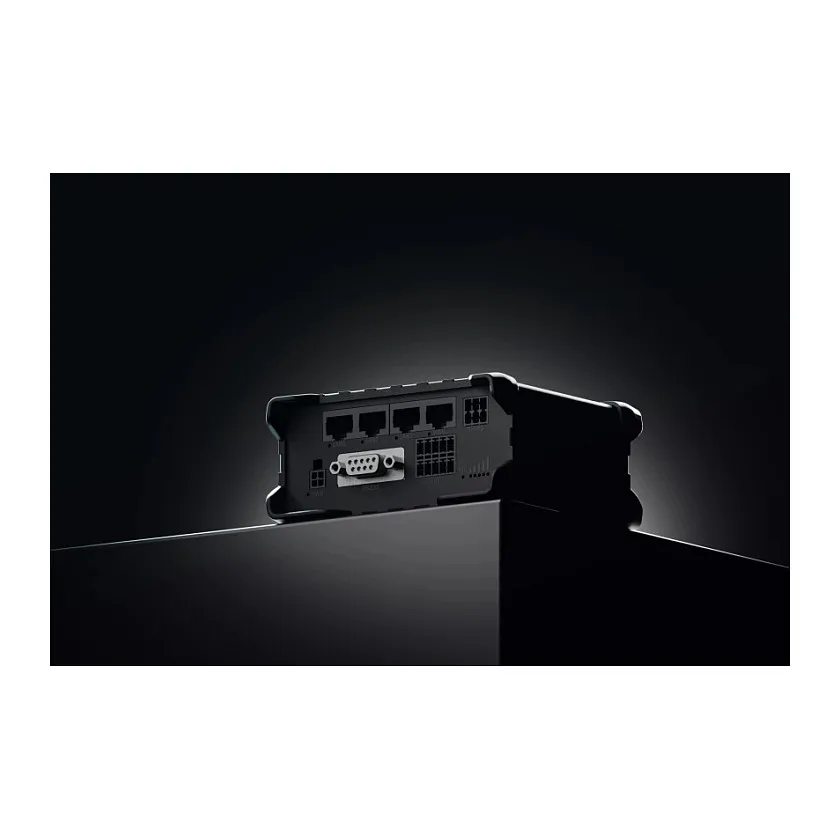

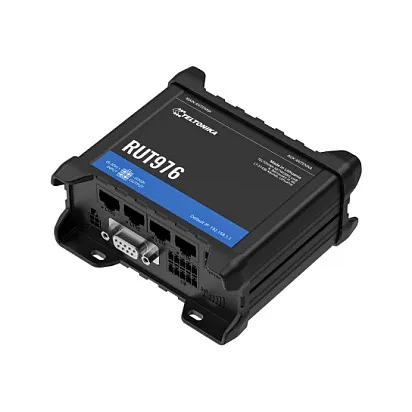

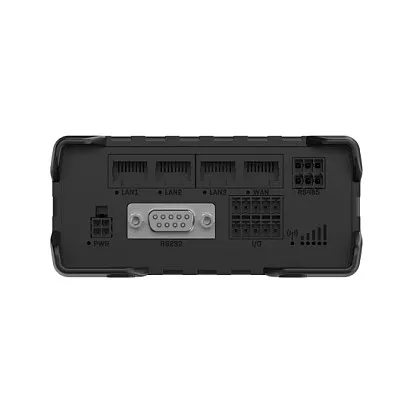

The RUT976 is an industrial Redcap 5G router supporting SA architecture, carving a balanced niche between traditional 4G and full-capacity 5G. This 5G router can wirelessly support up to 100 end devices and features the low latency of 5G—at affordable pricing. In case of limited 5G coverage, the RUT976 is backward compatible with 4G LTE Cat 4. It also boasts dual SIM slots with auto-failover, Wi-Fi, GNSS, a wide range of interfaces, including four 10/100 RJ45 slots, RS232, RS485, and multiple I/Os, and numerous other brilliant features for expert professional deployment
Design
Device type: Cellular network router
Product colour: Black
Mounting: DIN-rail/Wall mounting
Market positioning: Industrial
Feature: Reset button
LED indicators: Yes
Ethernet LAN features
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Feature: DHCP server
Feature: Full duplex
Feature: Auto MDI/MDI-X
Wireless LAN features
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Mobile network
Data network: 4G, 5G
4G standard: LTE
5G standard: Sub6 SA
Number of SIM cards: 2
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Feature: USB port
USB 2.0 ports quantity: 1
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 2 TB
Security
Security algorithms: WPA2-Enterprise
Feature: Firewall
Feature: Port forwarding
GPS Performance
Feature: GLONASS
Feature: BeiDou
Feature: Galileo
Feature: Quasi-Zenith Satellite System (QZSS)
Performance
Feature: Built-in processor
Processor manufacturer: Mediatek
RAM capacity: 0.128 GB
RAM type: DDR2
Internal storage capacity: 0.032 GB
Operating system installed: RutOS
Feature: GPS (satellite)
Antenna connector type: SMA/RP-SMA
Antennas quantity: 5
Power
Power source type: DC
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 100 mm
Depth: 100 mm
Height: 50 mm
Weight: 295 g
Device type: Cellular network router
Product colour: Black
Mounting: DIN-rail/Wall mounting
Market positioning: Industrial
Feature: Reset button
LED indicators: Yes
Ethernet LAN features
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Feature: DHCP server
Feature: Full duplex
Feature: Auto MDI/MDI-X
Wireless LAN features
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Mobile network
Data network: 4G, 5G
4G standard: LTE
5G standard: Sub6 SA
Number of SIM cards: 2
Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
Feature: USB port
USB 2.0 ports quantity: 1
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 2 TB
Security
Security algorithms: WPA2-Enterprise
Feature: Firewall
Feature: Port forwarding
GPS Performance
Feature: GLONASS
Feature: BeiDou
Feature: Galileo
Feature: Quasi-Zenith Satellite System (QZSS)
Performance
Feature: Built-in processor
Processor manufacturer: Mediatek
RAM capacity: 0.128 GB
RAM type: DDR2
Internal storage capacity: 0.032 GB
Operating system installed: RutOS
Feature: GPS (satellite)
Antenna connector type: SMA/RP-SMA
Antennas quantity: 5
Power
Power source type: DC
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 100 mm
Depth: 100 mm
Height: 50 mm
Weight: 295 g
