Teltonika RUT301 (EU) ethernet router. Device type: Cellular network router, Product colour: Black, Housing material: Aluminium. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u. USB port type: USB Type-A. Certification: CE, UKCA, RCM, FCC, IC, CB, EAC, UCRF, WEEE. Processor manufacturer: Mediatek, Processor frequency: 0.58 GHz, RAM capacity: 0.128 GB

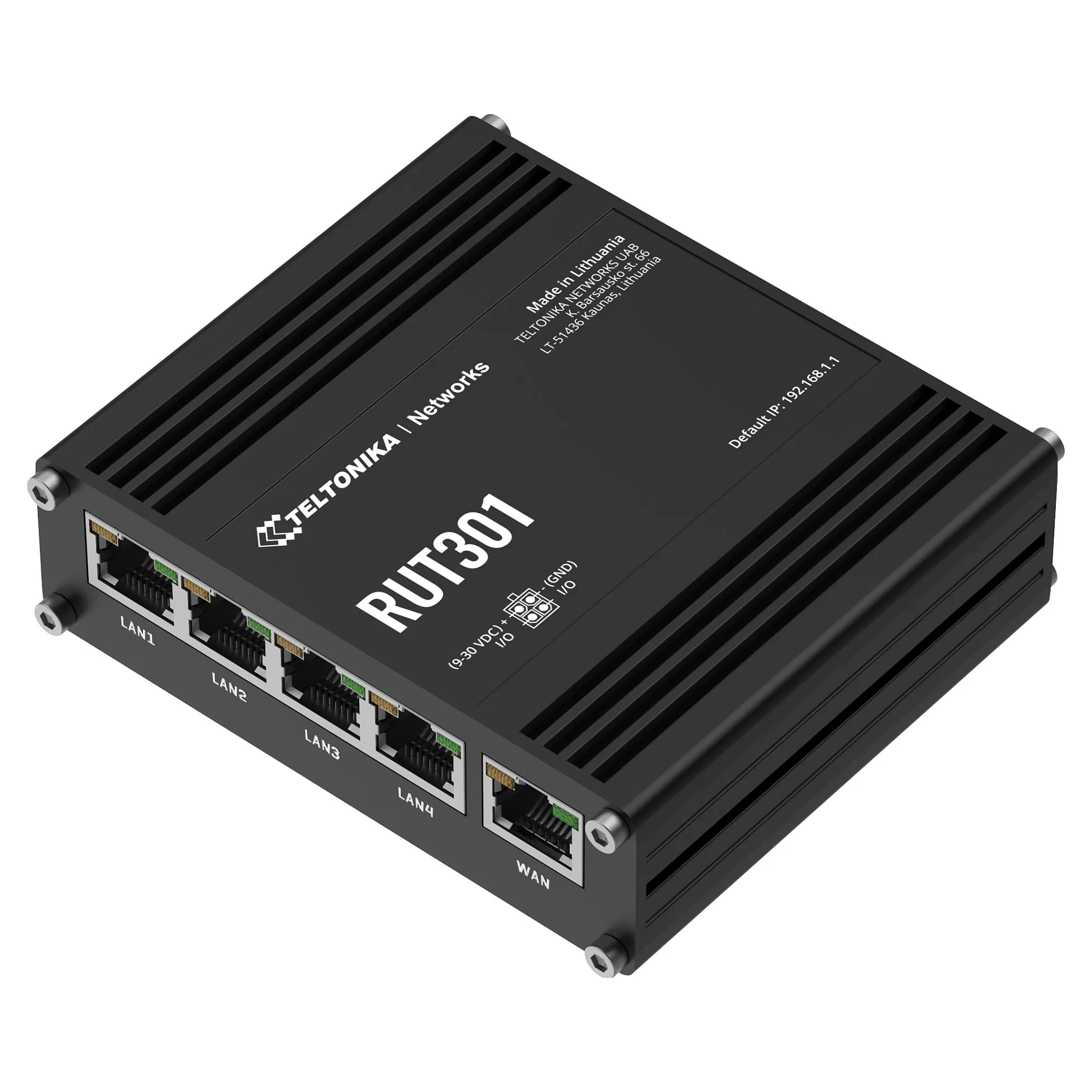

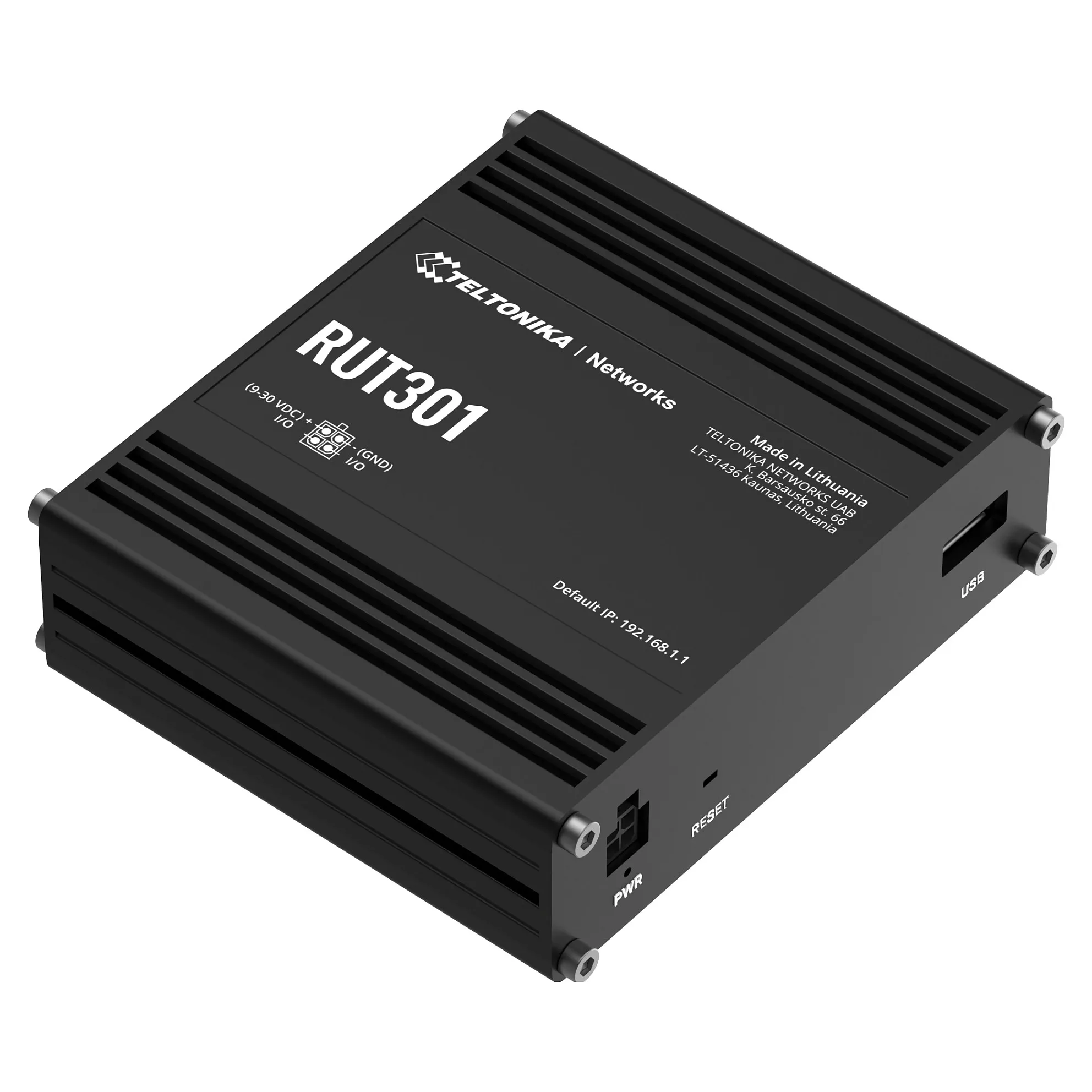

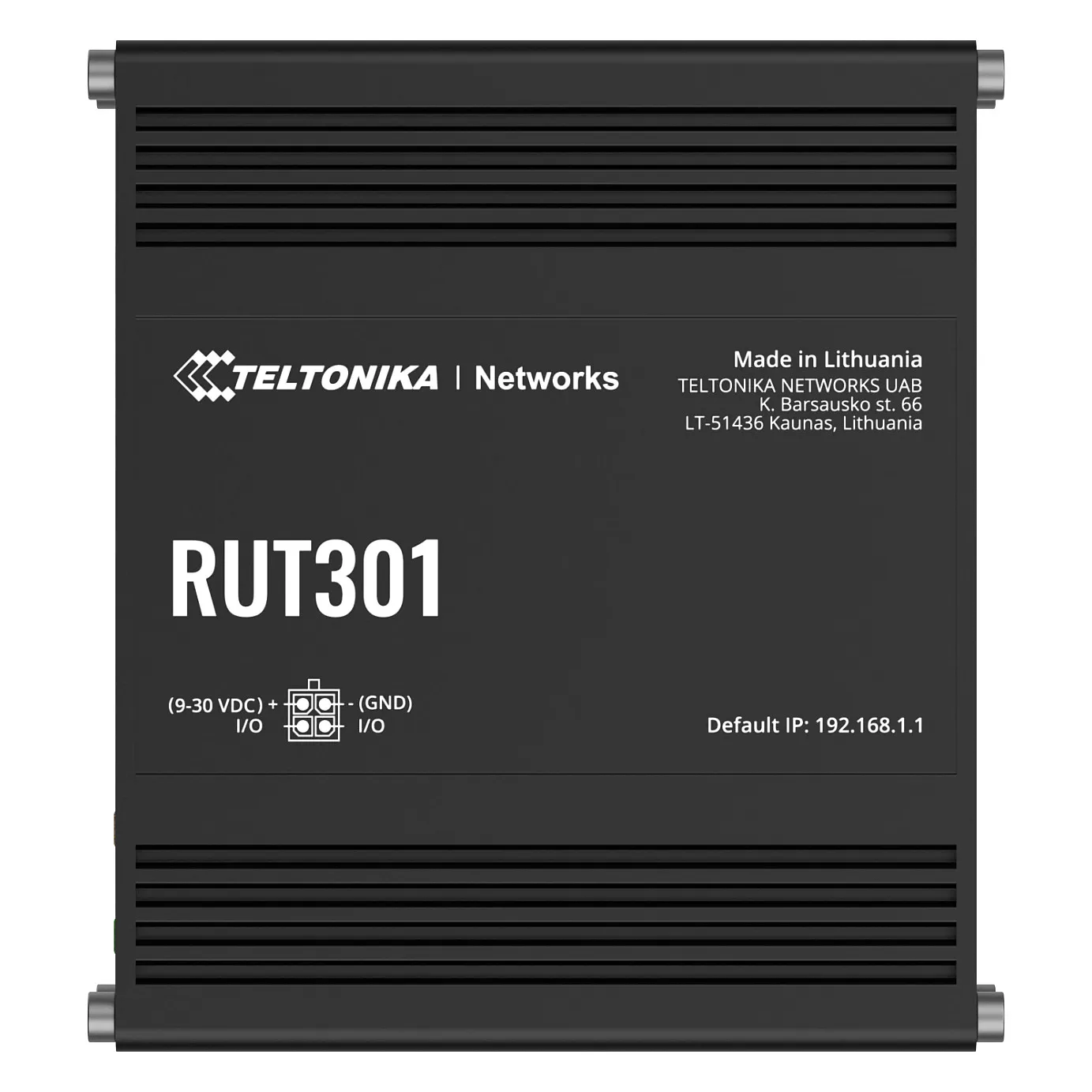

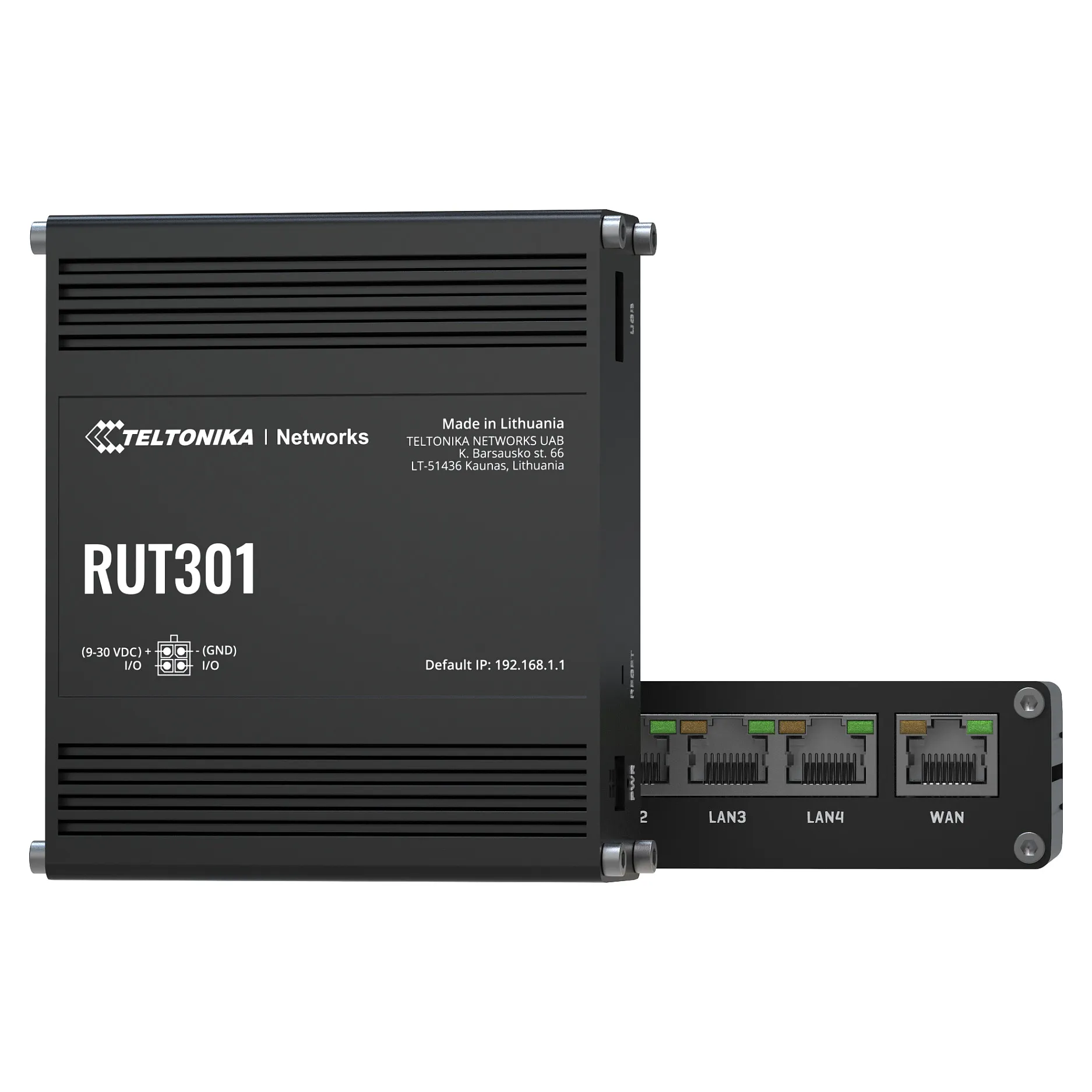

The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.
Design
Device type: Cellular network router
Product colour: Black
Housing material: Aluminium
Market positioning: Industrial
Feature: Suitable for indoor use
Feature: Reset button
LED indicators: LAN, Power, Status, WAN
Ethernet LAN features
Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: DHCP client
Feature: DHCP server
Feature: Full duplex
Feature: IP routing
Mobile network
Data network: Not supported
Ports & interfaces

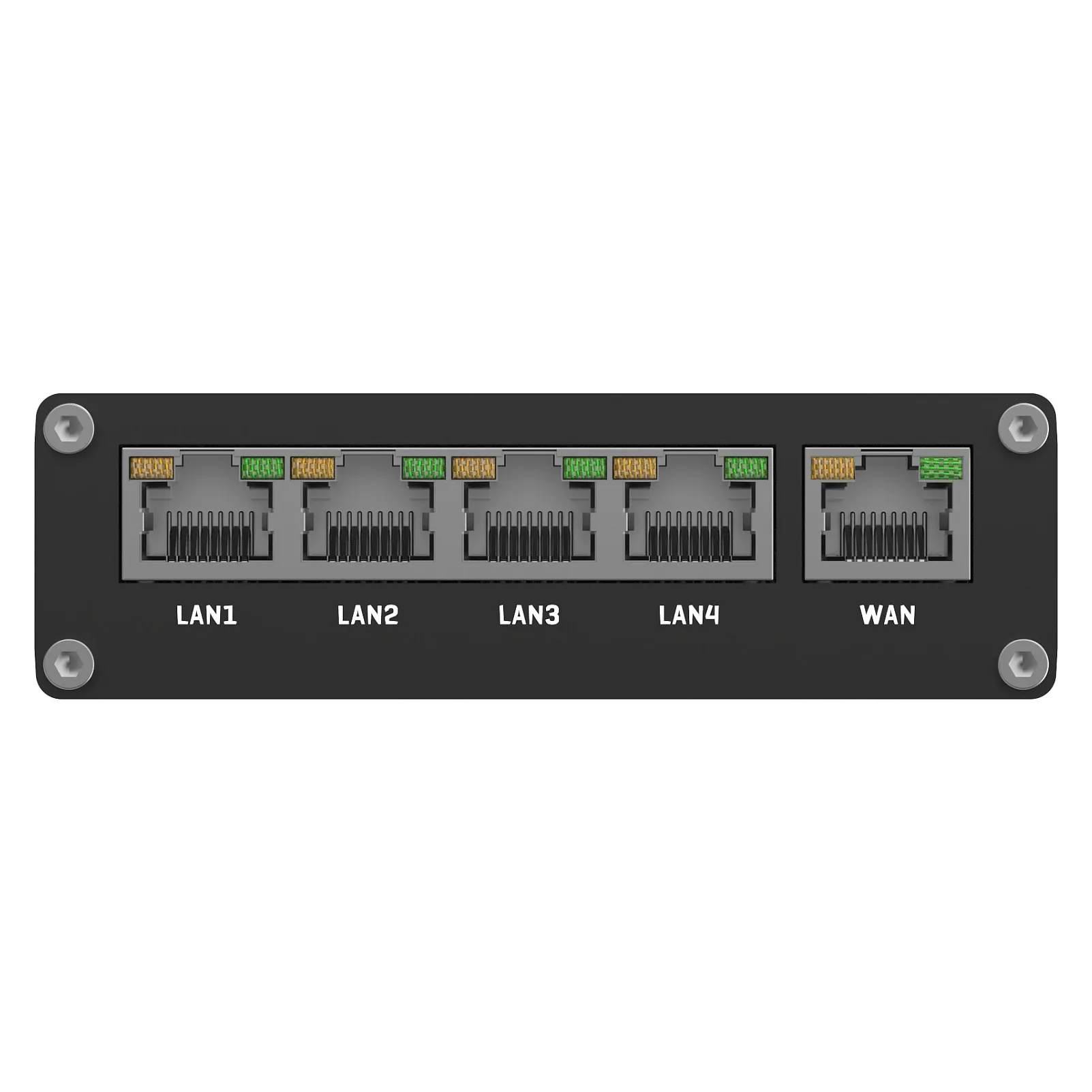

Ethernet LAN (RJ-45) ports: 5

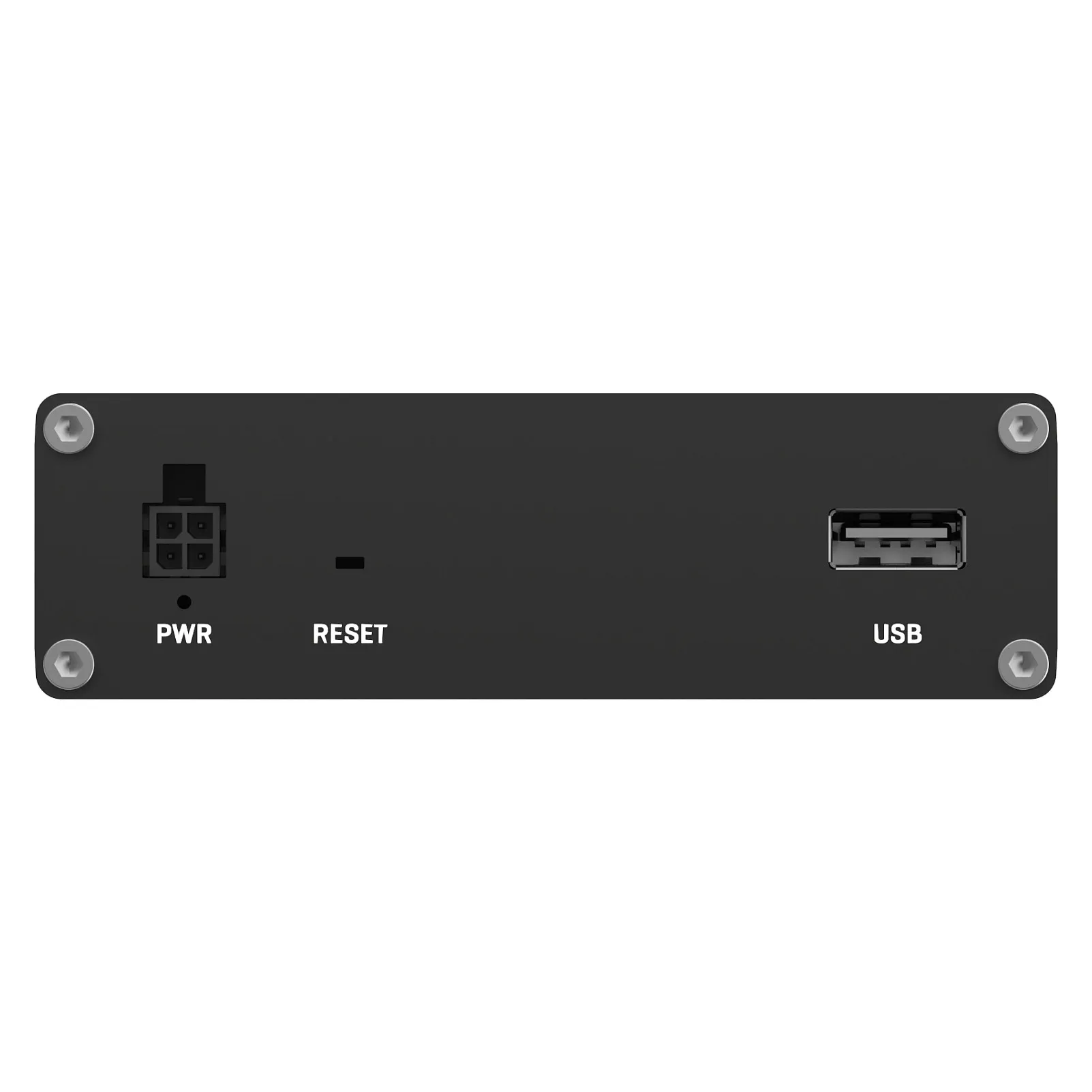

USB port type: USB Type-A
Feature: USB port
USB 2.0 ports quantity: 1
Security
Feature: Network address translation (NAT)
Feature: IP address filtering
Feature: DMZ support
Certificates
Certification: CE, UKCA, RCM, FCC, IC, CB, EAC, UCRF, WEEE
Performance
Feature: Built-in processor
Processor manufacturer: Mediatek
Processor frequency: 0.58 GHz
RAM capacity: 0.128 GB
RAM type: DDR2
Internal storage capacity: 0.016 GB
Feature: Web-based management
Management features
Management platform: RMS
Power
Power source type: DC
Input voltage: 9-30 V
Feature: External power adapter
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Device type: Cellular network router
Product colour: Black
Housing material: Aluminium
Market positioning: Industrial
Feature: Suitable for indoor use
Feature: Reset button
LED indicators: LAN, Power, Status, WAN
Ethernet LAN features
Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11e, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Feature: DHCP client
Feature: DHCP server
Feature: Full duplex
Feature: IP routing
Mobile network
Data network: Not supported
Ports & interfaces
Ethernet LAN (RJ-45) ports: 5
USB port type: USB Type-A
Feature: USB port
USB 2.0 ports quantity: 1
Security
Feature: Network address translation (NAT)
Feature: IP address filtering
Feature: DMZ support
Certificates
Certification: CE, UKCA, RCM, FCC, IC, CB, EAC, UCRF, WEEE
Performance
Feature: Built-in processor
Processor manufacturer: Mediatek
Processor frequency: 0.58 GHz
RAM capacity: 0.128 GB
RAM type: DDR2
Internal storage capacity: 0.016 GB
Feature: Web-based management
Management features
Management platform: RMS
Power
Power source type: DC
Input voltage: 9-30 V
Feature: External power adapter
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
