Teltonika RUT145. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS. Product type: Industrial router, Product colour: Black, Housing material: Aluminium
The RUT145 is an industrial router with RS485 communication for manufacturing and automation, specifically designed to bridge the communication gap between RS485 field devices and IP networks. It provides seamless Ethernet/Wi-Fi connectivity combined with a native RS485 multi-drop interface. The device, running on RutOS, offers powerful network security and industrial data collection tools. Its narrow, DIN-rail-mountable design and integration with the RMS platform ensure secure remote and cost-efficient remote management at scale.
WAN connection
Feature: Ethernet WAN
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11w, IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11e, IEEE 802.1x
Feature: Auto MDI/MDI-X
Feature: Port forwarding
Feature: Load balancing system
Feature: Dynamic DNS (DDNS)
Feature: Policy-based routing
Feature: Static route
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2

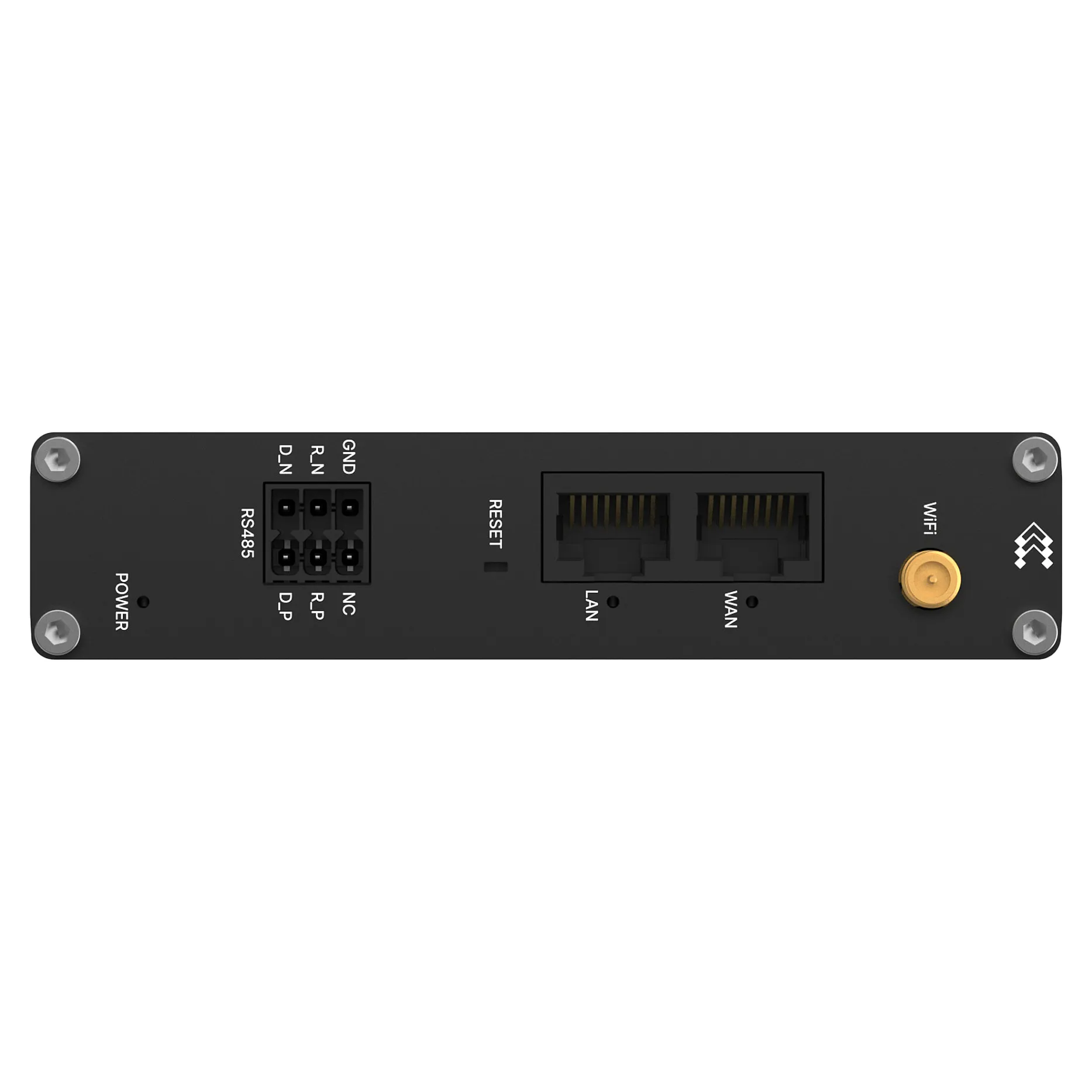

RS-485 ports: 1
Management features
Feature: Web-based management
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: Cloud-managed
Feature: Backup function
Security
Security algorithms: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS
Feature: Firewall
Feature: DoS attack prevention
Feature: MAC address filtering
Feature: URL filtering
Feature: System event log
Feature: DMZ support
Feature: Network address translation (NAT)
Protocols
Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Design
Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
LED indicators: WAN, LAN, Power
Product type: Industrial router
Certificates
Compliance certificates: UKCA, CB, RCM, Federal Communications Commission (FCC), Industry Canada (IC), EAC, WEEE, CE
Packaging content
Cables included: Power
Feature: Quick start guide
Antenna
Antenna design: External
Antenna connector type: RP-SMA
Antennas quantity: 1
Features
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor architecture: MIPS 24KEc
Processor frequency: 580 MHz
Internal memory: 128 MB
Internal memory type: DDR2
Flash memory: 16 MB
Number of simultaneously connected devices (max): 50
Operating system installed: RutOS
Feature: Firmware upgradeable
Power
Power source type: DC
Output voltage: 9 – 30 V
Feature: Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 113.1 mm
Depth: 68.6 mm
Height: 25 mm
Weight: 140 g
Packaging data
Number of products included: 1 pc(s)
Logistics data
Harmonized System (HS) code: 851762
Feature: Ethernet WAN
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Single-band (2.4 GHz)
Top Wi-Fi standard: Wi-Fi 4 (802.11n)
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.11w, IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11e, IEEE 802.1x
Feature: Auto MDI/MDI-X
Feature: Port forwarding
Feature: Load balancing system
Feature: Dynamic DNS (DDNS)
Feature: Policy-based routing
Feature: Static route
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
RS-485 ports: 1
Management features
Feature: Web-based management
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: Cloud-managed
Feature: Backup function
Security
Security algorithms: WPA2-Enterprise-PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS
Feature: Firewall
Feature: DoS attack prevention
Feature: MAC address filtering
Feature: URL filtering
Feature: System event log
Feature: DMZ support
Feature: Network address translation (NAT)
Protocols
Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Design
Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
LED indicators: WAN, LAN, Power
Product type: Industrial router
Certificates
Compliance certificates: UKCA, CB, RCM, Federal Communications Commission (FCC), Industry Canada (IC), EAC, WEEE, CE
Packaging content
Cables included: Power
Feature: Quick start guide
Antenna
Antenna design: External
Antenna connector type: RP-SMA
Antennas quantity: 1
Features
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor architecture: MIPS 24KEc
Processor frequency: 580 MHz
Internal memory: 128 MB
Internal memory type: DDR2
Flash memory: 16 MB
Number of simultaneously connected devices (max): 50
Operating system installed: RutOS
Feature: Firmware upgradeable
Power
Power source type: DC
Output voltage: 9 – 30 V
Feature: Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 113.1 mm
Depth: 68.6 mm
Height: 25 mm
Weight: 140 g
Packaging data
Number of products included: 1 pc(s)
Logistics data
Harmonized System (HS) code: 851762
