Teltonika PR1KC640. Antenna gain level (max): 4 dBi, Frequency band: 617 – 4200 GHz, Impedance: 50 Ω. Antenna type: MIMO directional antenna, Antenna connector type: SMA, Connector gender: Male. Input voltage: 3-12 V. Compliance certificates: RoHS. Width: 189 mm, Depth: 182 mm, Height: 85 mm
PR1KC640

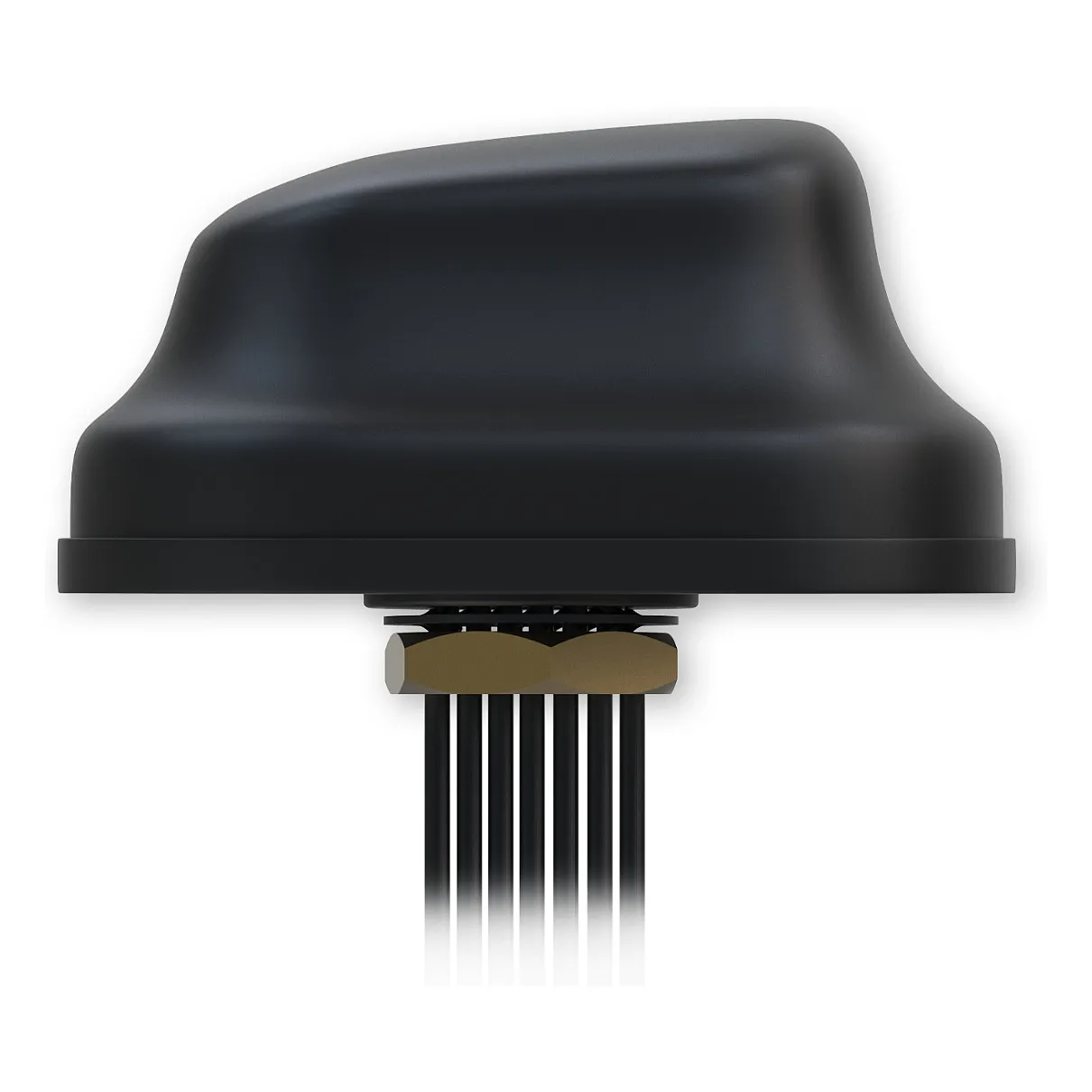

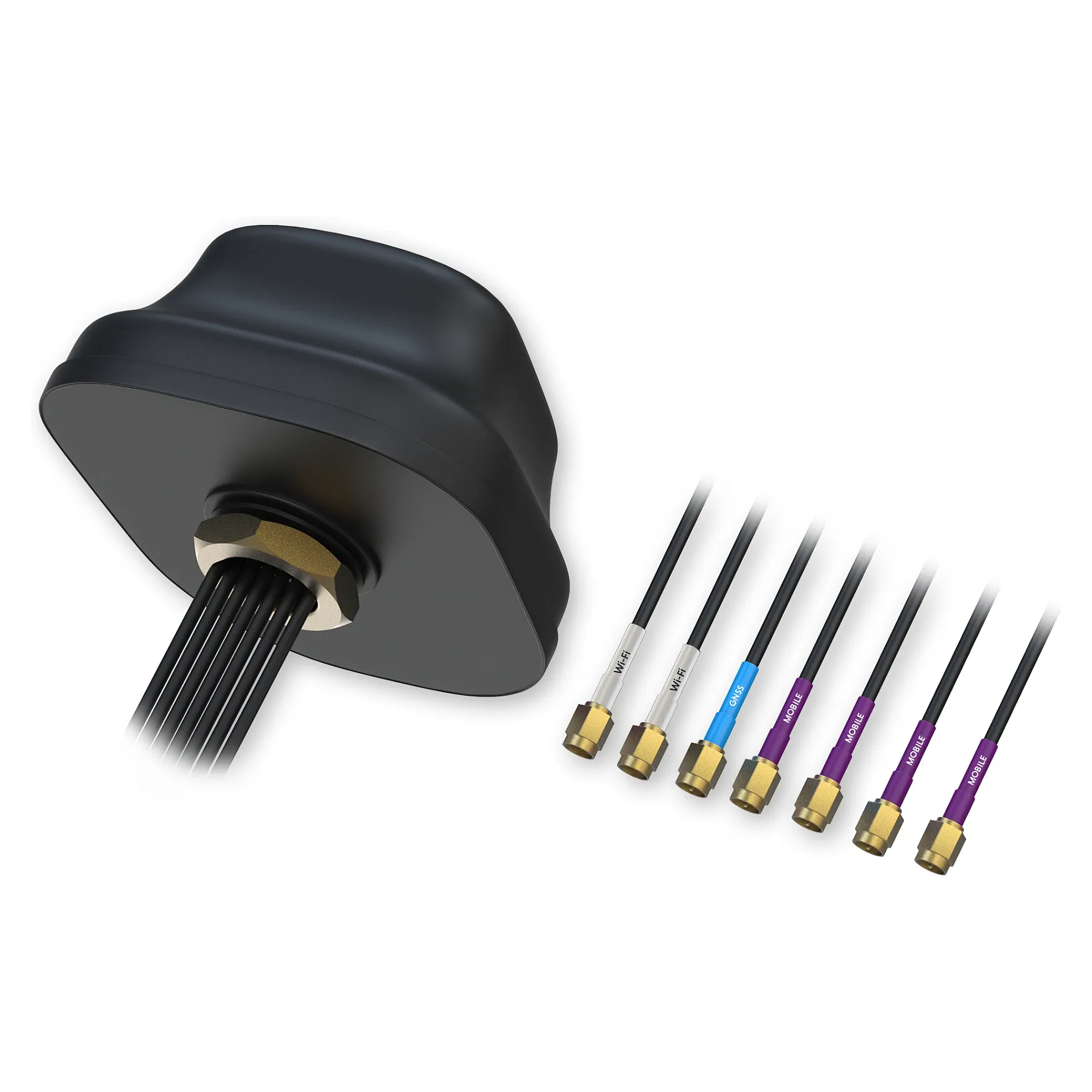

5G COMBO MIMO MOBILE/GNSS/WIFI ROOF SMA ANTENNA
Performance
Frequency band: 617 – 4200 GHz
Impedance: 50 Ω
Antenna gain level (max): 4 dBi
Features
Antenna type: MIMO directional antenna

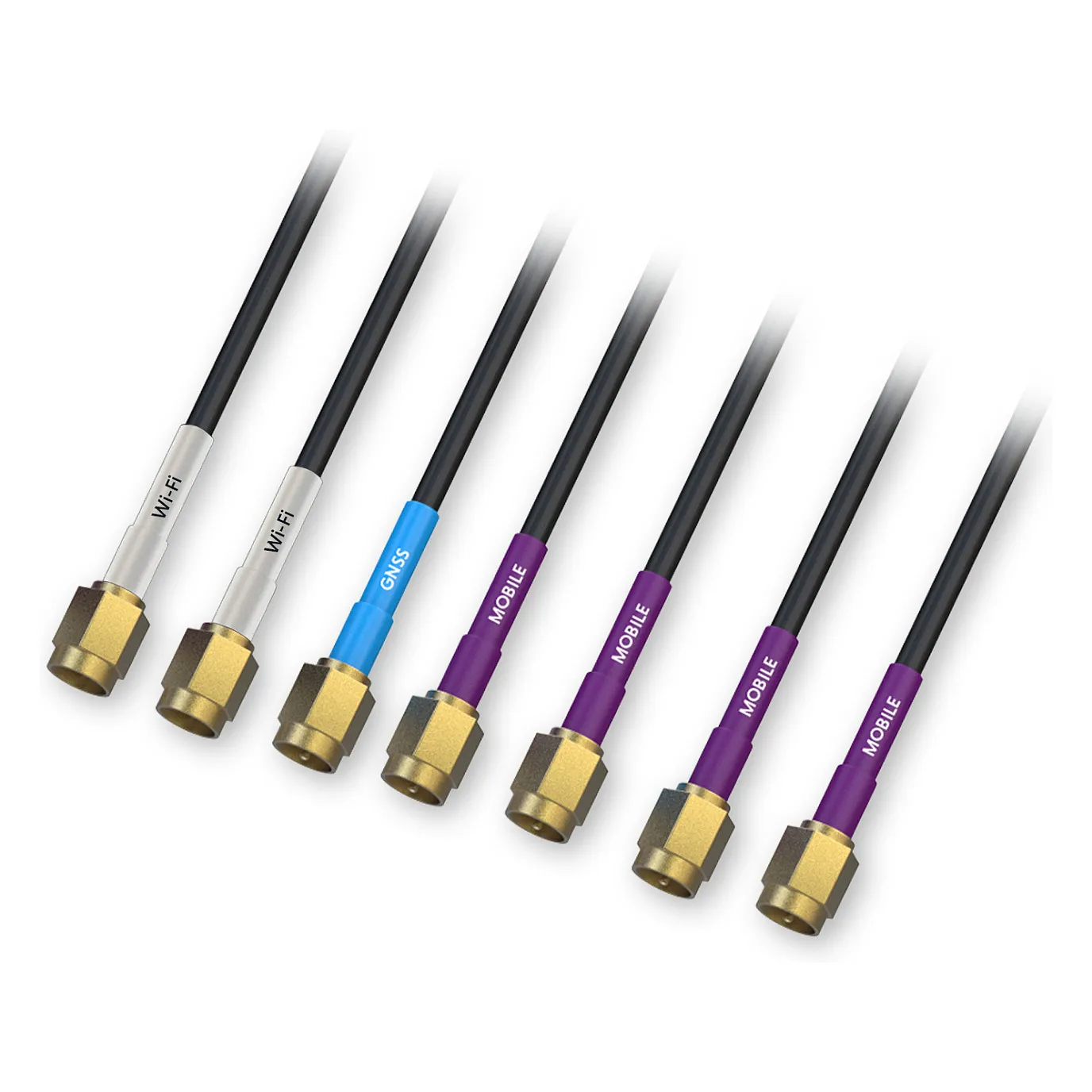

Antenna connector type: SMA
Connector gender: Male
Voltage Standing Wave Ratio (VSWR): 3
Housing material: Acrylonitrile butadiene styrene (ABS), Plastic
International Protection (IP) code: IP67
Cable length: 3 m
Power
Input voltage: 3-12 V
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Weight & dimensions
Width: 189 mm
Depth: 182 mm
Height: 85 mm
Weight: 960 g
Frequency band: 617 – 4200 GHz
Impedance: 50 Ω
Antenna gain level (max): 4 dBi
Features
Antenna type: MIMO directional antenna
Antenna connector type: SMA
Connector gender: Male
Voltage Standing Wave Ratio (VSWR): 3
Housing material: Acrylonitrile butadiene styrene (ABS), Plastic
International Protection (IP) code: IP67
Cable length: 3 m
Power
Input voltage: 3-12 V
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): -40 – 85 °C
Weight & dimensions
Width: 189 mm
Depth: 182 mm
Height: 85 mm
Weight: 960 g
