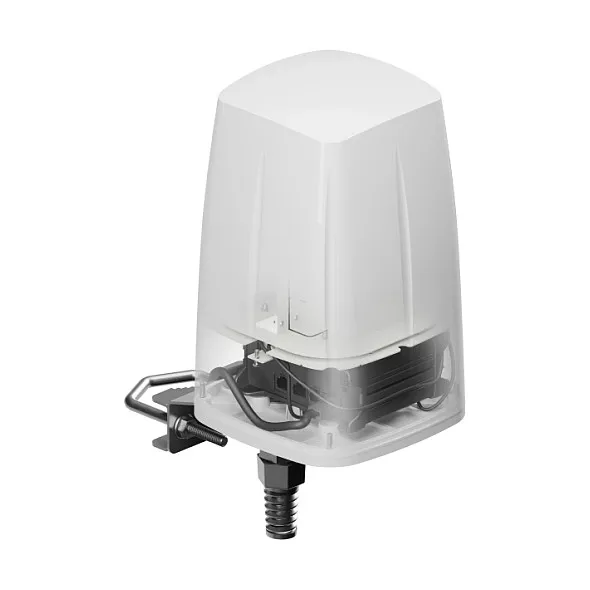

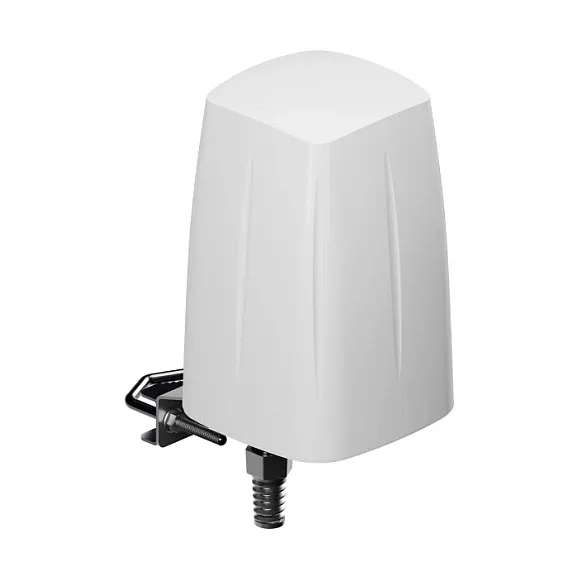

Teltonika PR1ICC60. Antenna gain level (max): 28 dBi, Frequency band: 0.617 – 4.2 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Compliance certificates: RoHS. Width: 160 mm, Depth: 189 mm, Height: 347 mm
PR1ICC60
OUTDOOR LTE/WI-FI/GPS ANTENNA FOR RUT9-SERIES ROUTERS
Performance
Frequency band: 0.617 – 4.2 GHz
Impedance: 50 Ω
Bandwidth note: 617 ~ 960, 1700 ~ 2200, 2300 ~ 2700, 3300 ~ 3800 MHz
Antenna gain level (max): 28 dBi
Wi-fi frequency range: 2.4 – 6 GHz
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): <2.50
International Protection (IP) code: IP67
Mounting: Ceiling/wall
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 160 mm
Depth: 189 mm
Height: 347 mm
Weight: 1.5 kg
Frequency band: 0.617 – 4.2 GHz
Impedance: 50 Ω
Bandwidth note: 617 ~ 960, 1700 ~ 2200, 2300 ~ 2700, 3300 ~ 3800 MHz
Antenna gain level (max): 28 dBi
Wi-fi frequency range: 2.4 – 6 GHz
Features
Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Polarization: Vertical polarization
Voltage Standing Wave Ratio (VSWR): <2.50
International Protection (IP) code: IP67
Mounting: Ceiling/wall
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Weight & dimensions
Width: 160 mm
Depth: 189 mm
Height: 347 mm
Weight: 1.5 kg
