Teltonika OTD500100000. Networking standards: IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 4G standard: LTE. Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2. Security algorithms: AES, CAST, DES, HTTPS, IPSec, SSH, SSL/TLS, TLS. Compliance certificates: CB, EAC, RCM, UKCA, WEEE

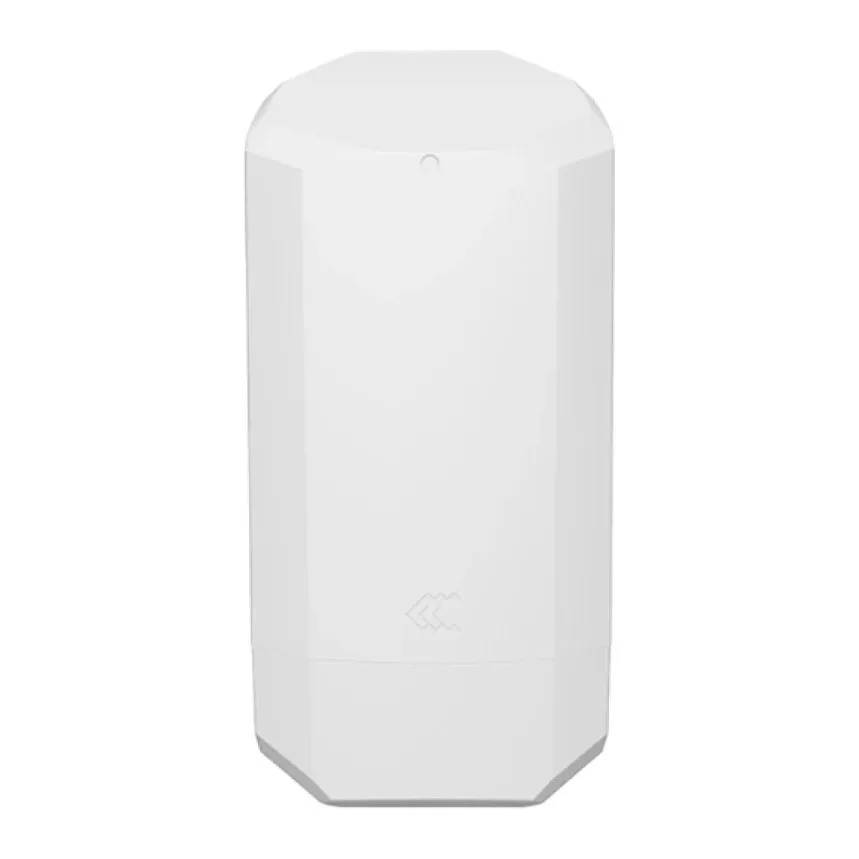

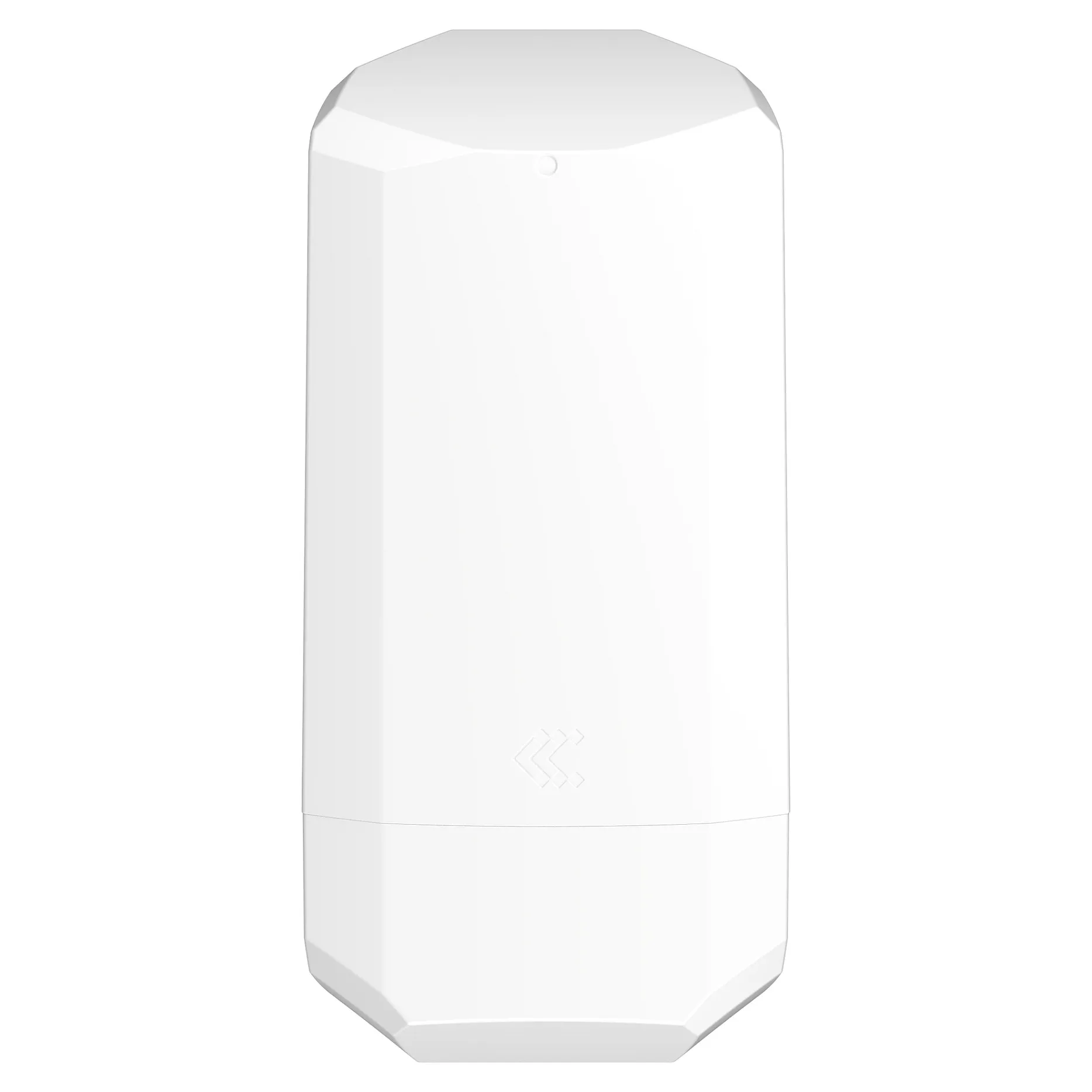

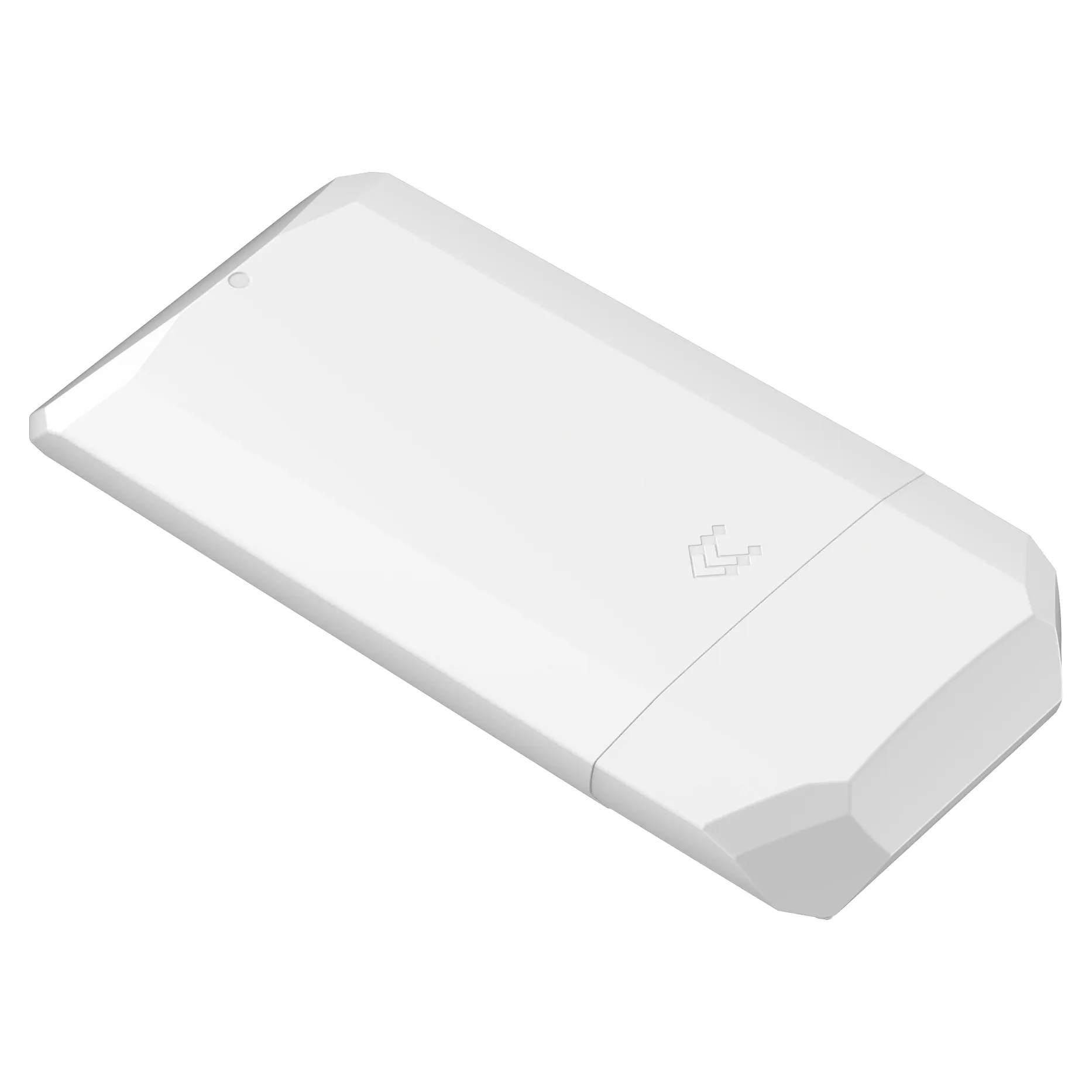

The Teltonika OTD500 is a state-of-the-art 5G router that delivers incredible performance, stability and functionality. With support for LTE Cat 19, eSIM, PoE in/out, and IP55 immunity, this router is perfect for both demanding business environments and home applications. Whether you’re looking for a stable Internet connection for IoT or an advanced monitoring and remote management solution, the Teltonika OTD500 will meet your needs.
Latest 5G and LTE Cat 19 technology
The Teltonika OTD500 supports 5G Sub-6Ghz SA/NSA, which means ultra-fast download speeds of up to 3.4 Gbps and upload speeds of up to 900 Mbps. With LTE Cat 19 compatibility, the router offers excellent performance on 4G LTE networks as well, reaching speeds of up to 1.6 Gbps on downloads. The use of 4×4 MIMO technology guarantees a stable connection even in crowded networks.
PoE in/out and IP55 protection
Powering peripherals has never been easier. The Teltonika OTD500 offers PoE in to power the router via Ethernet cable and PoE out to power other devices such as IP cameras. With an IP55 rating, the router is resistant to harsh weather conditions, making it ideal for outdoor applications .
Remote management and security at the highest level
The router works with Teltonika RMS (Remote Management System), allowing full control from anywhere in the world. With advanced features such as firewall, VPN, and protection against DDoS attacks, your network remains secure and stable. Integrated monitoring tools, such as traffic statistics and signal graphs, give you a complete view of your network’s performance.
Versatility and convenience with dual SIM and eSIM

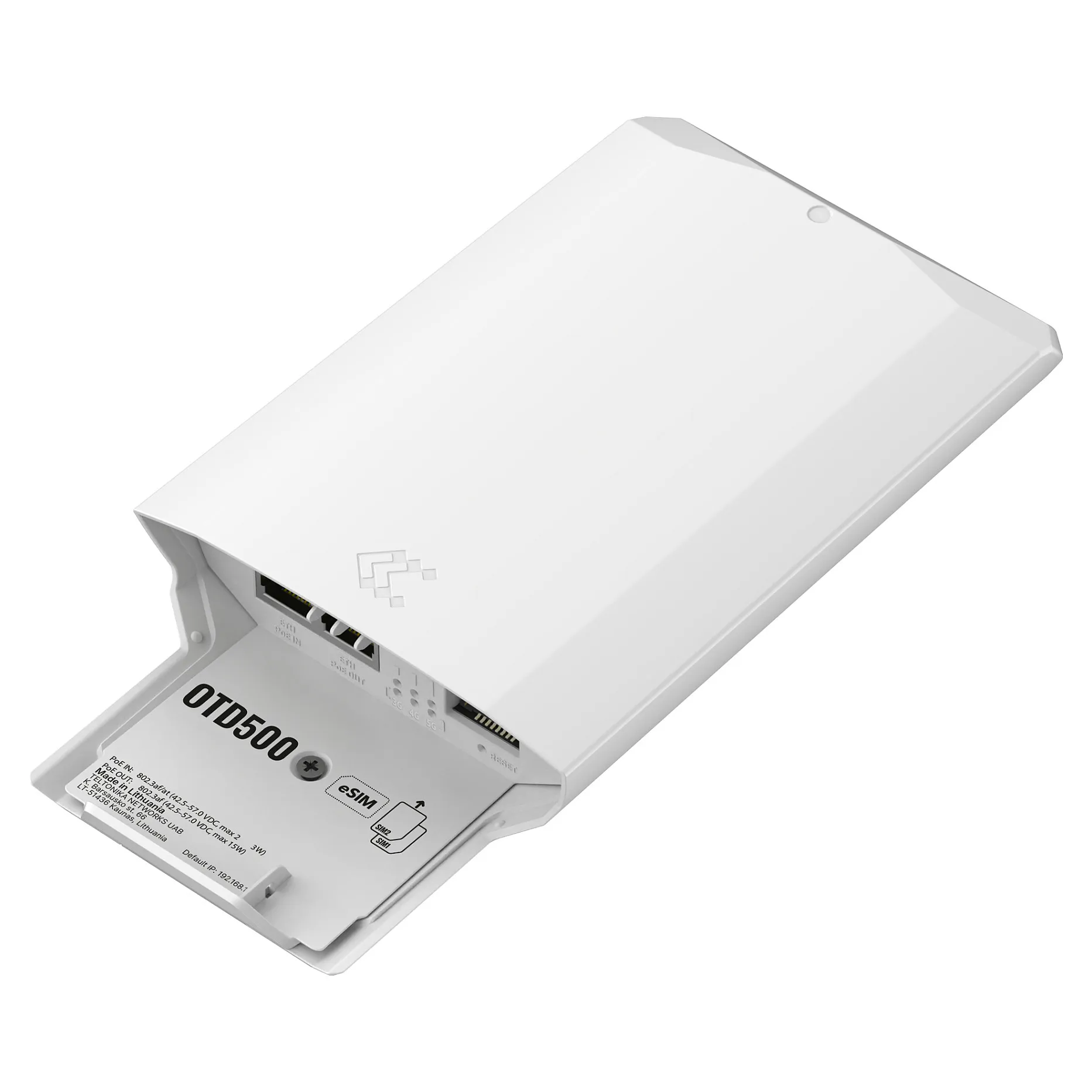

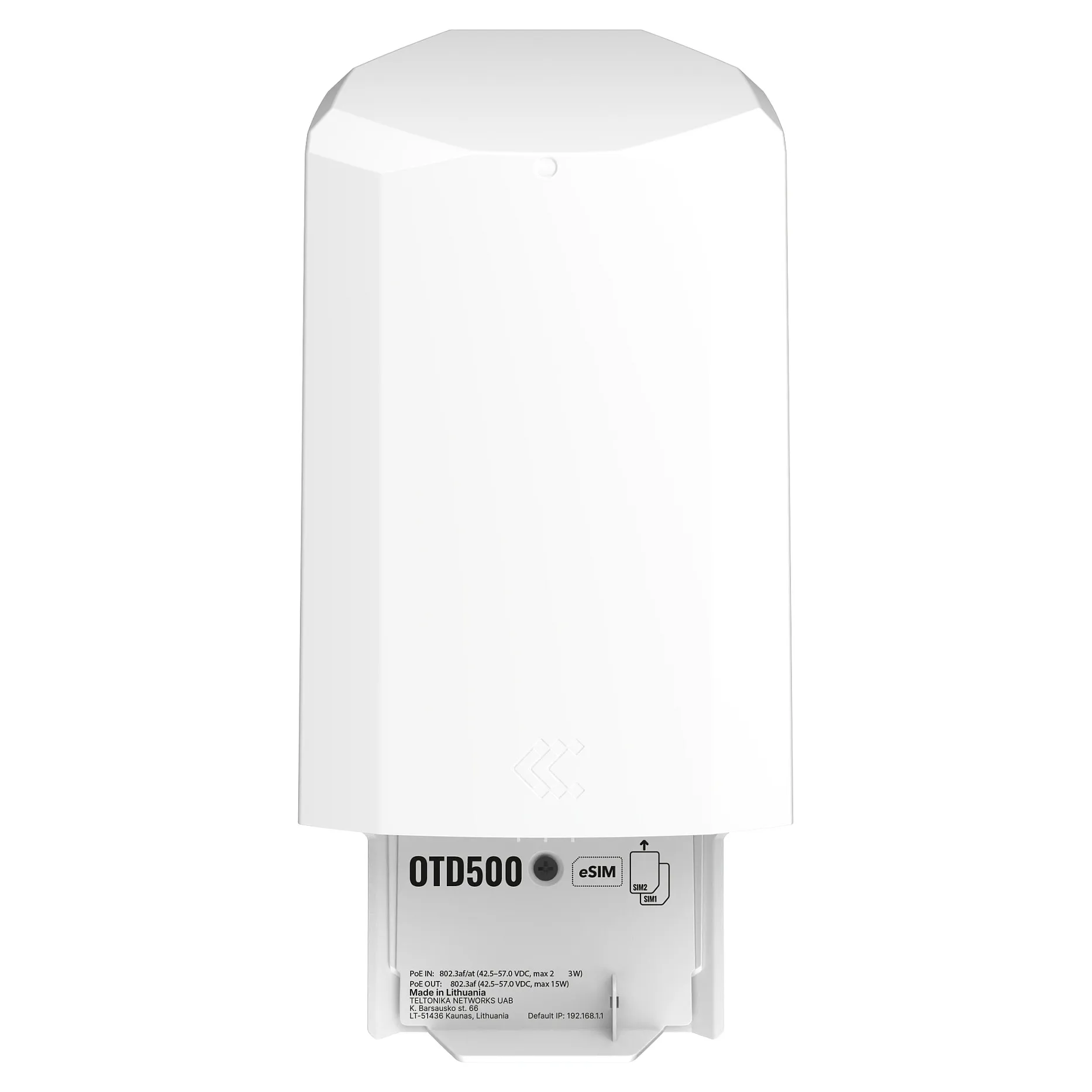

The router supports dual SIM, allowing automatic switching between cards in case of weak signal, roaming or data overage. The built-in eSIM allows management of up to 7 profiles without the need for physical SIM cards. This makes the device ideal for mobile and IoT applications where security and connection availability are key.
Feature: Ethernet WAN
Feature: SIM card slot
Network
Networking standards: IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Feature: Auto MDI/MDI-X
Mobile network
Mobile network generation: 5G
4G standard: LTE
Feature: Short Message Service (SMS)
Management features
Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Universal Plug and Play (UPnP)
Feature: Reset button

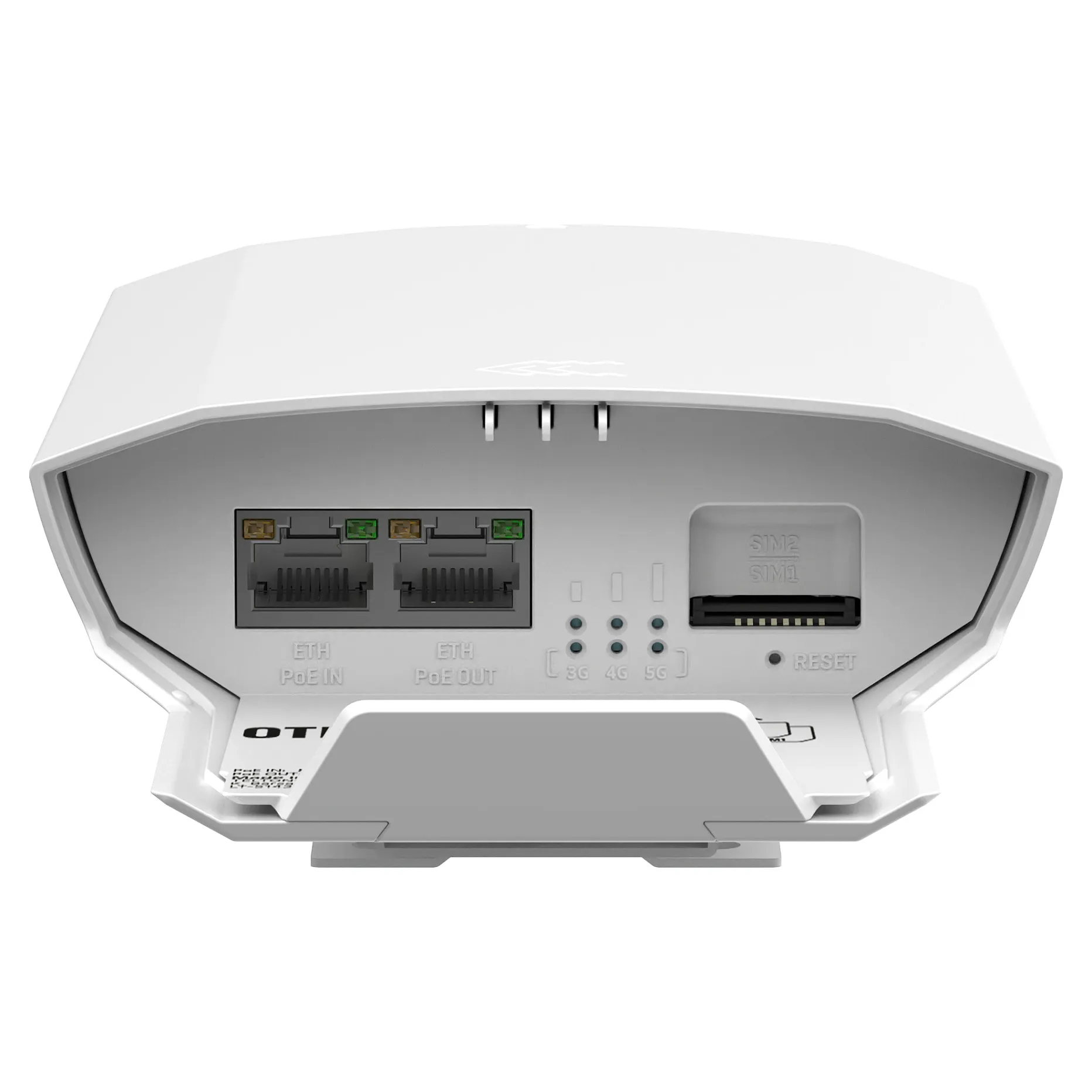

Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Power over Ethernet (PoE) ports quantity: 2
Protocols
Feature: DMZ support
Routing protocols: BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2
Feature: DHCP server
Security
Security algorithms: AES, CAST, DES, HTTPS, IPSec, SSH, SSL/TLS, TLS
Feature: Firewall
Feature: URL filtering
Feature: DoS attack prevention
Feature: Network address translation (NAT)
Feature: System event log
Certificates
Compliance certificates: CB, EAC, RCM, UKCA, WEEE
Features
Flash memory: 16 MB
Internal memory: 256 MB
Internal memory type: DDR3
Operating system installed: RutOS
Design
Product colour: White
Housing material: Plastic, Polycarbonate (PC)
Power
Power consumption (typical): 2.5 W
Power consumption (max): 9 W
Feature: Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T): -40 – 55 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 110 mm
Depth: 235 mm
Height: 49.3 mm
Weight: 385 g
