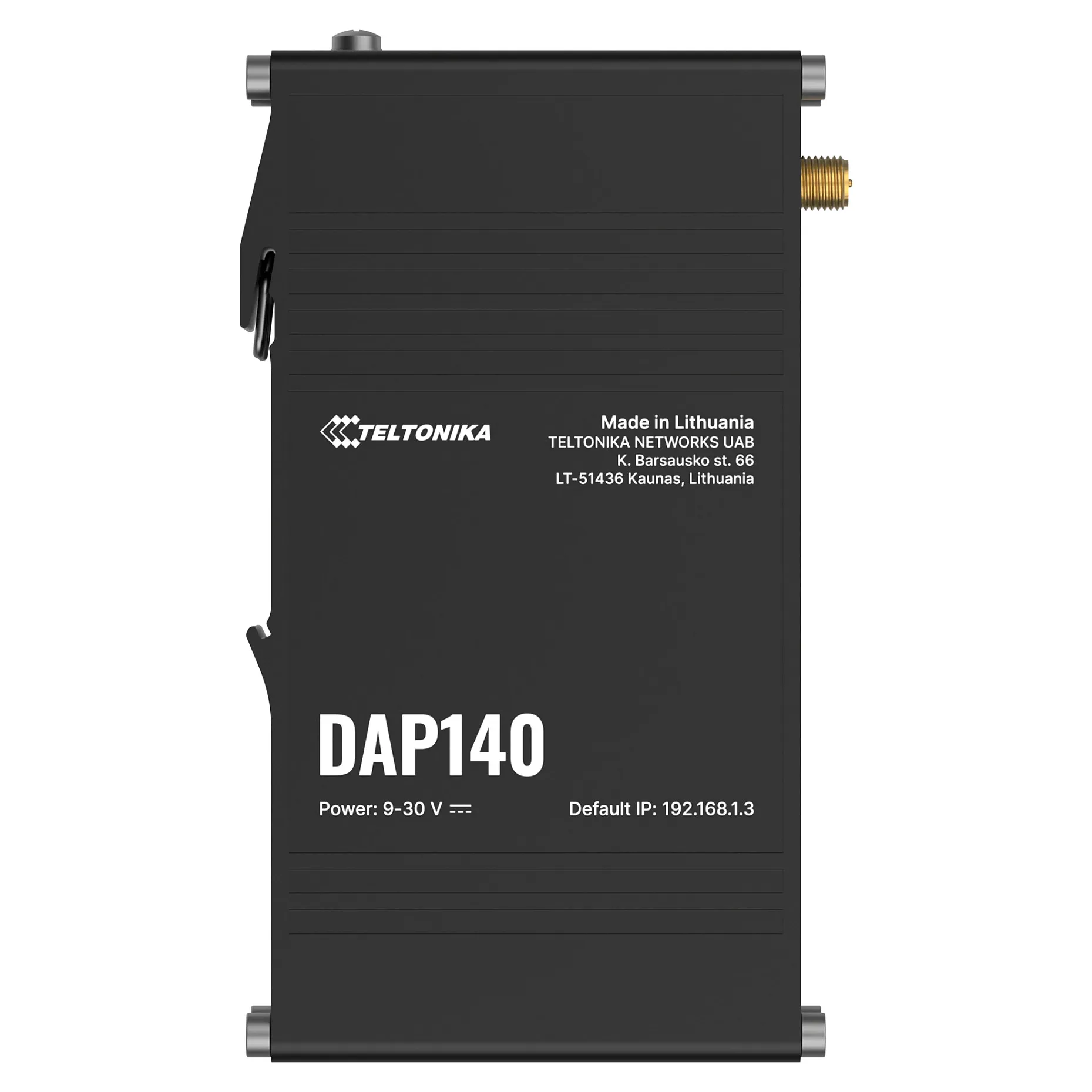

Teltonika DAP140. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: OWE, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Black

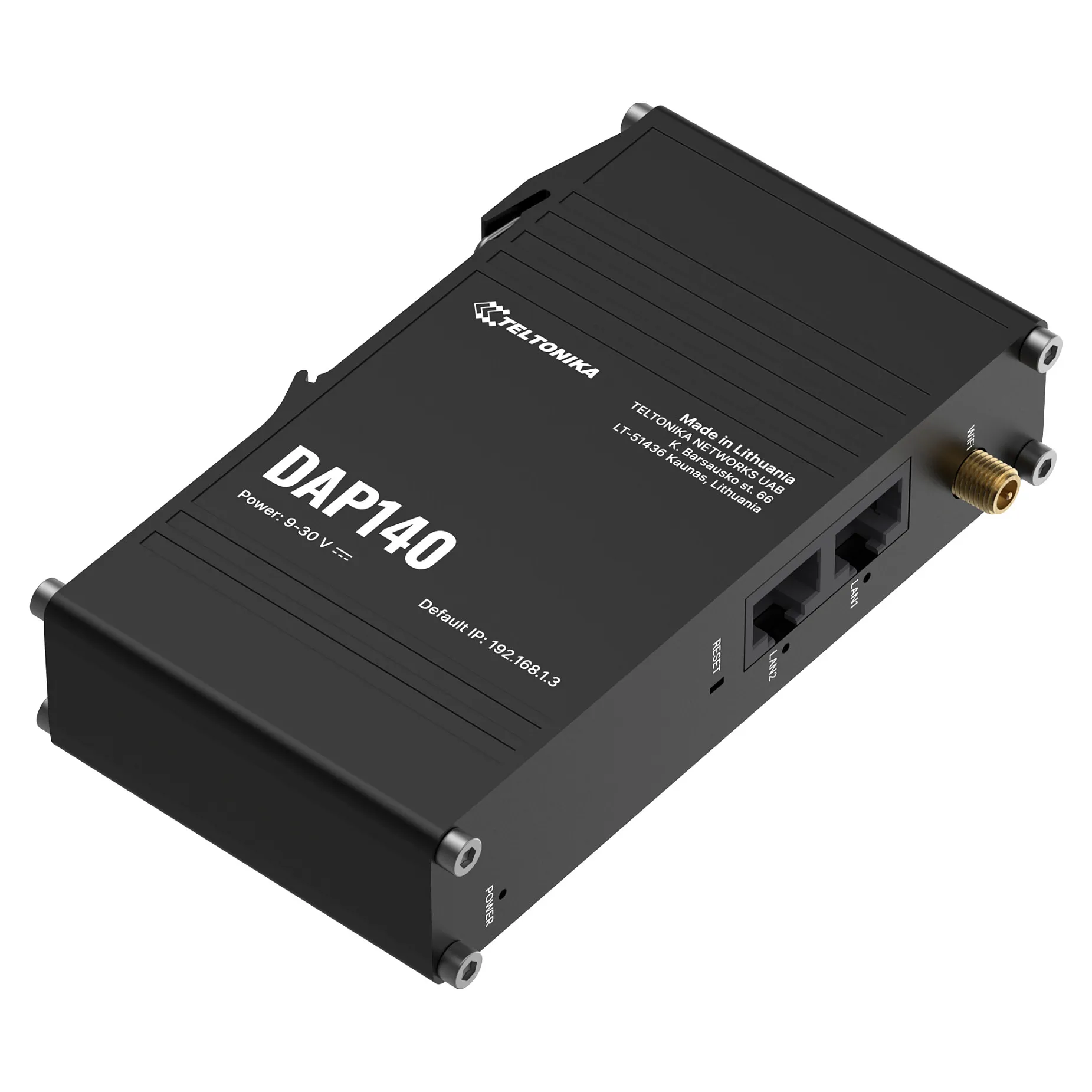

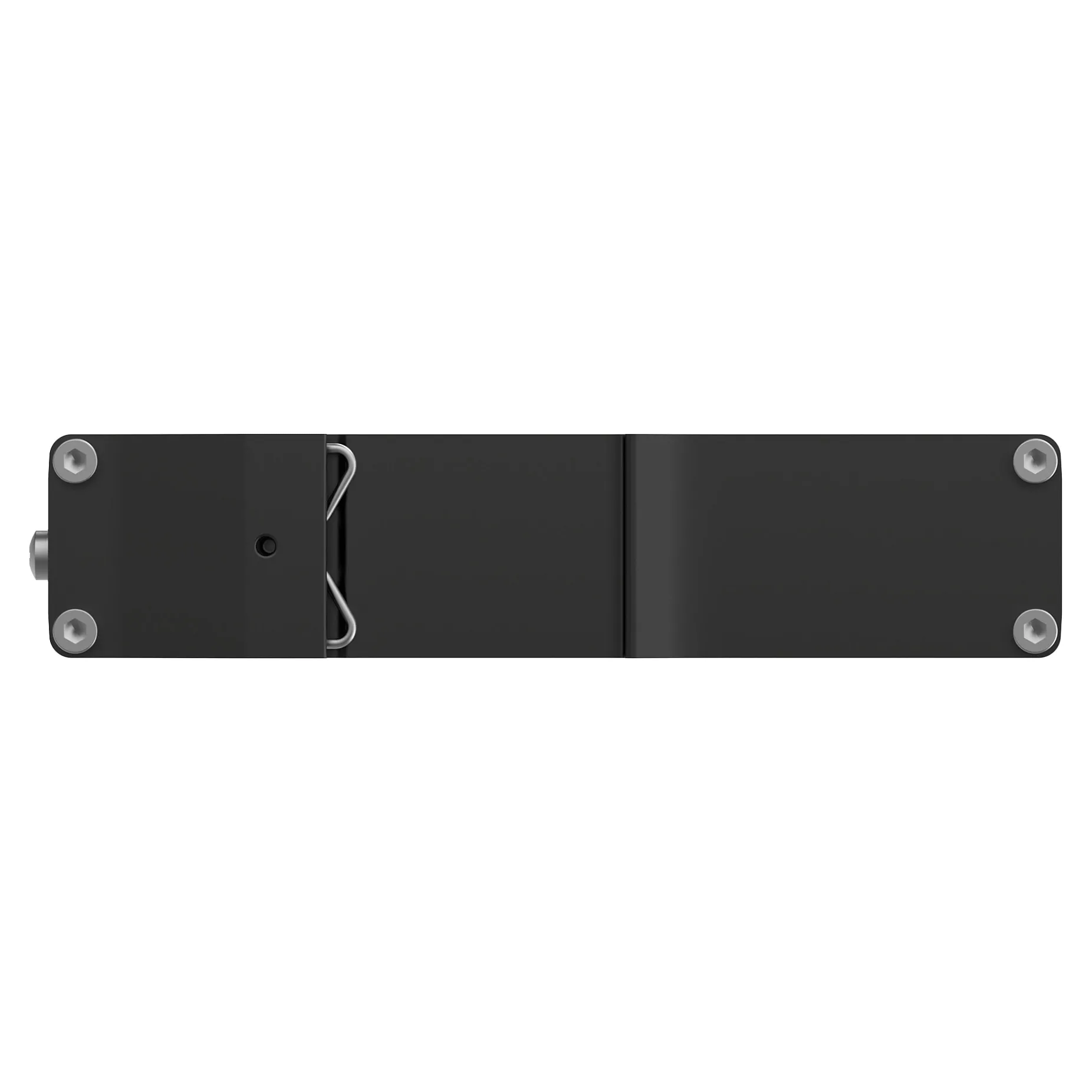

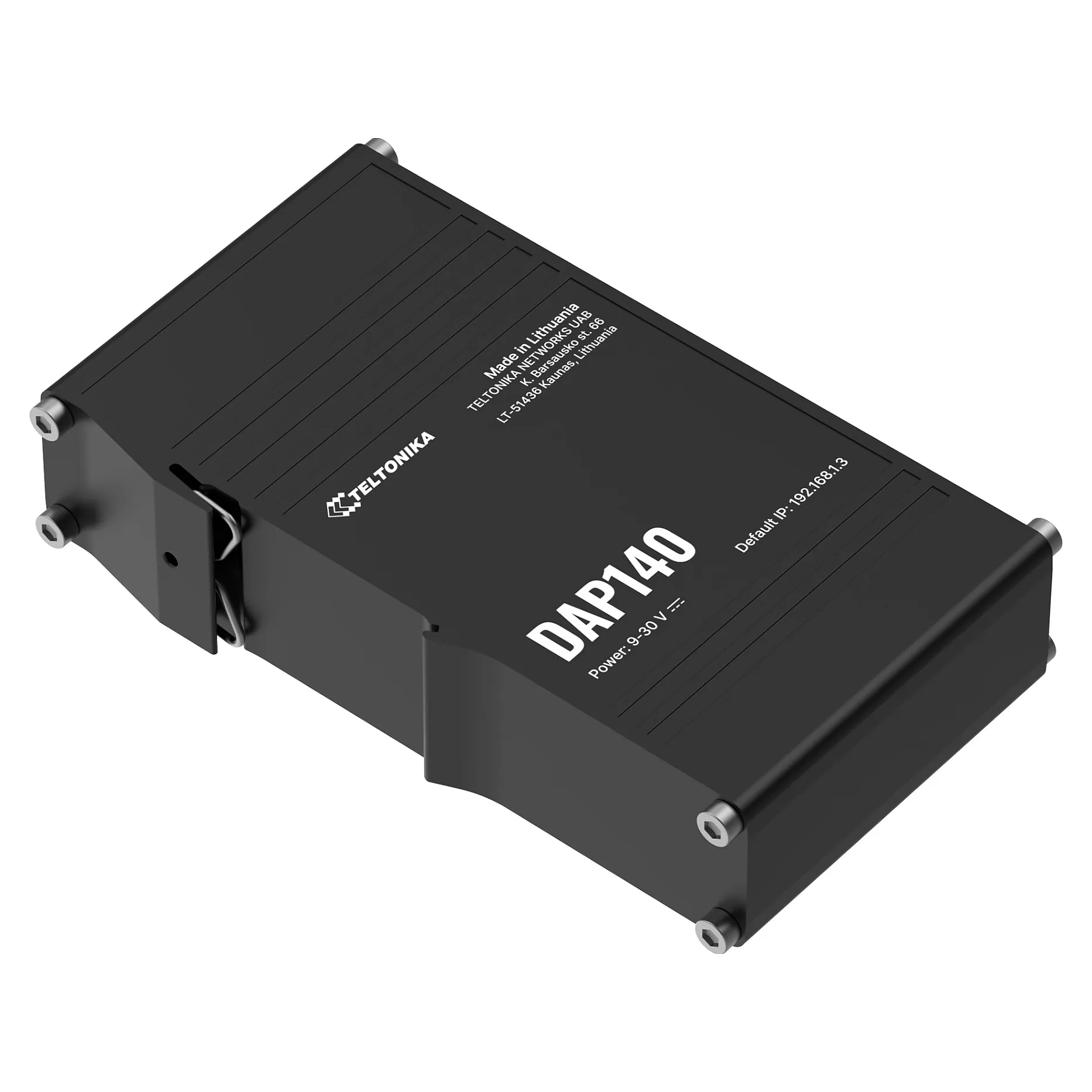

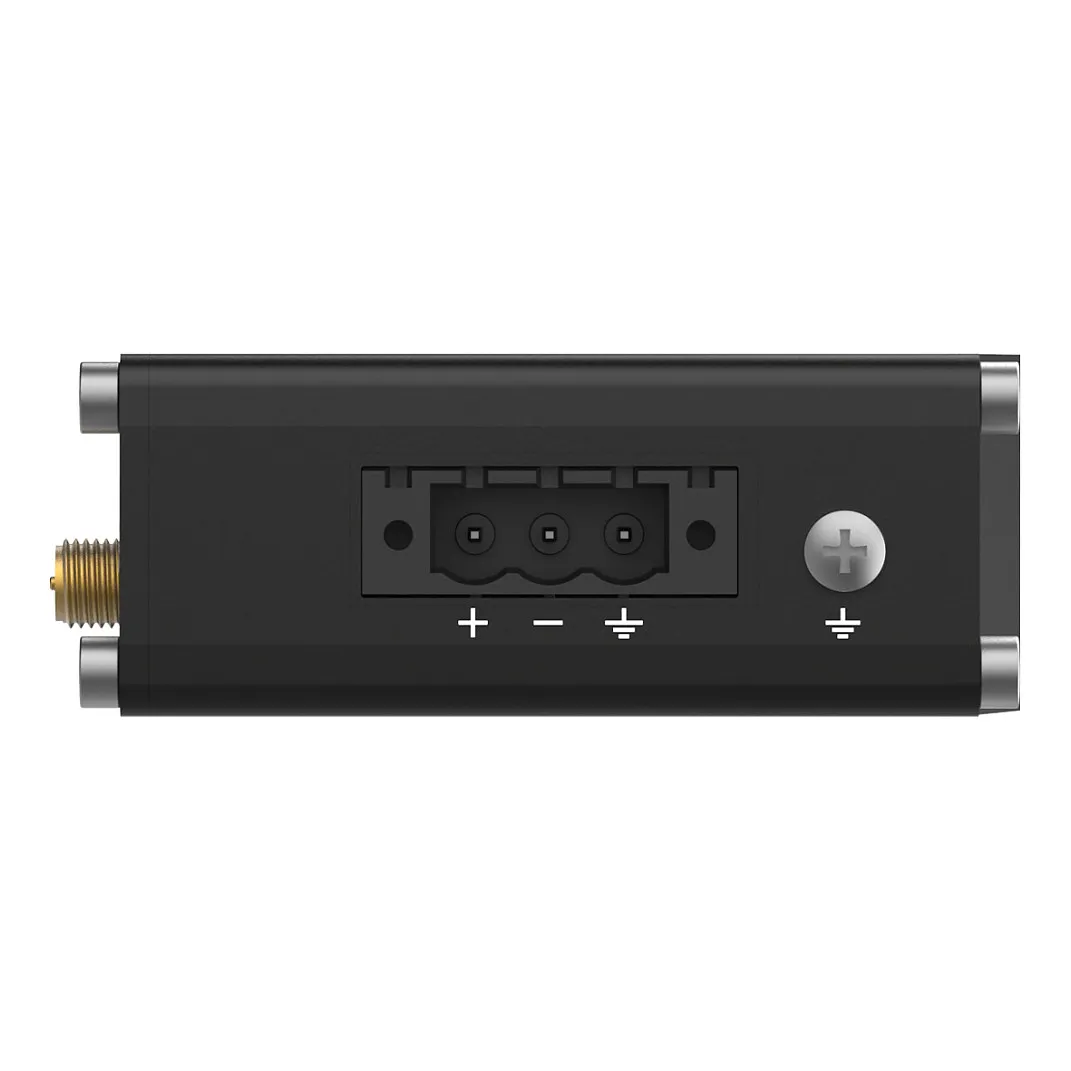

The DAP140 is a Teltonika industrial wireless access point with passive PoE-in, designed to enhance Wi-Fi coverage and performance in industrial environments. Featuring Wi-Fi 4 with Wi-Fi mesh and Fast Roaming, as well as dual RJ45 ports and support of up to 50 simultaneous connections, this wireless access point is integral in maintaining reliable connectivity. An integrated DIN rail bracket, 3-pin power connector, and industrial-grade aluminium housing make the DAP140 the ideal access point for industrial applications.
Features
Feature: 2.4 GHz
Maximum data transfer rate: 300 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Cabling technology: 10/100Base-T(X)
Feature: Fast roaming
Feature: Wireless meshing
Security
Security algorithms: OWE, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE
Feature: MAC address filtering
VPN support: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
Protocols
Feature: Universal Plug and Play (UPnP)
Feature: DHCP server
Feature: DHCP client
Supported network protocols: TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL)
IPv4 & IPv6 features: Dual stack IPv4/IPv6
Management features
Feature: Web-based management
Feature: Command-line interface (CLI)
Ports & interfaces

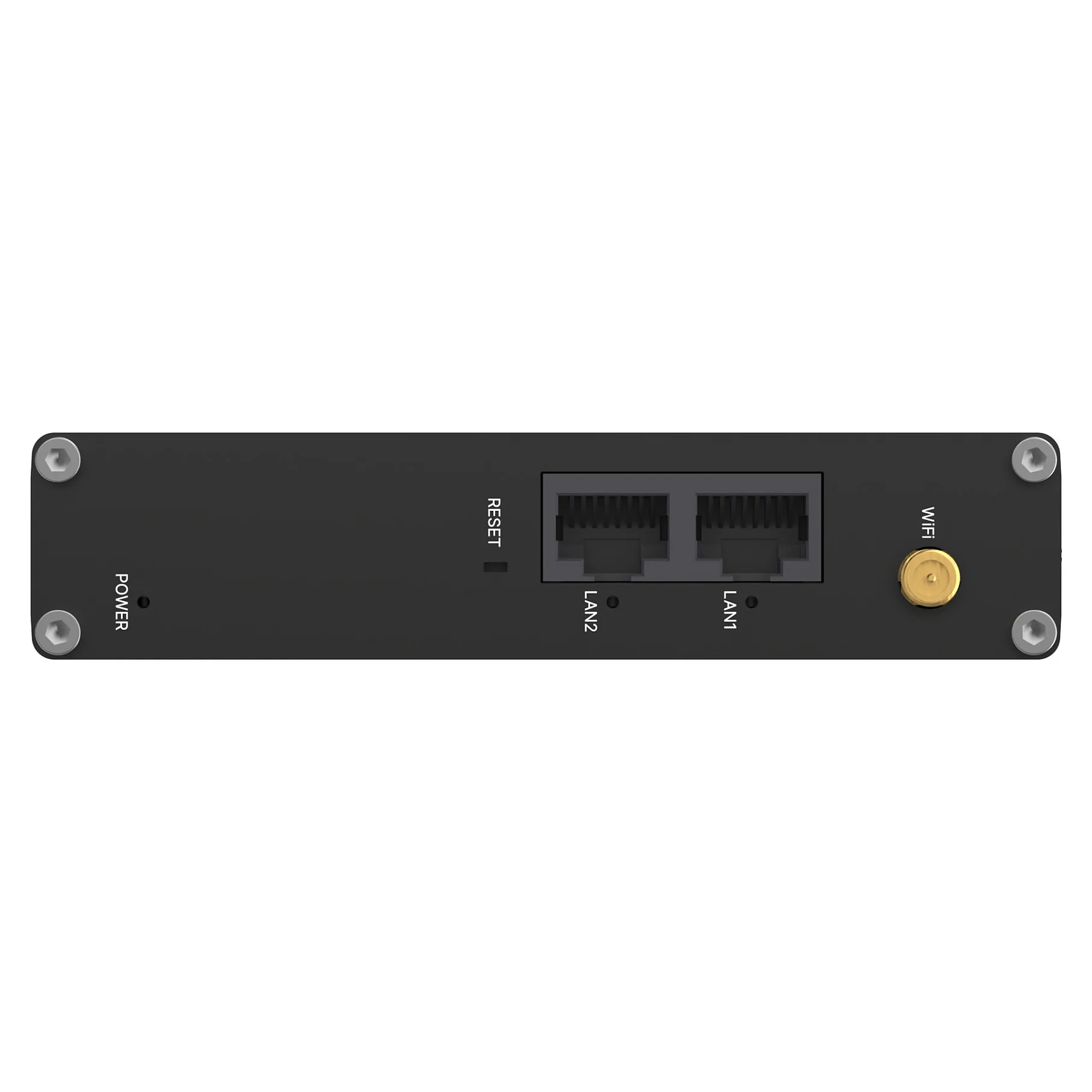

Ethernet LAN (RJ-45) ports: 2
WAN connection: Ethernet (RJ-45)
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
Design
Placement: Shelf, Wall
Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
Feature: Reset button
LED indicators: Power
Antenna
Antenna type: External
Antenna connector type: RP-SMA
Performance
Feature: Built-in processor
Processor frequency: 580 MHz
Flash memory: 128 MB
Internal memory: 16 MB
Operating system installed: RutOS
Weight & dimensions
Width: 113.1 mm
Depth: 68.6 mm
Height: 25 mm
Weight: 150 g
Packaging content
Quantity per pack: 1 pc(s)
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Operating temperature (T-T): -40 – 75 °C
Storage temperature (T-T): 10 – 90 °C
Storage relative humidity (H-H): -50 – 75%
