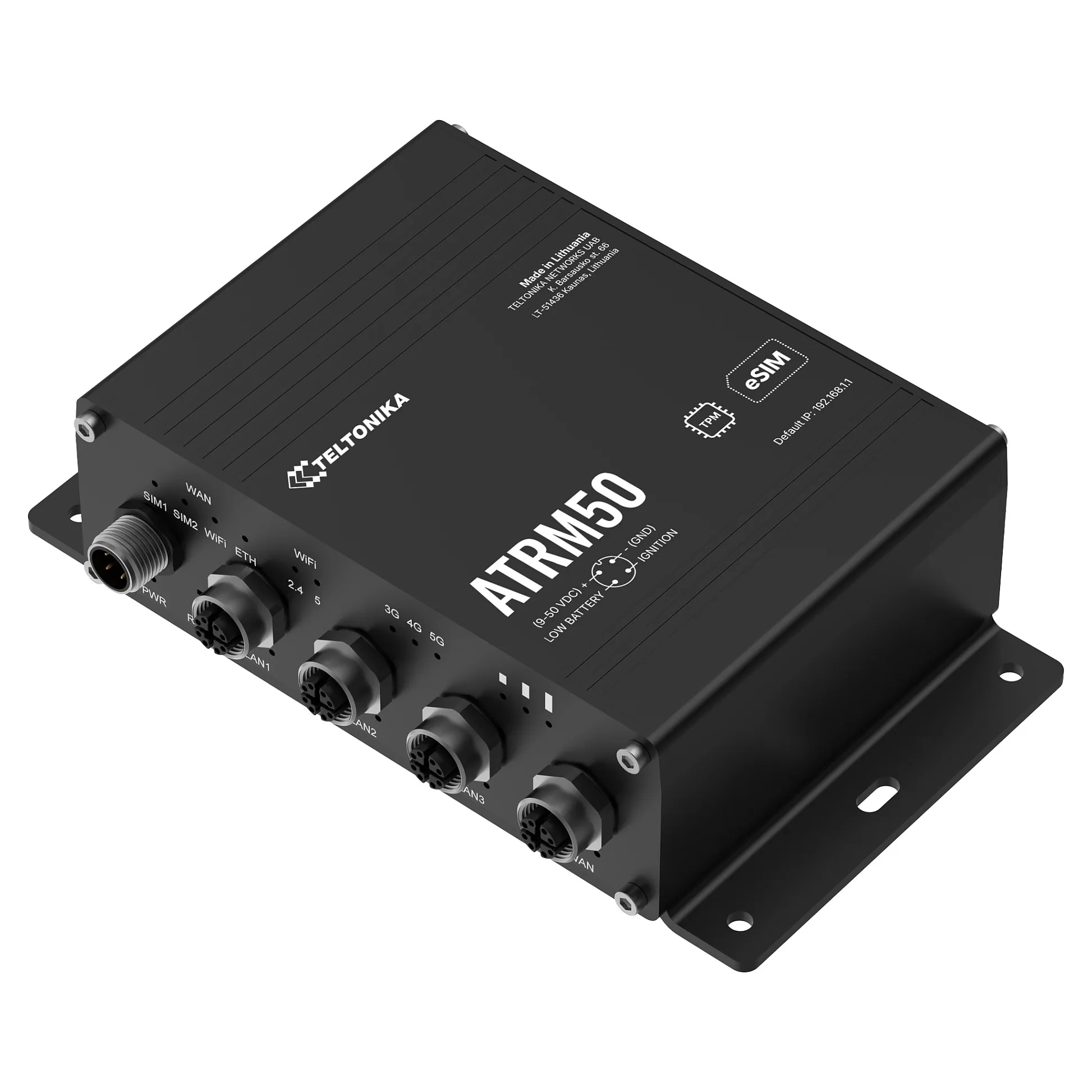

Teltonika ATRM50 5G Router for Transportation, Ultra-High Cellular Speeds, M12 CONNECTORS, DUAL SIM & eSIM, EN 45545-2 and EN 50155, PSU not included. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 4G standard: LTE, 5G standard: Sub6 NSA, Sub6 SA. Security algorithms: AES-CCMP, EAP-TLS, OWE, PEAP, TKIP, WPA-PSK, WPA2-EAP, WPA2-Enterprise, WPA2-PSK, WPA3-EAP, WPA3-SAE

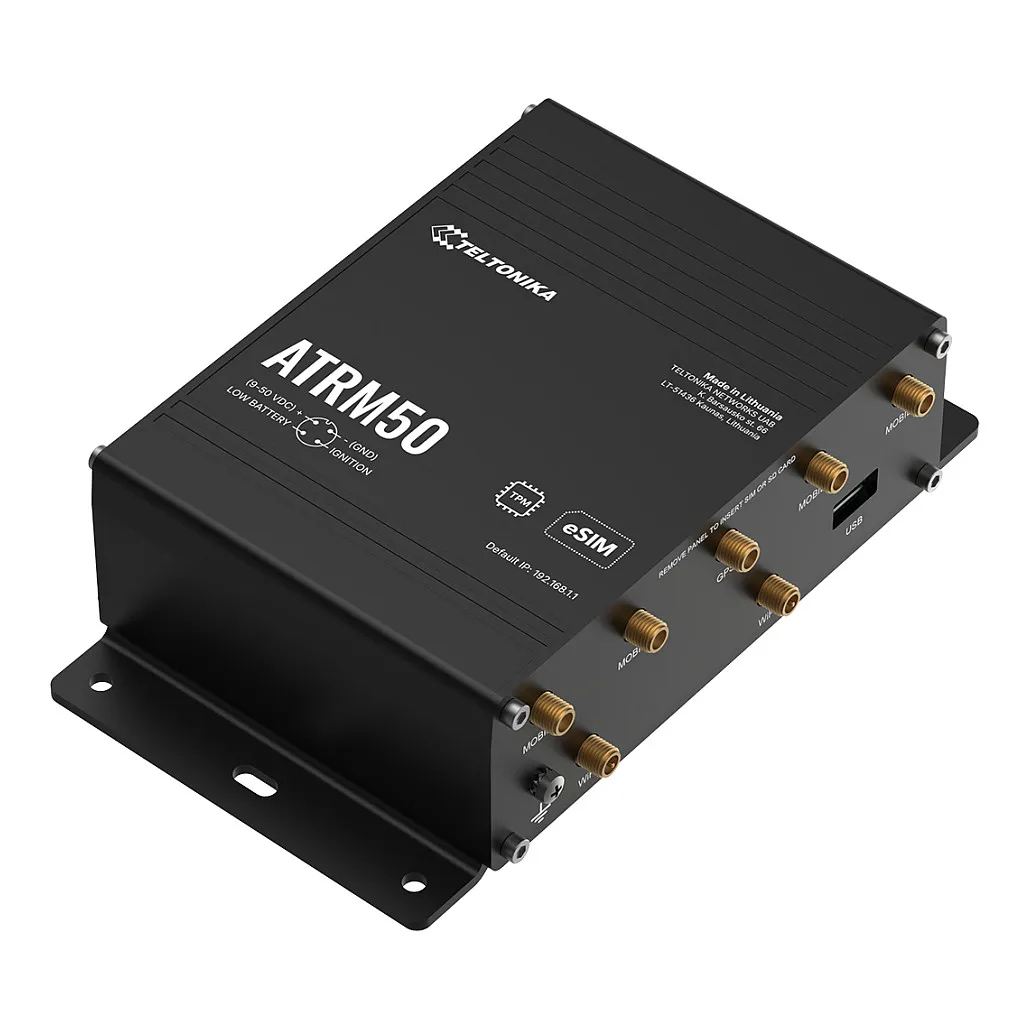

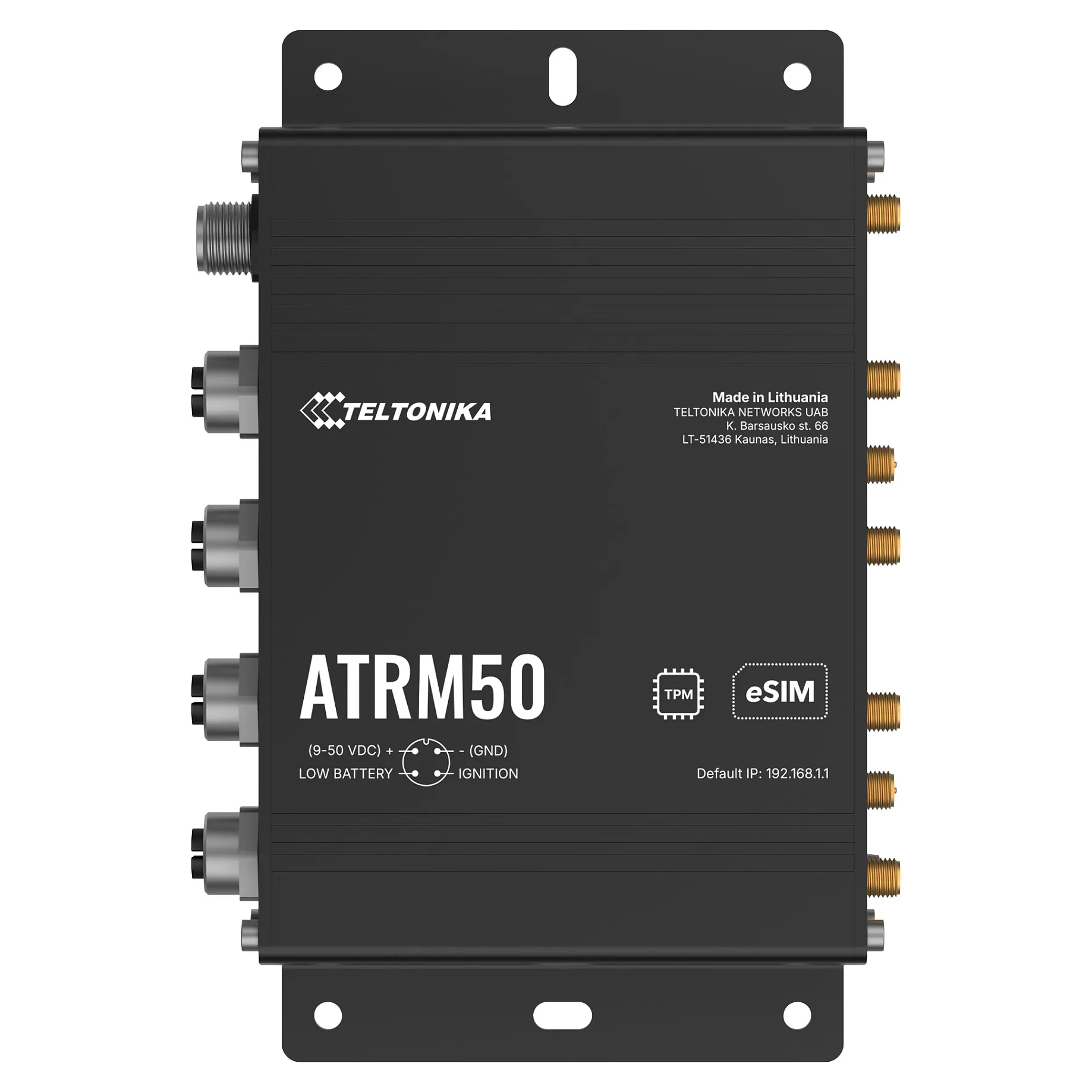

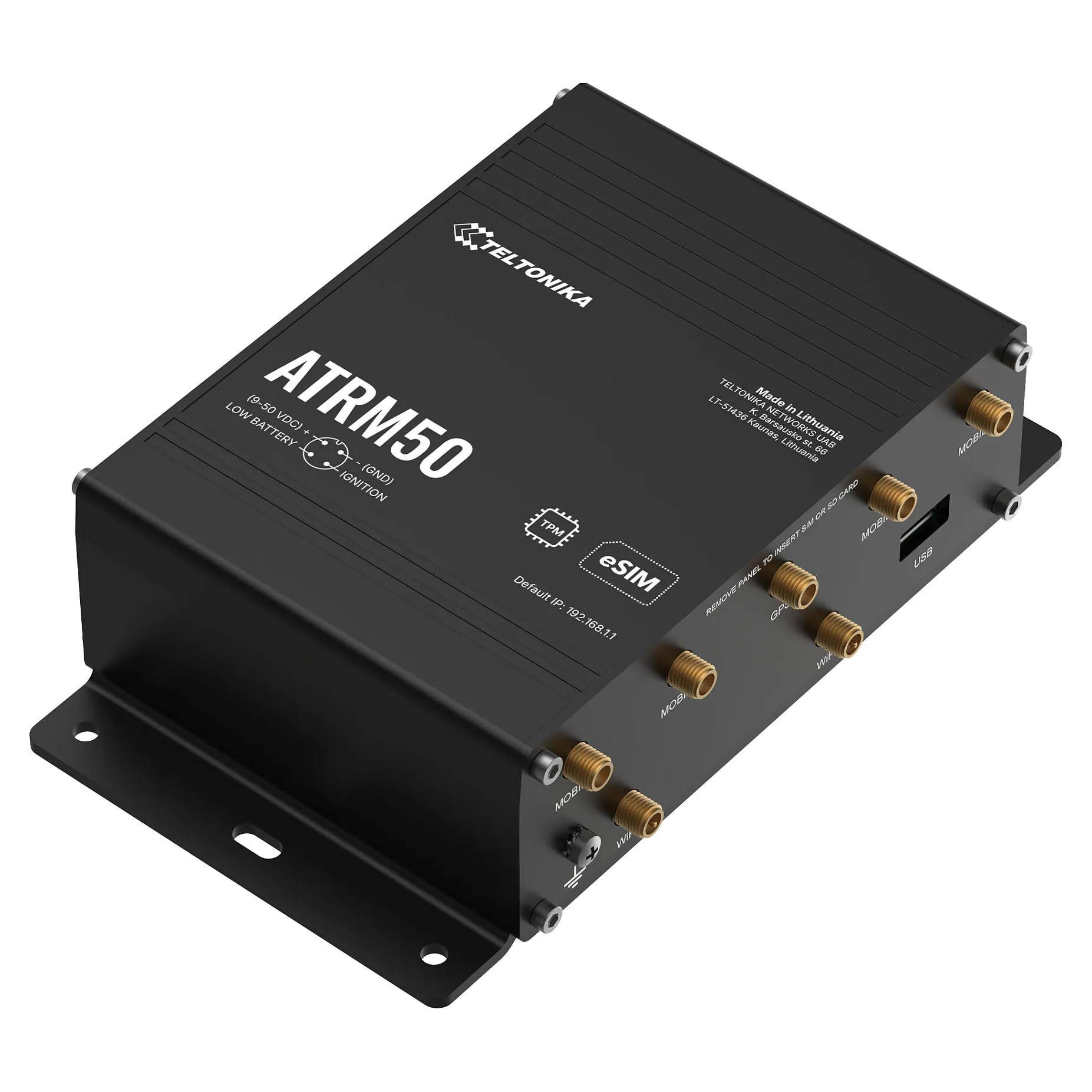

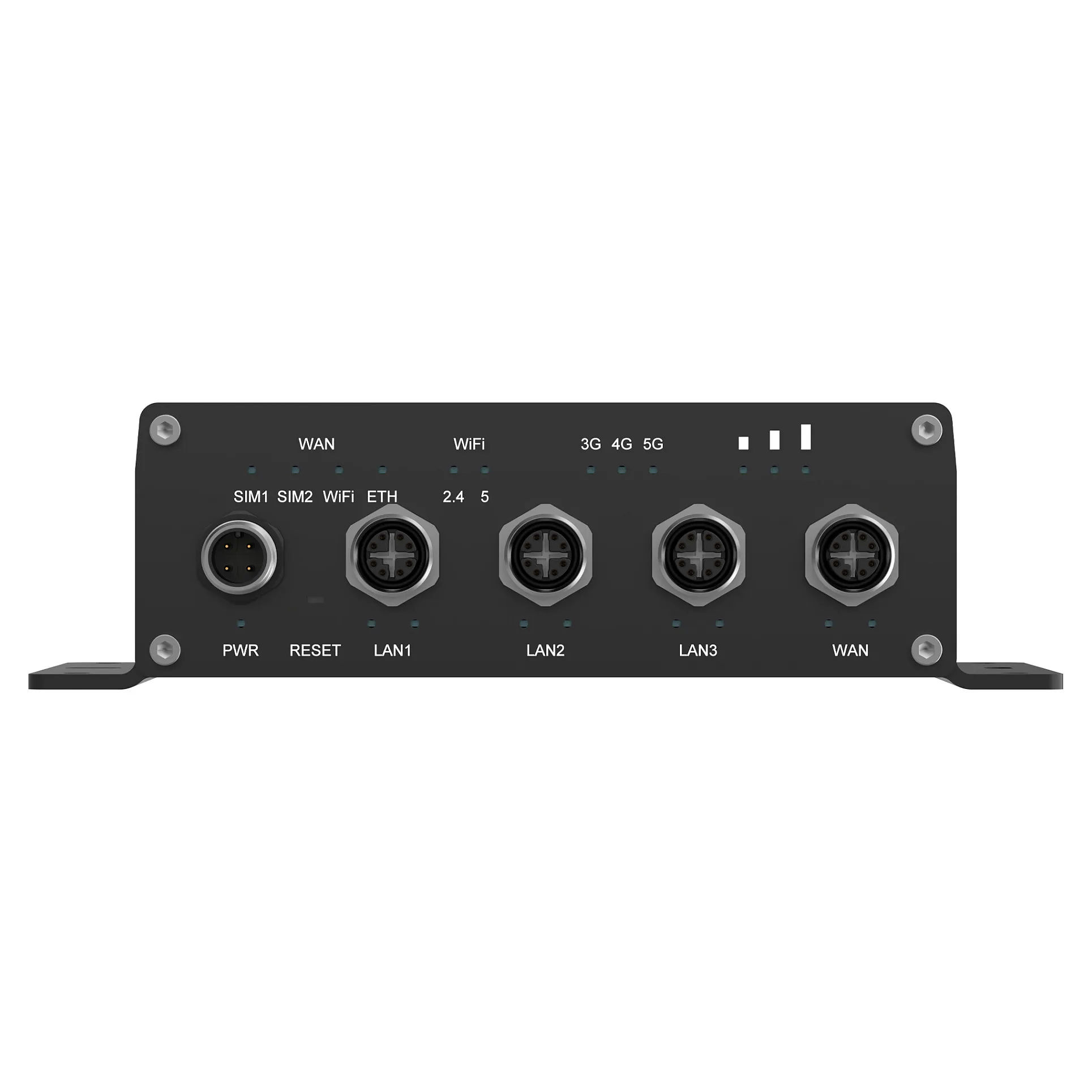

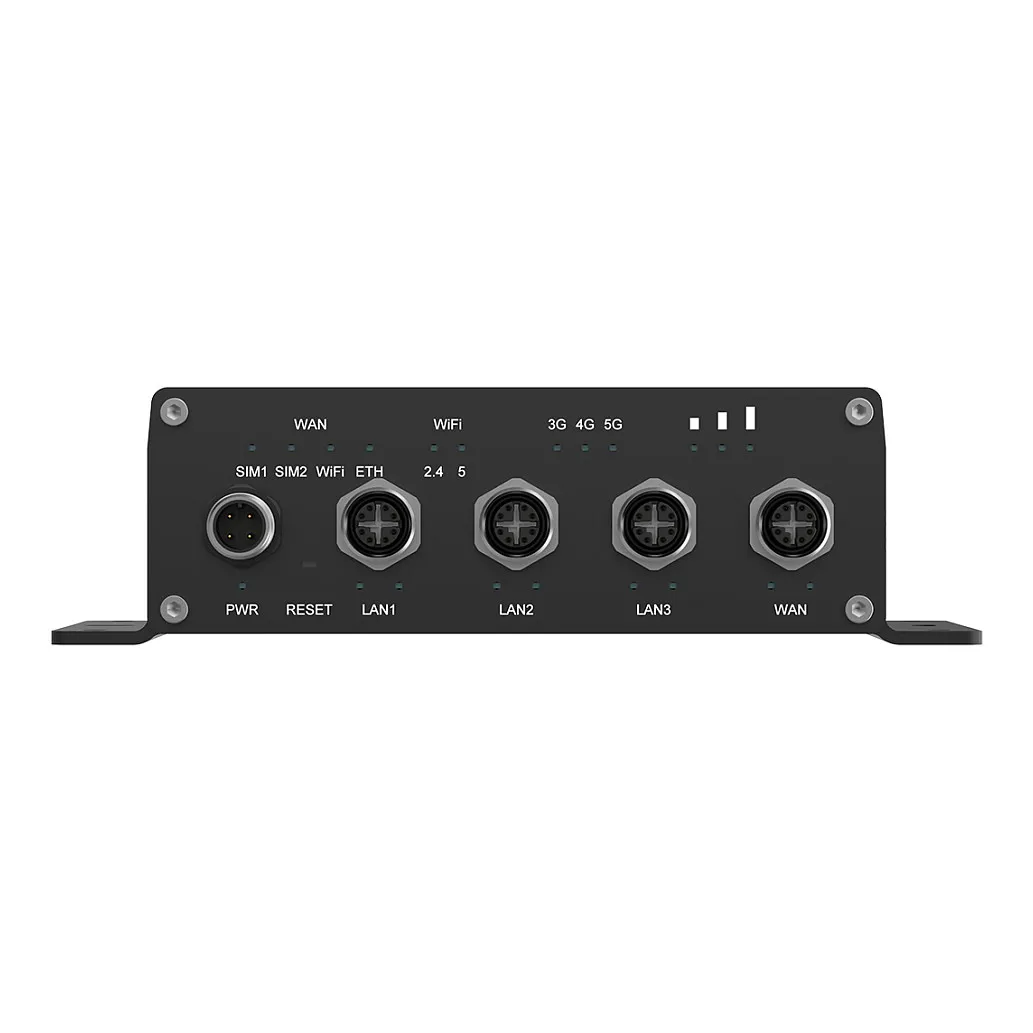

The ATRM50 is a rugged 5G router built for transportation, featuring 4 x M12 Gigabit Ethernet ports and M12 power input for durable, secure connections. It delivers ultra-high cellular speeds up to 3.4 Gbps and supports dual SIM with eSIM™ for seamless failover. Certified to EN 45545-2 and EN 50155 standards, the ATRM50 is engineered to meet the rigorous safety and reliability requirements of railway systems—while also being a strong fit for other demanding transportation environments. The router comes with GNSS, an integrated mounting bracket, and is compatible with RMS for efficient on-site and remote management.
WAN connection
Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Full duplex
Feature: Auto-sensing
Feature: Port forwarding
Feature: Load balancing system
VPN support: OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
Mobile network
Mobile network generation: 5G
Feature: Dual SIM support
4G standard: LTE
4G LTE category: 19
5G standard: Sub6 NSA, Sub6 SA
Ports & interfaces
Feature: USB port
USB 2.0 ports quantity: 1
Management features
Feature: Web-based management
Feature: Web-based setup wizard
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: MU-MIMO technology
Feature: Cloud-managed
Feature: Command-line interface (CLI)
Security
Security algorithms: AES-CCMP, EAP-TLS, OWE, PEAP, TKIP, WPA-PSK, WPA2-EAP, WPA2-Enterprise, WPA2-PSK, WPA3-EAP, WPA3-SAE
Feature: Firewall
Feature: Access Control List (ACL)
Protocols
Feature: DHCP client
Feature: DHCP server
Design
Product colour: Black
Housing material: Aluminium
Feature: Wall mountable
International Protection (IP) code: IP30
Feature: Indication light
LED indicators: LTE, Link, Power, Status, WAN
Product type: Industrial router
Packaging content
Feature: Antenna included
Feature: Mounting kit
Feature: Quick installation guide
Feature: Quick start guide

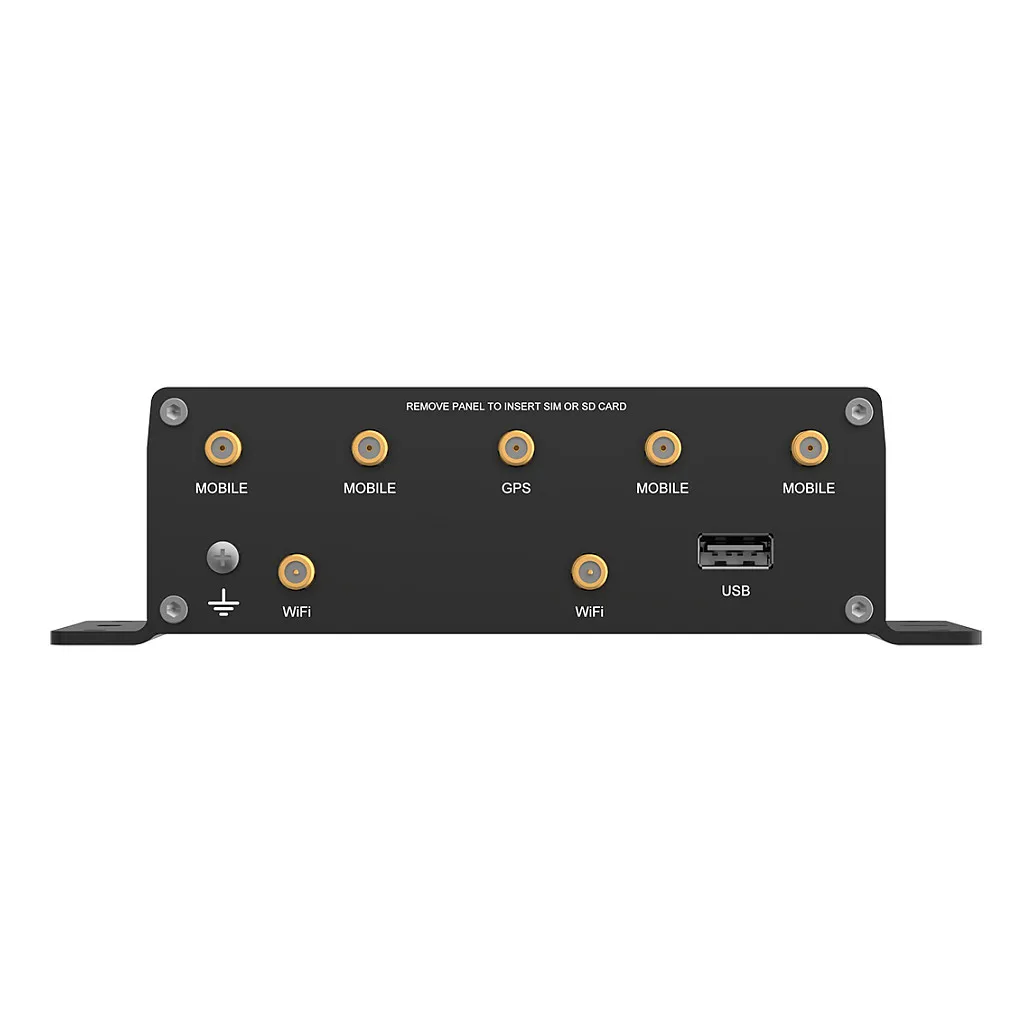

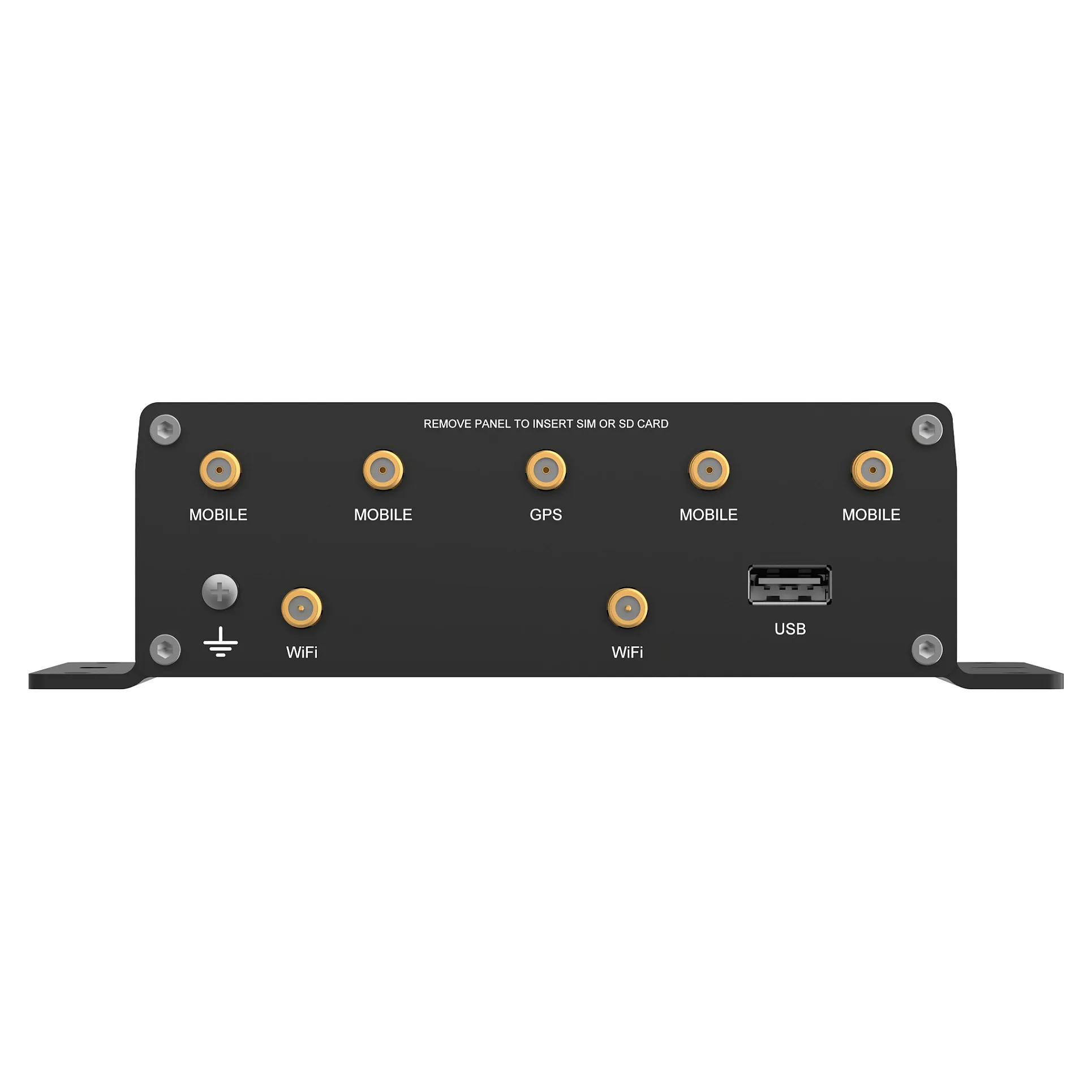

Antenna
Antenna design: External
Antennas quantity: 7
Features
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor model: MIPS1004KC
Processor frequency: 880 MHz
Processor cores: 2
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 16 MB
Power
Power source type: DC
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Storage temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 167 mm
Depth: 113 mm
Height: 47 mm
Weight: 550 g
Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Full duplex
Feature: Auto-sensing
Feature: Port forwarding
Feature: Load balancing system
VPN support: OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
Mobile network
Mobile network generation: 5G
Feature: Dual SIM support
4G standard: LTE
4G LTE category: 19
5G standard: Sub6 NSA, Sub6 SA
Ports & interfaces
Feature: USB port
USB 2.0 ports quantity: 1
Management features
Feature: Web-based management
Feature: Web-based setup wizard
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: MU-MIMO technology
Feature: Cloud-managed
Feature: Command-line interface (CLI)
Security
Security algorithms: AES-CCMP, EAP-TLS, OWE, PEAP, TKIP, WPA-PSK, WPA2-EAP, WPA2-Enterprise, WPA2-PSK, WPA3-EAP, WPA3-SAE
Feature: Firewall
Feature: Access Control List (ACL)
Protocols
Feature: DHCP client
Feature: DHCP server
Design
Product colour: Black
Housing material: Aluminium
Feature: Wall mountable
International Protection (IP) code: IP30
Feature: Indication light
LED indicators: LTE, Link, Power, Status, WAN
Product type: Industrial router
Packaging content
Feature: Antenna included
Feature: Mounting kit
Feature: Quick installation guide
Feature: Quick start guide
Antenna
Antenna design: External
Antennas quantity: 7
Features
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor model: MIPS1004KC
Processor frequency: 880 MHz
Processor cores: 2
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 16 MB
Power
Power source type: DC
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Storage temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 167 mm
Depth: 113 mm
Height: 47 mm
Weight: 550 g
