Teltonika 5G industrial router with RS232/485. WAN connection type: RJ-45, USB. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 5G standard: Sub6, Sub6 NSA, Sub6 SA, SIM card type: eSIM. Product type: Industrial router, Product colour: Black, Housing material: Aluminium

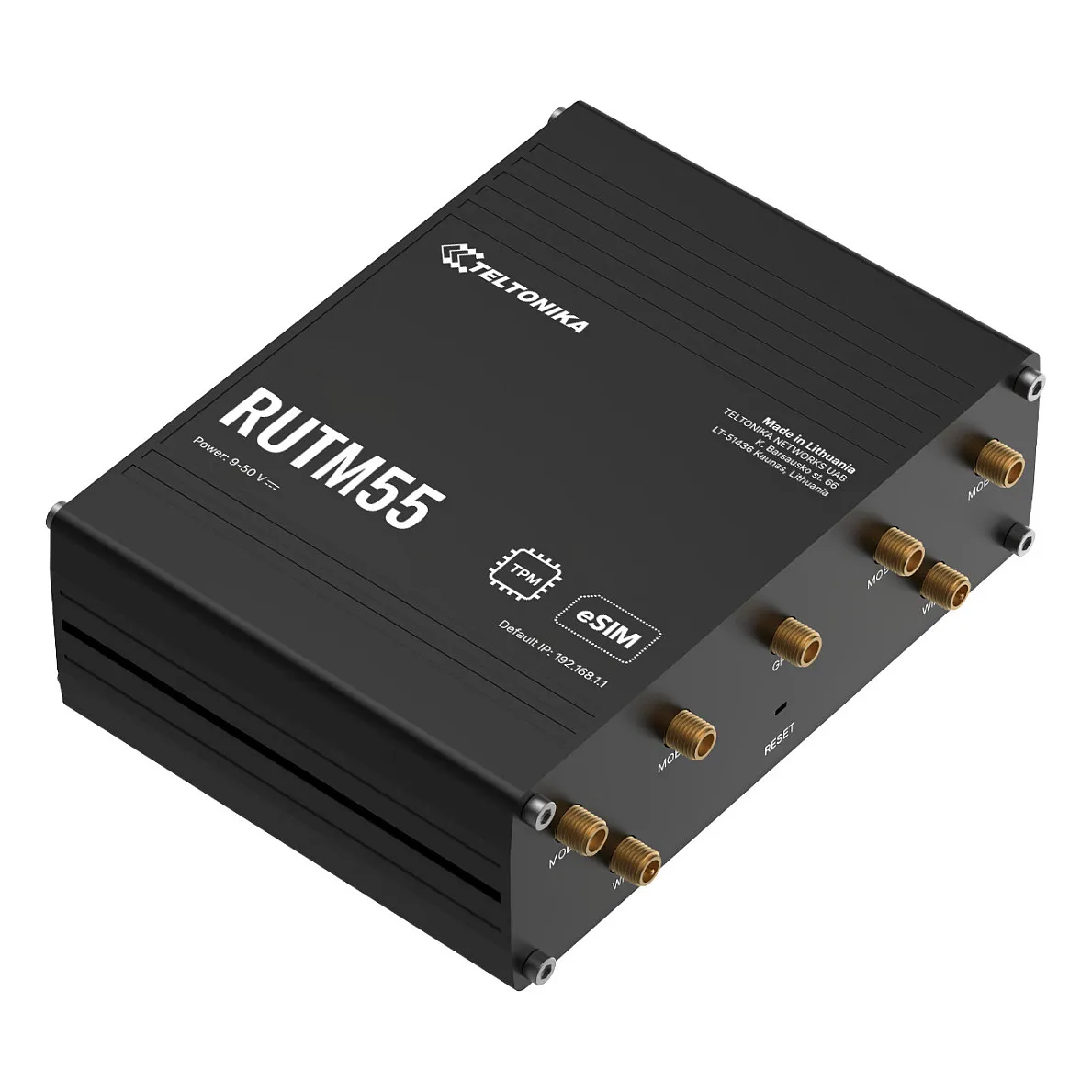

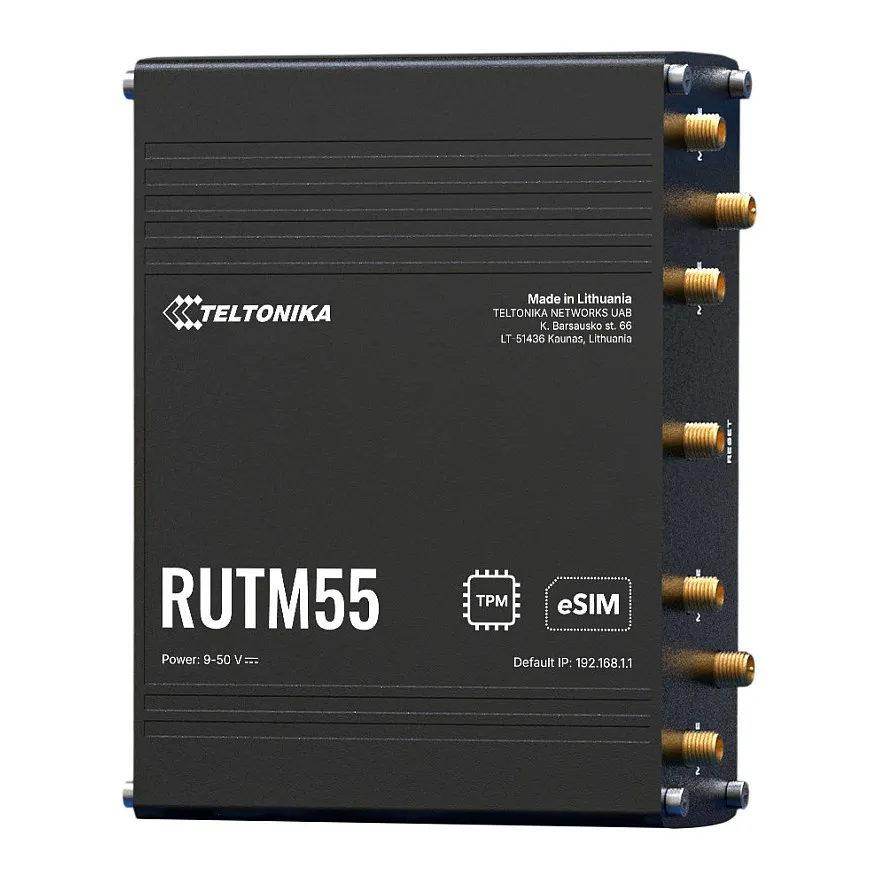

Bring 5G to your industrial networks with RUTM55. This advanced router delivers ultra-high 5G speeds (up to 3.4 Gbps) coupled with versatile 4 x Gigabit Ethernet and Wi-Fi 5 connectivity options. Ensure maximum uptime with dual SIM/eSIM auto-failover. Connect legacy RS232/RS485 devices directly, protecting investments and modernizing infrastructure. Tailored for industrial demands via 3-PIN power input, RUTM55 provides robust, future-proof reliability.
WAN connection
Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45, USB
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Full duplex
Feature: Auto MDI/MDI-X
Feature: Load balancing system
Feature: SSID-based VLAN assignment
VPN server: PPTP, L2TP, WireGuard
VPN tunnels quantity: 27
Mobile network
Mobile network generation: 5G
Feature: Dual SIM support
5G standard: Sub6, Sub6 NSA, Sub6 SA
SIM card type: eSIM
Feature: Short Message Service (SMS)

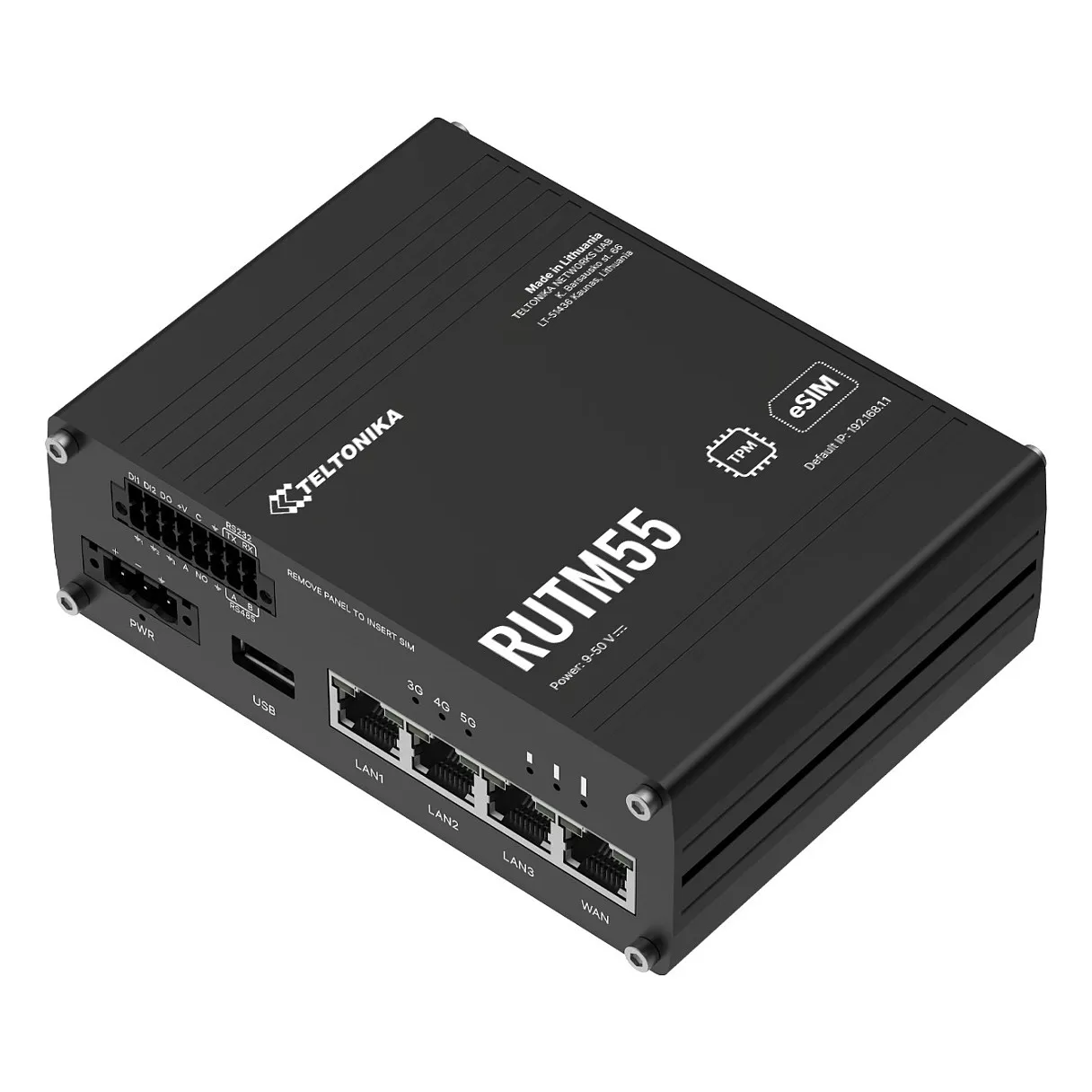

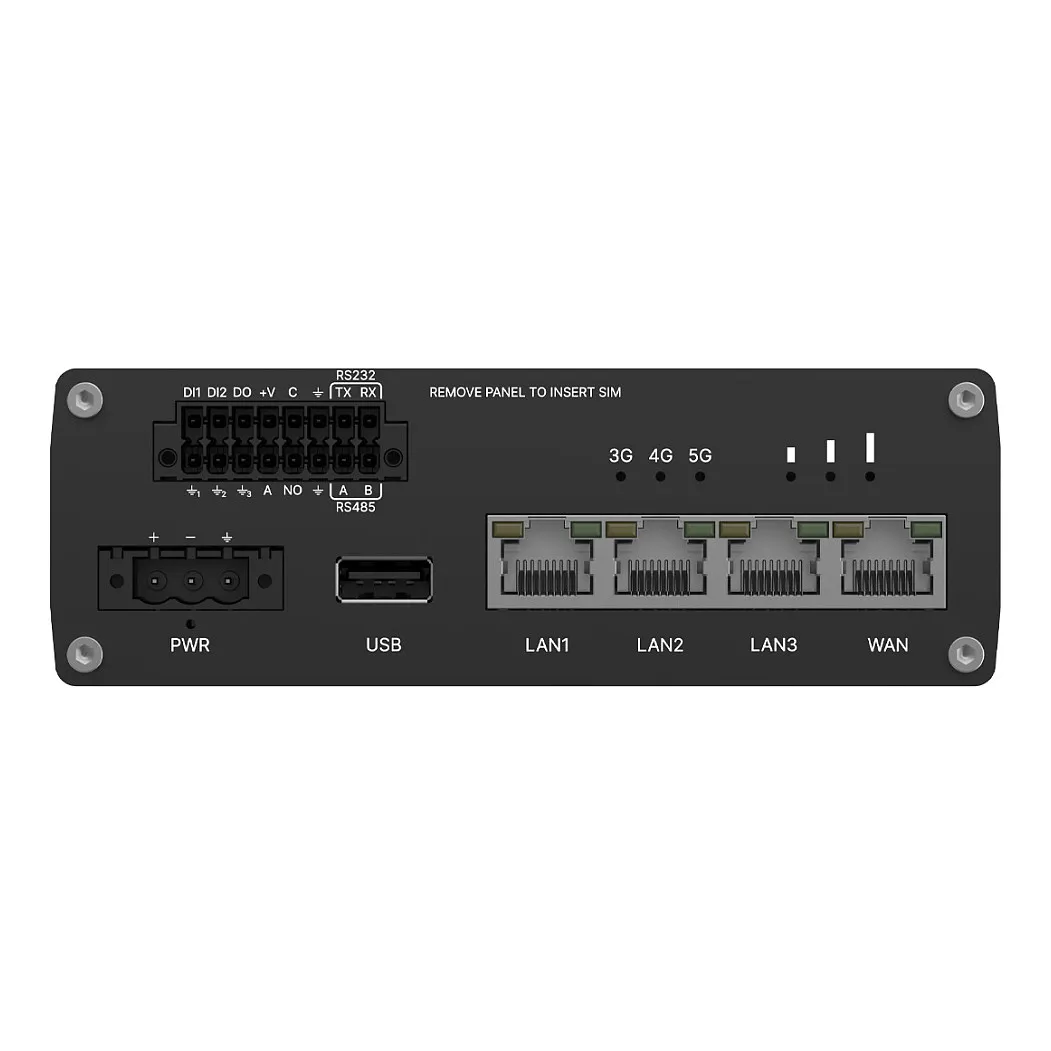

Ports & interfaces
Ethernet LAN (RJ-45) ports: 3
Feature: USB port
USB 2.0 ports quantity: 1
Management features
Feature: Web-based management
Feature: Web-based setup wizard
Feature: Bandwidth control
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: Intelligent Mesh technology
Feature: MU-MIMO technology
Security
Feature: Firewall
Feature: DMZ support
Feature: Network address translation (NAT)
Protocols
Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Design
Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
LED indicators: Activity, LAN, LTE, Power
Product type: Industrial router
Packaging content
Cables included: LAN (RJ-45), Power
Feature: Antenna included
Feature: Manual
Feature: Quick start guide

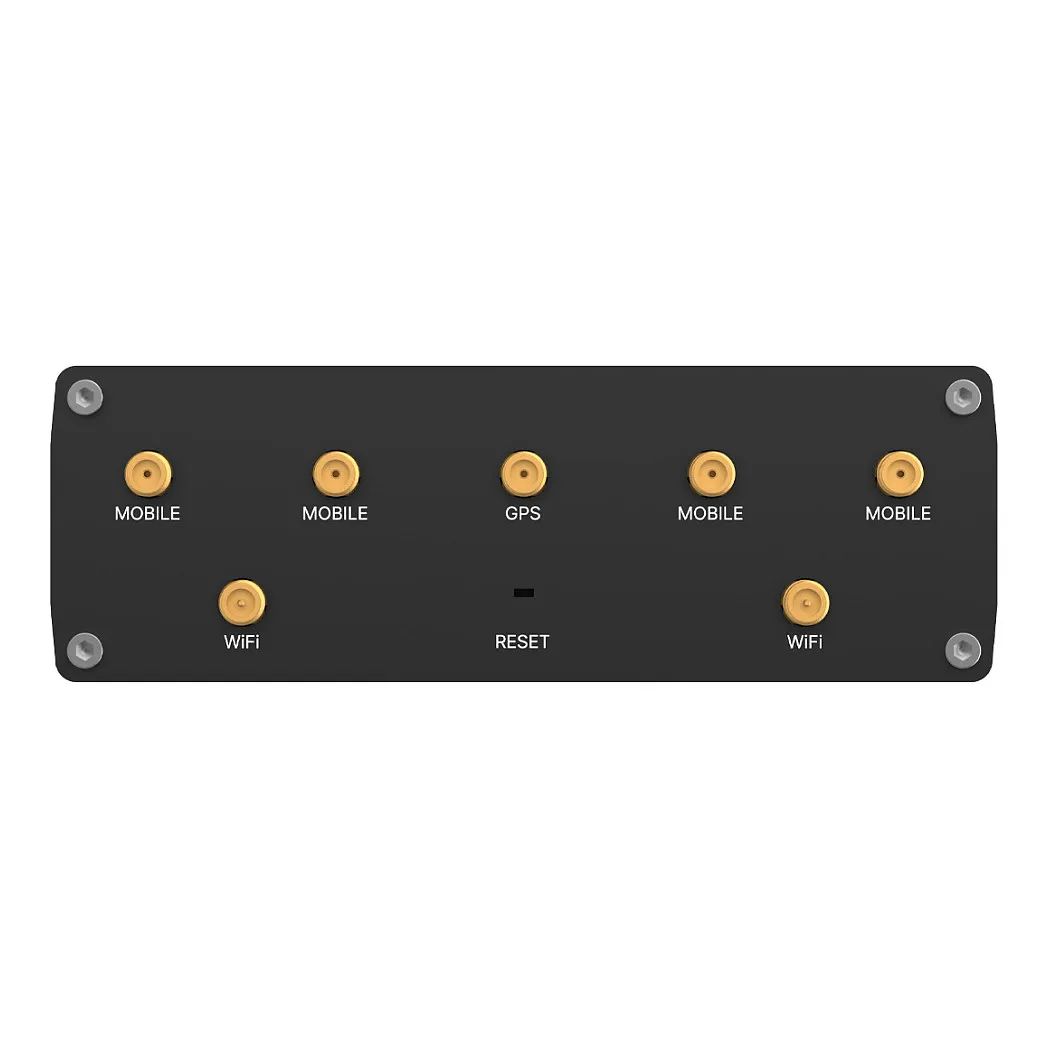

Antenna
Antenna design: External
Antenna type: 1×1
Antenna connector type: RP-SMA
Antennas quantity: 6
Antenna direction type: Omni-directional
Features
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor model: MIPS1004KC
Processor architecture: MIPS32
Processor frequency: 880 MHz
Processor cores: 2
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 256 MB
Power
Power source type: DC
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Storage temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 132 mm
Depth: 104 mm
Height: 44.2 mm
Weight: 525 g
Feature: Ethernet WAN
Feature: SIM card slot
Feature: 3G/4G USB modem compatibility
WAN connection type: RJ-45, USB
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max): 867 Mbit/s
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Full duplex
Feature: Auto MDI/MDI-X
Feature: Load balancing system
Feature: SSID-based VLAN assignment
VPN server: PPTP, L2TP, WireGuard
VPN tunnels quantity: 27
Mobile network
Mobile network generation: 5G
Feature: Dual SIM support
5G standard: Sub6, Sub6 NSA, Sub6 SA
SIM card type: eSIM
Feature: Short Message Service (SMS)
Ports & interfaces
Ethernet LAN (RJ-45) ports: 3
Feature: USB port
USB 2.0 ports quantity: 1
Management features
Feature: Web-based management
Feature: Web-based setup wizard
Feature: Bandwidth control
Feature: Quality of Service (QoS) support
Feature: Wake-on-LAN ready
Feature: Reset button
Feature: Intelligent Mesh technology
Feature: MU-MIMO technology
Security
Feature: Firewall
Feature: DMZ support
Feature: Network address translation (NAT)
Protocols
Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)
Design
Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
LED indicators: Activity, LAN, LTE, Power
Product type: Industrial router
Packaging content
Cables included: LAN (RJ-45), Power
Feature: Antenna included
Feature: Manual
Feature: Quick start guide
Antenna
Antenna design: External
Antenna type: 1×1
Antenna connector type: RP-SMA
Antennas quantity: 6
Antenna direction type: Omni-directional
Features
Feature: Built-in processor
Processor manufacturer: MediaTek
Processor model: MIPS1004KC
Processor architecture: MIPS32
Processor frequency: 880 MHz
Processor cores: 2
Internal memory: 256 MB
Internal memory type: DDR3
Flash memory: 256 MB
Power
Power source type: DC
Operational conditions
Operating temperature (T-T): -40 – 75 °C
Storage temperature (T-T): -40 – 75 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 132 mm
Depth: 104 mm
Height: 44.2 mm
Weight: 525 g
