Synology RackStation RS422+. Type: NAS. Chassis type: Rack (1U). Device class: Home & Home Office. Processor family: Ryzen Embedded, Processor model: R1600, Processor frequency: 2.6 GHz. Internal memory: 2 GB, Internal memory type: DDR4. Operating system installed: DSM

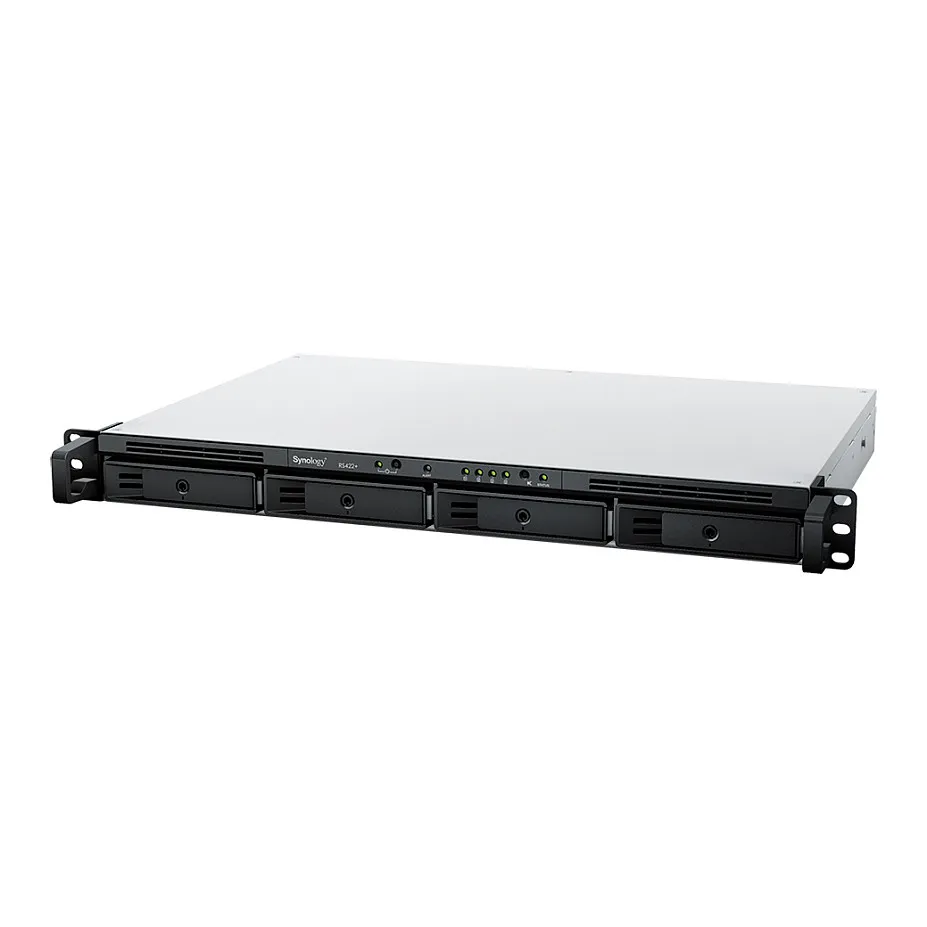

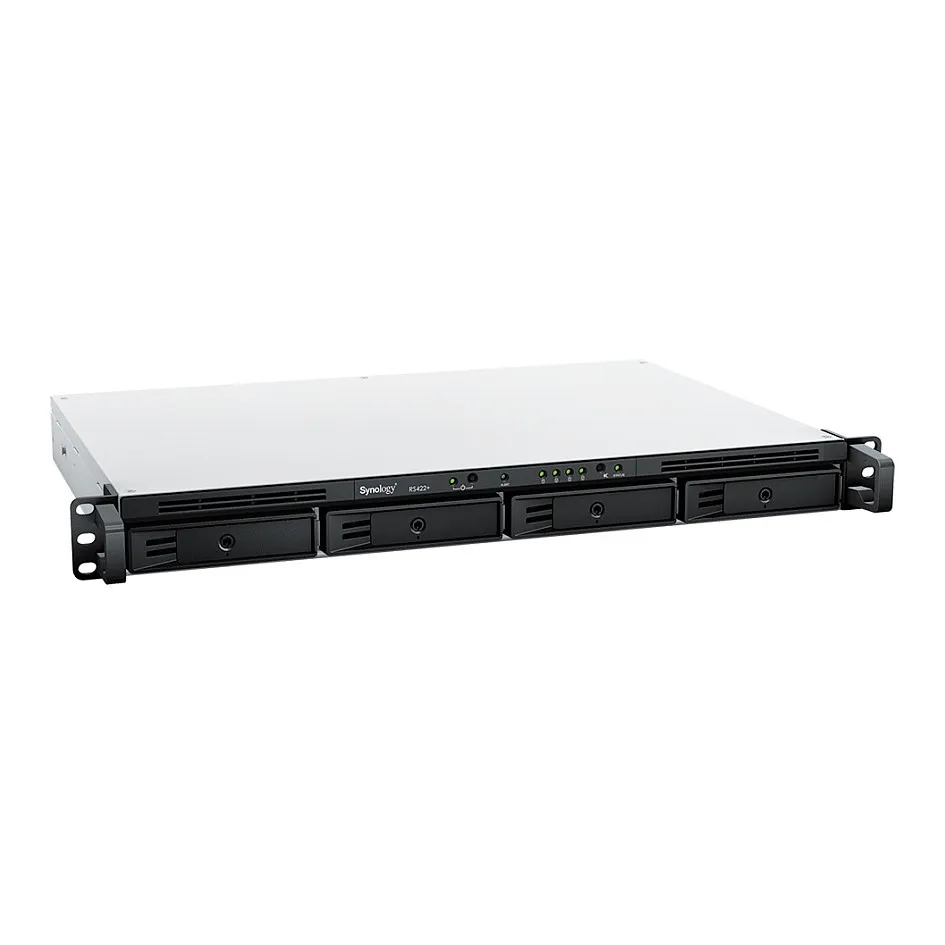

With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs.
Space-saving design for flexible deployment
Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack. Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment.
Flexible networking options
Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules.
Built-in connectivity
Dual Gigabit ports with support for network failover and load balancing deliver fast and dependable performance out of the box.
Easy upgrade to 10GbE
Add an E10G22-T1-Mini Network Upgrade Module through the easily accessible slot to instantly enable faster networking.
All-in-one data management platform
The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology systems and featuring built-in data protection.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
Supported storage drive interfaces: Serial ATA
Storage drive sizes supported: 2.5,3.5″
RAID support: Yes
RAID levels: 0, 1, 5, 6, 10, JBOD
Hot-swap drive bays: Yes
Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Storage drives installed: No
Number of storage drives supported: 4
Installed storage drive type: No
Supported storage drive types: HDD & SSD
Processor
Processor manufacturer: AMD
Processor generation: AMD Ryzen Embedded R1000 Series
Processor family: Ryzen Embedded
Processor model: R1600
Processor frequency: 2.6 GHz
Processor boost frequency: 3.1 GHz
Processor cores: 2
Processor threads: 4
On-board graphics card model: Not available
Memory
Internal memory: 2 GB
Internal memory type: DDR4
ECC: Yes
Network
Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Wake-on-LAN ready: Yes
Supported network protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP)
Ports & interfaces
USB port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Expansion ports quantity: 1
Design
Chassis type: Rack (1U)
Cooling type: Active
Product colour: Black
Number of fans: 3 fan(s)
Fan diameter: 4 cm
LED indicators: Yes
Performance
Type: NAS
Device class: Home & Home Office
Backup function: Yes
Number of users: 2048 user(s)
Share folder access right management: Yes
Access Control List (ACL): Yes
Reset button: Yes
On/off switch: Yes
Browser supported: Google Chrome, Firefox, Microsoft Edge, Safari 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android 11.0 and later) on tablets
Share folder: 1024
Software
Operating system installed: DSM
Operating system version: 7.1
Power
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Weight & dimensions
Width: 430.5 mm
Depth: 295.5 mm
Height: 44 mm
Weight: 4.38 kg
Packaging content
Cables included: AC
Quick installation guide: Yes
Rack mount kit: Yes
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Operating relative humidity (H-H): 8 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 5 – 95%
Operating altitude: 0 – 5000 m
Logistics data
Harmonized System (HS) code: 84714100
Other features
I/O ports: Console Port
Compliance certificates: RoHS
