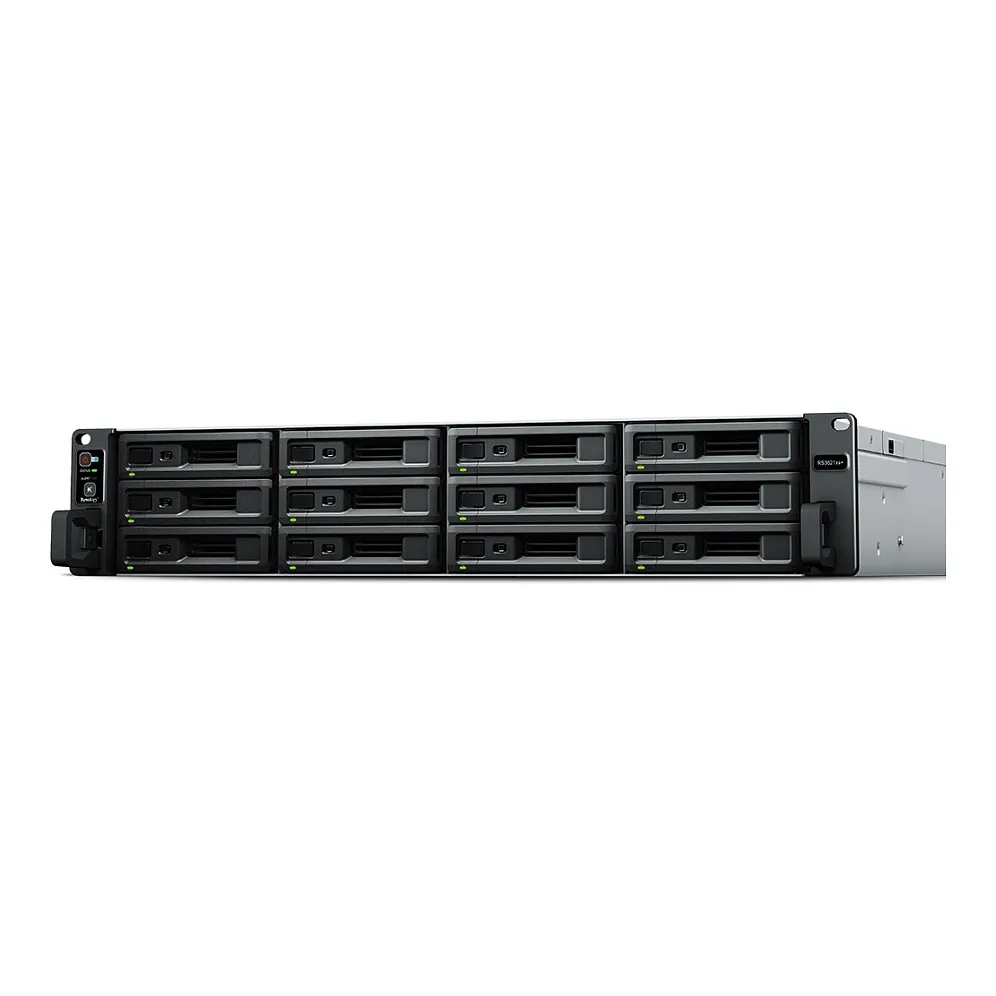

Synology RackStation RS3621XS+. Type: Storage server. Chassis type: Rack (2U). Device class: Small & Medium Business. Processor family: Intel® Xeon®, Processor model: D-1541, Processor frequency: 2.1 GHz. Internal memory: 8 GB, Internal memory type: DDR4
The 12-bay RS3621xs+ is capable of delivering over 238K 4K random read IOPS and 5,819 MB/s sequential read throughput1— a true enterprise powerhouse. With full power supply redundancy, an 8-core processor, ECC memory, advanced snapshot technology, and file self-healing, the RS3621xs+ provides a reliable foundation to any data-driven business.
Storage you can trust
The RS3621xs+ keeps your data protected while you concentrate on delivering the best results to your customers — even when disaster strikes.
Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans allow them to be replaced without powering down the system.
Maximize service availability
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.
Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.
Tailored to your business
The RS3621xs+ includes two PCIe slots for performance, networking, and storage upgrades enabling it to adapt to any business environment2.
Double bandwidth
Upgrade network bandwidth in minutes by 2x or more with Synology’s range of 10GbE NICs.
SSD cache3
Boost read/write IOPS by up to 16 times by enabling SSD cache with our Synology M.2 NVMe adapter cards and SNV3500 SSDs or by installing one or more 2.5” SAT5200 SSDs.
Storage expansion
Quickly and easily scale up to 36 drives with two RX1217(RP) expansion units.
Hyper Backup
A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication4, integrity checks, and incremental transfer technology reduce bandwidth and storage used.
Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.
Active Backup Suite
Enables administrators to easily backup the entire IT infrastructure to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication, multiversioning, and optimizations to reduce bandwidth and storage used.
Storage for virtualization
Synology iSCSI storage supports mainstream virtualization solutions with an easy management interface to enhance usability. VMware vSphere 6.5 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments.
Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.
Storage drive interface: Serial ATA II, Serial ATA III
Storage drive sizes supported: 2.5,3.5″
Feature: RAID support
RAID levels: 5, 6
Feature: Hot-swap drive bays
Number of storage drives supported: 12
Installed storage drive type: No
Supported storage drive types: HDD & SSD
Processor
Processor manufacturer: Intel
Processor family: Intel® Xeon®
Processor model: D-1541
Processor frequency: 2.1 GHz
Processor boost frequency: 2.7 GHz
Processor cores: 8
CPU configuration (max): 1
On-board graphics card model: Not available
Feature: Conflict-Free processor
Memory
Internal memory: 8 GB
Internal memory type: DDR4
Maximum RAM supported: 64 GB
Memory slots: 4
Memory form factor: UDIMM
Feature: ECC
Network
Feature: Ethernet LAN
Ethernet LAN data rate supported (max): 10000 Mbit/s
Feature: Wake-on-LAN ready
Ports & interfaces
Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 6
PCI Express x8 (Gen 3.x) slots: 2
Design
Chassis type: Rack (2U)
Cooling type: Active
Product colour: Black
Number of fans: 4 fan(s)
Fan diameter: 8 cm
Performance
Type: Storage server
Device class: Small & Medium Business
Feature: Backup function
Noise level: 50.2 dB
Feature: On/off switch
Power
Power supply unit (PSU) capacity: 500 W
Number of power supply units: 1
Feature: Redundant power supply (RPS) support
Power consumption (typical): 142.5 W
Power consumption (HDD standby): 72.76 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Weight & dimensions
Width: 482 mm
Depth: 724 mm
Height: 88 mm
Weight: 14.5 kg
Packaging content
Power cables quantity: 2
Processor special features
Feature: Enhanced Intel SpeedStep Technology
Feature: Execute Disable Bit
Feature: Idle States
Feature: Intel 64
Feature: Intel Enhanced Halt State
Intel Secure Key Technology version: 1.00
Feature: Intel Trusted Execution Technology
Feature: Intel TSX-NI
Intel TSX-NI version: 1.00
Feature: Intel Virtualization Technology (VT-x)
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel VT-x with Extended Page Tables (EPT)
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Operating relative humidity (H-H): 5 – 95%
Storage temperature (T-T): -20 – 60 °C
Logistics data
Harmonized System (HS) code: 84714100
Other features
Certification: FCCCEBSMIVCCIRCMEACCCCKCUL
