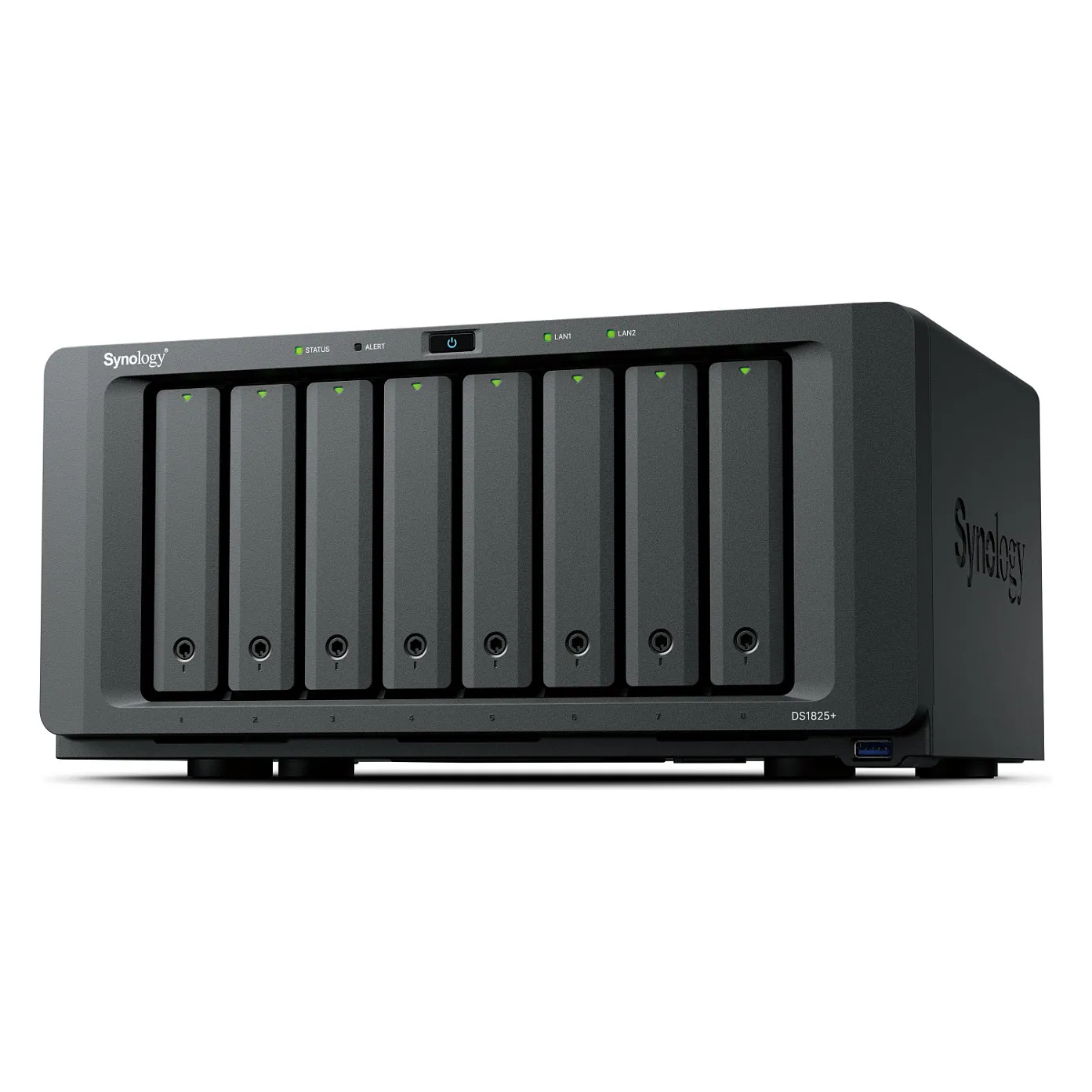

Synology DiskStation DS1825+. Type: NAS, Device class: Home & Home Office. Processor family: Ryzen Embedded, Processor model: V1500B, Processor frequency: 2.2 GHz. Internal memory: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB
Fast, out-of-the-box performance with 25GbE support
The DS1825+ features built-in 2.5GbE networking and supports both SATA SSDs and HDDs in 2.5″/3.5″ internal bays, as well as M.2 NVMe drives via M.2 slots for use as cache.1,6 Its support for expansion cards allows configuration flexibility, supporting faster networking of up to 25GbE.4
The DS1825+ features built-in 2.5GbE networking and supports both SATA SSDs and HDDs in 2.5″/3.5″ internal bays, as well as M.2 NVMe drives via M.2 slots for use as cache.1,6 Its support for expansion cards allows configuration flexibility, supporting faster networking of up to 25GbE.4
Storage
Storage drive capacity: 0 GB
Supported storage drive interfaces: M.2, Serial ATA
Storage drive sizes supported: 3.5,M.2,2.5
Maximum supported storage capacity: 360 TB
Number of M.2 (M & B) slots: 2
Feature: RAID support
RAID levels: 0, 1, 5, 6, 10, JBOD
Feature: Hot-swap drive bays
Supported file systems: BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4
Total installed storage capacity: 0 TB
Number of storage drives supported: 18
Installed storage drive type: No
Supported storage drive types: HDD & SSD
Processor
Processor manufacturer: AMD
Processor generation: AMD Ryzen Embedded V1000 Series
Processor family: Ryzen Embedded
Processor model: V1500B
Processor frequency: 2.2 GHz
Processor cores: 4
Processor threads: 8
Memory
Internal memory: 8 GB
Internal memory type: DDR4
Maximum RAM supported: 32 GB
Memory slots: 2
Memory form factor: SO-DIMM
Feature: ECC
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 2500 Mbit/s
Feature: Wake-on-LAN ready
Ports & interfaces
Feature: USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 2
Design
Cooling type: Active
Product colour: Black
Number of fans: 2 fan(s)
Fan diameter: 12 cm
Fan diameter 2: 12 cm
Feature: Drive bay locking
LED indicators: Yes
Performance
Type: NAS
Device class: Home & Home Office
Feature: Backup function
Backup features: Cloud, iSCSI LUN
Feature: Multilingual support
Number of users: 1024 user(s)
Noise level: 23.8 dB
Feature: Snapshot
Feature: Web-based management
Feature: Access Control List (ACL)
Feature: On/off switch
Feature: System log
Power
Power supply location: External
Power supply unit (PSU) capacity: 250 W
Power consumption (typical): 60.1 W
Power consumption (HDD standby): 18.34 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Weight & dimensions
Width: 343 mm
Depth: 243 mm
Height: 166 mm
Weight: 6 kg
Packaging content
Feature: External power adapter
Cables included: AC, LAN (RJ-45)
Power cables quantity: 1
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 5 – 95%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 5 – 95%
Other features
Warranty period: 3 year(s)
Compliance certificates: RoHS
