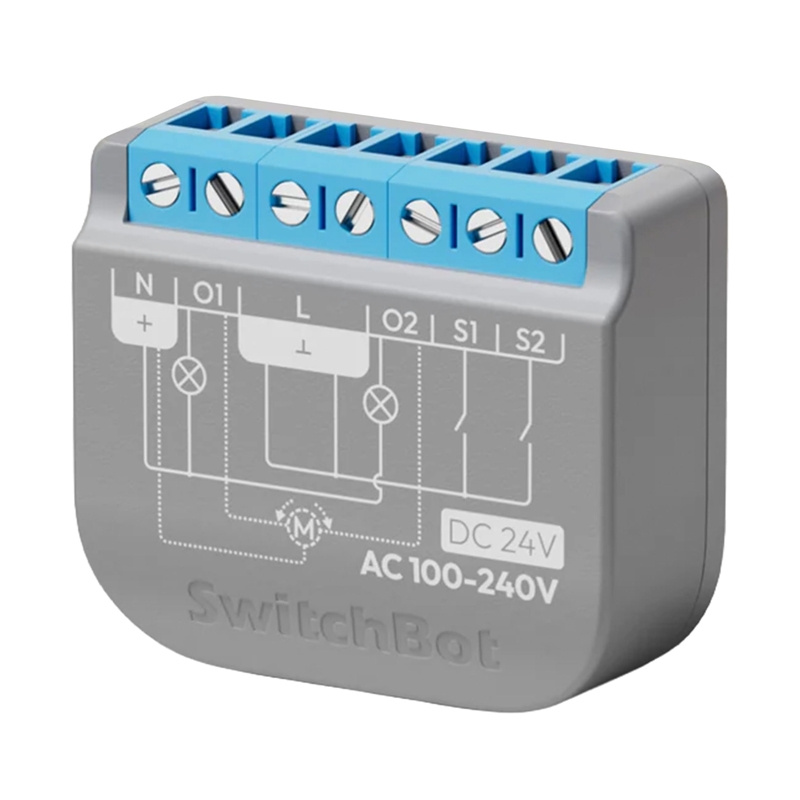

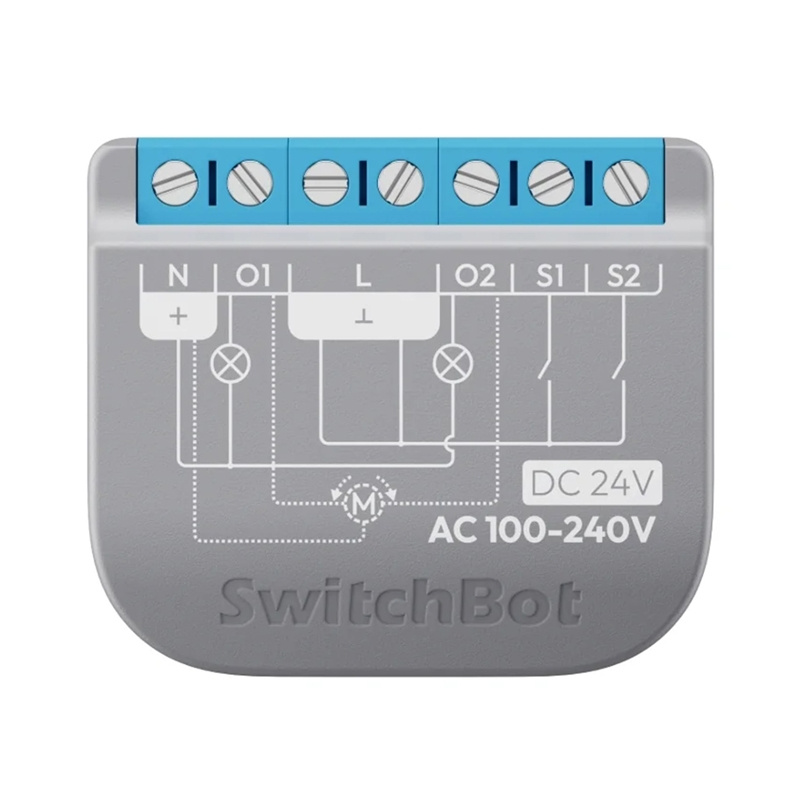

SwitchBot Relay Switch 2PM smart two-channel switch
The SwitchBot Relay Switch 2PM is the world’s first smart relay with built-in Bluetooth repeater and Matter support that connects devices from different brands in a single ecosystem. Compatible with Alexa, Apple HomeKit, Google Home and SmartThings, it allows you to conveniently control lights, blinds, fans or heating – from anywhere. Its compact design (42 × 36 × 16 mm) allows for easy installation in an electrical box, with no wiring modifications.
.jpg)
Modernization without renovation
Mounted behind a traditional switch, Relay Switch 2PM transforms standard circuits into smart solutions without renovation. Installation takes just a few minutes, after which you can manage lights and devices from an app or by voice. The device supports both Wi-Fi and Bluetooth, and the Matter protocol allows direct connection to the most popular voice assistants without an additional hub.
Energy consumption monitoring
The model also offers energy measurement on two independent channels. The SwitchBot app presents detailed graphs of wattage, amperage, voltage and total power consumption, allowing you to optimize costs and effectively manage energy at home. Data is stored free of charge for 2 years, facilitating long-term analysis.
.jpg)
Flexible control and automation
With support for different switch types – Toggle, Momentary, Detached and Edge – the device offers full installation flexibility. You can create automatic scenarios, such as turning on lights when the door is opened, lowering blinds at sunset, or controlling heating based on SwitchBot Meter Pro sensors.
.jpg)
High level of security
SwitchBot Relay Switch 2PM is distinguished by its robust construction and V0 class protection against fire. The protection system automatically cuts off the power supply in case of overload or overheating above 100°C, and restores the previous operating state once the failure has ceased. This ensures that your electrical installation always remains safe.
.jpg)
Integrated SwitchBot ecosystem
The device supports AC 100-240 V and DC 24-30 V, with a maximum current of 16 A (10 A per channel), and a roller shutter mode for intelligent control of curtains and blinds. The relay can integrate up to 10 SwitchBot Bluetooth devices, such as Lock Pro locks, Curtain 3 blinds or Meter Pro sensors, creating a cohesive, comprehensive smart home system.
.jpg)
| Manufacturer | SwitchBot |
|---|---|
| Model | Relay Switch 2PM |
| Dimensions | 42 × 36 × 16 mm (±0.5 mm) |
| Weight | 27 g (0.9 oz) |
| Material | PC |
| Power supply | AC 100-240 V 50/60 Hz, DC 24-30 V |
| Max. output current (AC) | 16 A (10 A per channel) |
| Max. output current (DC) | 10 A |
| Number of channels | 2 |
| Connection methods | Wi-Fi + Bluetooth Low Energy |
| Bluetooth range | Up to 10 m (indoors) / 30 m (outdoors) |
| Wi-Fi range | Up to 30 m (indoors) / 50 m (outdoors) |
| Installation method | Flush mounting |
| Security features | Automatic cut-off on overload or overheating (above 100°C) |
| Roller shutter mode | Operated |
| Garage door mode | Not supported |
| Integration | Matter, Alexa, Google Home, Apple HomeKit, SmartThings |
| Processor | ESP32 |
| Max number of supported Bluetooth devices | 10 |
| Certifications | FCC, CE, RoHS |
