Supermicro SuperWorkstation 7049A-T. Motherboard chipset: Intel® C621, Processor socket: LGA 3647 (Socket P), System bus rate: 10.4 GT/s. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Maximum RDIMM memory: 512 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial ATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2500. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s
SuperServer Benefits:
– Uncompromising Quality Control
– The most Comprehensive Line of Servers, Storage Systems, and Subsystems
– Widest Variety of Application Optimized Solutions, from High End Clusters to MicroServers
– Best Performance per-Watt, per-Square-Foot, and per-Dollar
– Superior Product Design Based in Silicon Valley
– Consistently First-to-Market
– Best Total Cost of Ownership (TCO)
– Highest Quality Components and Materials
– 3-Year Limited Warranty
– 24-Hour Support and Global Services
– Redfish API support
These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end server/storage industry. Supermicro provides the most outstanding product line in the industry, ranging from single Atom and dual Xeon to quad Xeon MP systems. Their proven high level of quality and performance has made SuperServers the platform of choice for HPC, enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.
Motherboard chipset: Intel® C621
Processor socket: LGA 3647 (Socket P)
Number of processors supported: 2
System bus rate: 10.4 GT/s
Compatible processor series: Intel® Xeon®
Memory

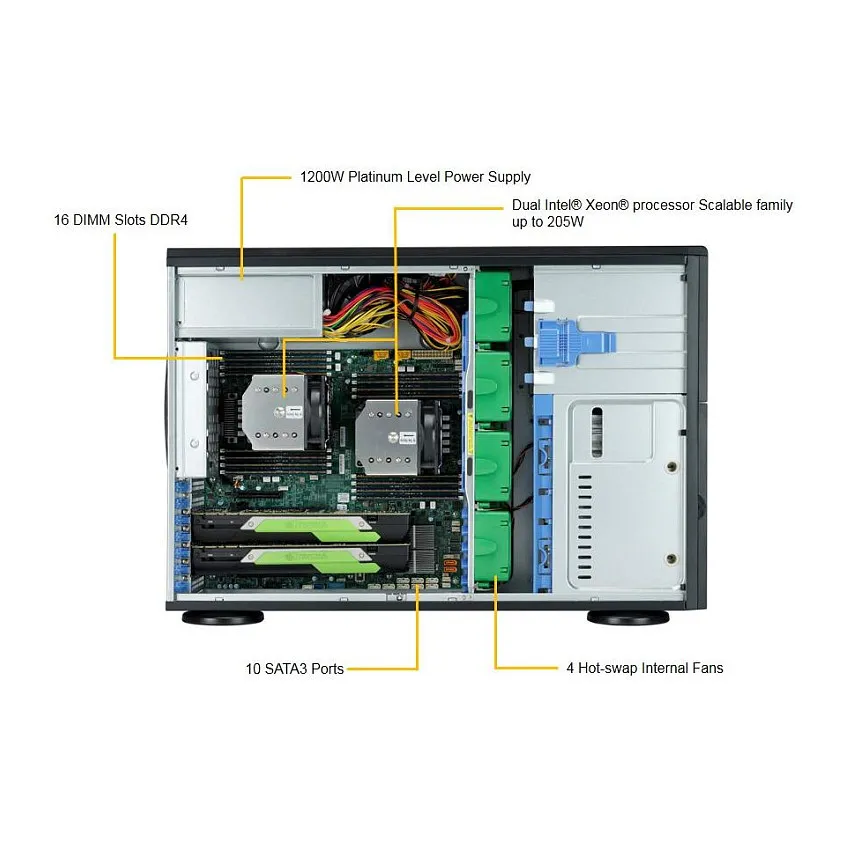

Number of DIMM slots: 16
Supported memory types: DDR4-SDRAM
Maximum internal memory: 2 TB
Maximum RDIMM memory: 512 GB
Supported RDIMM clock speeds: 2133,2400,2666 MHz
Feature: ECC
Storage
Feature: Hot-swap HDD bays

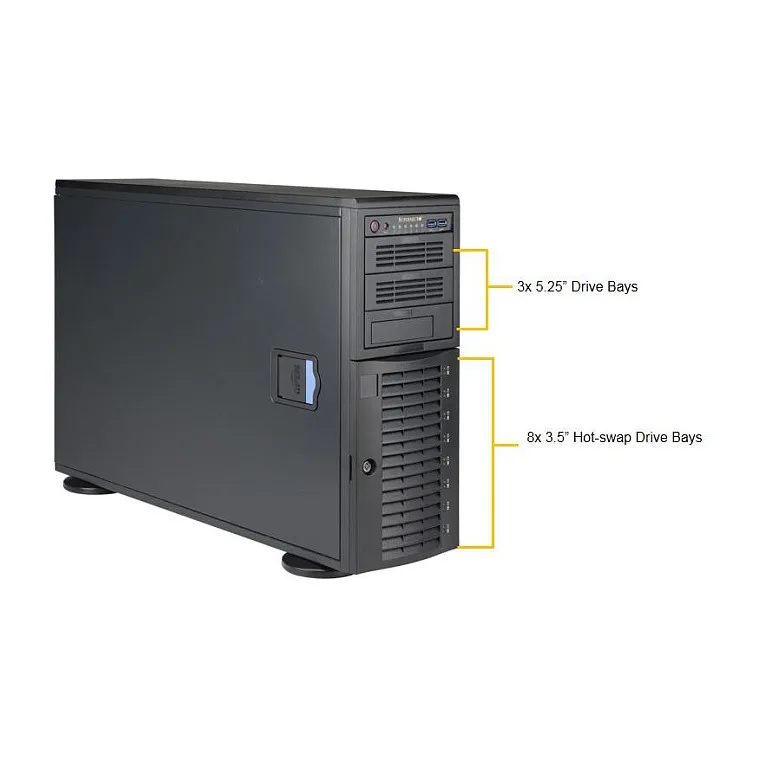

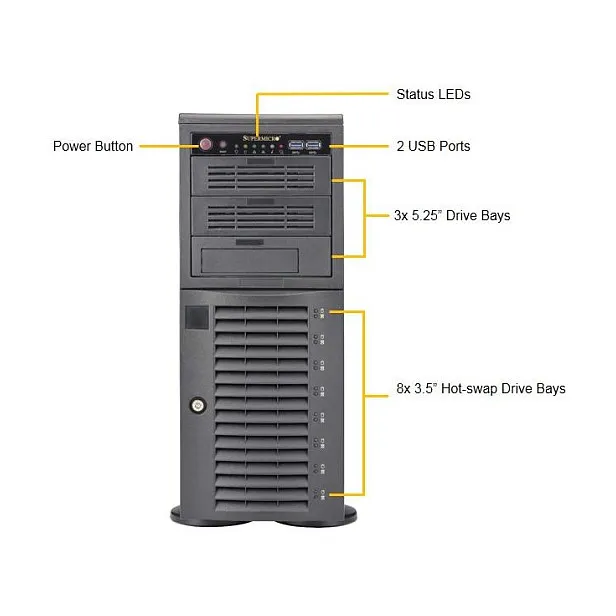

Number of 3.5″ bays: 8
Storage drive sizes supported: 3.5″
Supported storage drive interfaces: Serial ATA III
RAID levels: 0, 1, 5, 10
Graphics
On-board graphics card model: Aspeed AST2500
Network
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s

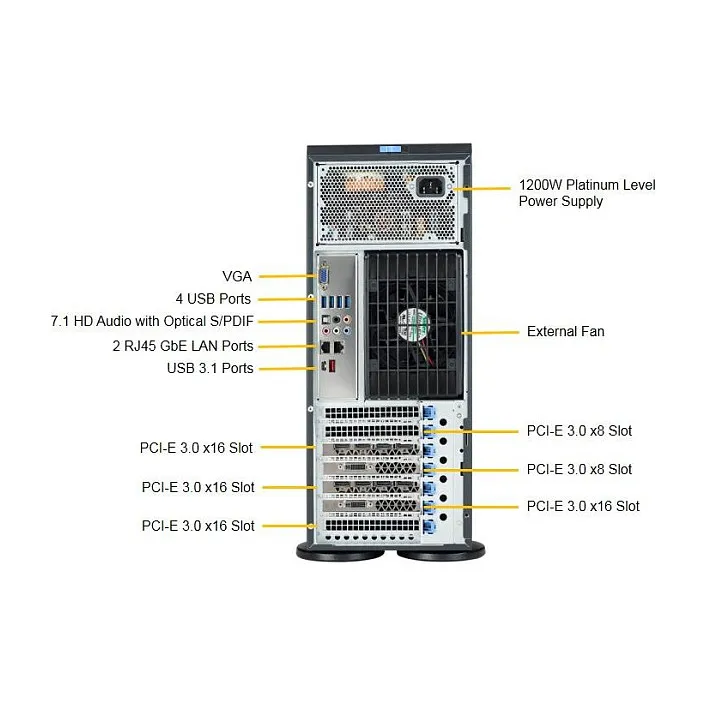

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
Number of SATA III connectors: 10
Expansion slots
PCI Express slots version: 3.0
PCI Express x8 slots: 2
PCI Express x16 slots: 4
Features
PC health monitoring: CPU, Fan, Temperature
Feature: Backplanes support
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 84714100
BIOS
BIOS type: UEFI
BIOS memory size: 128 Mbit
Design
Chassis type: Rack (4U)
Product colour: Black
LED indicators: HDD, Heating, Network, Power
Feature: On/off switch
Number of fans: 3 fan(s)
Power
Power supply: 1200 W
Operational conditions
Operating temperature (T-T): 10 – 35 °C
Storage temperature (T-T): -40 – 60 °C
Operating relative humidity (H-H): 8 – 90%
Storage relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 178 mm
Depth: 648 mm
Height: 452 mm
Weight: 32.2 kg
