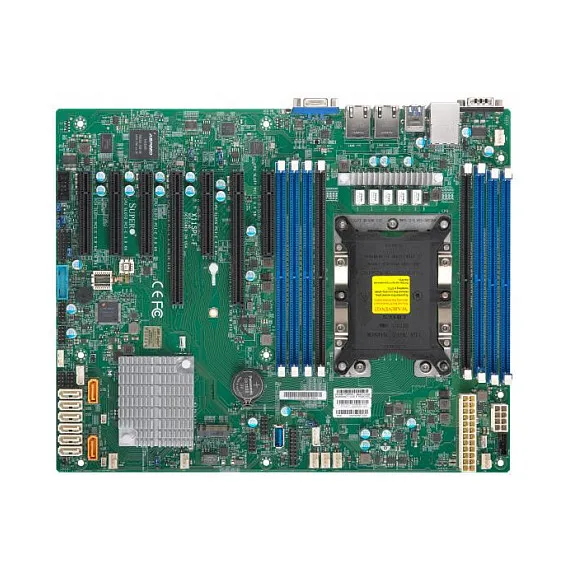

Supermicro X11SPL-F. Processor manufacturer: Intel, Processor thermal power (max): 165 W. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Memory voltage: 1.2 V. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2500. Ethernet interface type: Gigabit Ethernet
Supermicro motherboard advantages:
Technologically-advanced Motherboard Designs Since 1993
Consistent highest-quality Design, Components, and Production Expertise
Extensive Range of x86 Serverboards Available
Competitive Price/Performance
High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
Standard Form Factors offer Feature – rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
Technologically-advanced Motherboard Designs Since 1993
Consistent highest-quality Design, Components, and Production Expertise
Extensive Range of x86 Serverboards Available
Competitive Price/Performance
High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
Standard Form Factors offer Feature – rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
Processor
Processor manufacturer: Intel
Processor number of cores supported: 28
Processor thermal power (max): 165 W
Memory
Supported memory types: DDR4-SDRAM
Memory voltage: 1.2 V
Supported memory clock speeds: 1600,1866,2133,2400,2666 MHz
Maximum internal memory: 2 TB
Maximum RDIMM memory: 256 GB
Storage controllers
Supported storage drive interfaces: SATA III
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
On-board graphics card model: Aspeed AST2500
Internal I/O
USB 2.0 connectors: 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Number of COM connectors: 1
Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Features
Motherboard chipset: Intel® C621
Component for: Server
Motherboard form factor: ATX
Expansion slots
PCI Express x8 (Gen 3.x) slots: 6
BIOS
BIOS type: UEFI AMI
ACPI version: 6.0
Operational conditions
Storage temperature (T-T): -40 – 70 °C
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 8 – 90%
Storage relative humidity (H-H): 5 – 95%
Logistics data
Harmonized System (HS) code: 84733020
Weight & dimensions
Width: 304.8 mm
Depth: 243.8 mm
Packaging content
Bundled software: Intel® Node Manager, IPMI2.0, KVM w/ dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Other features
PCI Express x4 (Gen 3.x) slots: 1
Maximum LRDIMM memory: 512 GB
Number of DIMM slots: 8
Number of processors supported: 1
Processor manufacturer: Intel
Processor number of cores supported: 28
Processor thermal power (max): 165 W
Memory
Supported memory types: DDR4-SDRAM
Memory voltage: 1.2 V
Supported memory clock speeds: 1600,1866,2133,2400,2666 MHz
Maximum internal memory: 2 TB
Maximum RDIMM memory: 256 GB
Storage controllers
Supported storage drive interfaces: SATA III
Feature: RAID support
RAID levels: 0, 1, 5, 10
Graphics
On-board graphics card model: Aspeed AST2500
Internal I/O
USB 2.0 connectors: 6
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Number of COM connectors: 1
Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Features
Motherboard chipset: Intel® C621
Component for: Server
Motherboard form factor: ATX
Expansion slots
PCI Express x8 (Gen 3.x) slots: 6
BIOS
BIOS type: UEFI AMI
ACPI version: 6.0
Operational conditions
Storage temperature (T-T): -40 – 70 °C
Operating temperature (T-T): 0 – 50 °C
Operating relative humidity (H-H): 8 – 90%
Storage relative humidity (H-H): 5 – 95%
Logistics data
Harmonized System (HS) code: 84733020
Weight & dimensions
Width: 304.8 mm
Depth: 243.8 mm
Packaging content
Bundled software: Intel® Node Manager, IPMI2.0, KVM w/ dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Other features
PCI Express x4 (Gen 3.x) slots: 1
Maximum LRDIMM memory: 512 GB
Number of DIMM slots: 8
Number of processors supported: 1
