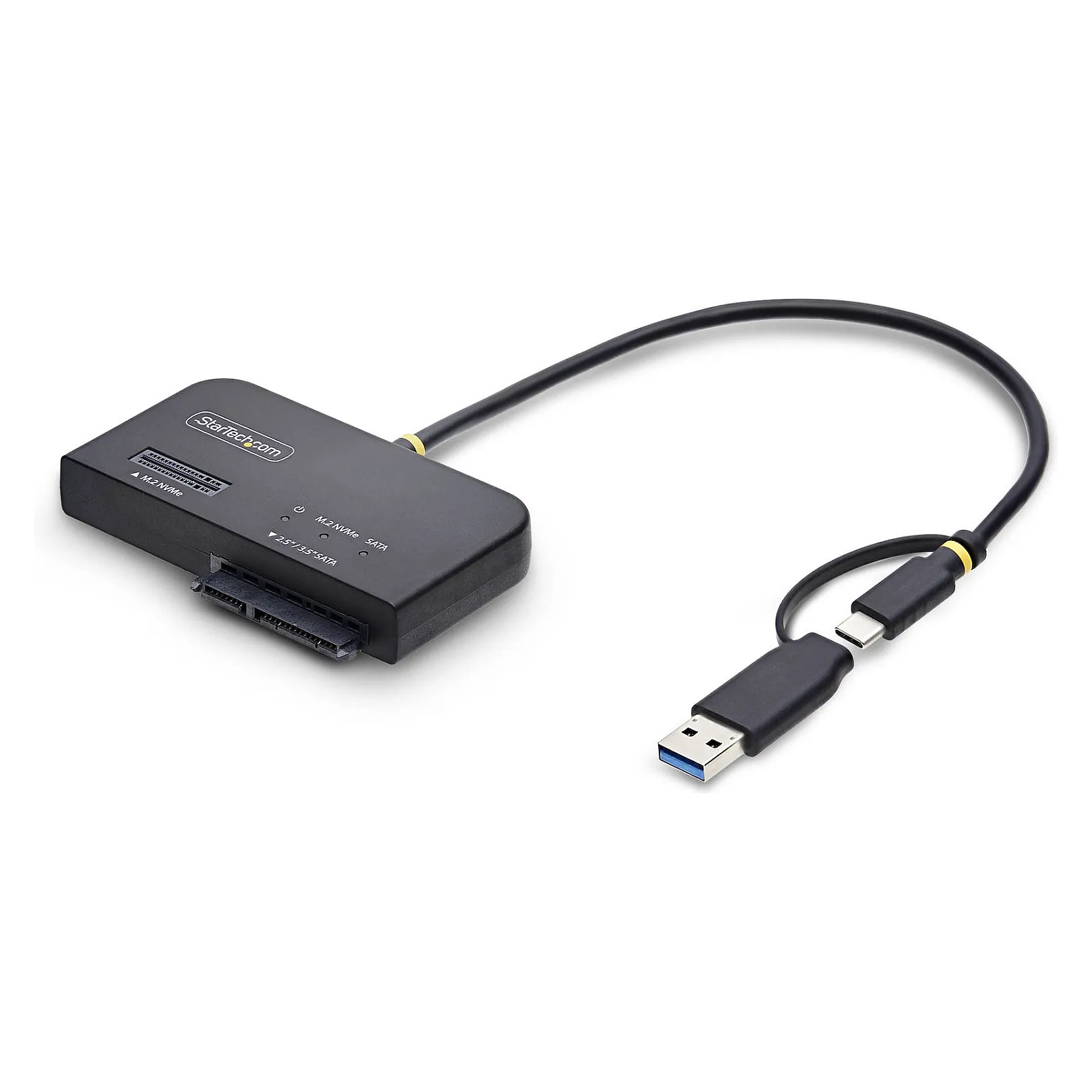

StarTech.com USB-C/USB-A to M.2 NVMe and 2.5in/3.5in SATA Adapter, 10Gbps, Tool-Free External SSD Hard Drive Reader, B+M/M-Key. Storage media type: HDD, SSD, Storage drive interface: M.2, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Product colour: Black, Material: Acrylonitrile butadiene styrene (ABS), Maximum data transfer rate: 10 Gbit/s. AC input voltage: 12 V, Input current: 2 A, Output voltage: 12 V. Width: 88.4 mm, Depth: 360.6 mm, Height: 14.1 mm

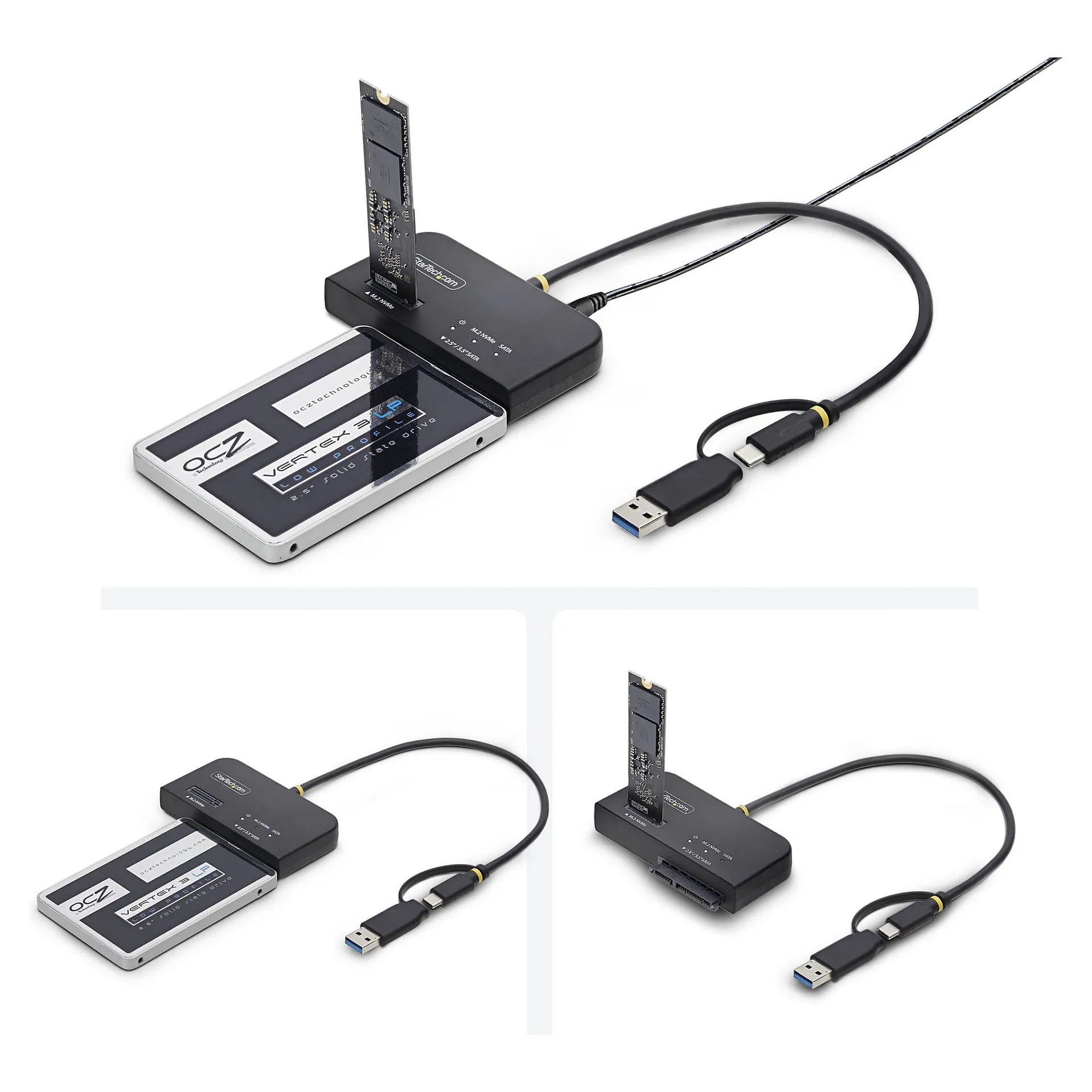

Access and manage M.2 NVMe and 2.5 in/3.5 in SATA SSDs/HDDs through a single USB-C or USB-A 10Gbps connection. The 2-in-1 NVMe and SATA adapter enables simultaneous read and write access for fast data transfer, recovery, and upgrades. This hard drive reader is a versatile solution for IT professionals performing backups, disk imaging, or maintenance on M.2 NVMe and legacy SATA drives.
External Drive Access over USB-C and USB-A

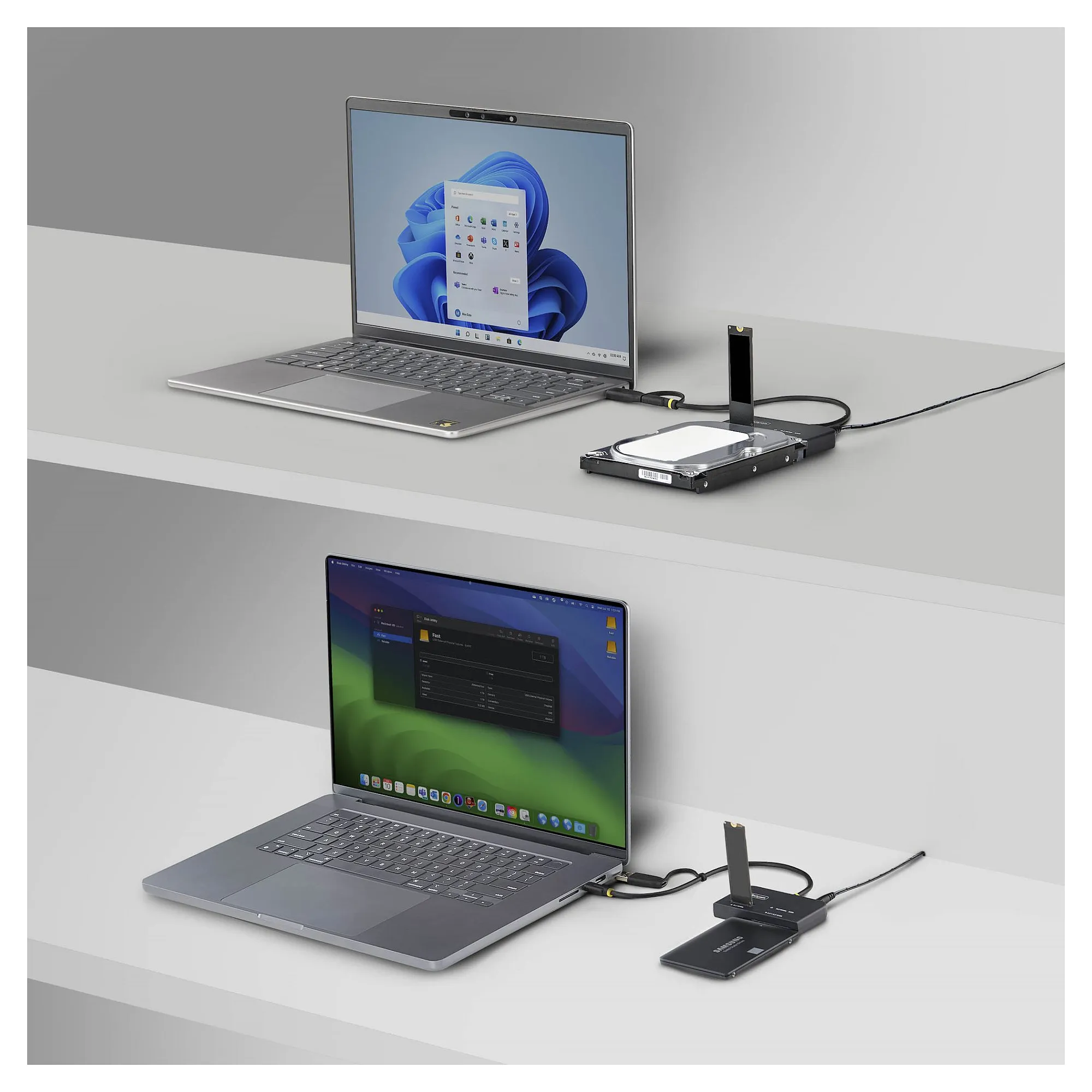

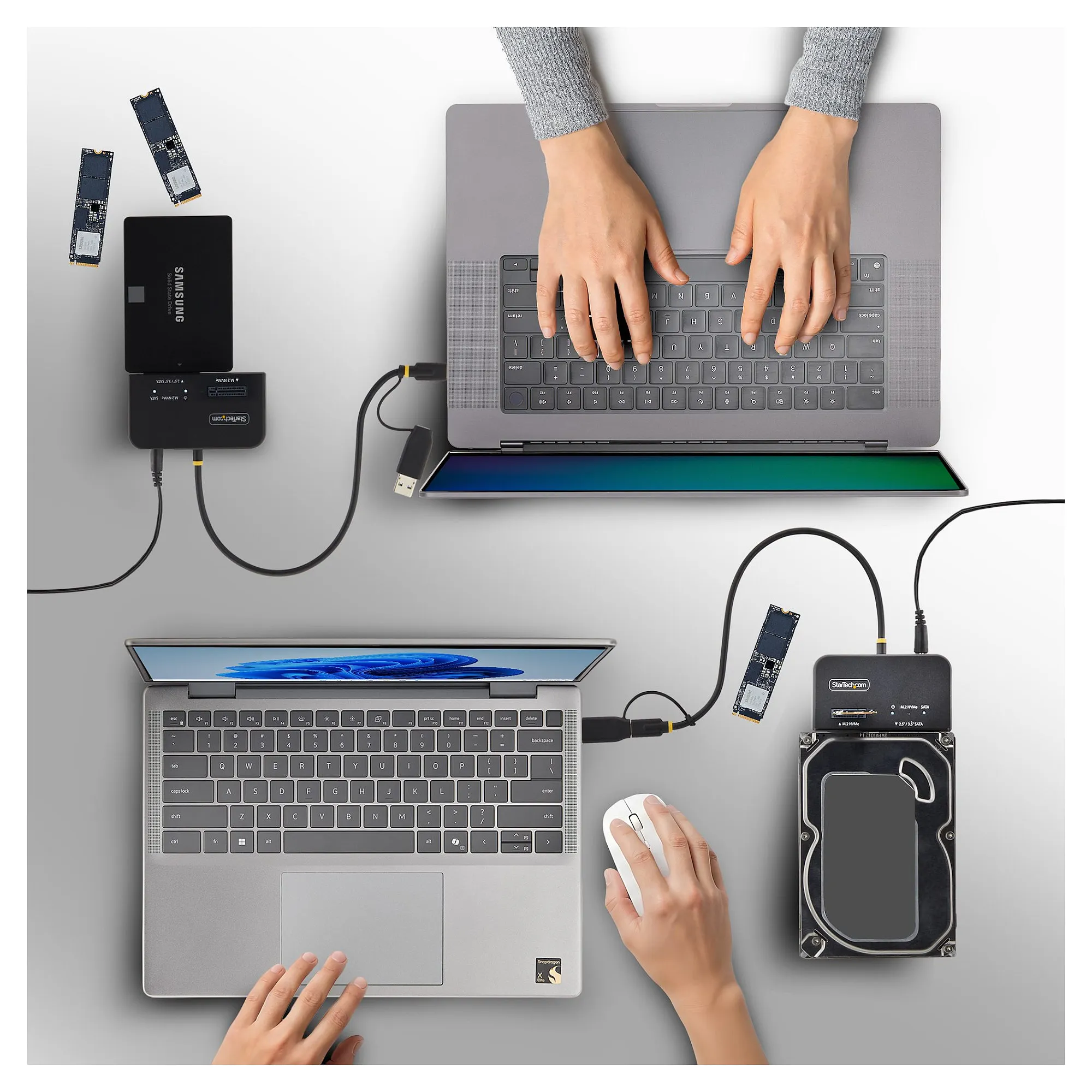

Connect the M.2 NVMe and SATA SSD Adapter directly to laptop or workstation using the integrated USB-C cable with USB-A adapter. The open-top M.2 slot maintains airflow for consistent performance during sustained workloads. The NVMe/SATA Adapter supports up to 700 MB/s write speeds over M.2 NVMe, and up to 6 Gbps over SATA III when connected to legacy 2.5in or 3.5in SATA drives. Please note that M.2 SATA drives are not supported.
Compact Form Factor
Lightweight and portable, the adapter fits easily into any IT toolkit or workspace. It runs on USB bus power for a single 2.5 in SATA or M.2 NVMe drive, and includes a universal power adapter required for 3.5 in SATA drives, for connecting two drives at once, or when a single drive draws more power than USB can provide. Ideal for IT technicians and end users needing portable, tool-free drive access.
Storage media type: HDD, SSD
Storage drive interface: M.2, Serial ATA III
Storage drive sizes supported: 2.5,3.5″
Number of storage drives supported: 2
Ports & interfaces
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Features
Product colour: Black
Material: Acrylonitrile butadiene styrene (ABS)
Maximum data transfer rate: 10 Gbit/s
Feature: Hot-swap
Feature: TRIM support

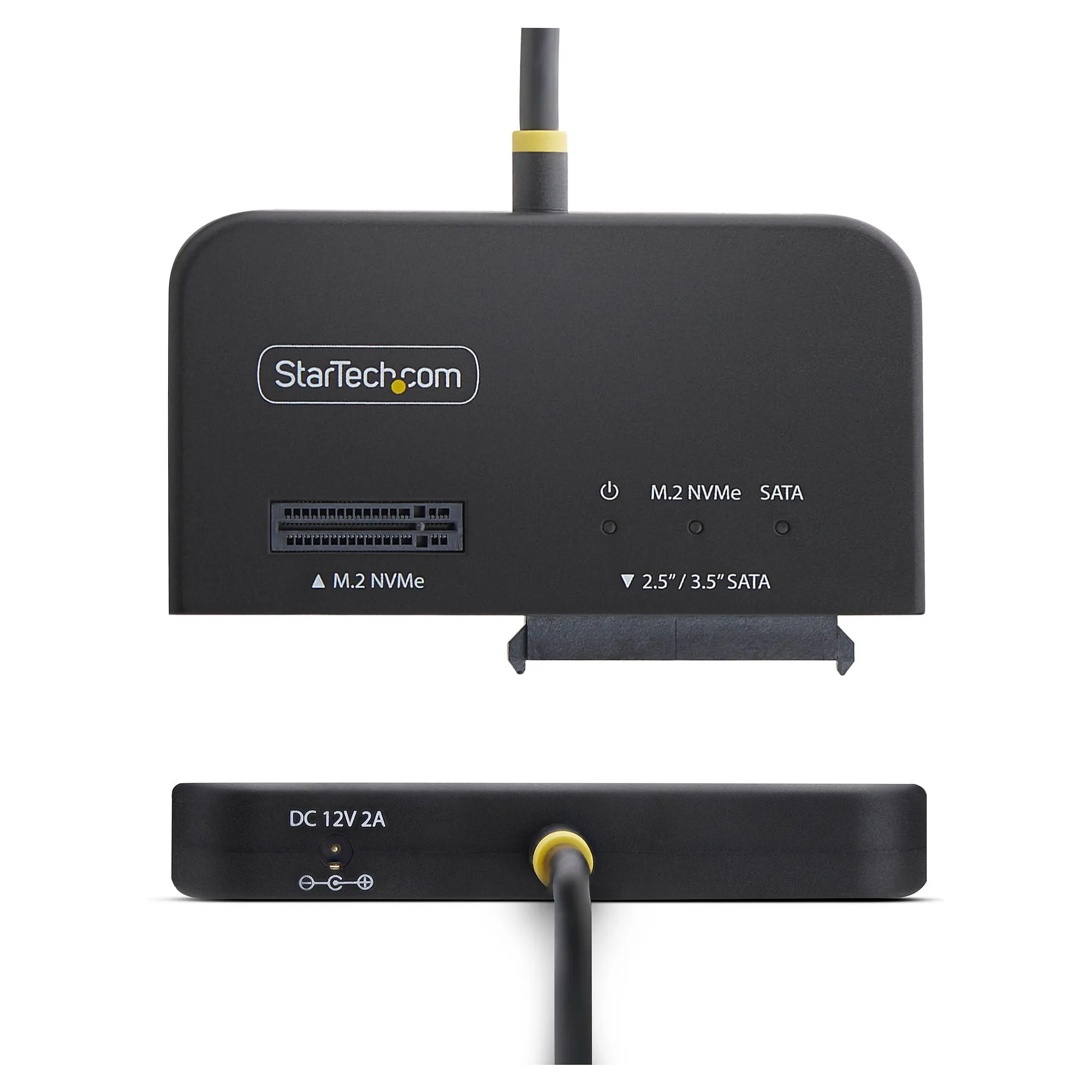

LED indicators: Yes
Feature: UASP support
Cooling
Number of fans: 0 fan(s)

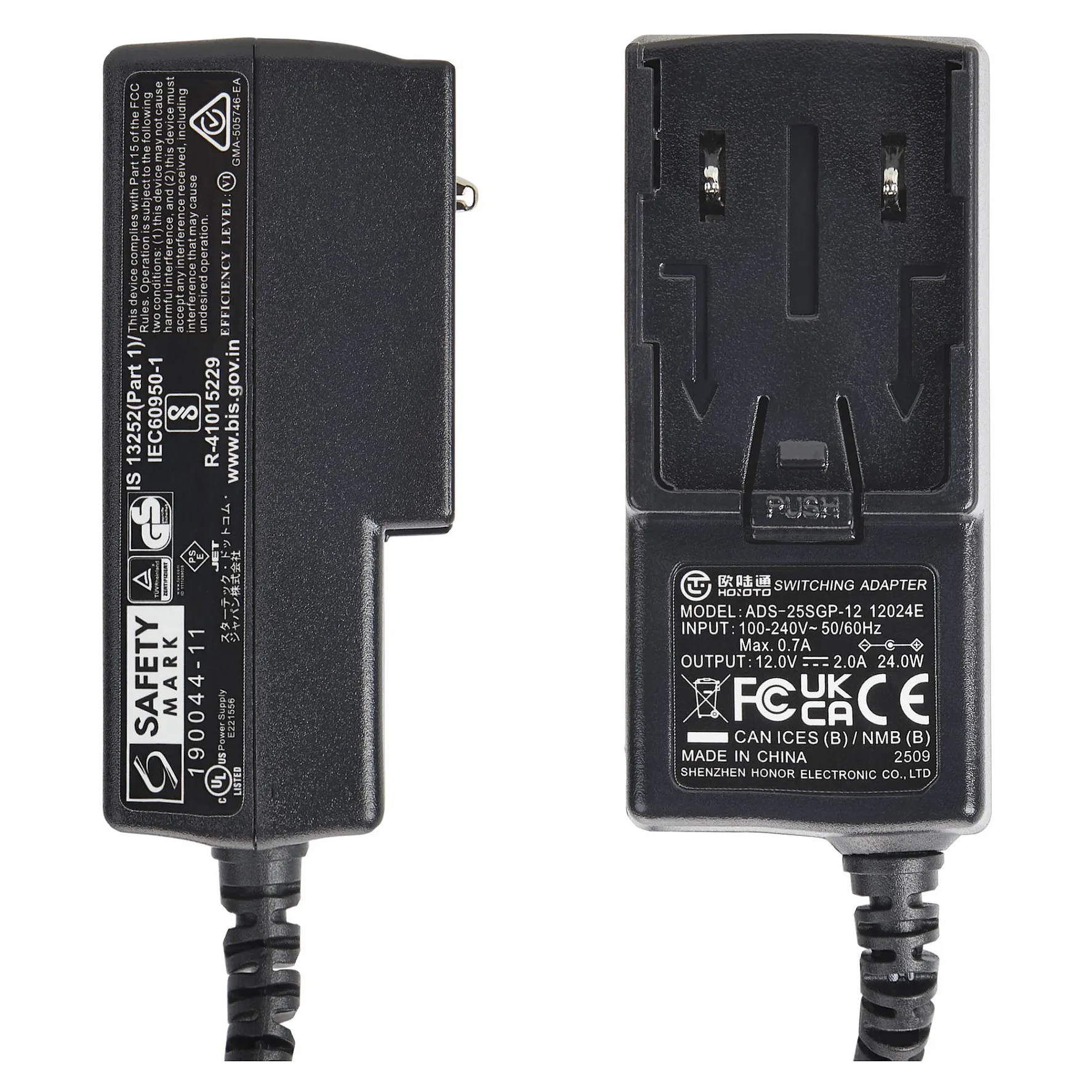

Power
AC input voltage: 12 V
Input current: 2 A
Output voltage: 12 V
Output current: 2 A
Power plug type: Type H
Weight & dimensions
Width: 88.4 mm
Depth: 360.6 mm
Height: 14.1 mm
Weight: 50 g
Packaging data
Package width: 190 mm
Package depth: 123 mm
Package height: 54 mm
Package weight: 330 g

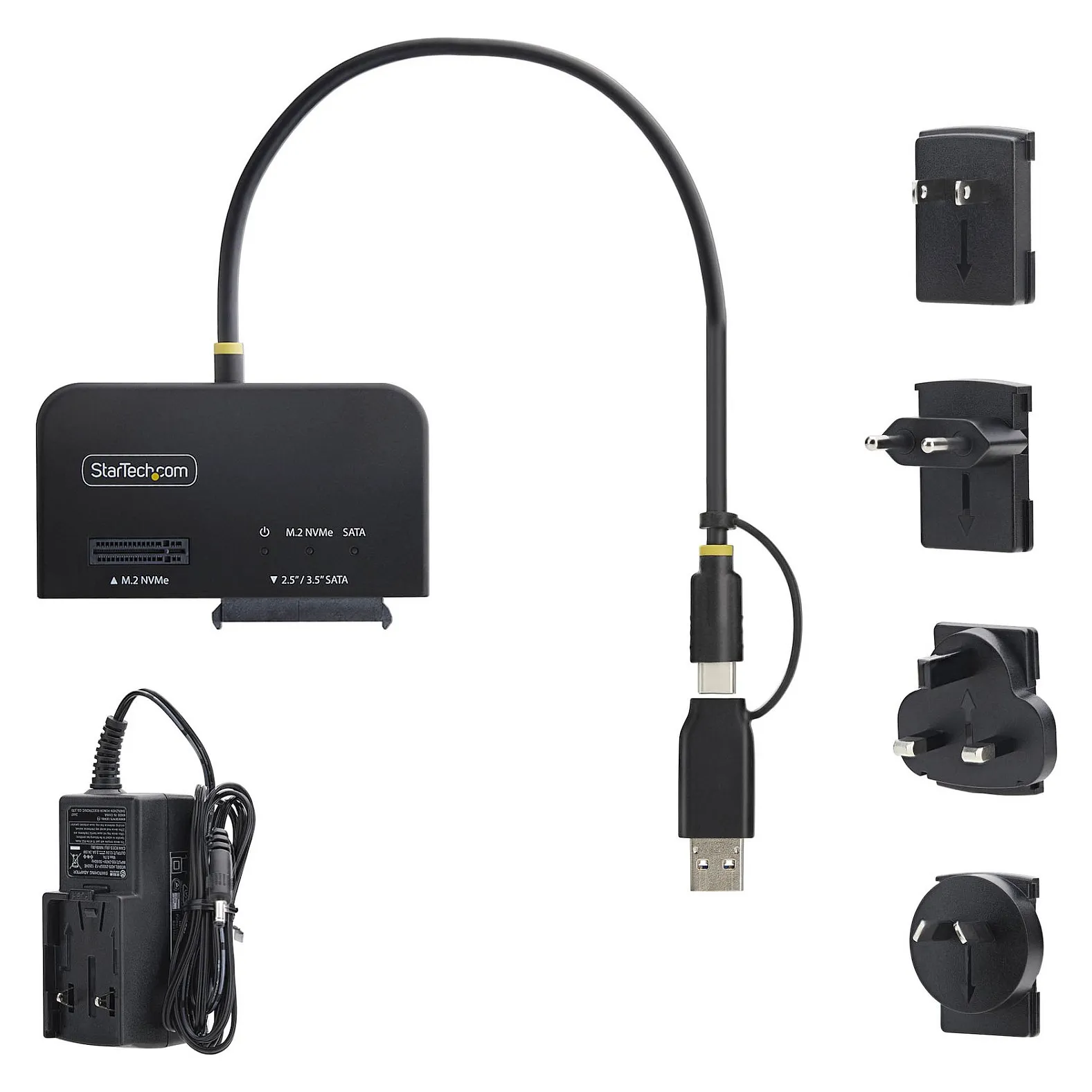

Packaging content
Feature: AC adapter included
Included power plug types: ANZ, EU, JP, NA, UK
Feature: Quick installation guide

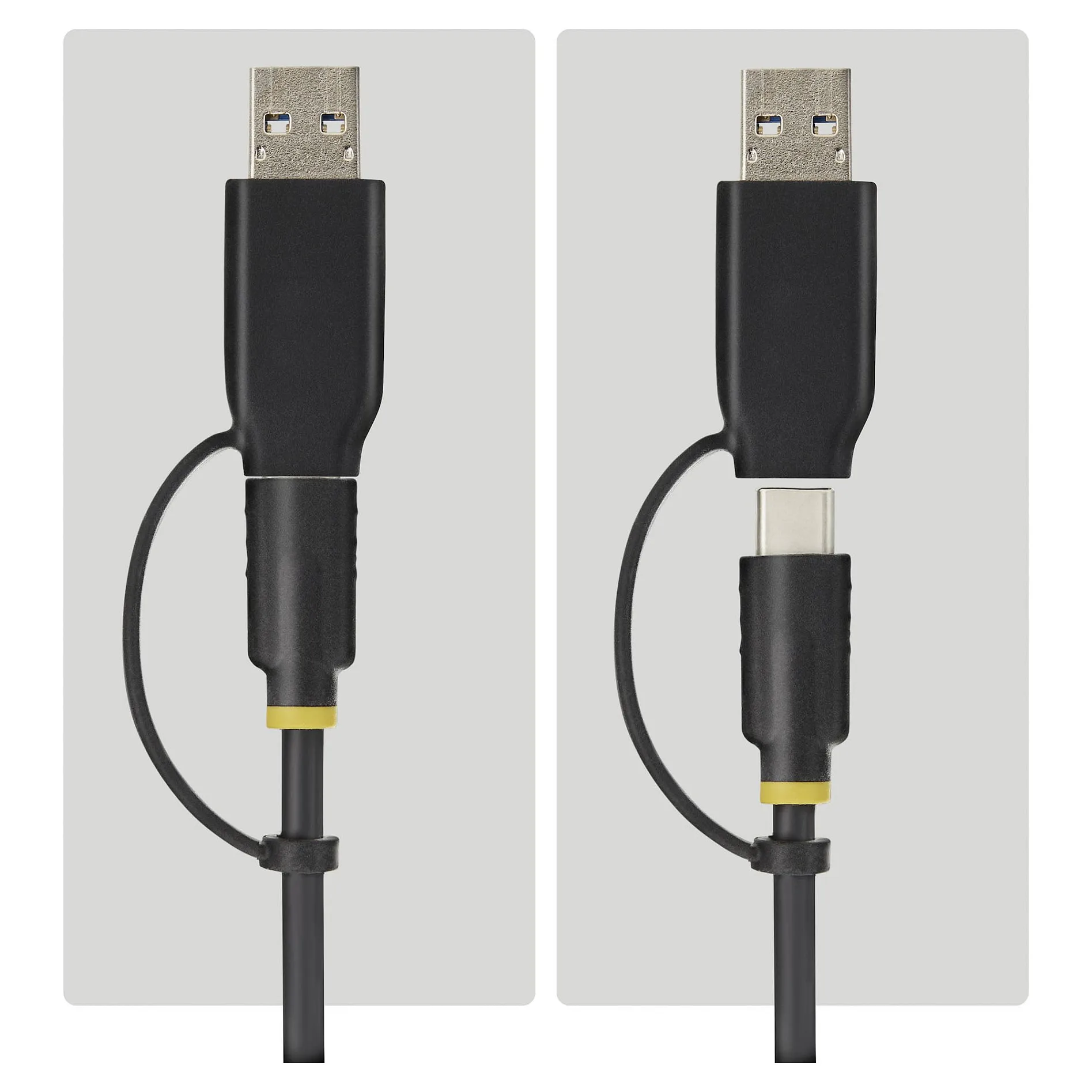

Interface adapters included: USB Type-A male – USB Type-C female
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 0 – 90%
Other features
Chipset: JMS581DC
Compliance certificates: RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case width: 400 mm
Master (outer) case length: 290 mm
Master (outer) case height: 275 mm
Products per master (outer) case: 20 pc(s)
