StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub – TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2400 pixels, Number of users: 1 user(s). Product colour: Black, Housing material: Steel, Certification: CE, FCC, REACH, TAA. Input voltage: 110 – 240 V, Input current: 0.8 A, Output voltage: 12 V. Compliance certificates: RoHS

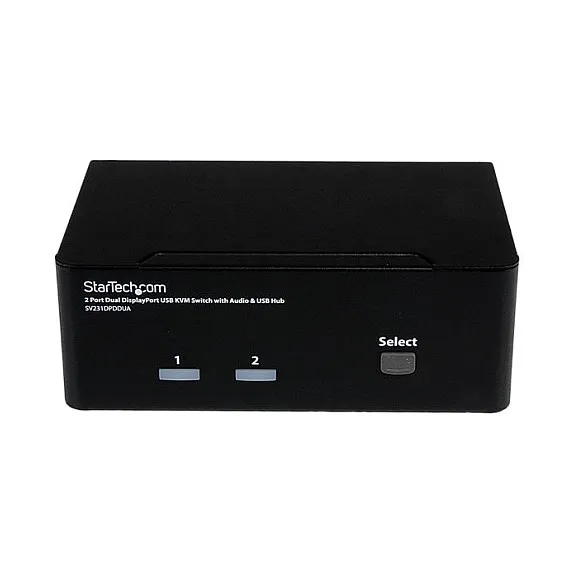

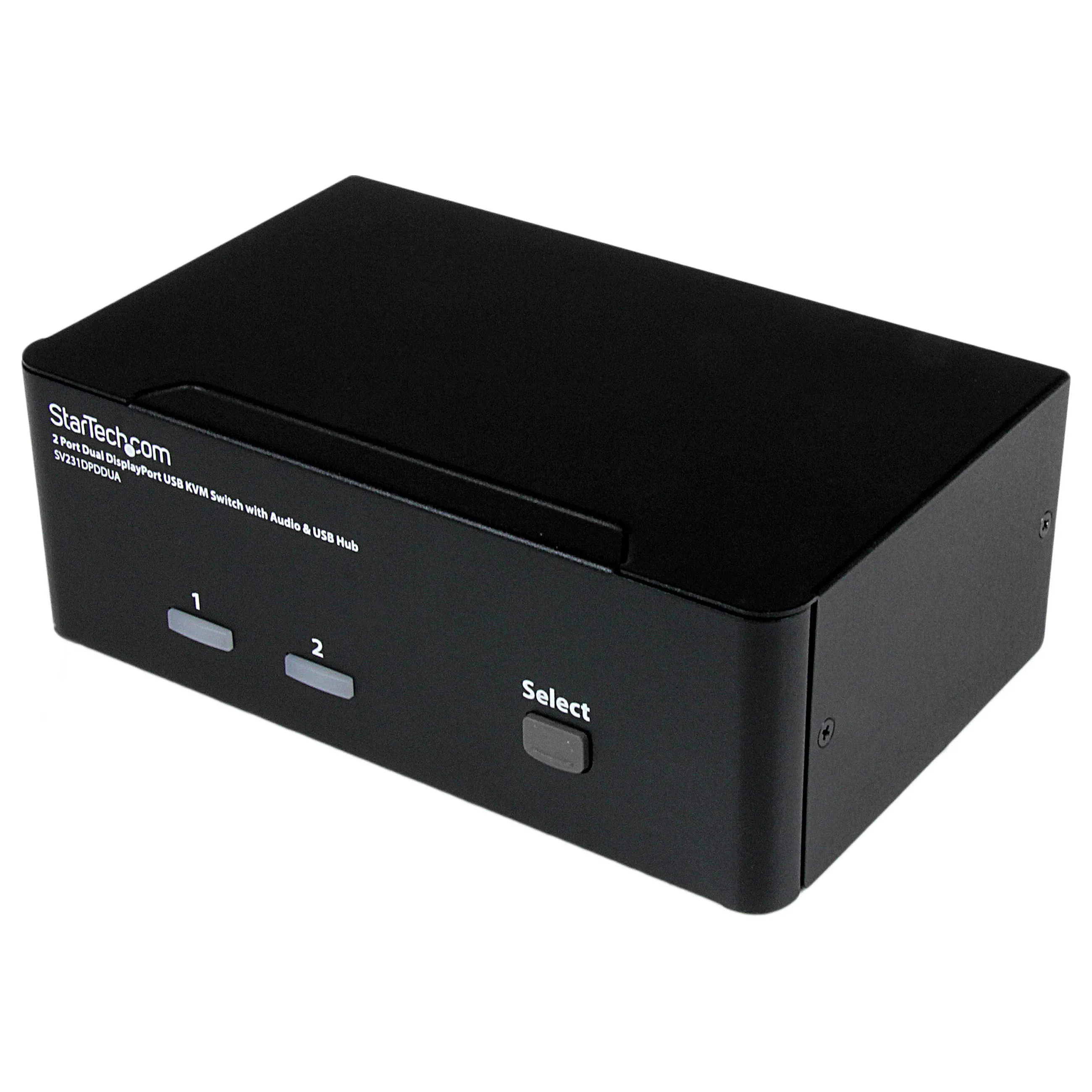

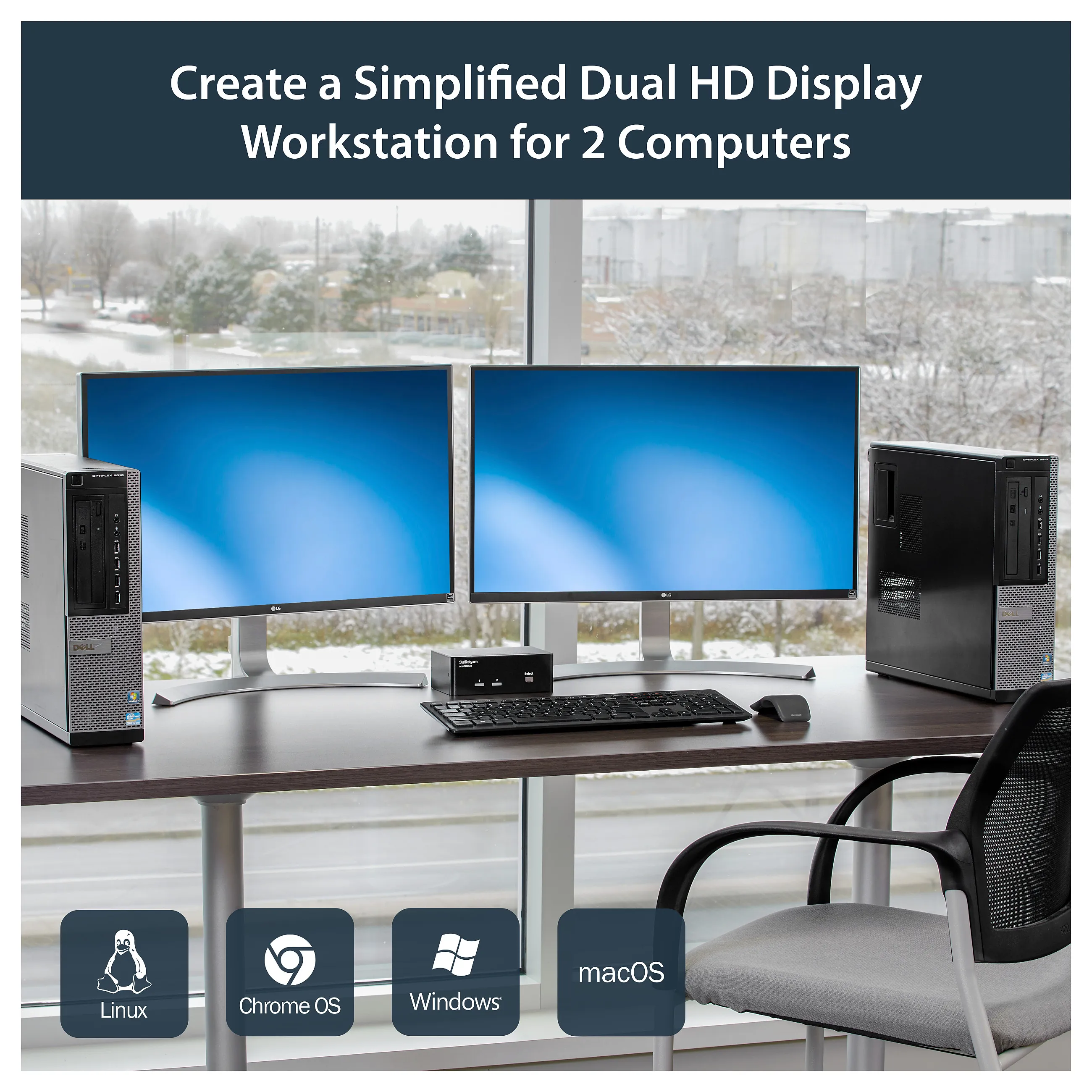

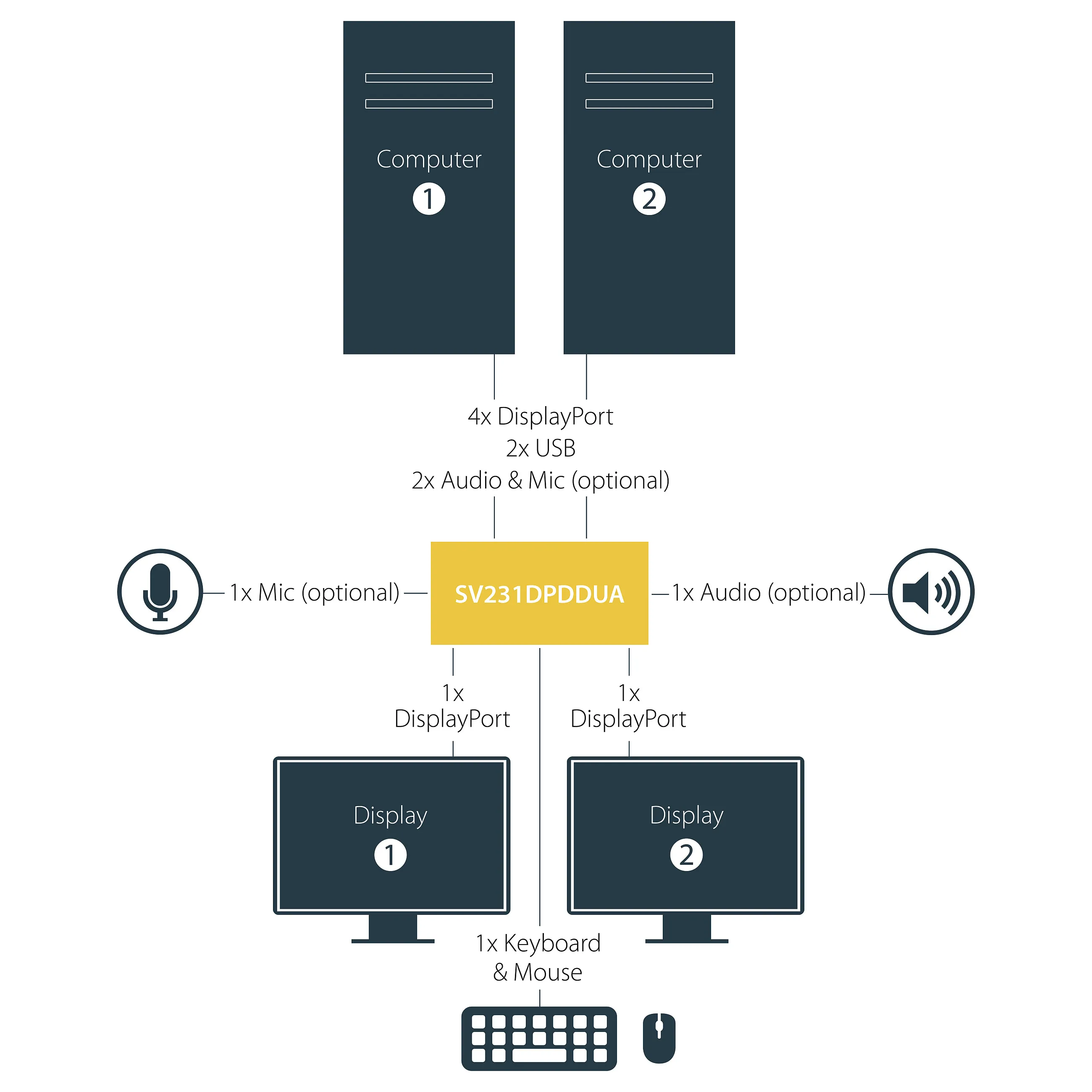

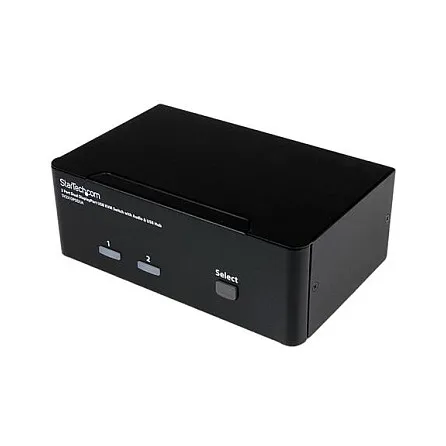

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560×1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840×2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 6

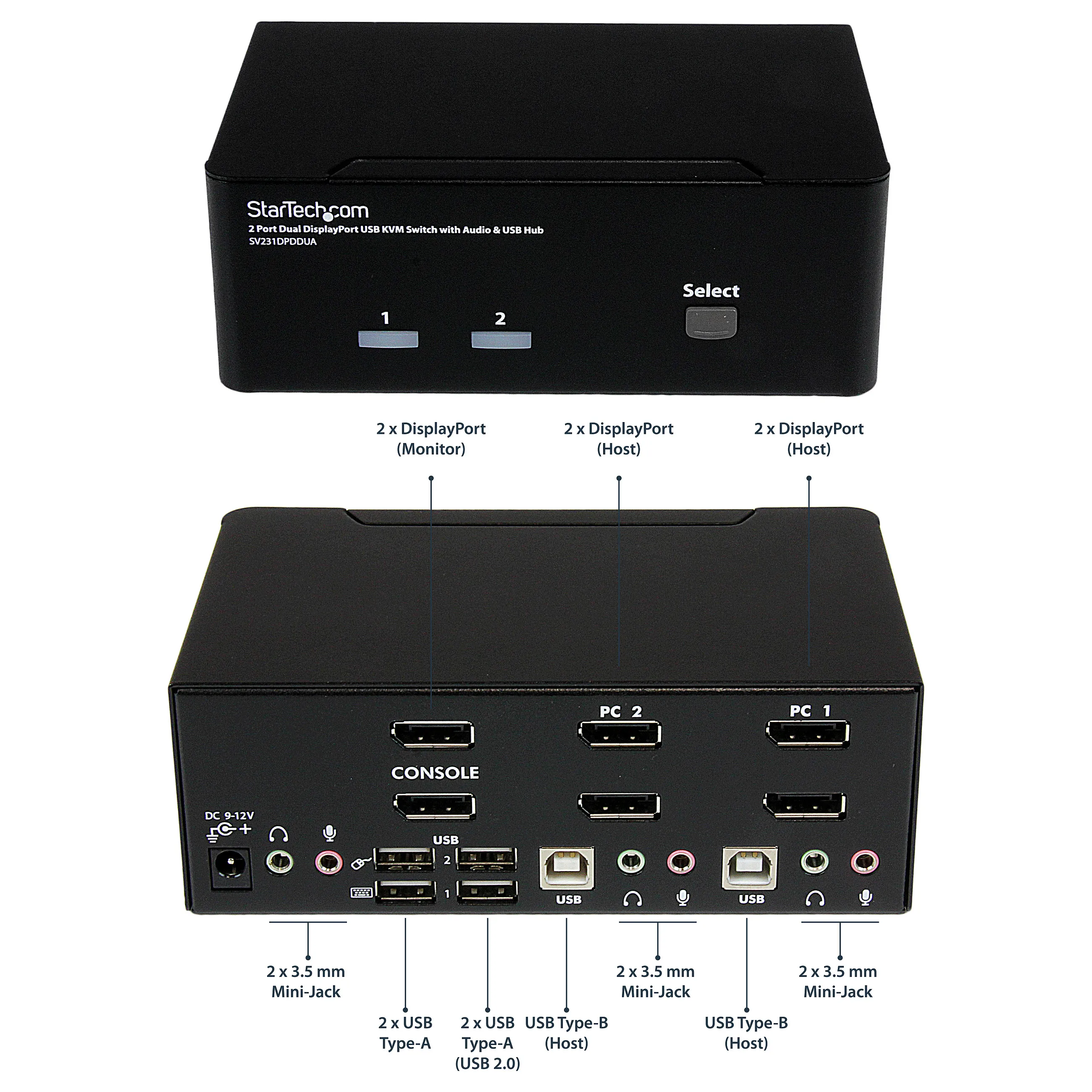

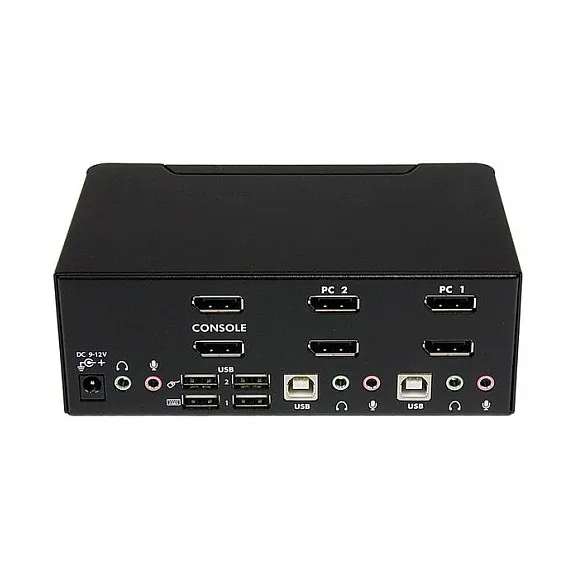

Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity: 2
Feature: USB hub
USB connector type: USB Type-A
Feature: Audio connections
Headphone outputs: 3
Number of microphone inputs: 3
Feature: DC-in jack
Performance
HD type: 4K Ultra HD
Maximum resolution: 3840 x 2400 pixels
Feature: DDC2B support
Feature: Hot-Plug support
Number of users: 1 user(s)
Audio channels: 7.1
Design
Product colour: Black
Housing material: Steel
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Certification: CE, FCC, REACH, TAA
Power
Input voltage: 110 – 240 V
Input current: 0.8 A
Output voltage: 12 V
Output current: 1.5 A
Power consumption (typical): 18 W
Feature: External power adapter
Power plug type: Type M
Compatible power plug types: AU, EU, UK, US
Sustainability
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): 20 – 60 °C
Operating relative humidity (H-H): 0 – 80%

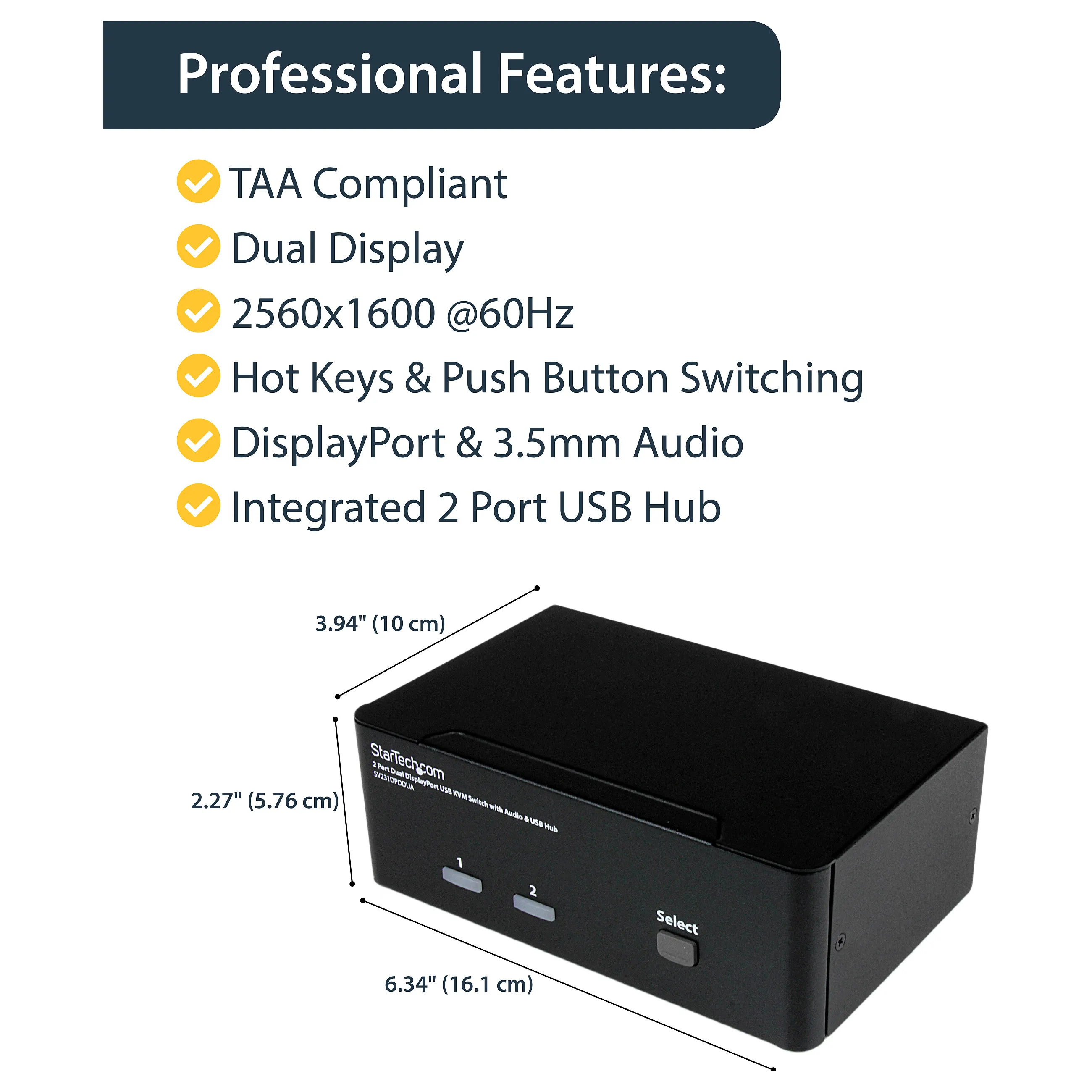

Weight & dimensions
Width: 161 mm
Depth: 100 mm
Height: 57.5 mm
Weight: 734 g
Packaging data
Package width: 252 mm
Package depth: 188 mm
Package height: 100 mm
Package weight: 1.19 kg

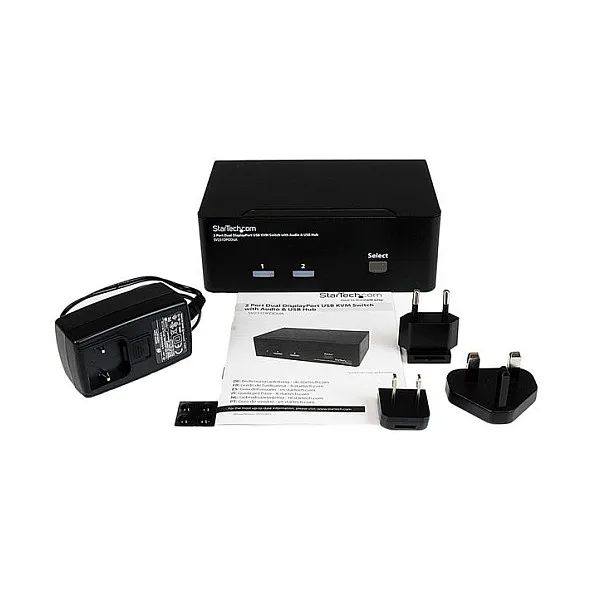

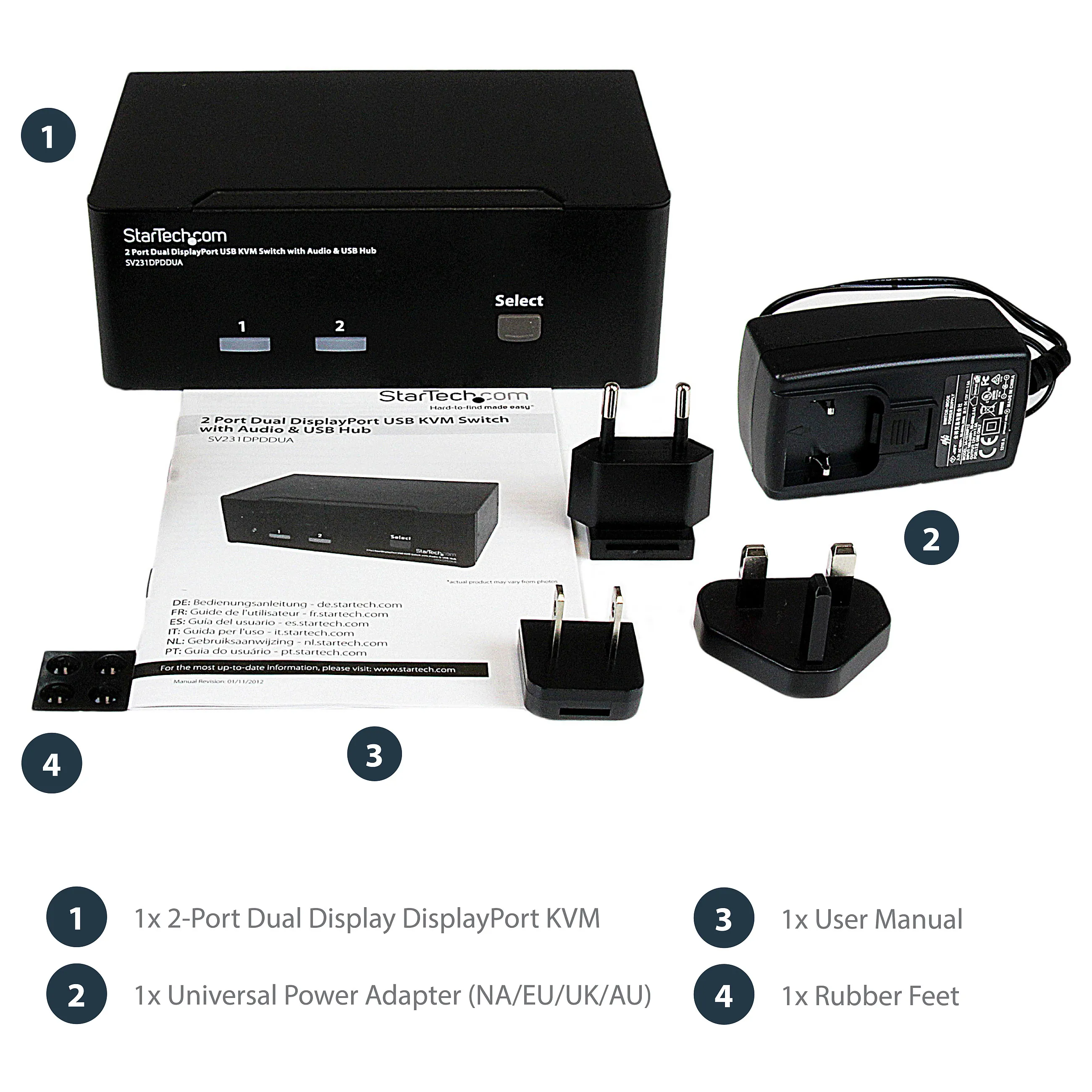

Packaging content
Feature: Manual
Other features
Feature: Audio support
Logistics data
Harmonized System (HS) code: 85176200
Master (outer) case width: 403 mm
Master (outer) case length: 322 mm
Master (outer) case height: 285 mm
Products per master (outer) case: 6 pc(s)
