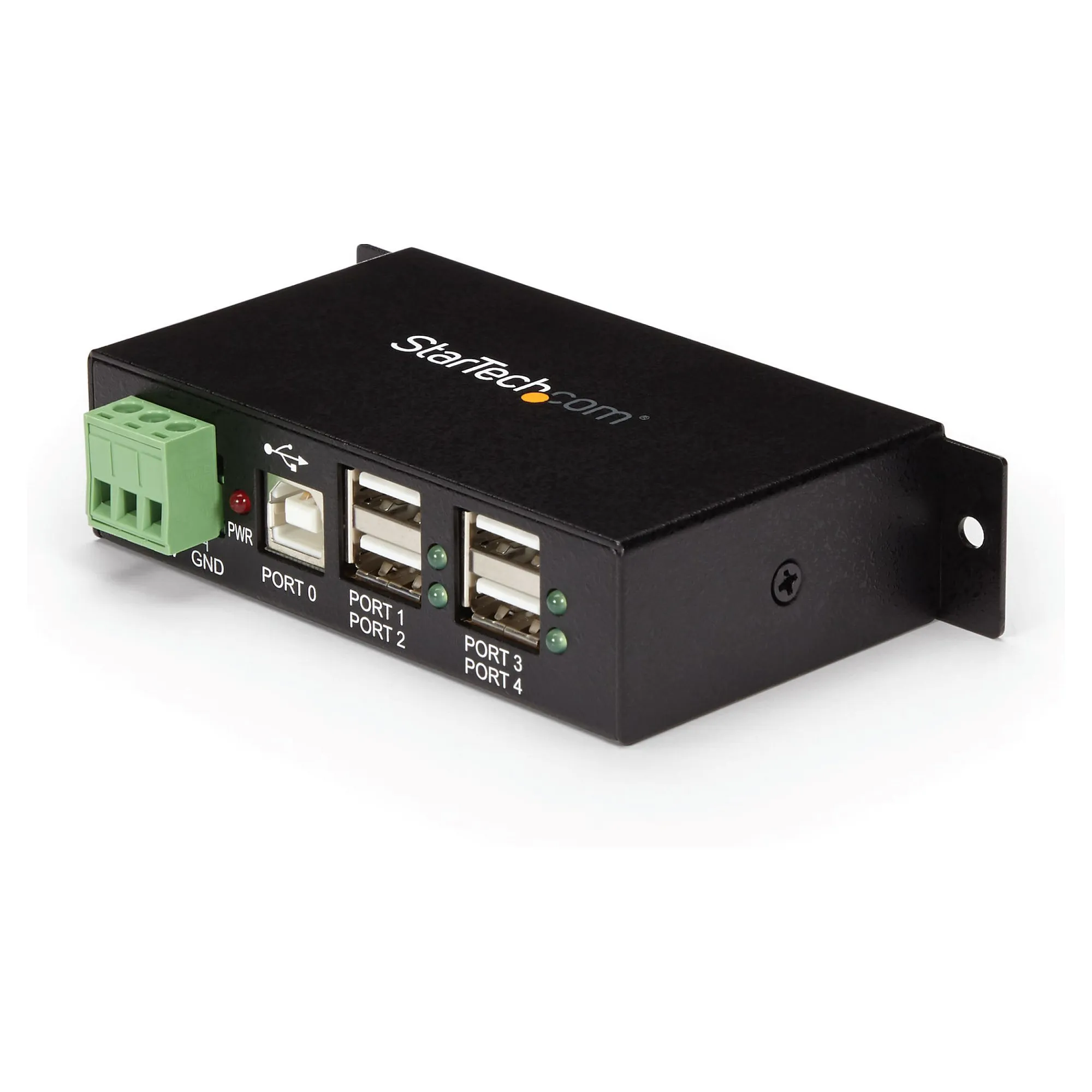

StarTech.com 4-Port USB 2.0 Hub – Metal Industrial USB-A Hub – Din Rail, Wall or Desk Mountable USB Data Hub – TAA Compliant USB Expander Hub. Host interface: USB 2.0 Type-B, Hub interfaces: USB 2.0. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Steel. Input voltage: 7 – 24 V. Width: 57.3 mm, Depth: 114 mm, Height: 26 mm. Package width: 145 mm, Package depth: 205 mm, Package height: 39 mm

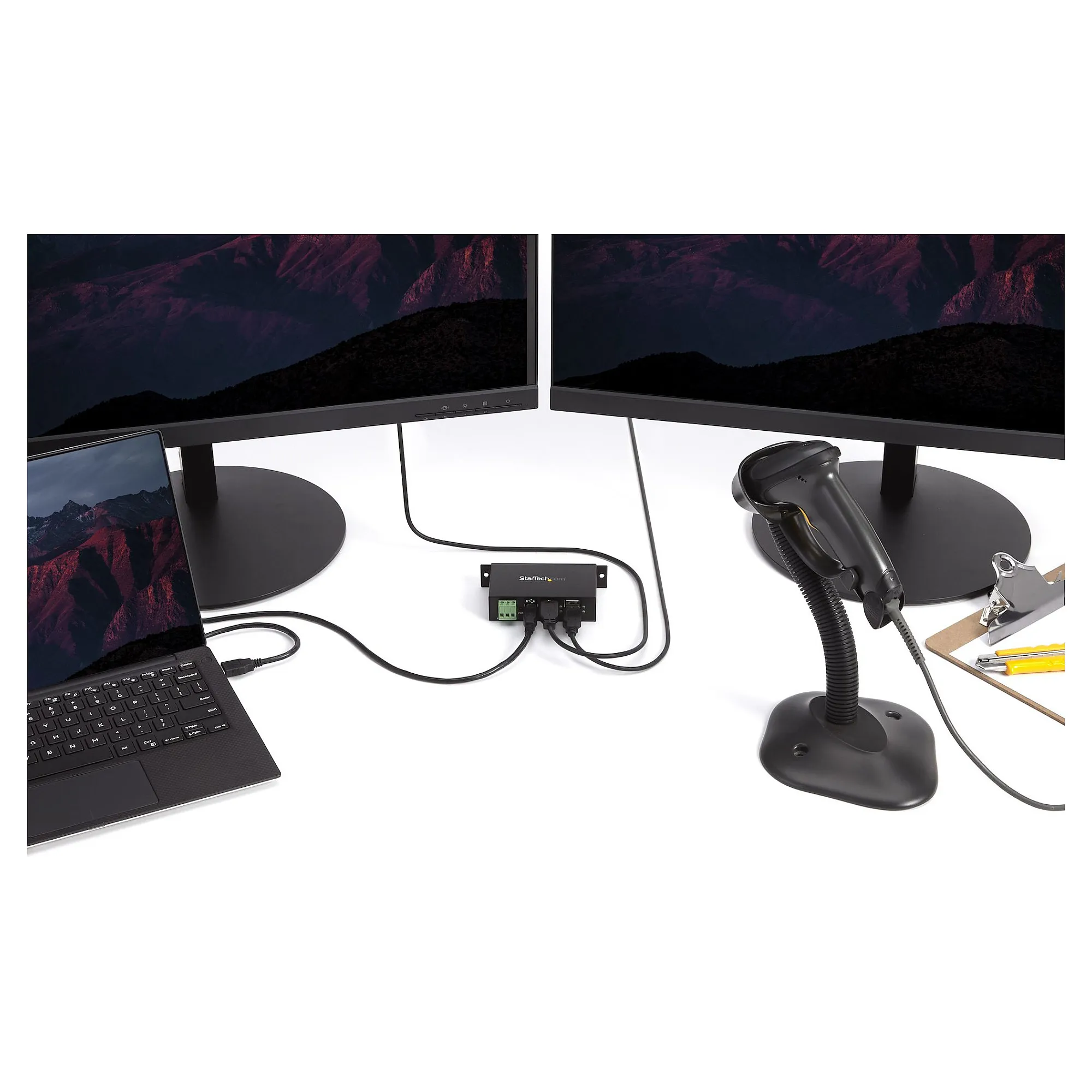

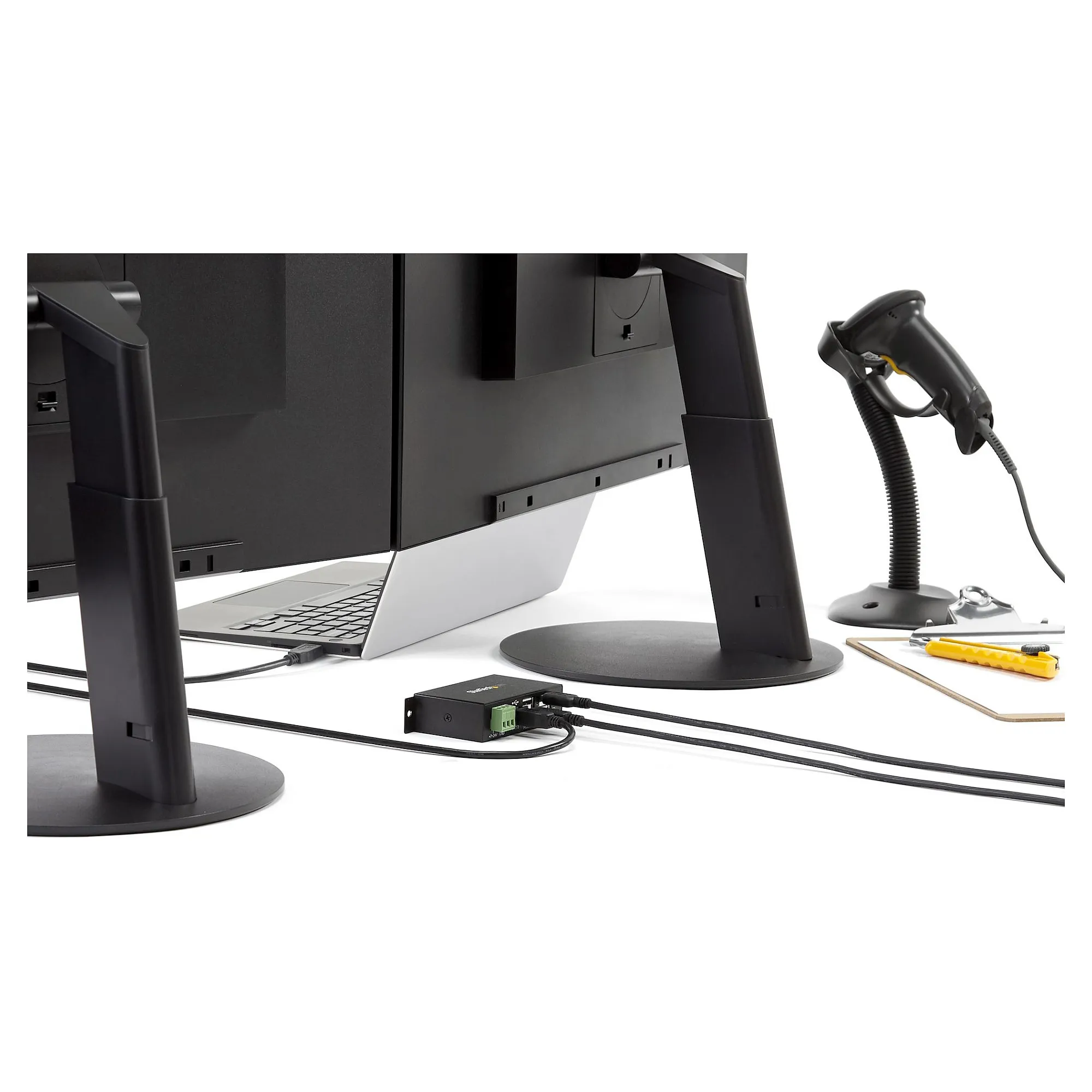

This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments

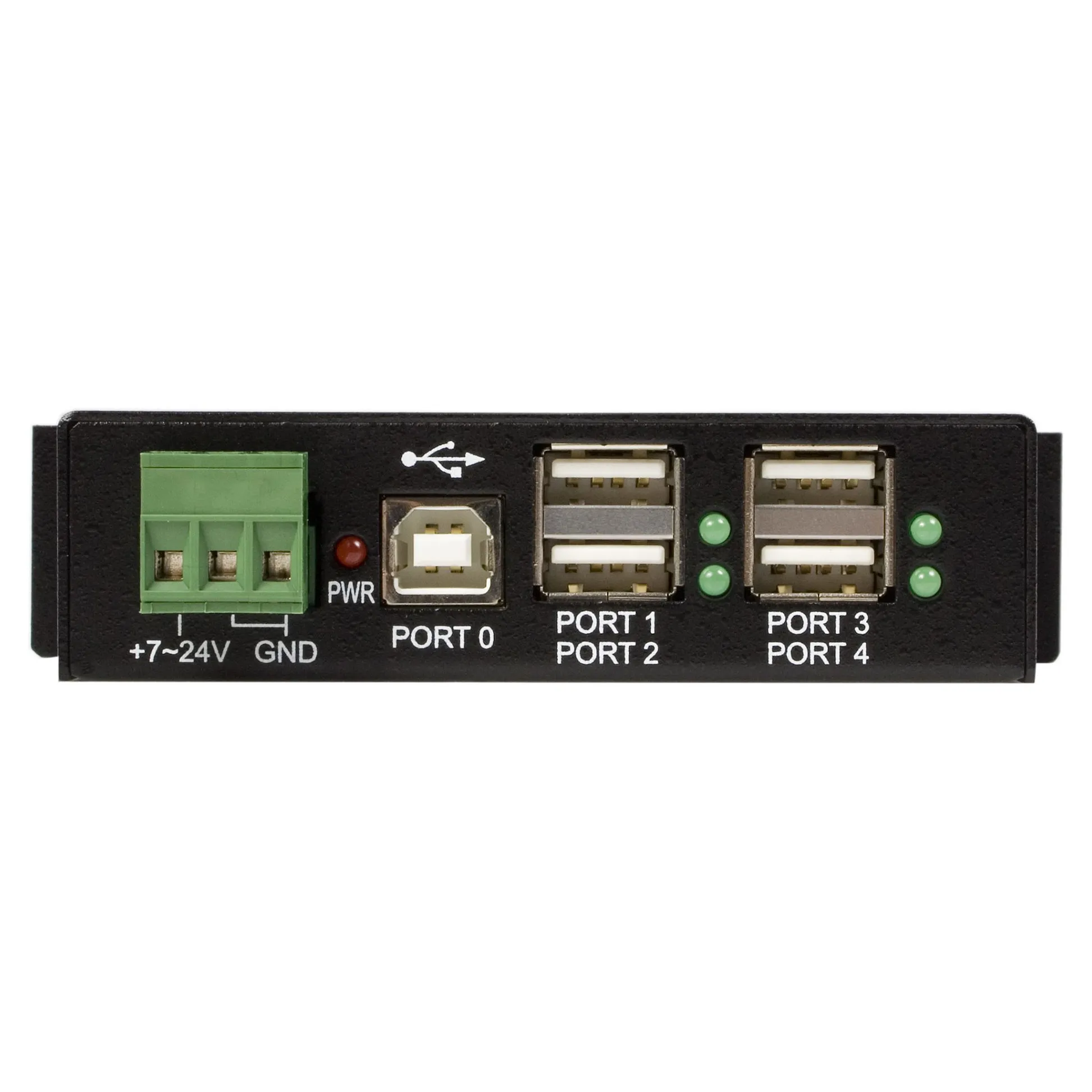

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most

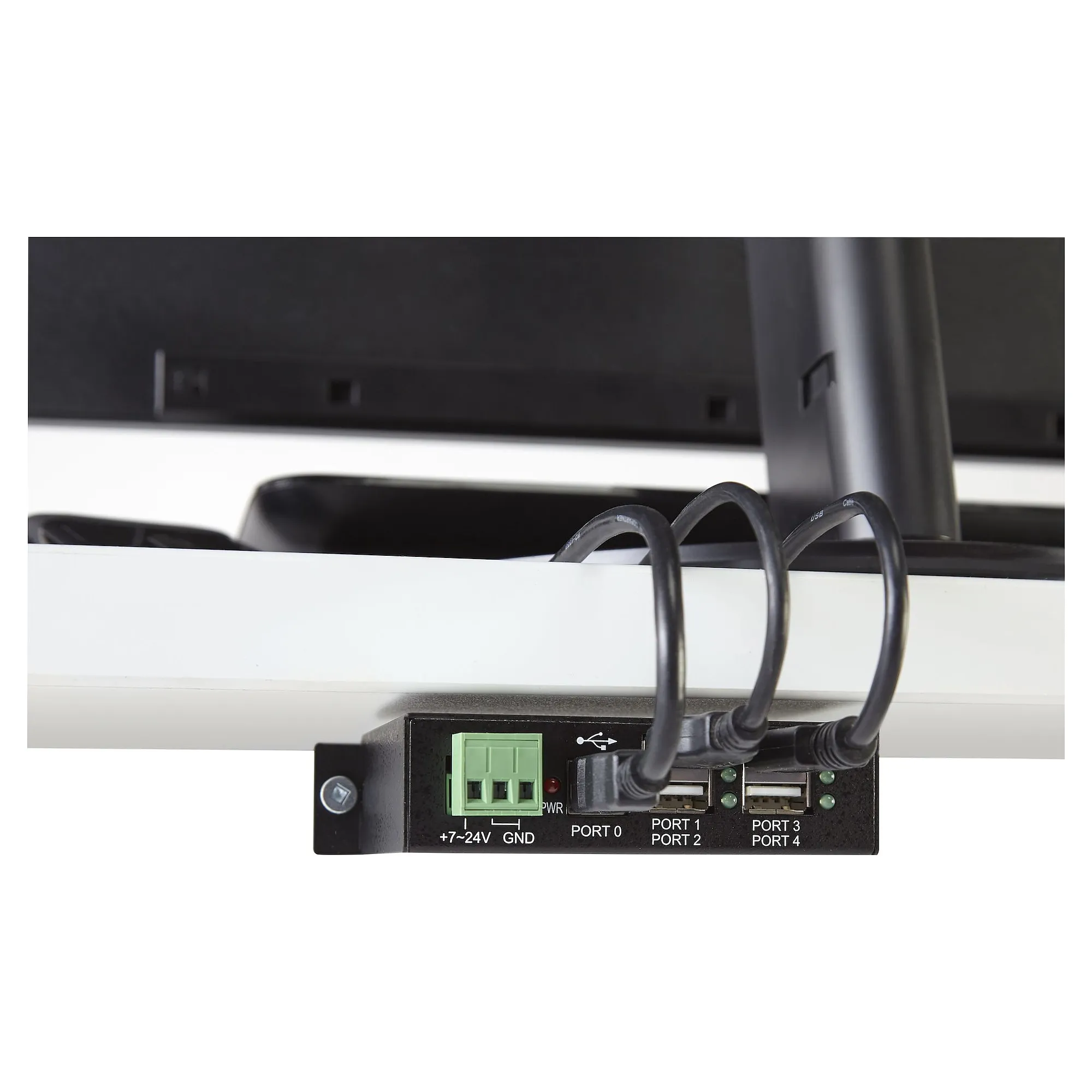

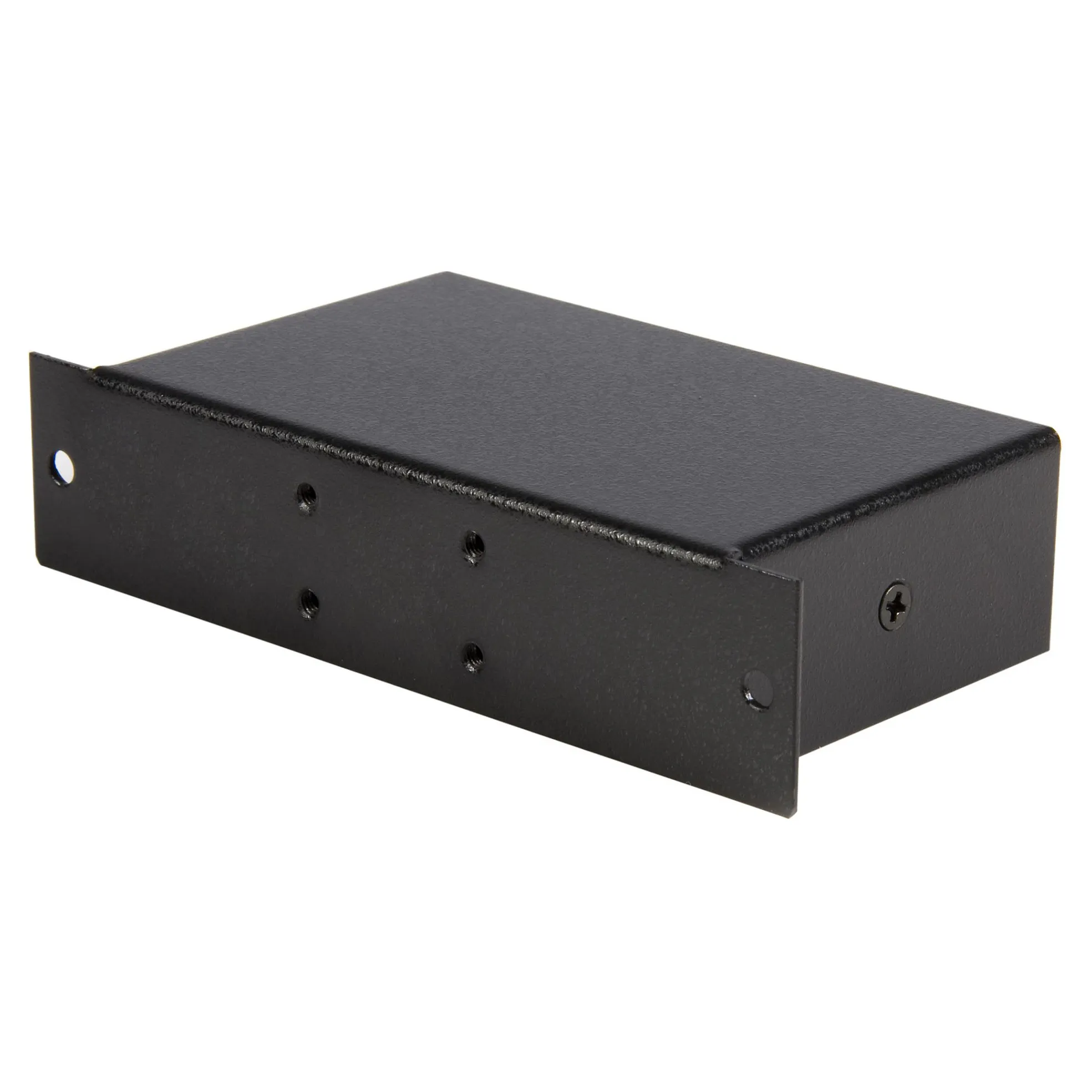

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The ST4200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Host interface: USB 2.0 Type-B
Hub interfaces: USB 2.0
USB 2.0 ports quantity: 4
Ports quantity: 4
Feature: Terminal block port
Features
Data transfer rate: 480 Mbit/s
Product colour: Black
Housing material: Steel
LED indicators: Power
Feature: Plug and Play
Certification: CE, FCC, TAA, RoHS
Power
Input voltage: 7 – 24 V
Weight & dimensions
Width: 57.3 mm
Depth: 114 mm
Height: 26 mm
Weight: 207 g
Packaging data
Package width: 145 mm
Package depth: 205 mm
Package height: 39 mm
Package weight: 400 g

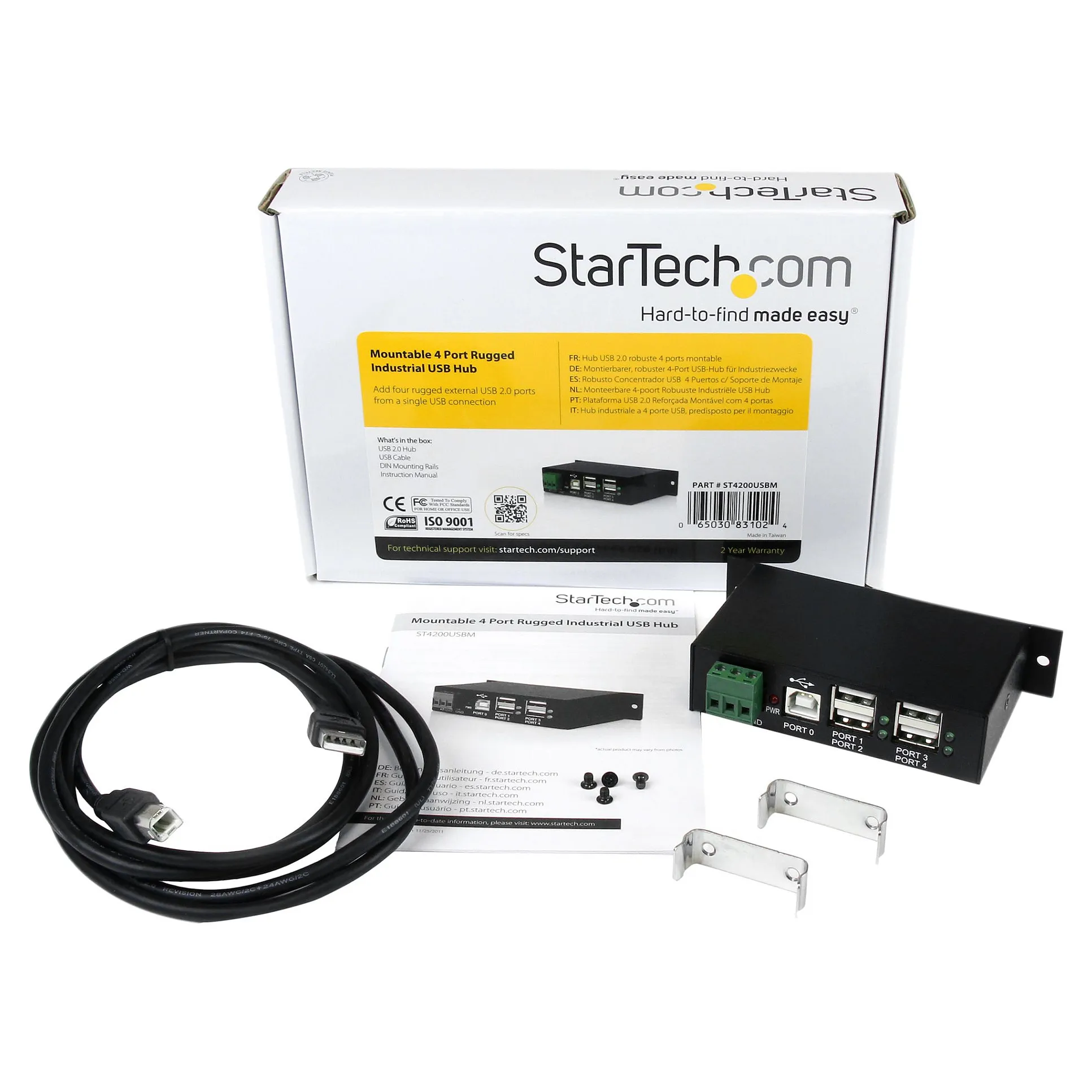

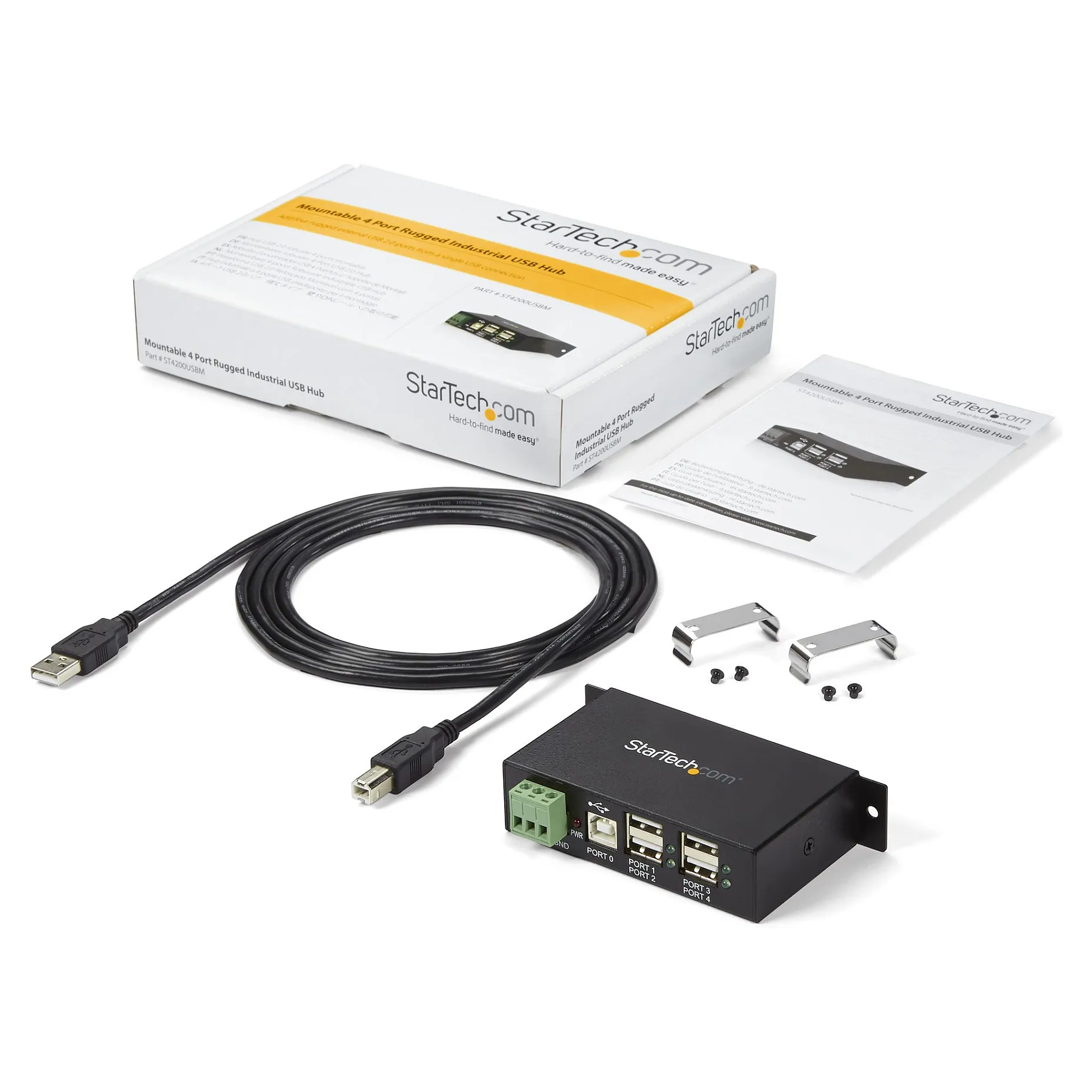

Packaging content
Cables included: USB
Feature: Manual
Feature: DIN rail kit included
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -20 – 85 °C
Operating relative humidity (H-H): 5 – 95%
Performance
Mean time between failures (MTBF): 193317 h
Logistics data
Master (outer) case width: 445 mm
Master (outer) case length: 520 mm
Master (outer) case height: 335 mm
Products per master (outer) case: 50 pc(s)
Harmonized System (HS) code: 84719000
Other features
Chipset: Renesas/NEC – µPD720114
