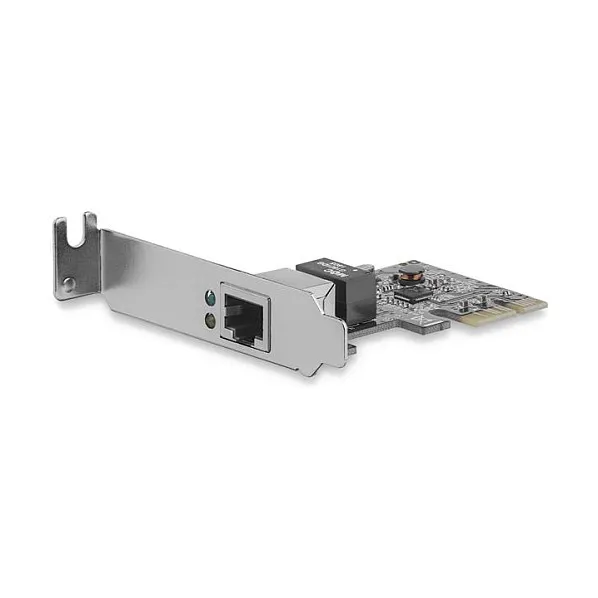

StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card – Low Profile. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
– Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
– Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000
Supported network protocols: CSMA/CD
Design
Feature: Internal
Chipset: Realtek – RTL8111H

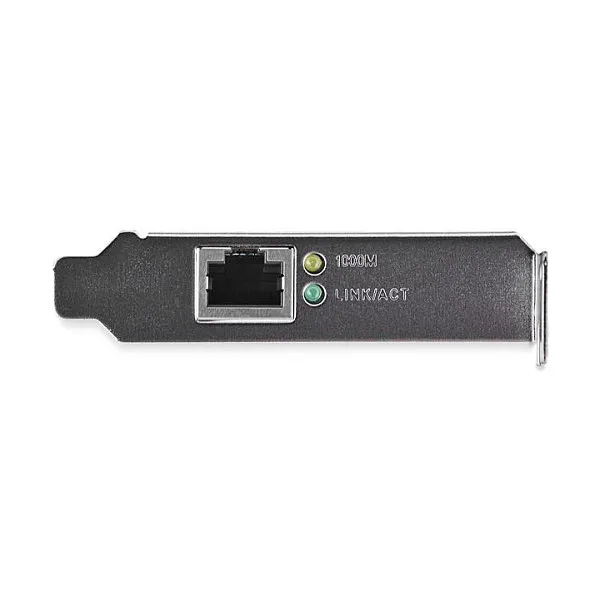

LED indicators: Activity, Link
Certification: CE, FCC, REACH
System requirements
Mac operating systems supported: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): 0 – 100 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 18 mm
Depth: 70 mm
Height: 49 mm
Weight: 27 g
Packaging data
Package width: 173 mm
Package depth: 144 mm
Package height: 31 mm
Package weight: 125 g
Packaging content
Feature: Manual
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 85176990
Other features
Feature: Power LED
Feature: Link/Act LED
