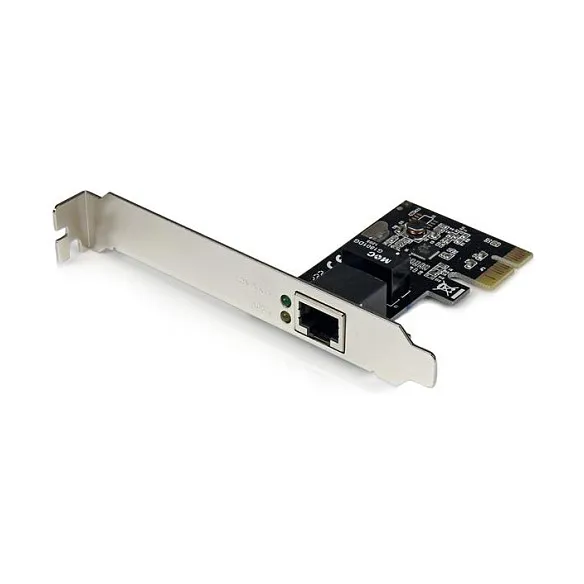

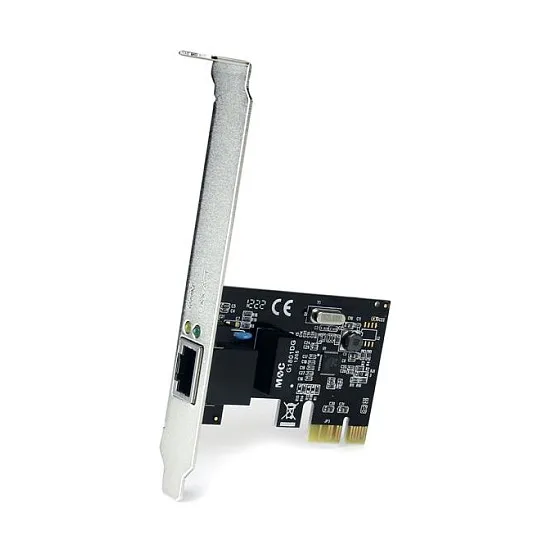

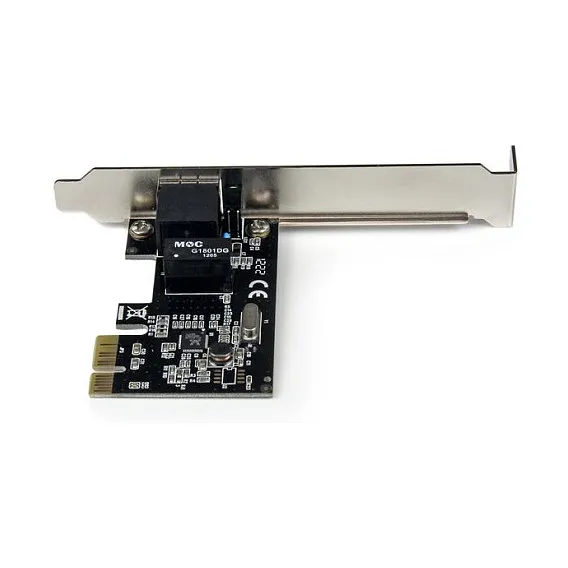

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card – Dual Profile. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
– Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
– Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000
Supported network protocols: CSMA/CD
Design
Feature: Internal
Chipset: Realtek RTL8111E

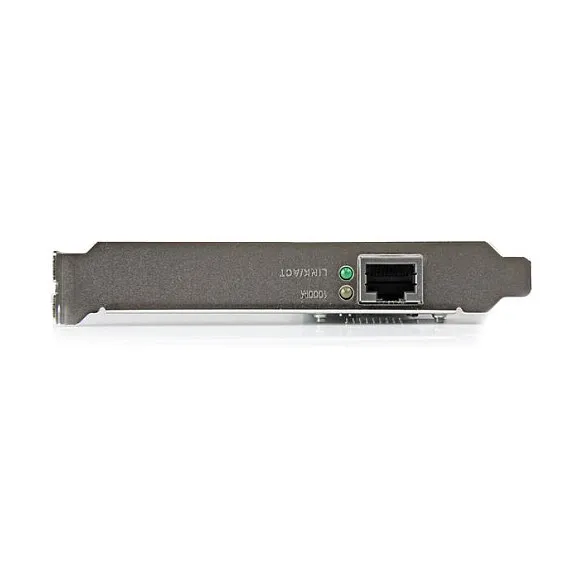

LED indicators: Activity, Link
Mean time between failures (MTBF): 376212 h
Certification: CE, FCC
System requirements
Mac operating systems supported: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): 0 – 100 °C
Operating relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 120.3 mm
Depth: 67.9 mm
Height: 18 mm
Weight: 40 g
Packaging data
Feature: Drivers included
Feature: Low-profile bracket
Package width: 142 mm
Package depth: 171 mm
Package height: 32 mm
Package weight: 126 g

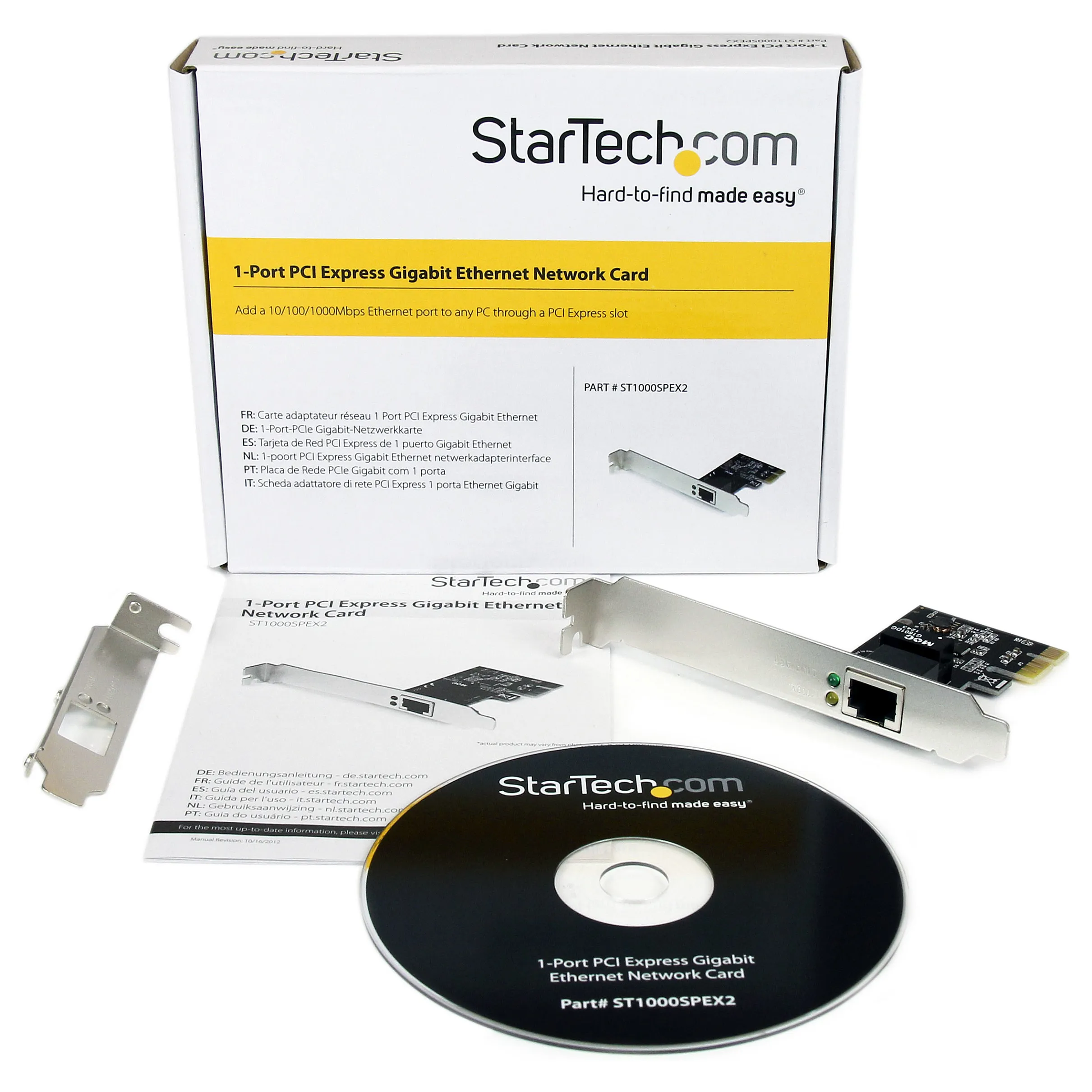

Packaging content
Feature: Manual
Technical details
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 85176990
Other features
Supported data transfer rates: 10/100/1000 Mbit/s
