StarTech.com Single Bay USB 3.1 / eSATA to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-Loading Hard Drive Bay. Storage media type: HDD, SSD, Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-B. Product colour: Black, Material: Plastic, Maximum data transfer rate: 10 Gbit/s. AC input voltage: 110-240 V, Input current: 0.6 A, Output voltage: 12 V. Width: 93 mm, Depth: 145 mm, Height: 63 mm
Connect and access any 2.5″ or 3.5″ SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.
Supports USB 3.1 Gen 2 and eSATA for flexible use
Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.
You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.
Top-loading design for easy drive access

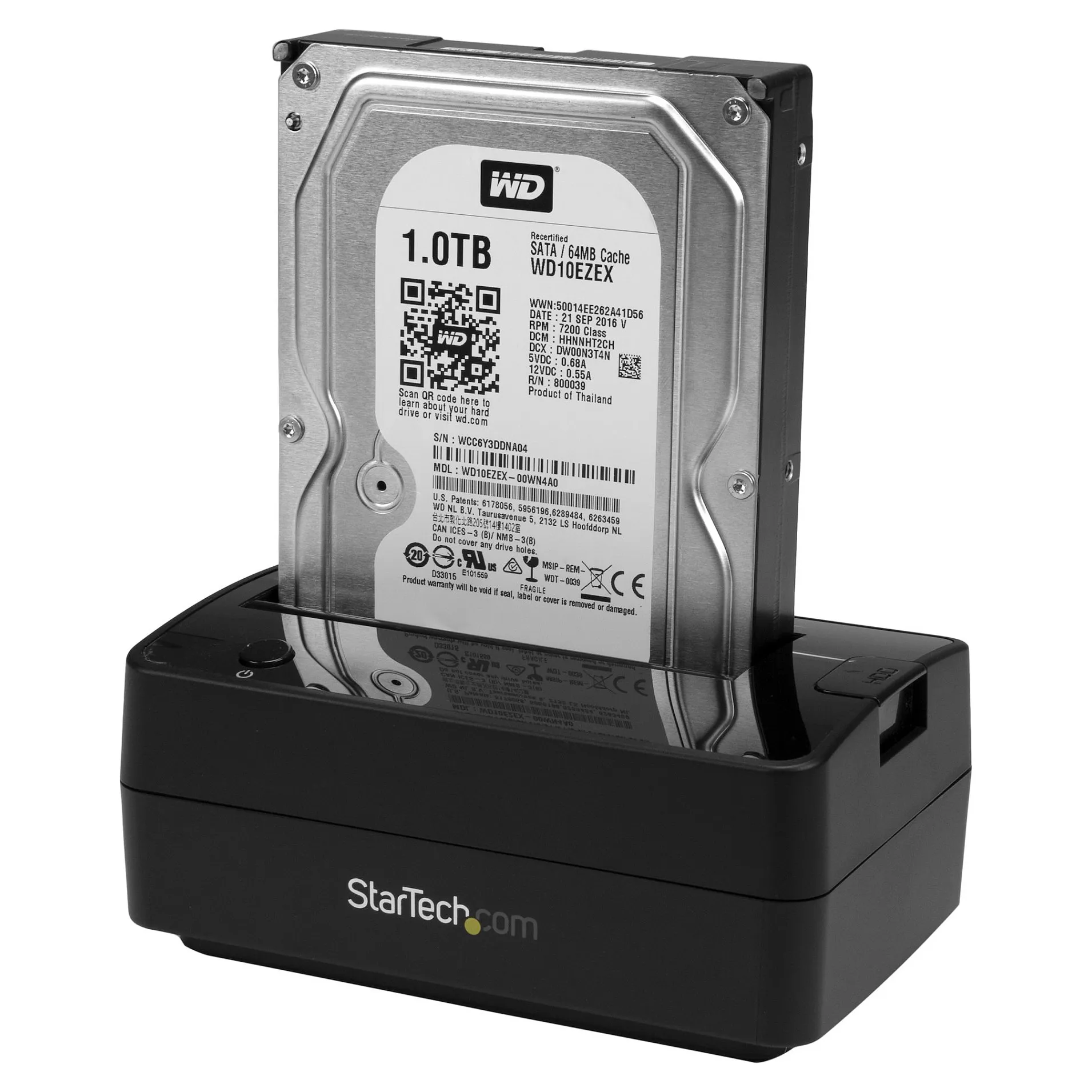

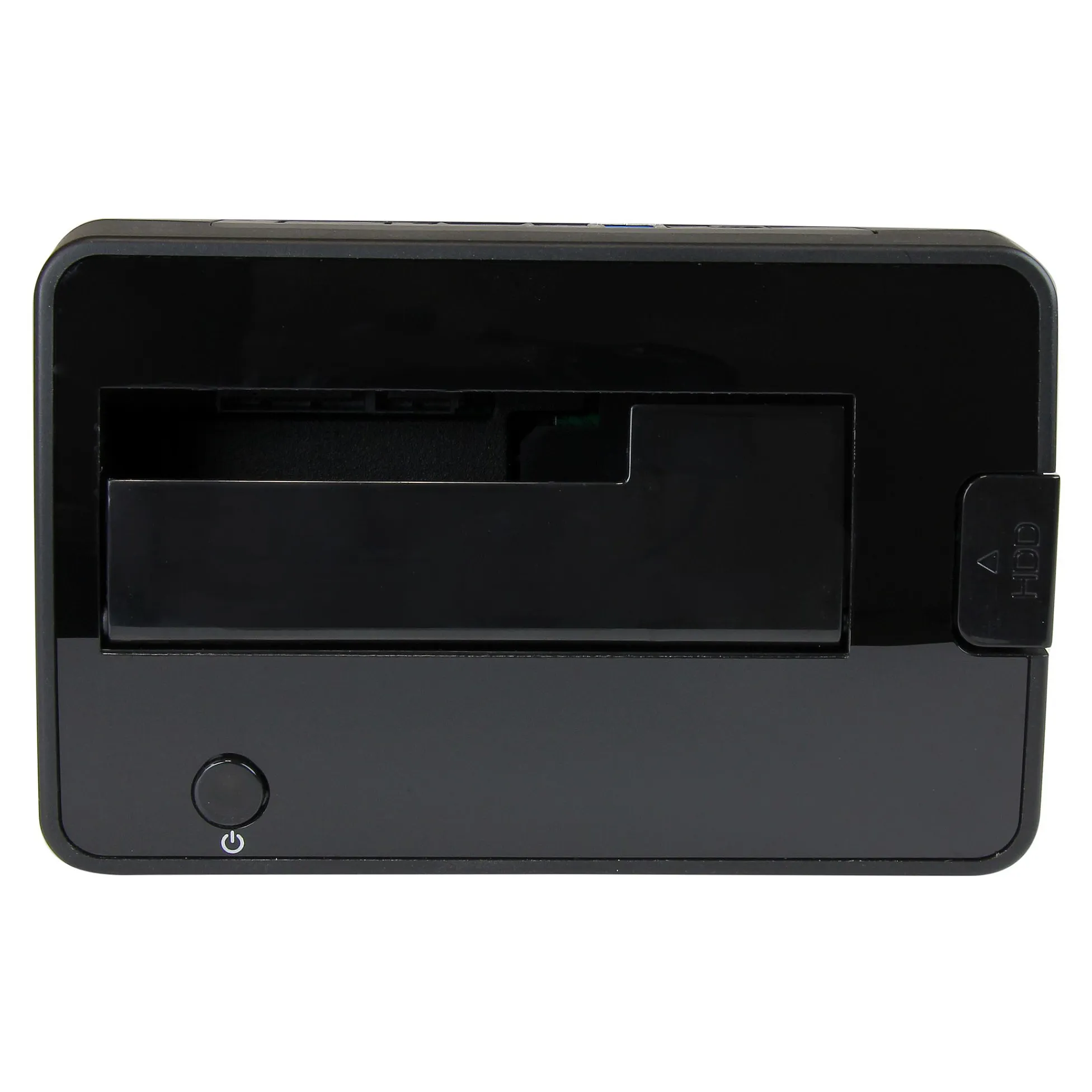

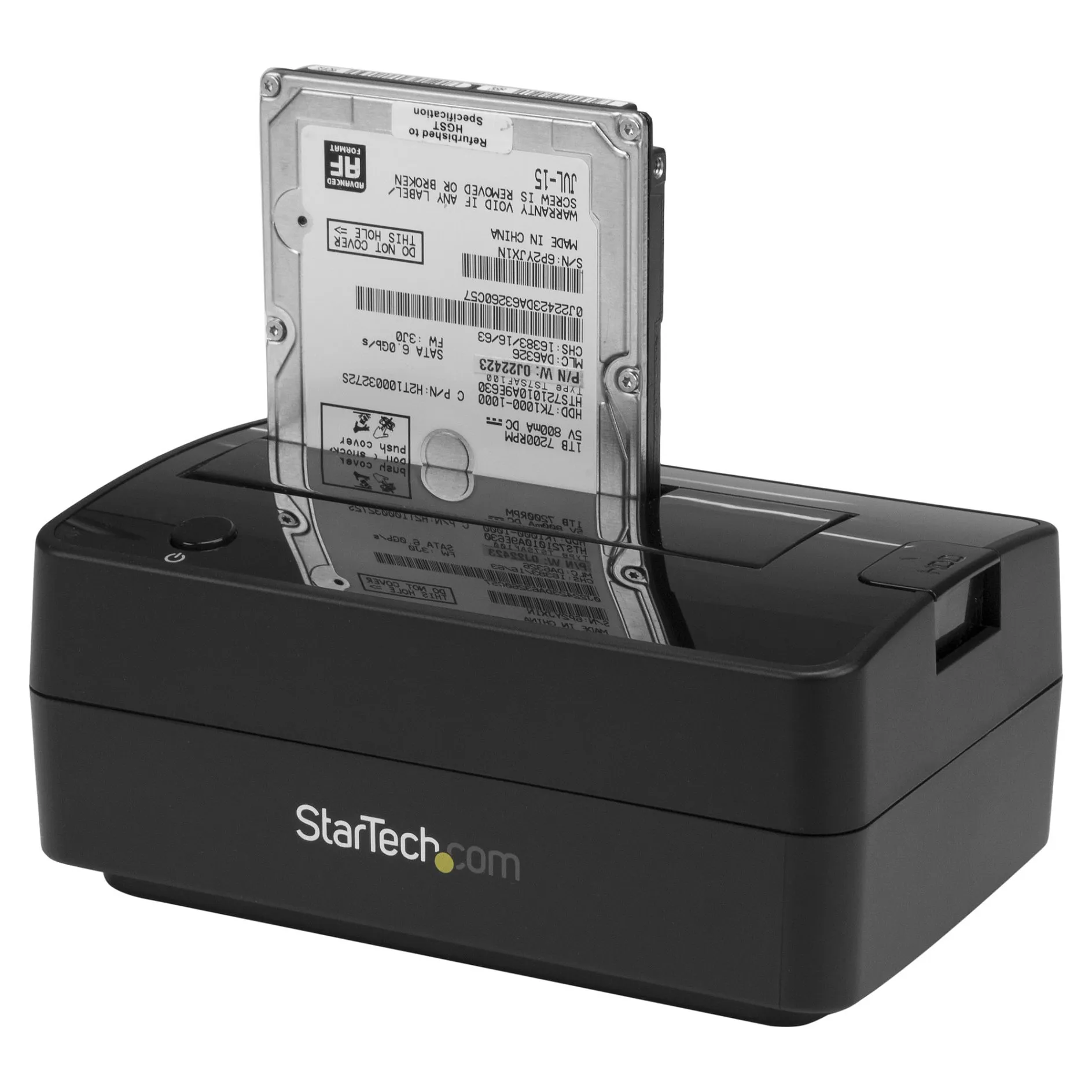

The dock’s vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.
The docking station is also UASP compatible, for enhanced performance.
The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Storage media type: HDD, SSD
Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported: 2.5,3.5″
Number of storage drives supported: 1
Maximum storage capacity: 6 TB

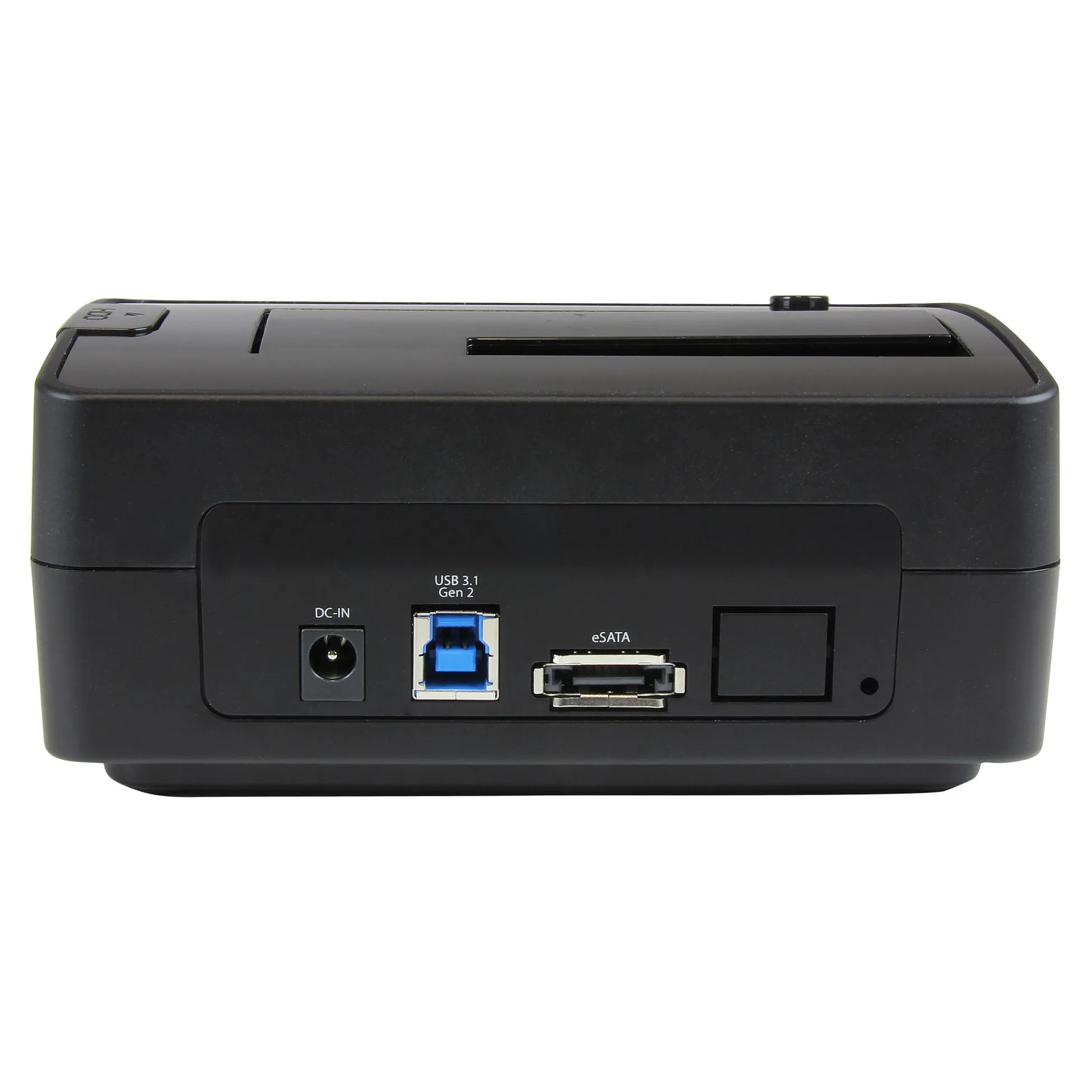

Ports & interfaces
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-B
eSATA ports quantity: 1
Feature: DC-in jack
Features
Product colour: Black
Material: Plastic
Maximum data transfer rate: 10 Gbit/s
Feature: Hot-swap
Feature: Plug and Play
LED indicators: Activity, Power
Feature: UASP support
Certification: CE, FCC, REACH
Power
AC input voltage: 110-240 V
Input current: 0.6 A
Output voltage: 12 V
Output current: 2 A
Power plug type: Type M
Weight & dimensions
Width: 93 mm
Depth: 145 mm
Height: 63 mm
Weight: 410 g
Packaging data
Package width: 98 mm
Package depth: 162 mm
Package height: 172 mm
Package weight: 862 g

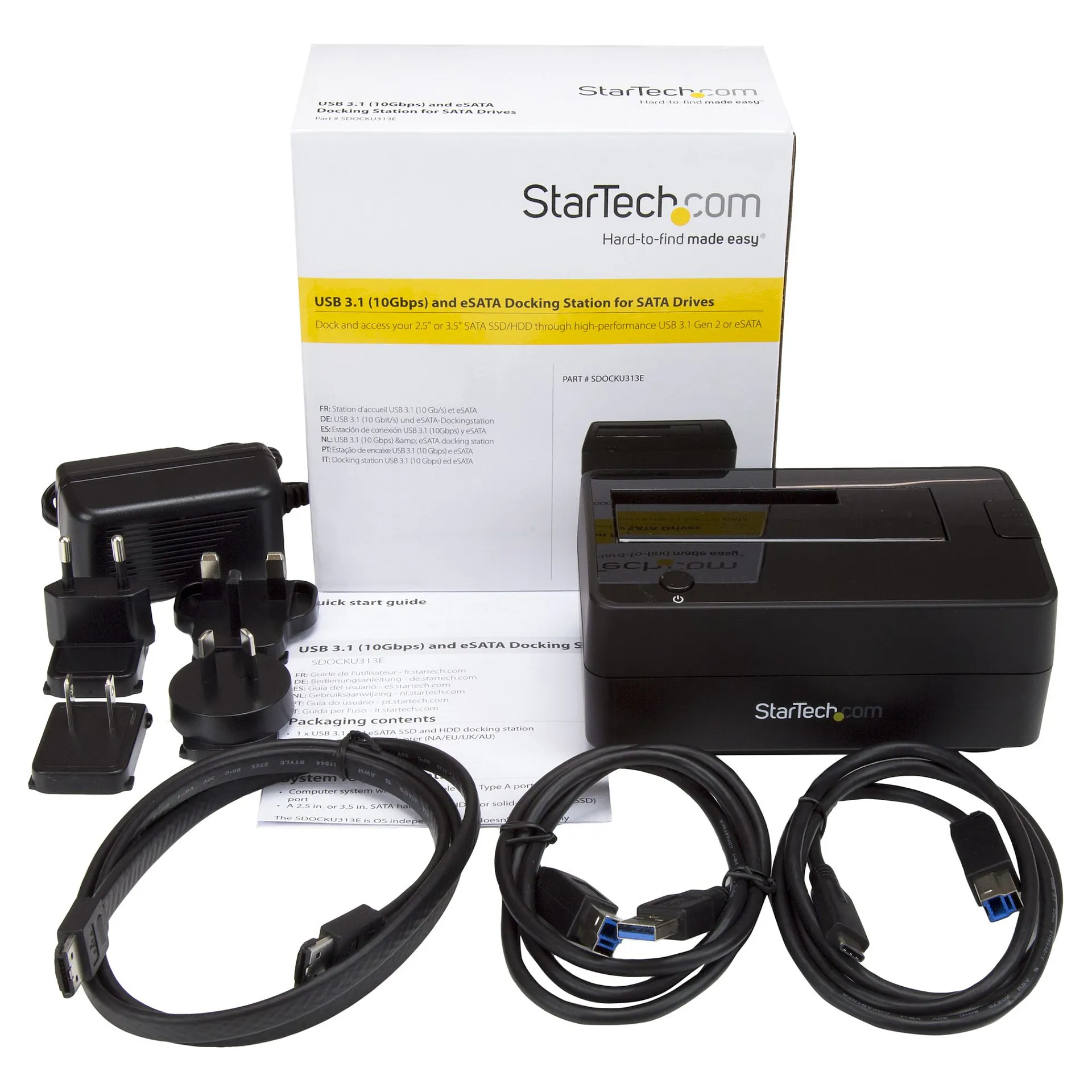

Packaging content
Feature: AC adapter included
Cables included: USB, eSATA
Included power plug types: AU, EU, NA, UK
Feature: Quick installation guide
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Storage temperature (T-T): -20 – 50 °C
Operating relative humidity (H-H): 20 – 80%
Other features
Chipset: ASMedia – ASM1351
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 84733080
Master (outer) case width: 190 mm
Master (outer) case length: 488 mm
Master (outer) case height: 380 mm
Products per master (outer) case: 10 pc(s)
