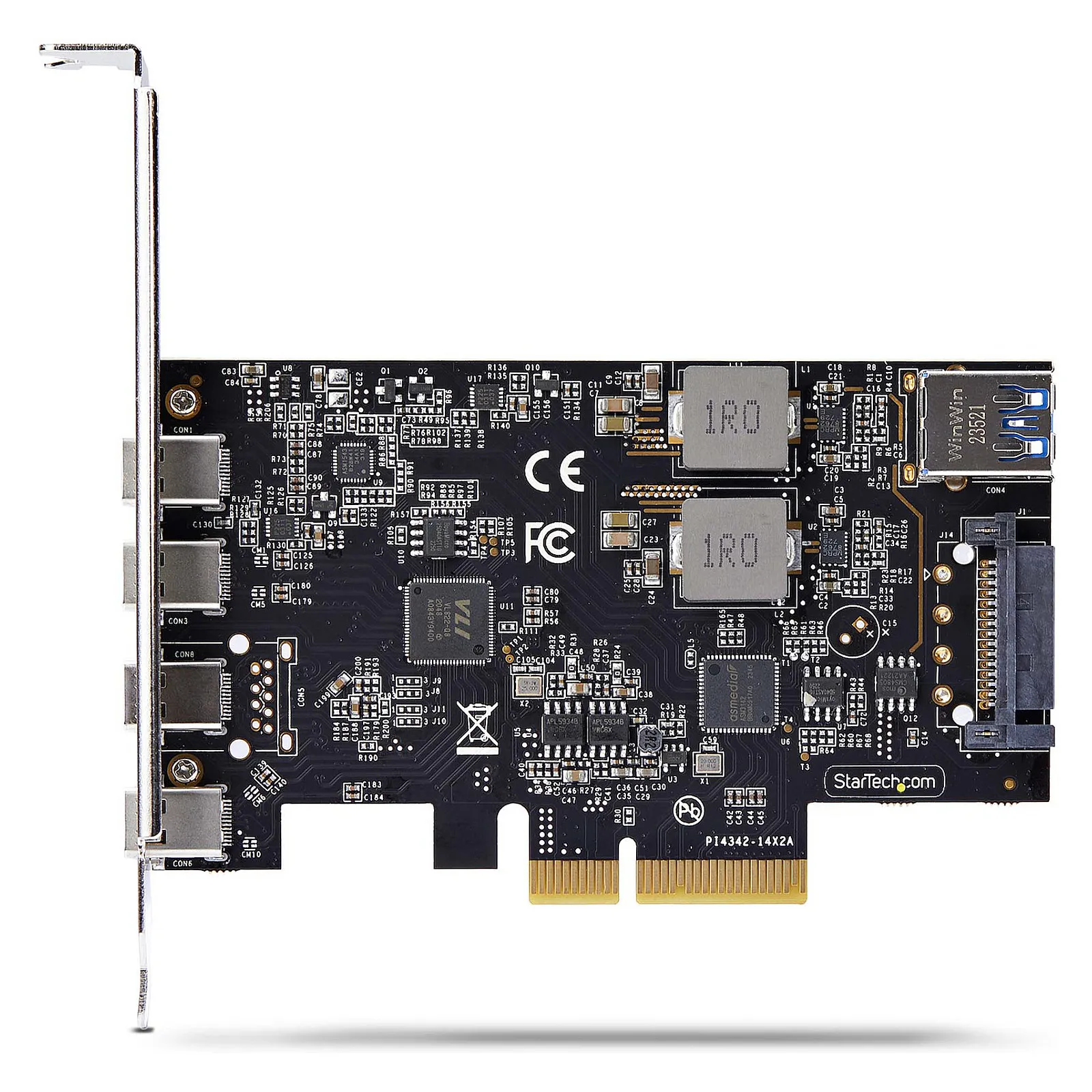

StarTech.com 5-Port USB PCIe Card, USB 3.2 10Gbps, PCI Express Card with 4x USB-C Ports, 1x USB-A Internal Port, USB PCIe Controller Card, Windows/macOS/Linux. Host interface: PCIe, Output interface: USB Type-C, Expansion card form factor: Full-height / Low-profile. Product colour: Black. Chipset: ASMEDIA – ASM3142, VIA LABS – VL822. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur,…, Server operating systems supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019. Width: 121 mm, Depth: 122 mm, Height: 22 mm

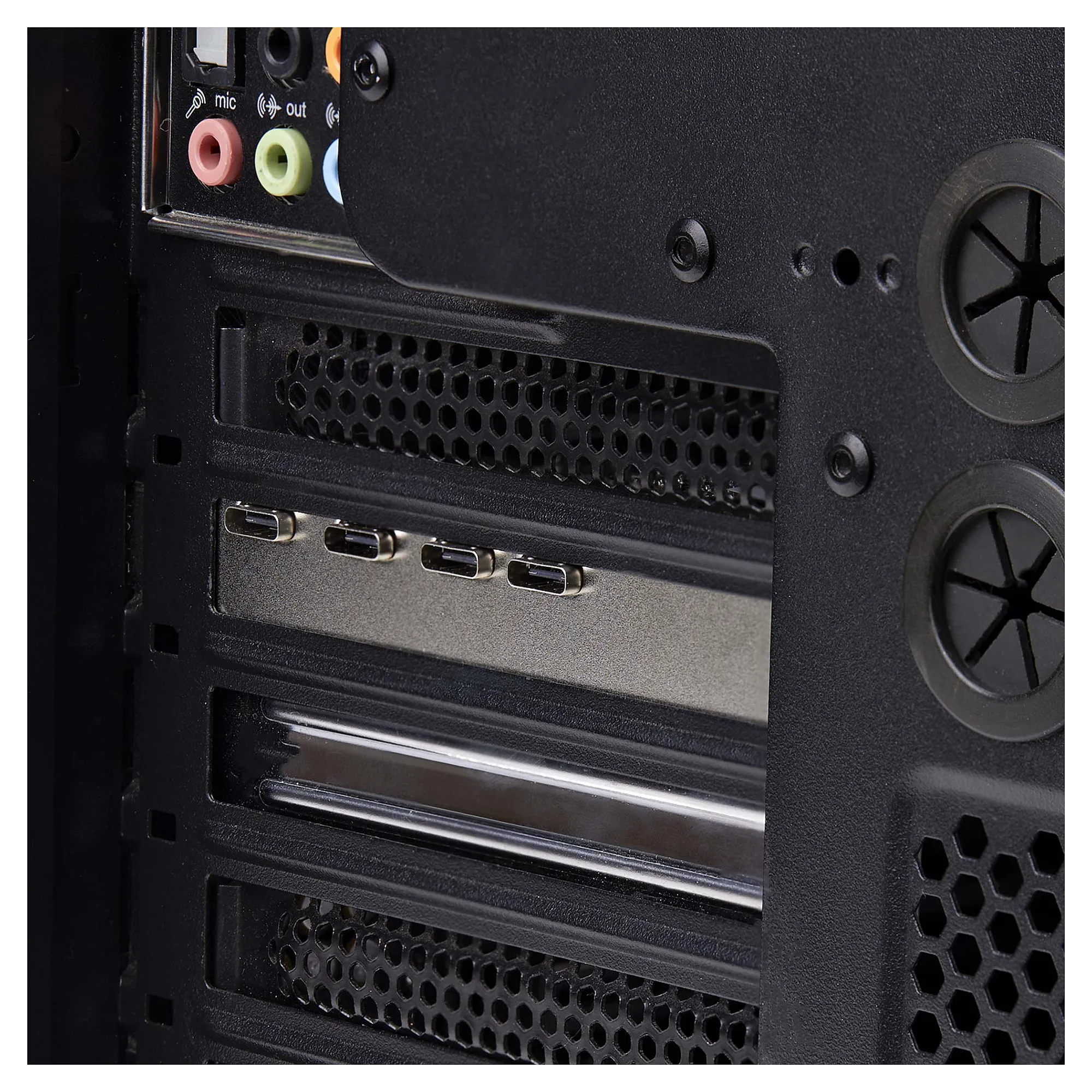

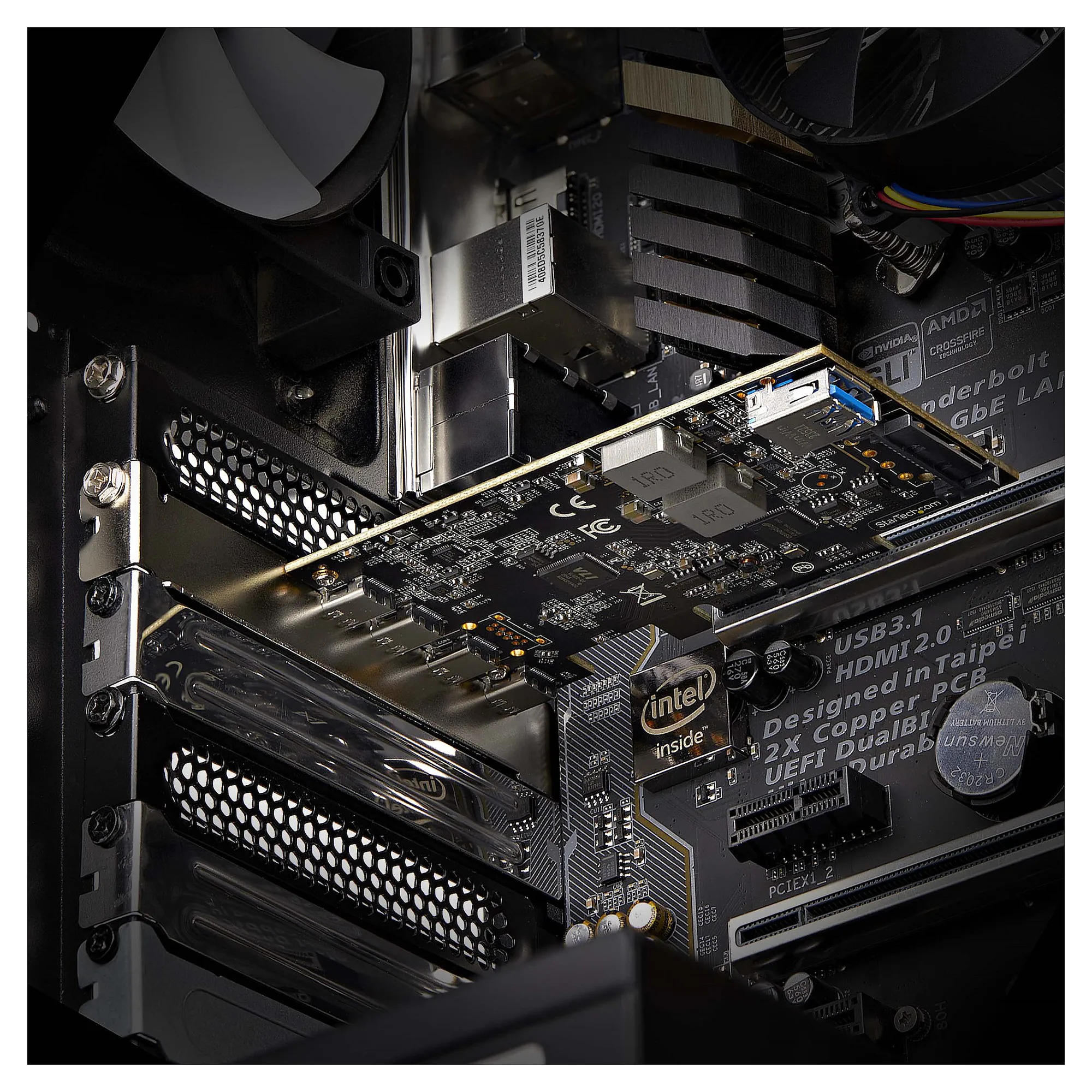

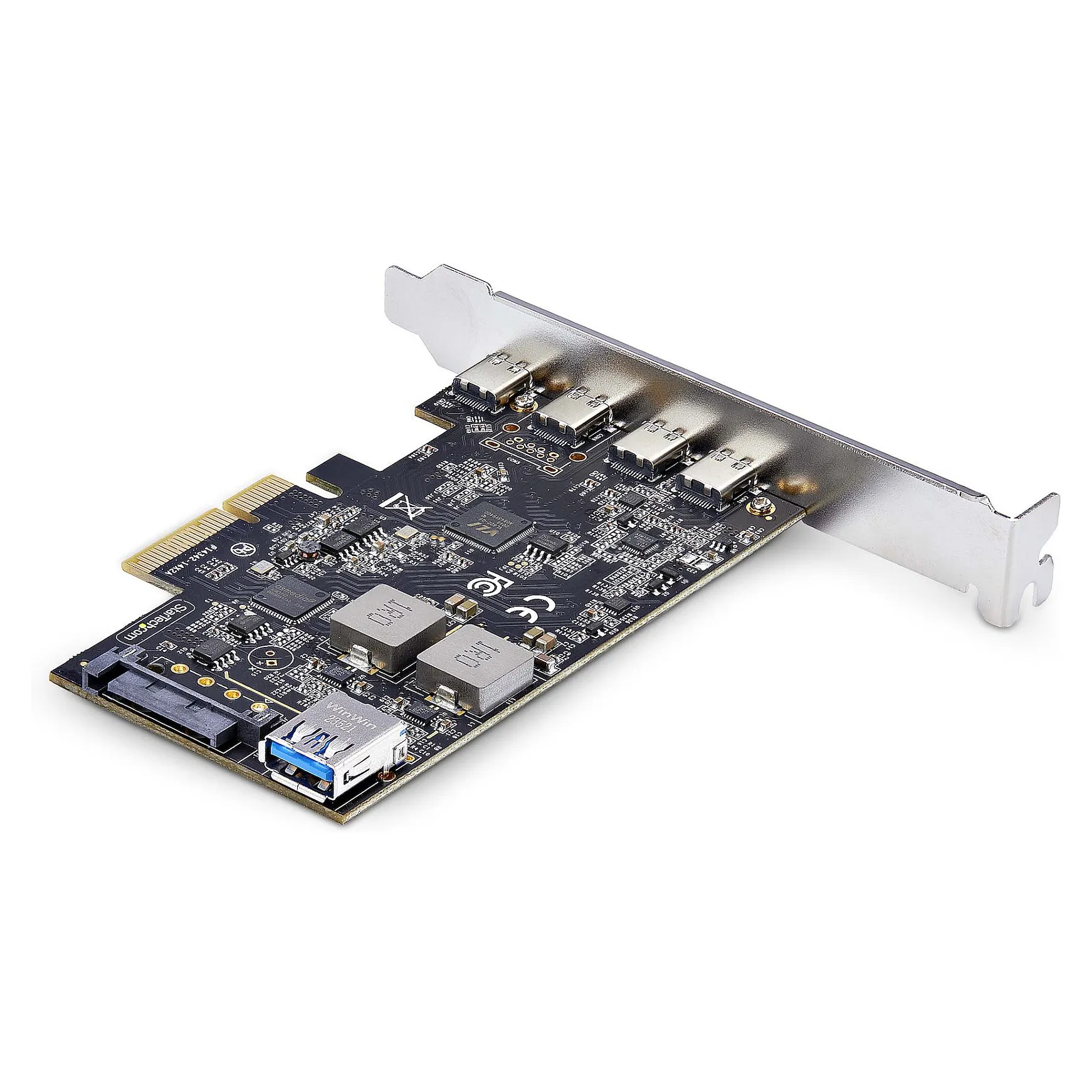

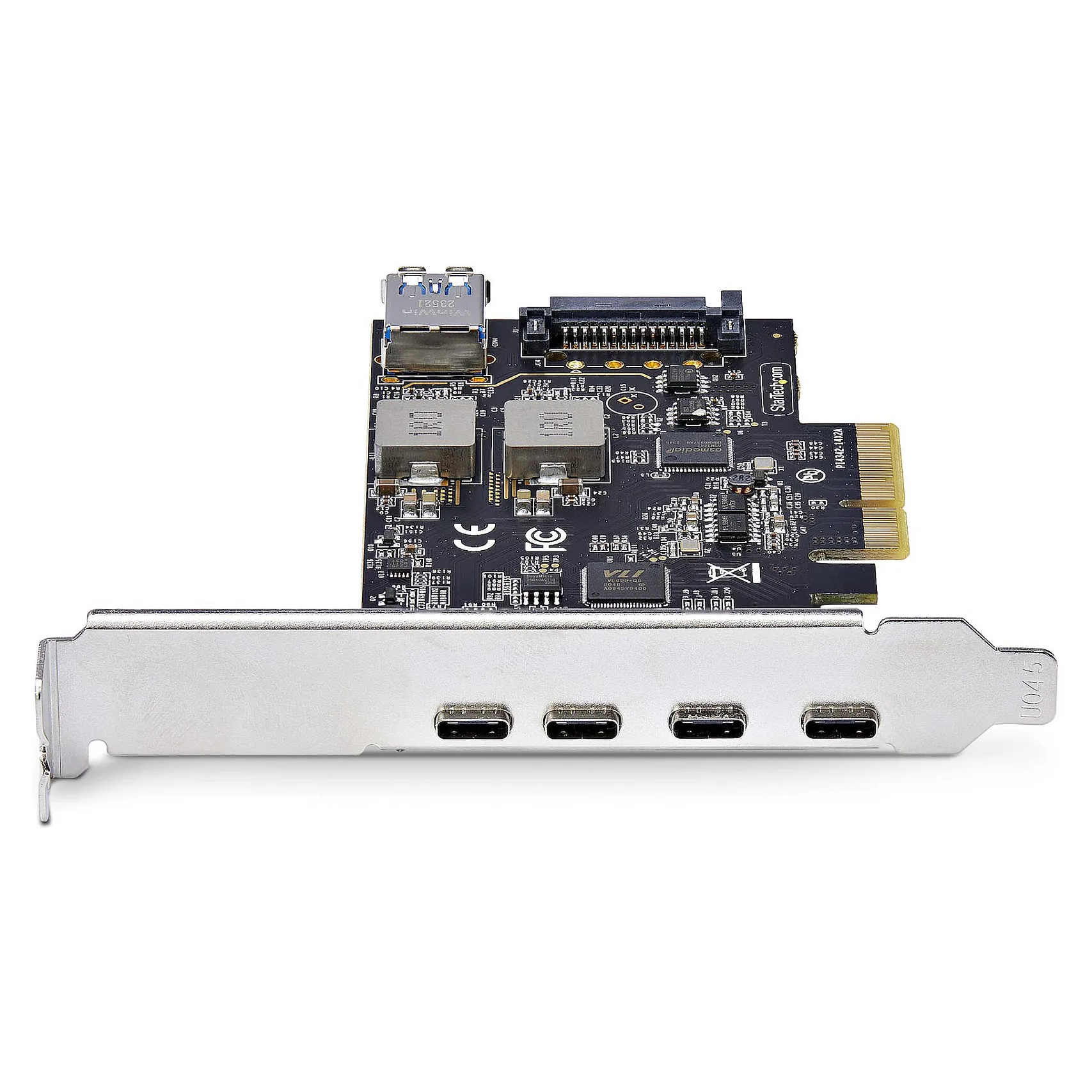

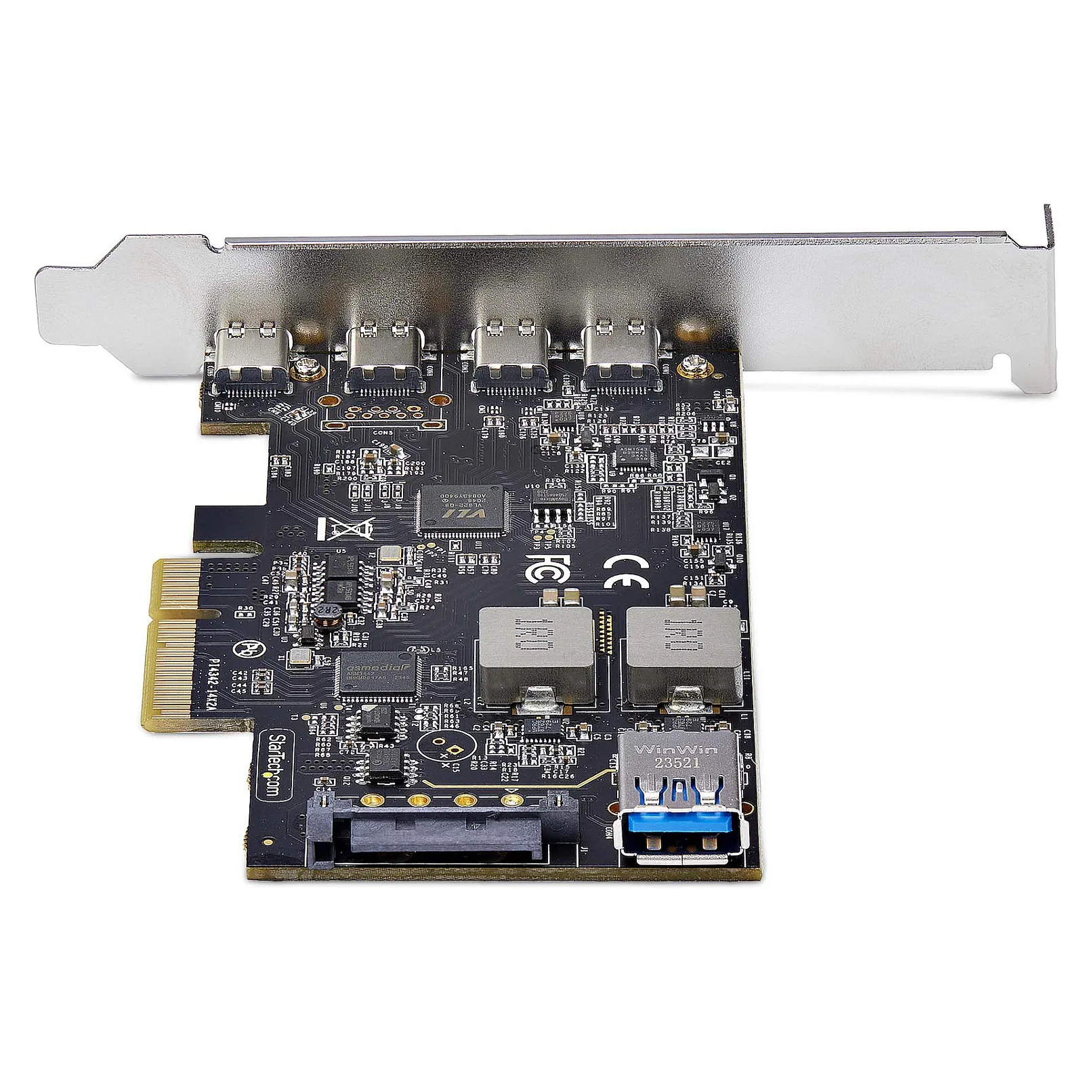

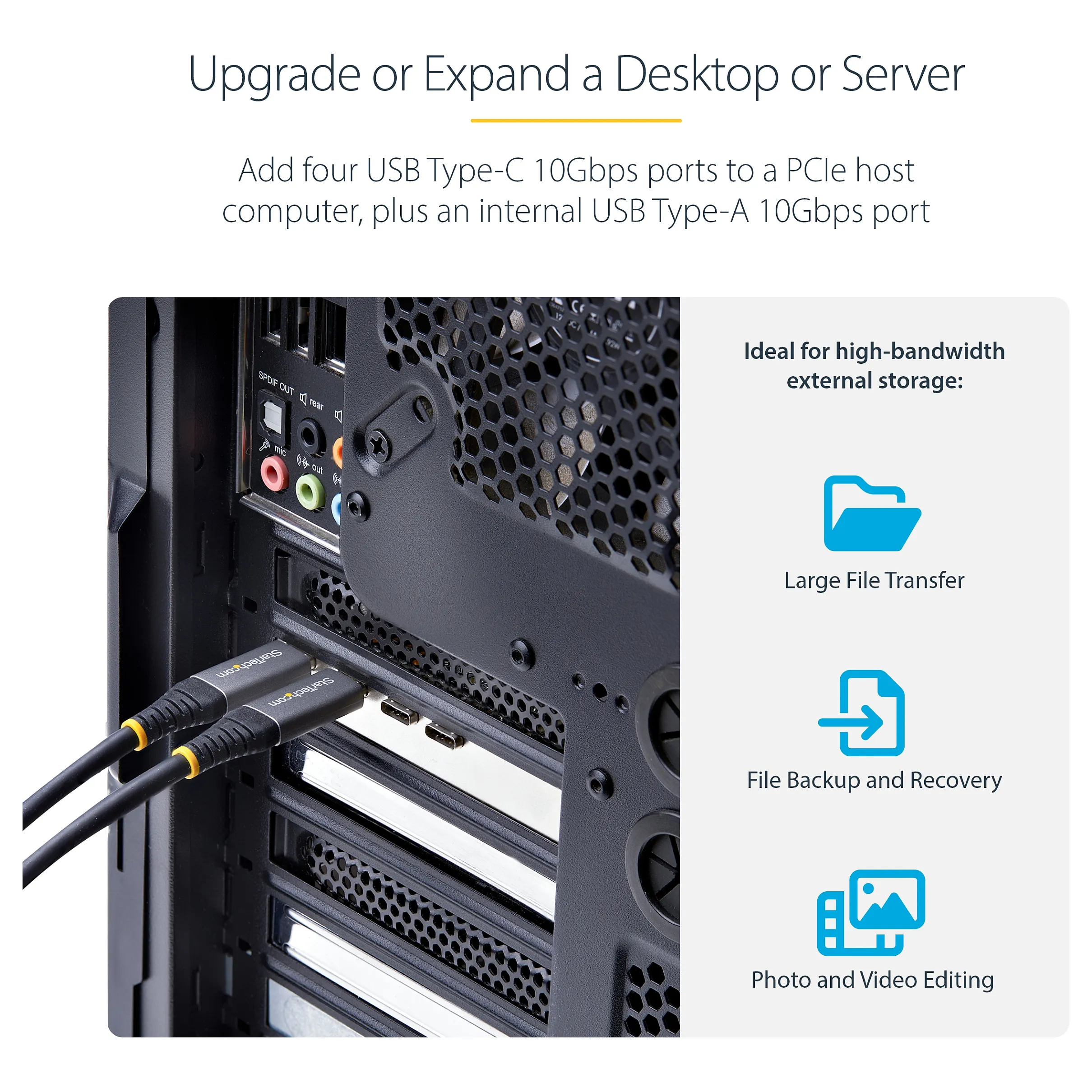

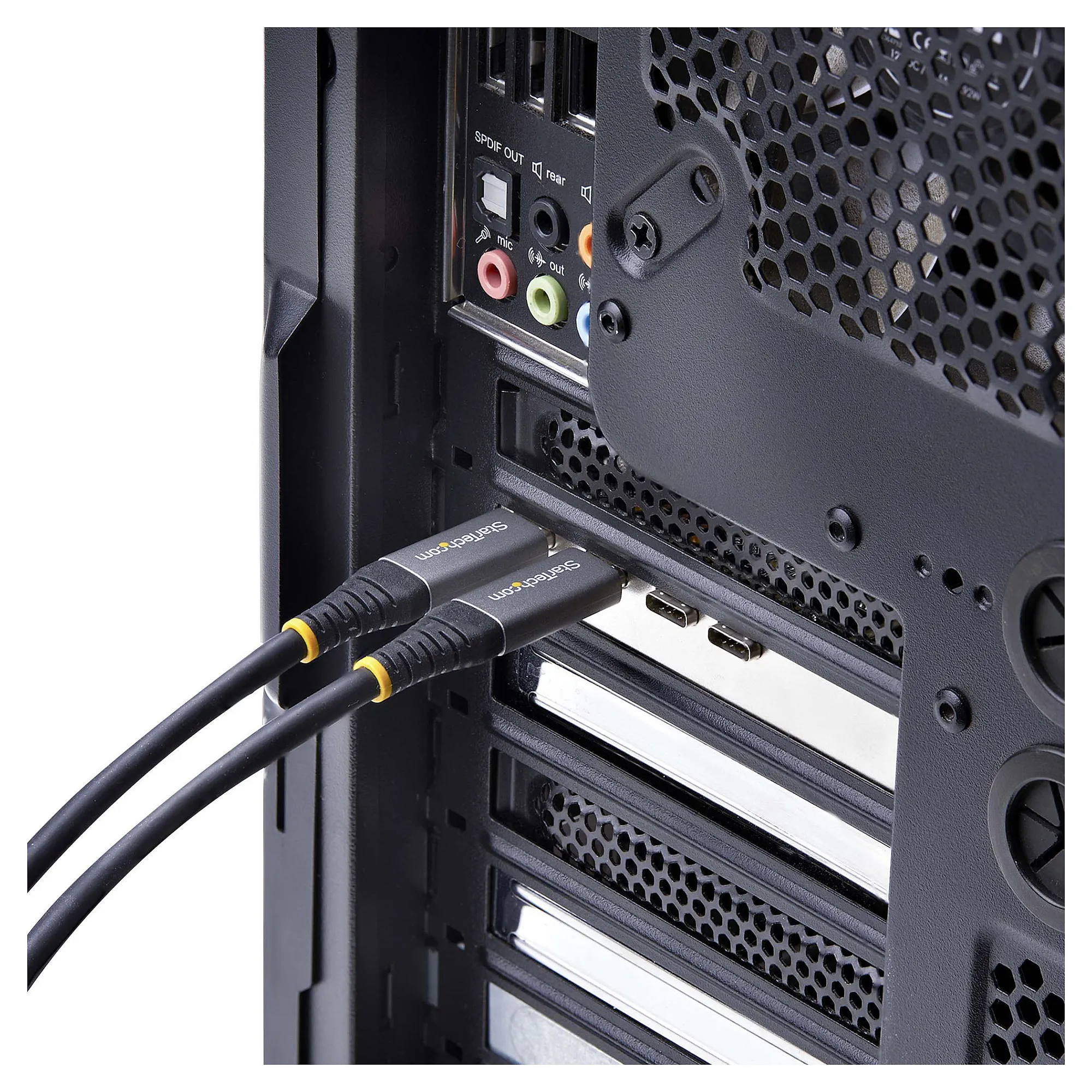

Upgrade or expand a desktop or server’s USB connectivity by adding four external USB Type-C 10Gbps ports and one internal USB Type-A 10Gbps port via a single PCI Express x4 connection.
USB 3.2 Gen 2 (10Gbps) Performance
The ASM3142 controller supports USB 3.2 transfer speeds of up to 10Gbps, making it ideal for transferring large files or editing high-resolution photos and videos on external storage devices.
Charge and Sync USB Devices

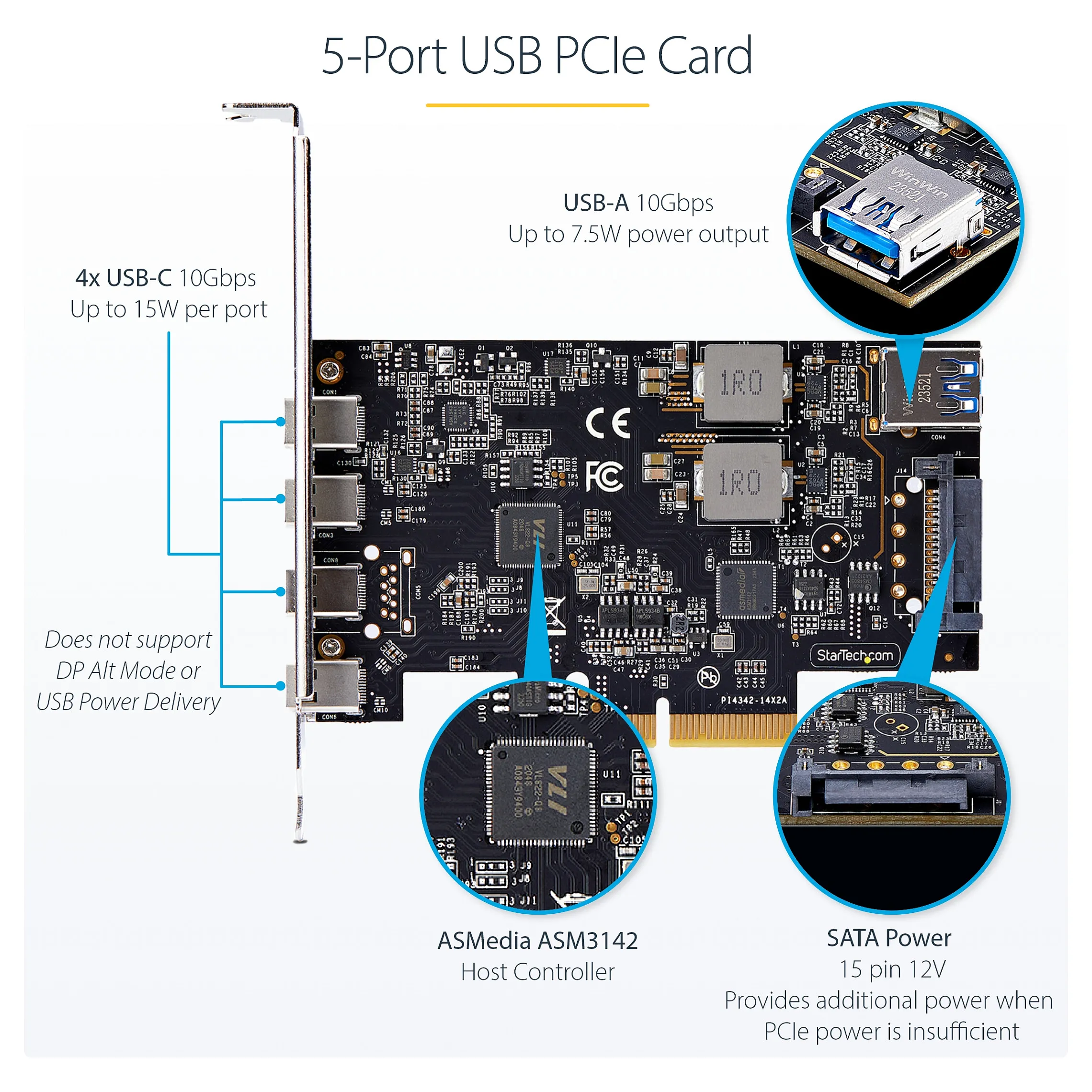

This USB PCIe expansion card can receive supplemental power through SATA power, providing up to 5V 3A (15W) per USB Type-C port and 5V 1.5A (7.5W) on the USB Type-A port when motherboard power is insufficient.
Compatibility

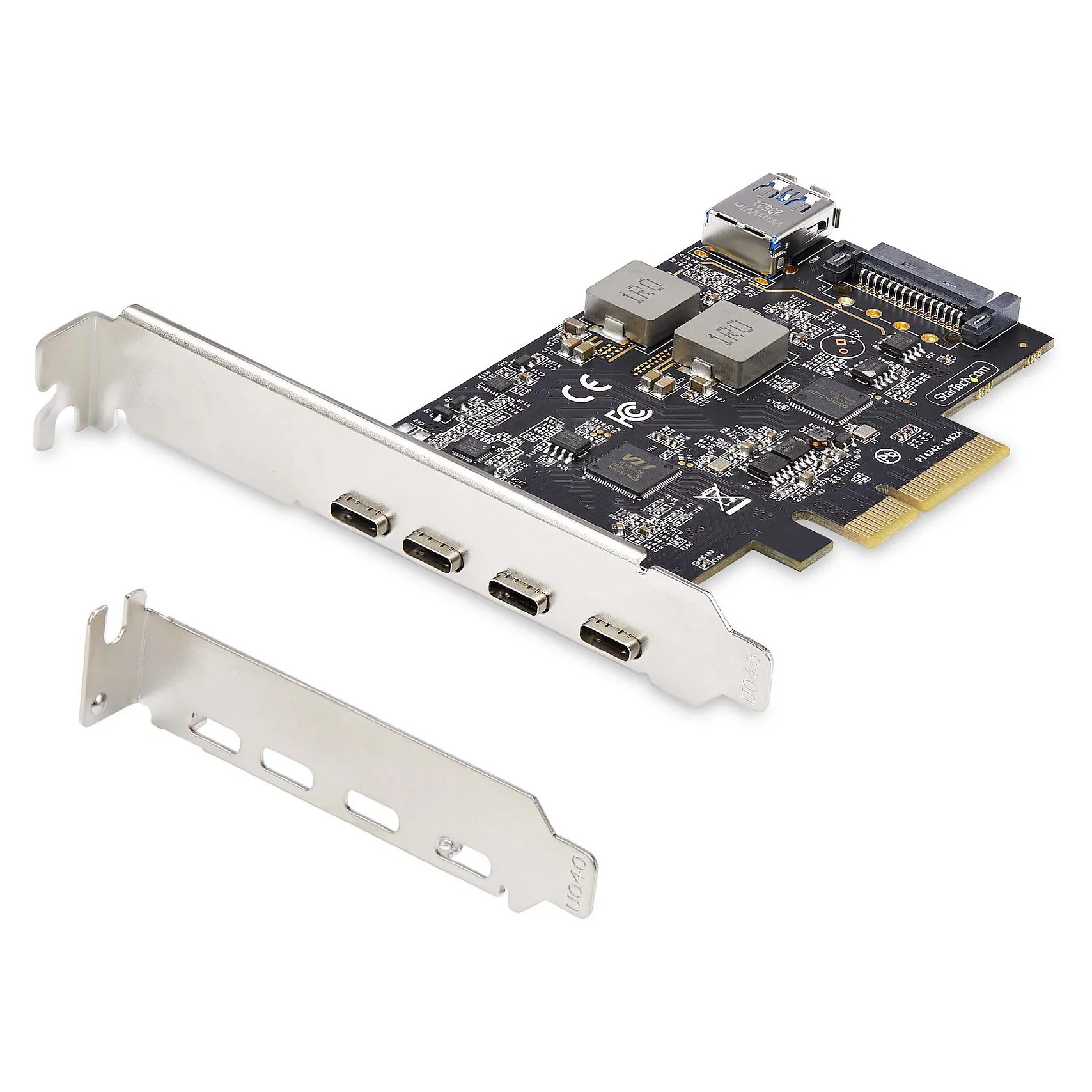

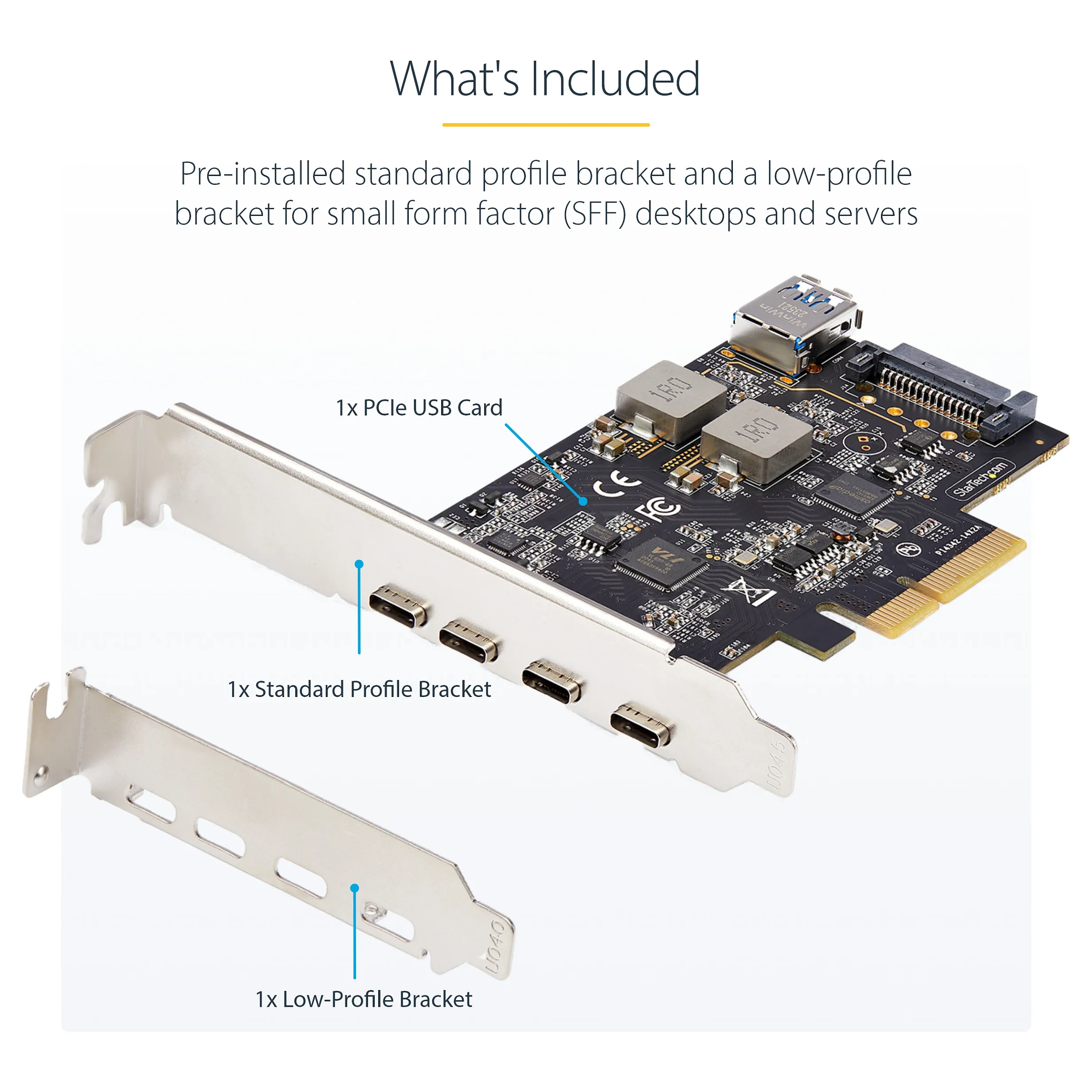

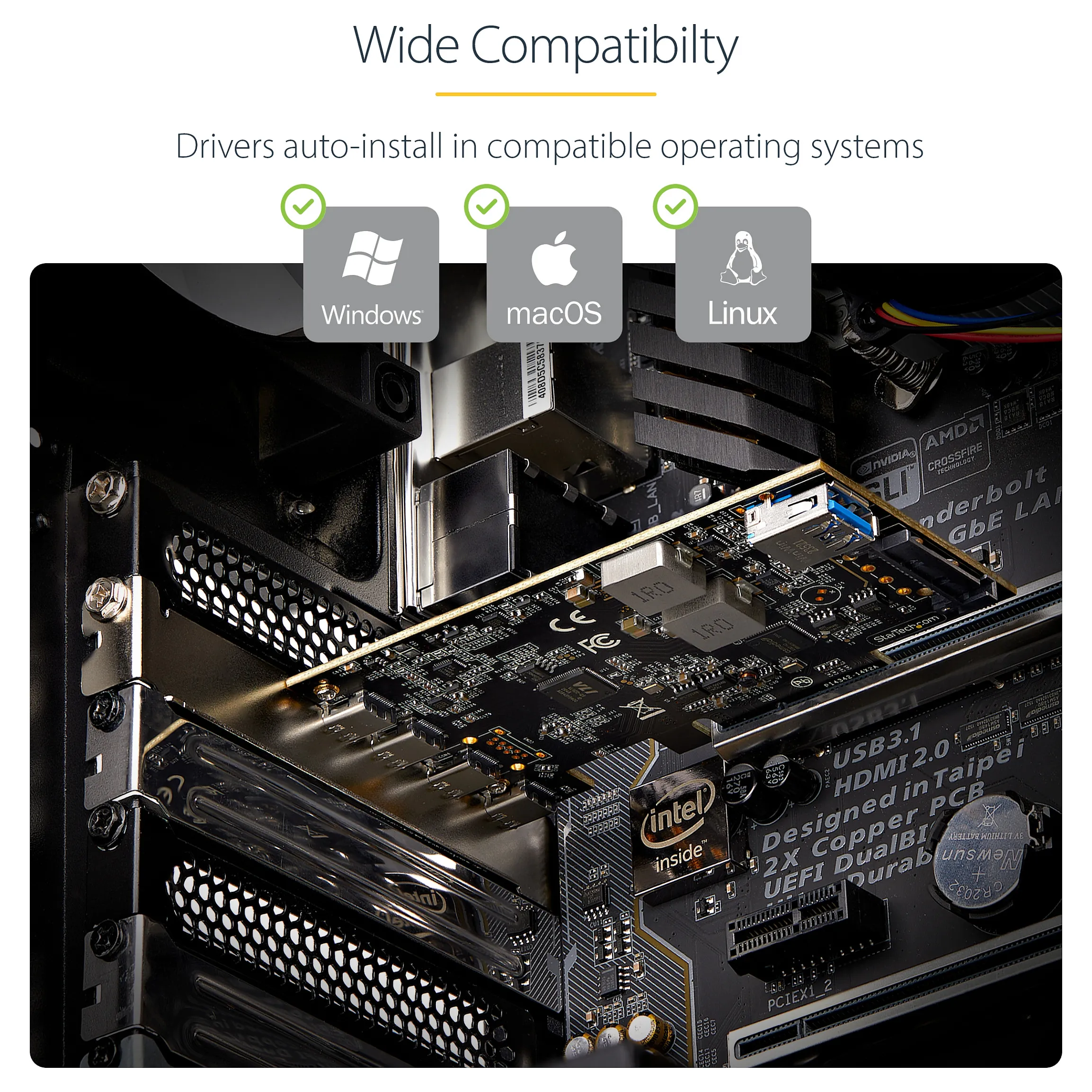

The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and up, macOS, and Linux. It works with hardware platforms such as Intel, AMD, and Apple Silicon and fits in PCI Express x4, x8, and x16 slots. Additionally, the USB expansion card comes with a pre-installed standard profile bracket and includes a low-profile bracket for compatibility with small form factor (SFF) desktops and servers.
Host interface: PCIe
Output interface: USB Type-C
Expansion card form factor: Full-height / Low-profile
Expansion card standard: PCI 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4
SATA power connector type: SATA 15-pin
Internal USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Design
Feature: Internal
Product colour: Black
Features
Chipset: ASMEDIA – ASM3142, VIA LABS – VL822
Feature: UASP support
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -10 – 70 °C
Operating relative humidity (H-H): 5 – 90%
System requirements
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates: RoHS

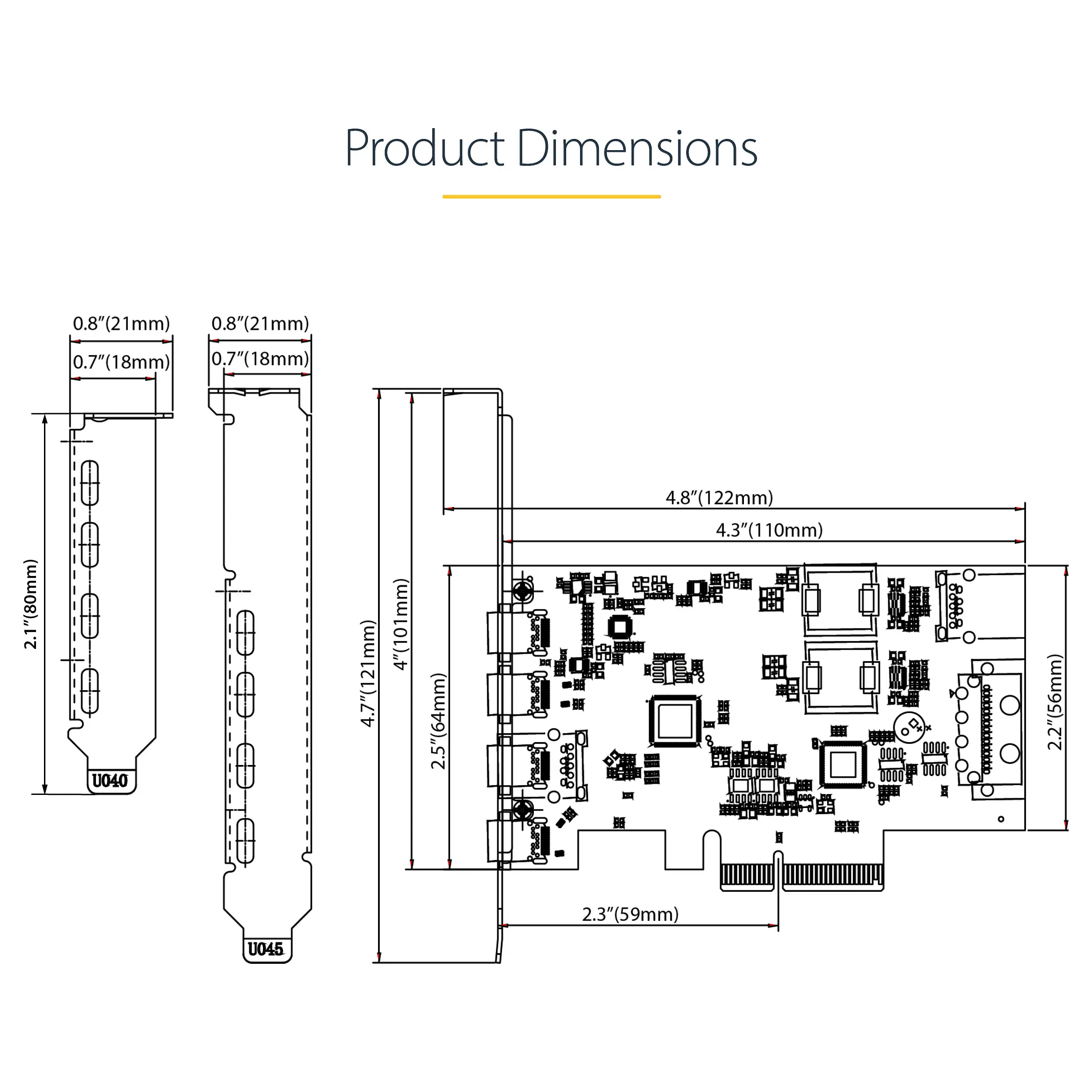

Weight & dimensions
Width: 121 mm
Depth: 122 mm
Height: 22 mm
Weight: 60 g
Packaging data
Feature: Mounting brackets included
Feature: Quick installation guide
Package width: 216 mm
Package depth: 152 mm
Package height: 36 mm
Package weight: 156 g
Logistics data
Products per master (outer) case: 40 pc(s)
Master (outer) case width: 451 mm
Master (outer) case length: 375 mm
Master (outer) case height: 324 mm
