StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP – 5Gbps – SATA Power – TAA. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card standard: PCIe 2.0. Certification: CE, FCC. Chipset: NEC uPD720201, Data transfer rate (max): 5 Gbit/s. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,…, Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows…. Width: 68 mm, Depth: 19 mm, Height: 75 mm
The PEXUSB3S4V PCI Express USB 3.2 Gen 1 Card (with SATA Power) adds 4 external USB 3.2 Gen 1 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

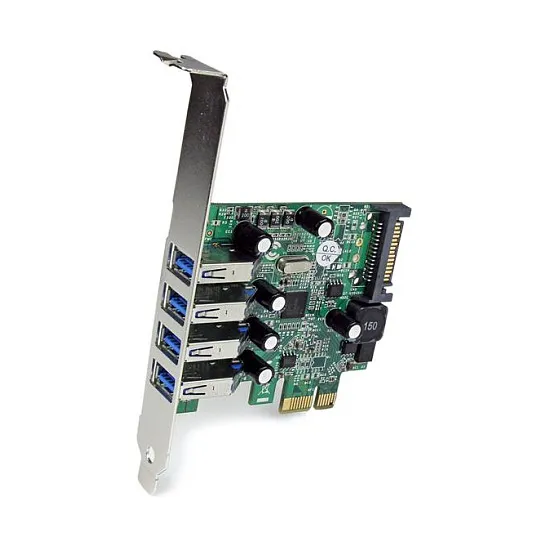

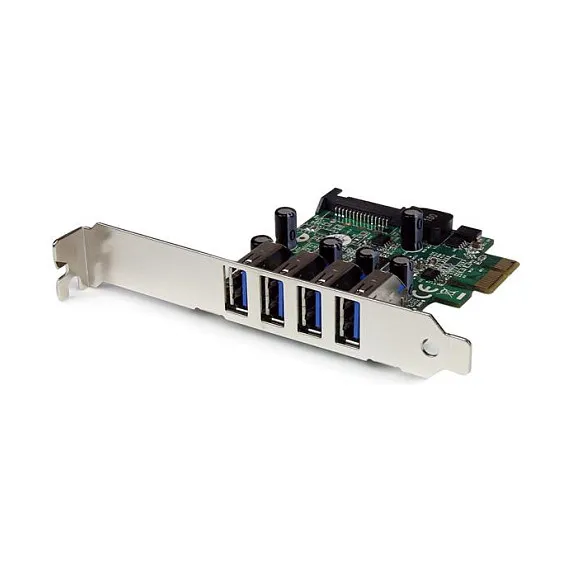

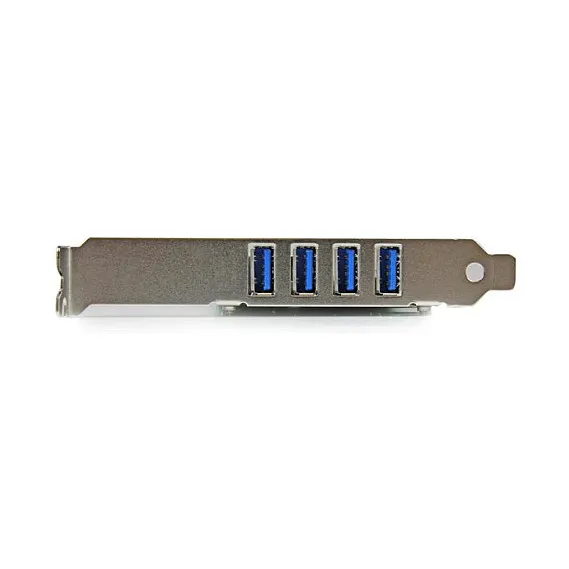

The card uses a „stacked” port layout that places the ports one on top of the other, enabling all four USB 3.2 Gen 1 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.

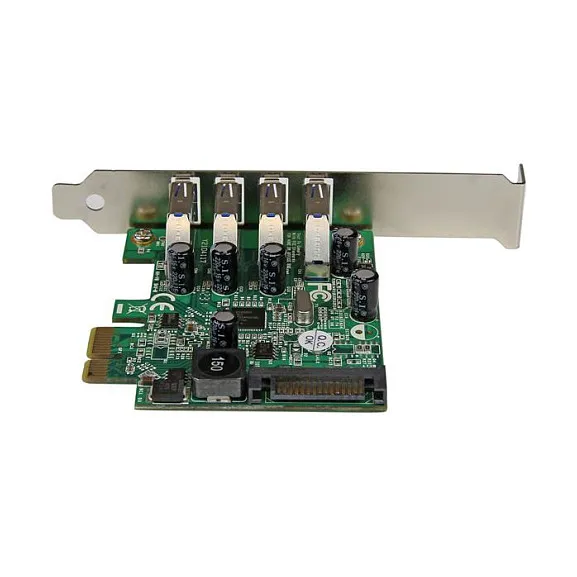

Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
Host interface: PCIe
Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card standard: PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Internal SATA ports quantity: 1
Design
Feature: Internal
Certification: CE, FCC
Features
Chipset: NEC uPD720201
Data transfer rate (max): 5 Gbit/s
Feature: UASP support
Operational conditions
Operating temperature (T-T): 5 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 20 – 80%
System requirements
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates: RoHS
Weight & dimensions
Width: 68 mm
Depth: 19 mm
Height: 75 mm
Weight: 45 g
Packaging data

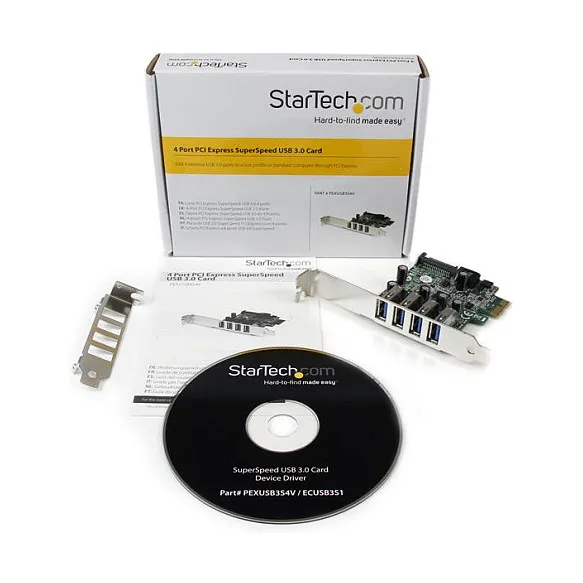

Feature: Mounting brackets included
Feature: Drivers included
Feature: Manual
Package width: 131 mm
Package depth: 162 mm
Package height: 33 mm
Package weight: 138 g
Logistics data
Harmonized System (HS) code: 84733020
Products per master (outer) case: 100 pc(s)
Master (outer) case width: 566 mm
Master (outer) case length: 504 mm
Master (outer) case height: 340 mm
Other features
Compatible operating systems: Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
