StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCI 3.0. Product colour: Red. Chipset: ASMedia – ASM3142 x4, ASMedia – ASM1543 x4, ASMedia – ASM2812X, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Server operating systems supported: Windows Server 2019, Windows Server 2022. Width: 56.2 mm, Depth: 140 mm, Height: 79.2 mm

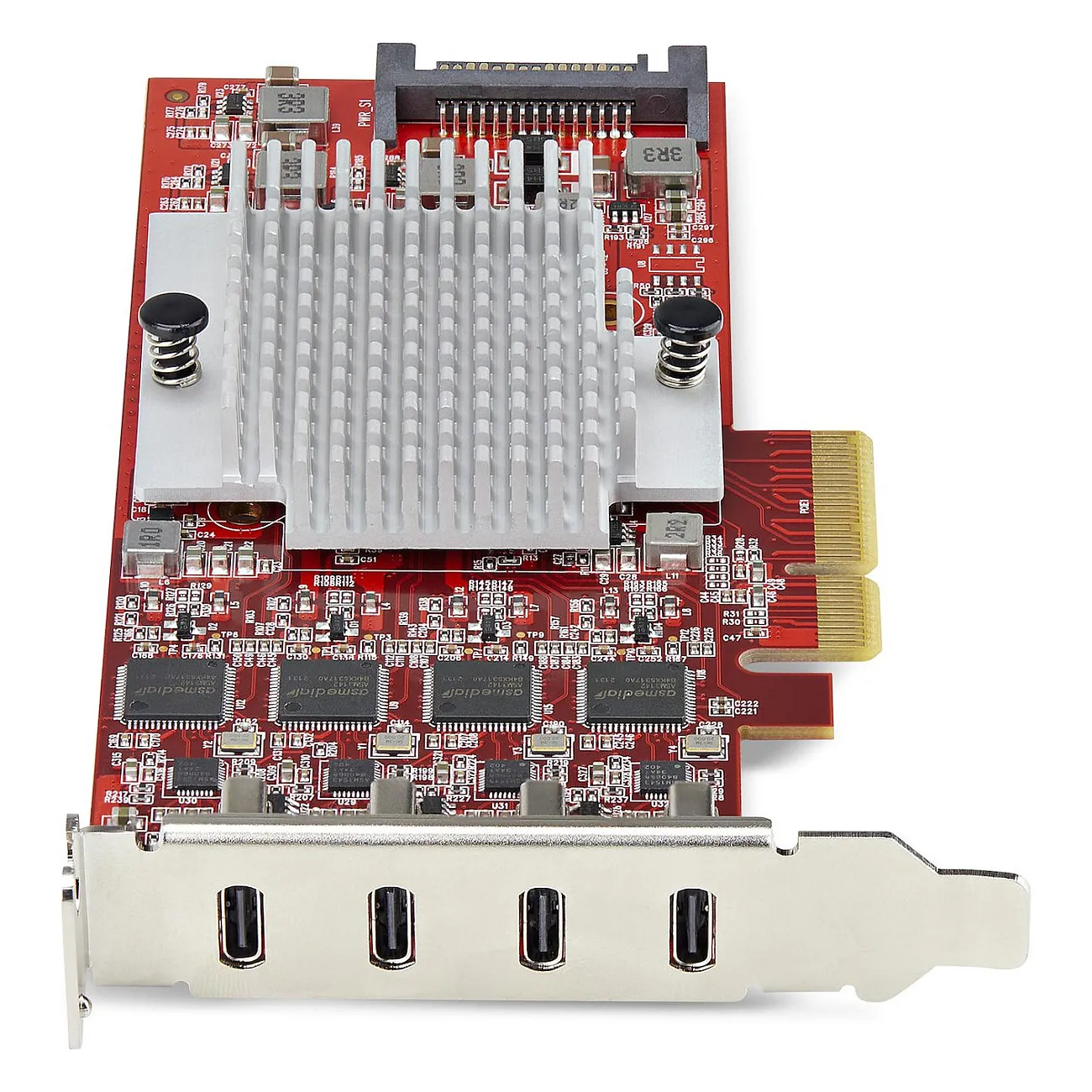

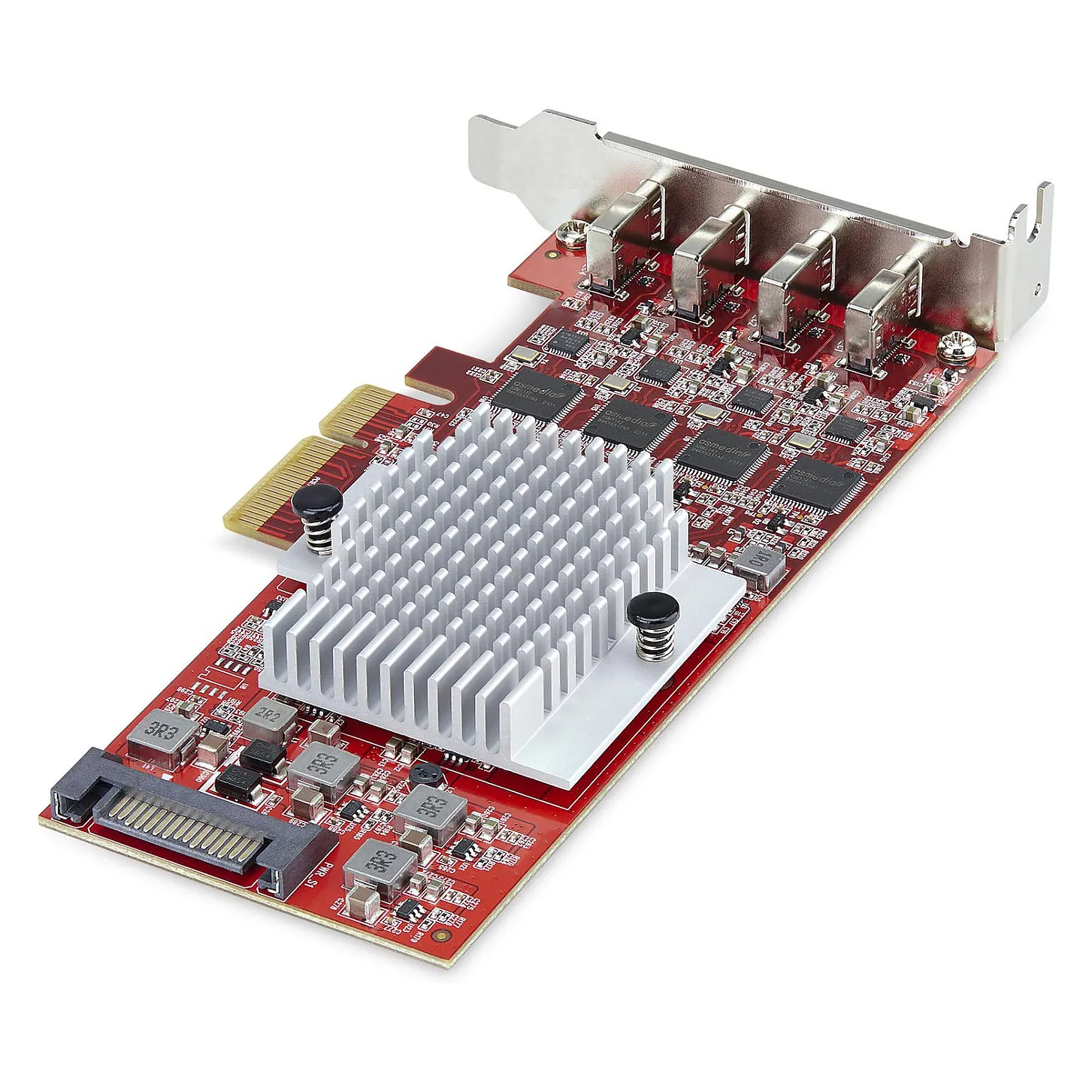

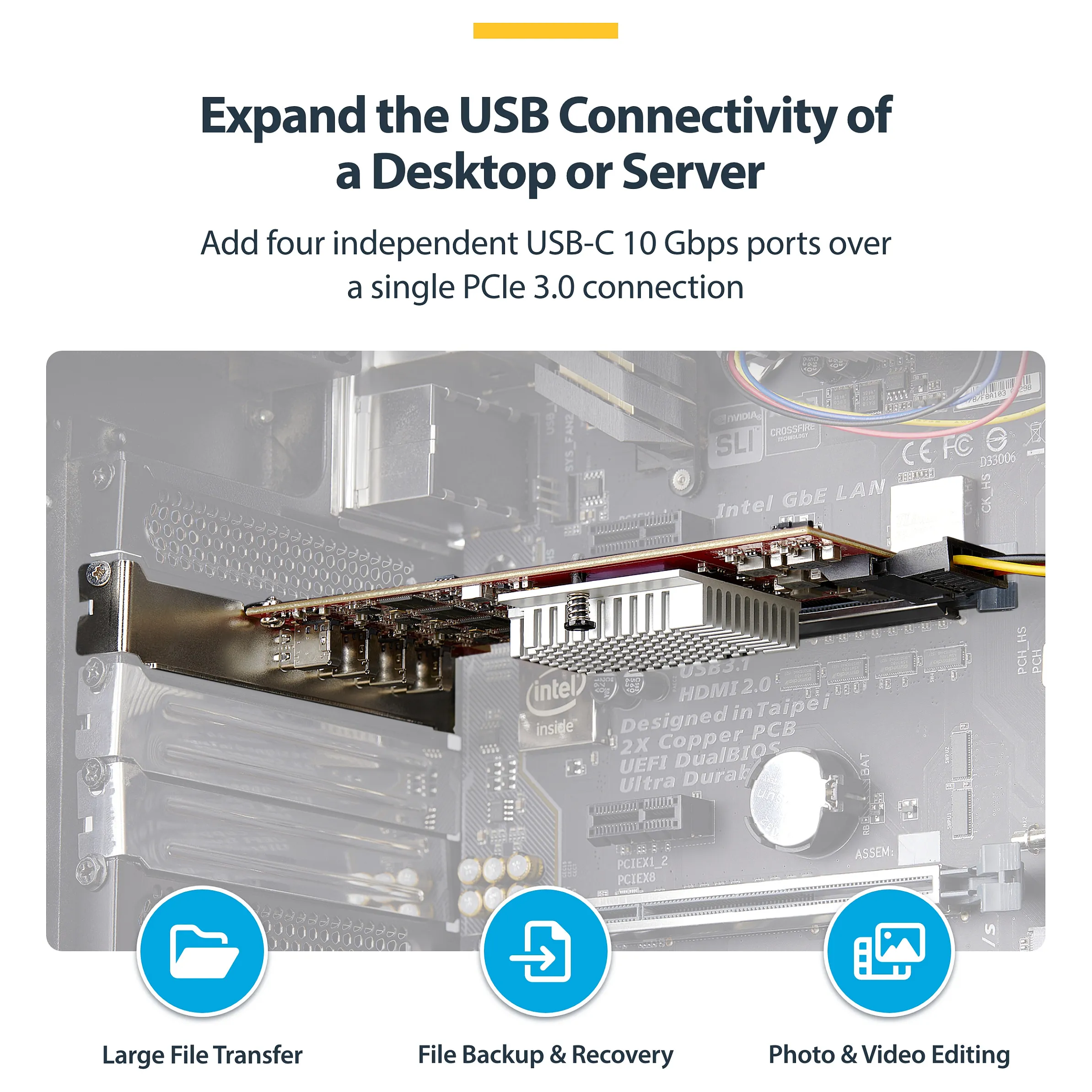

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

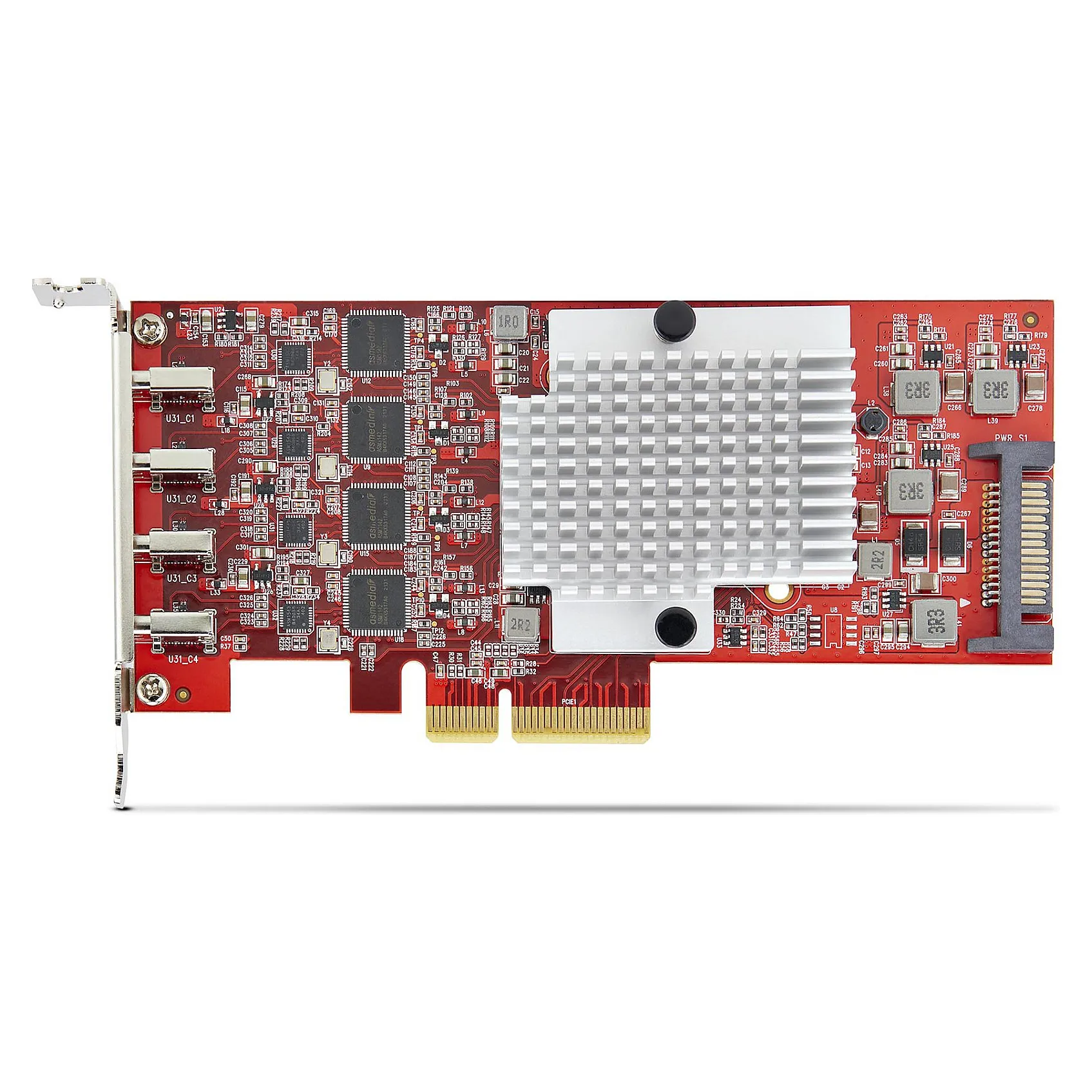

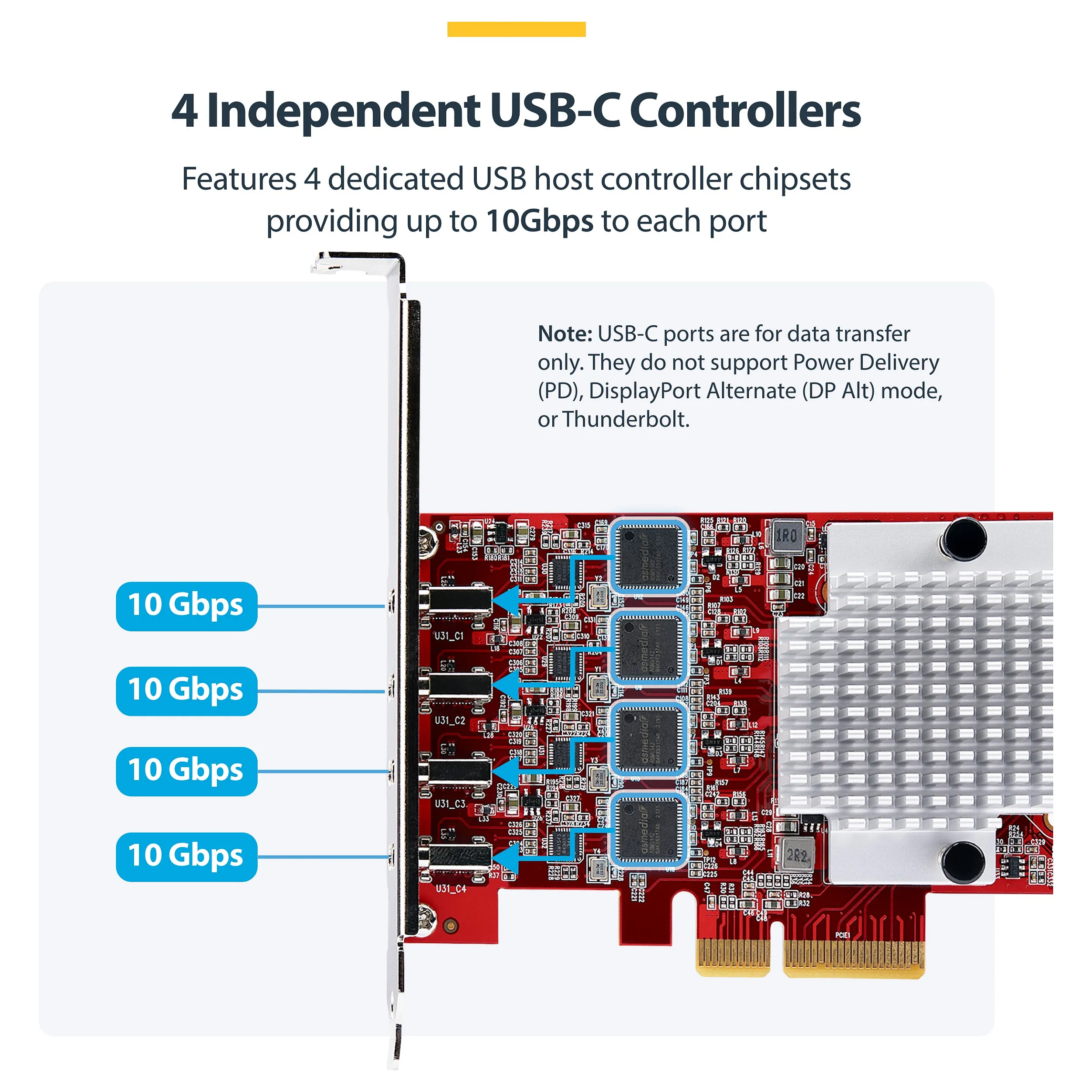

Dedicated USB Controllers
Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

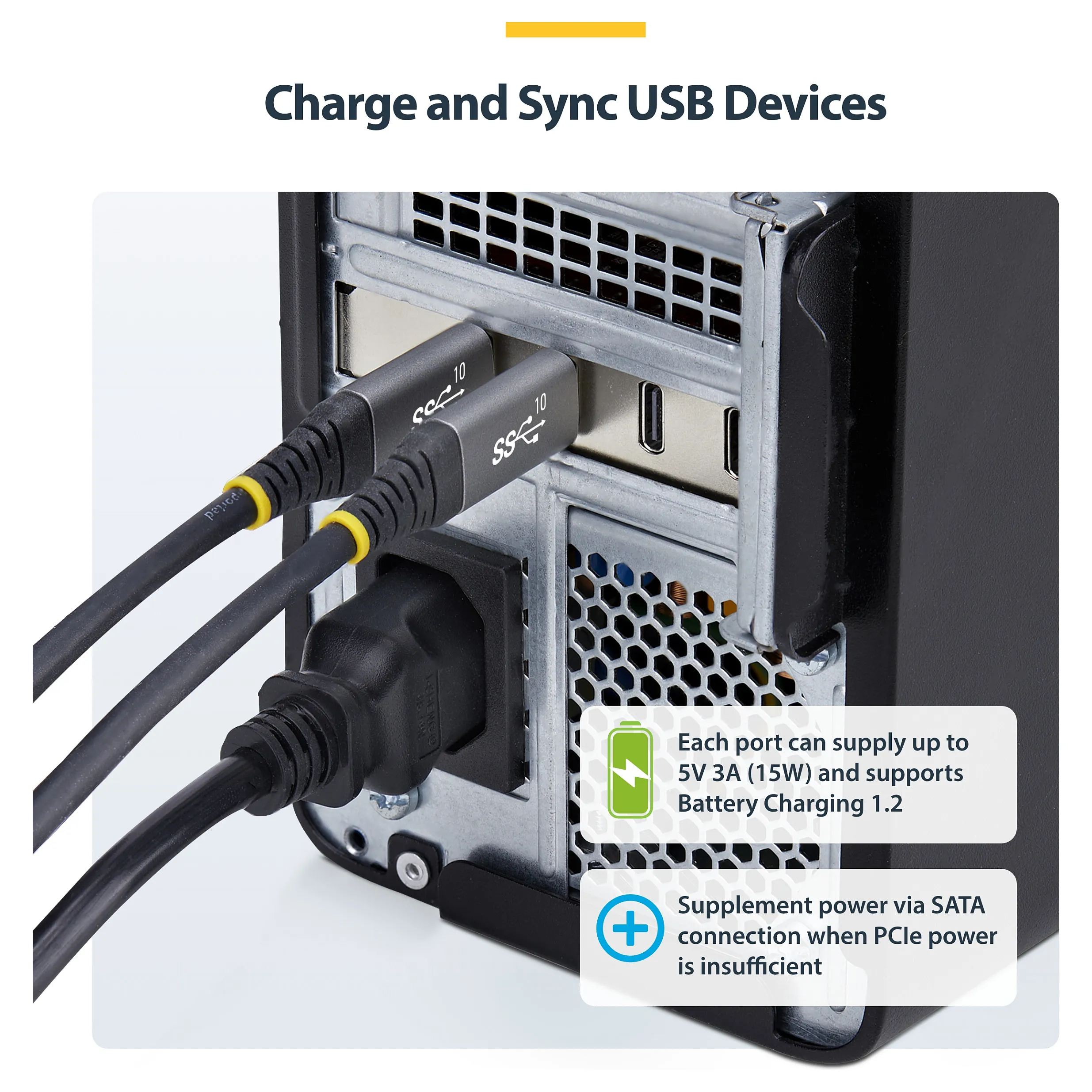

Charge and Sync USB Devices

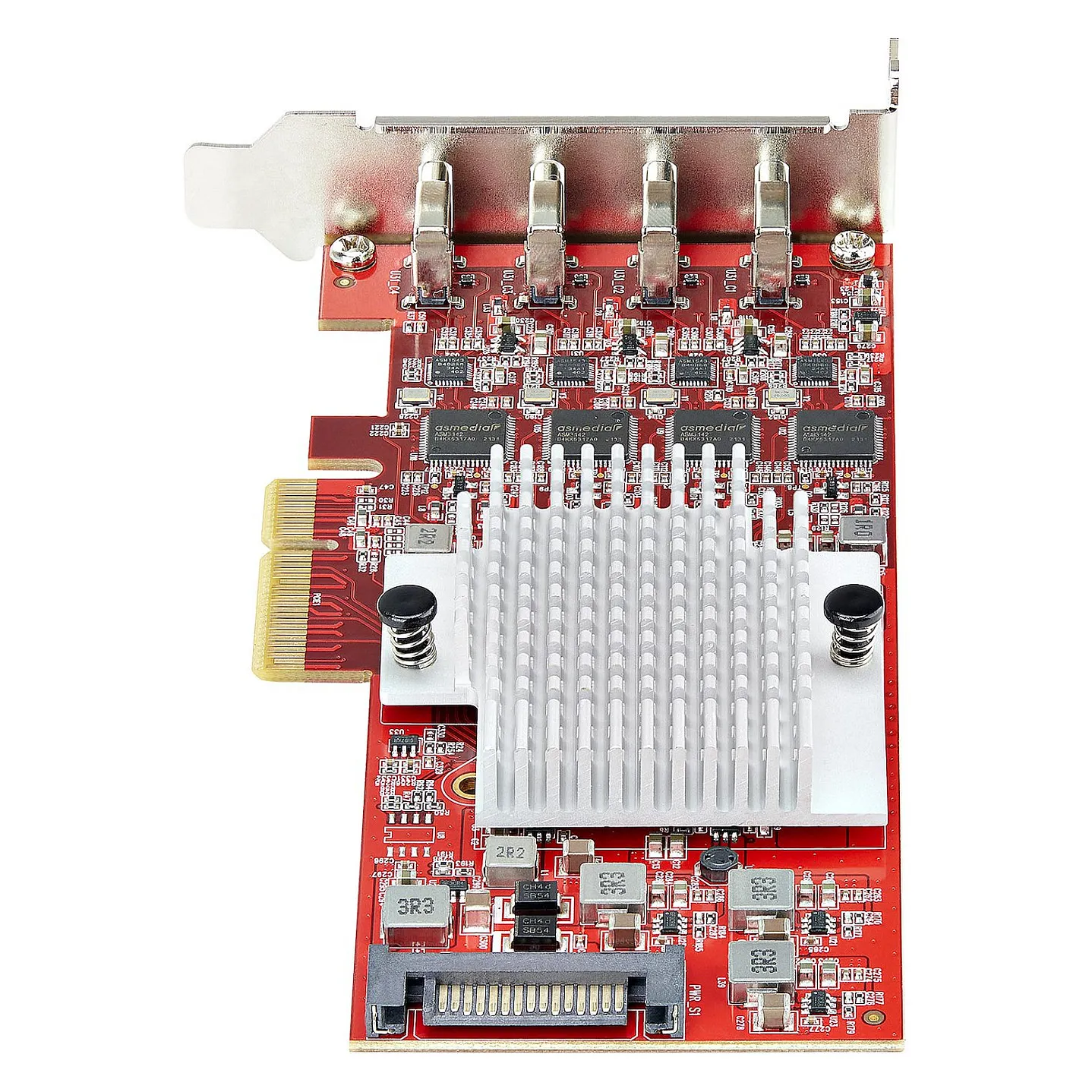

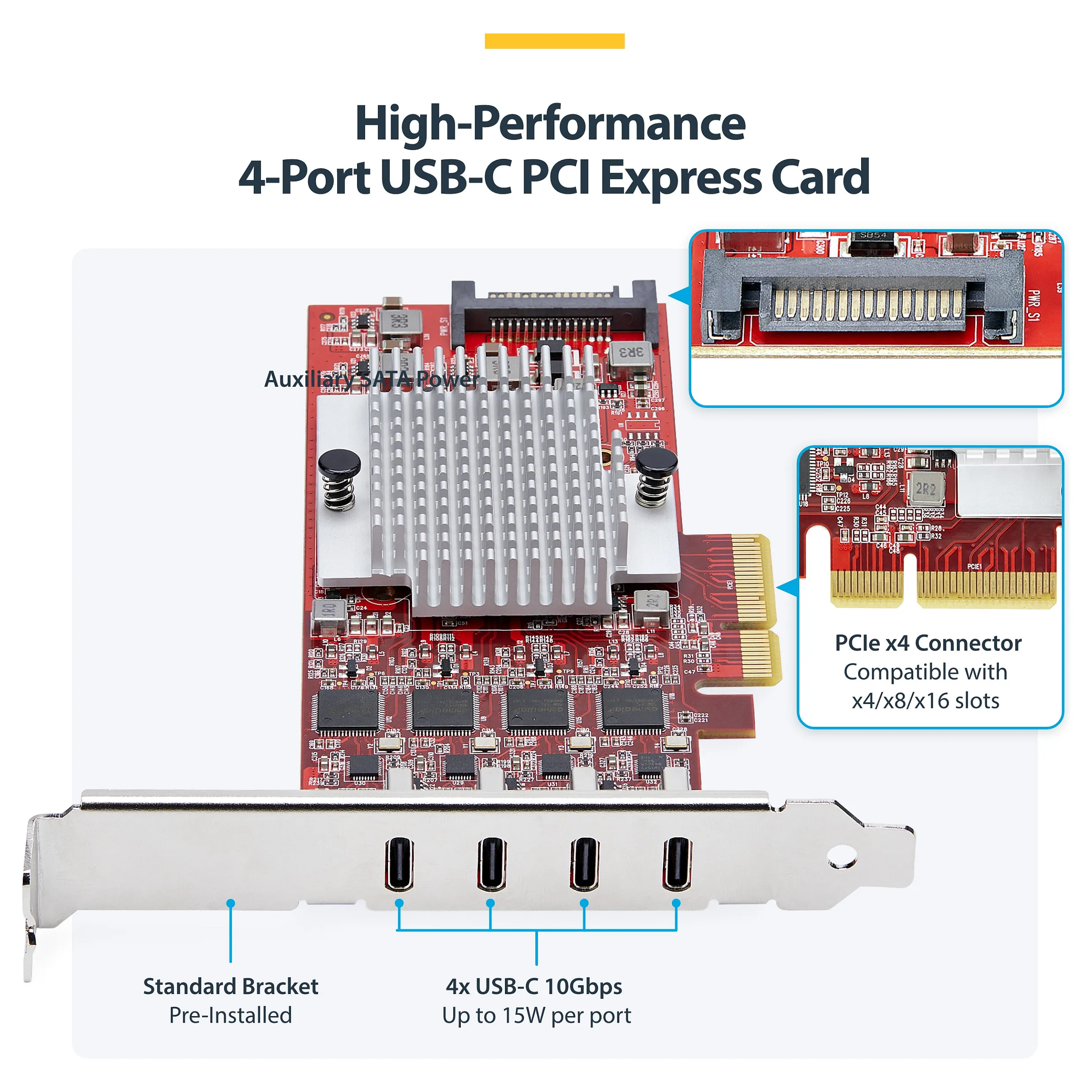

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can’t supply enough power, a built-in SATA power connector can supply additional power to the card.
Compatibility

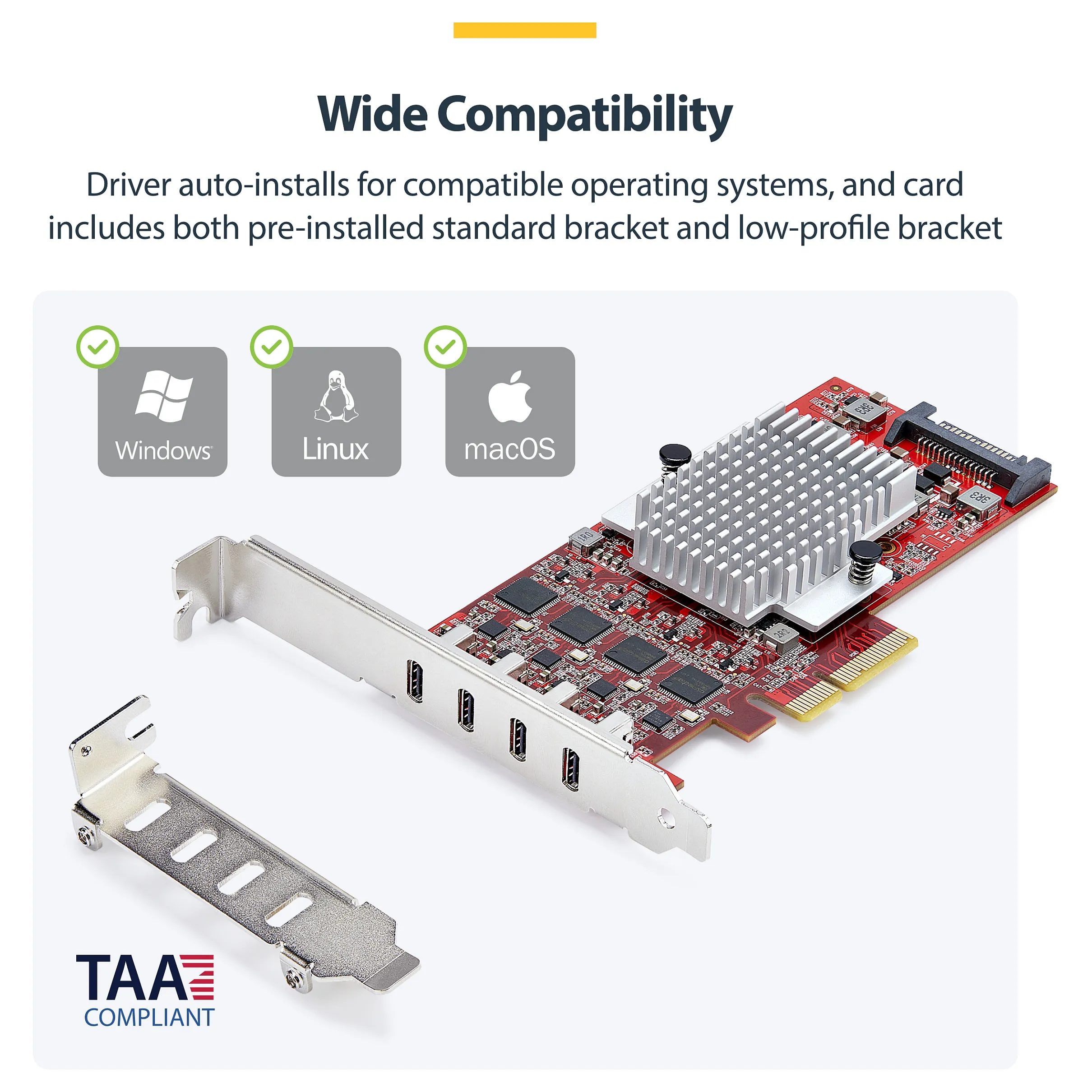

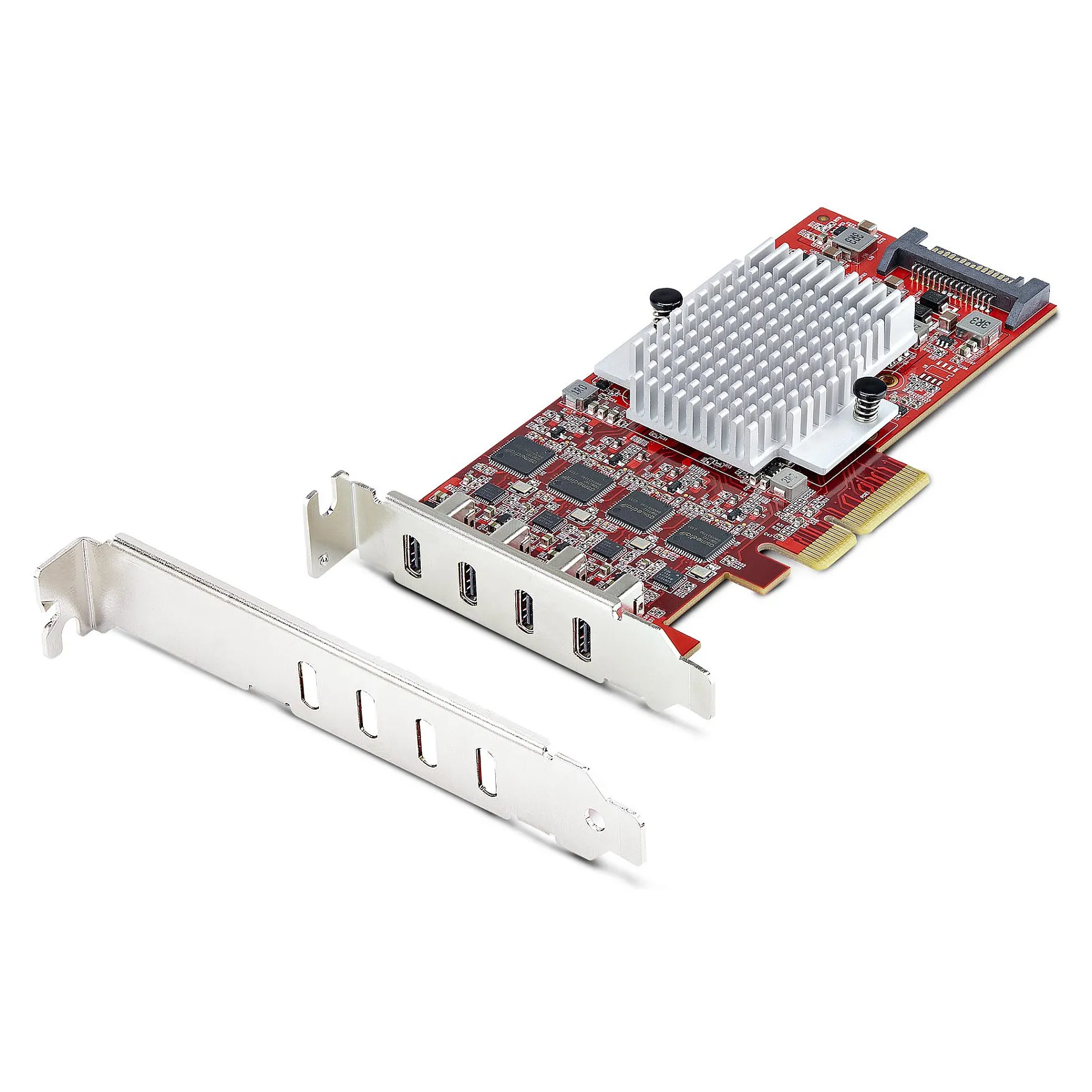

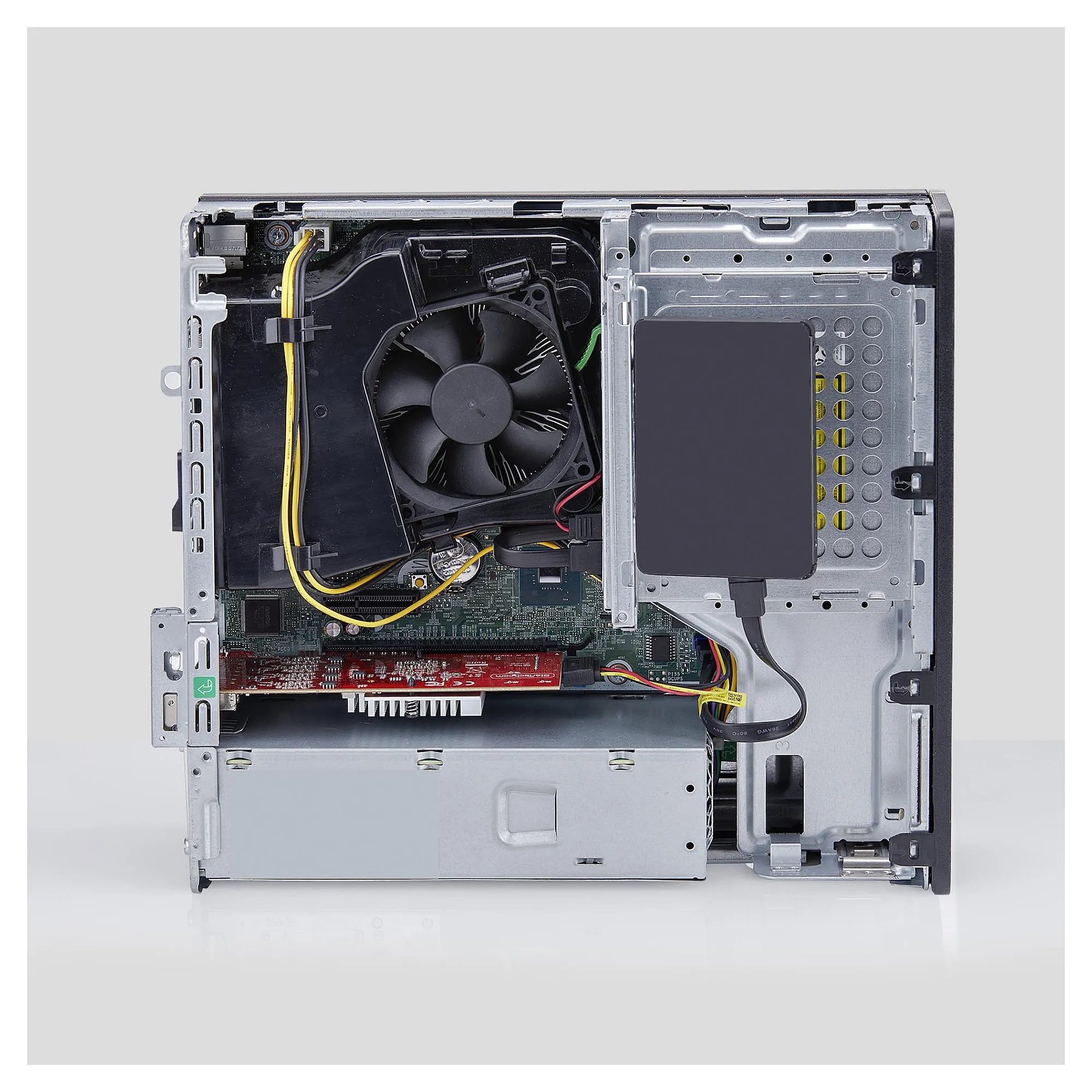

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed low-profile bracket and includes a standard profile bracket for maximum compatibility.
Host interface: PCIe
Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard: PCI 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4
Internal SATA ports quantity: 1
SATA power connector type: SATA 15-pin
Design
Feature: Internal
Product colour: Red
Features
Chipset: ASMedia – ASM3142 x4, ASMedia – ASM1543 x4, ASMedia – ASM2812X
Data transfer rate (max): 10 Gbit/s
Feature: Plug and Play
Operational conditions
Operating temperature (T-T): 0 – 85 °C
Storage temperature (T-T): -25 – 85 °C
Operating relative humidity (H-H): 20 – 80%
System requirements
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2019, Windows Server 2022
Technical details
Compliance certificates: Trade Agreements Act (TAA)

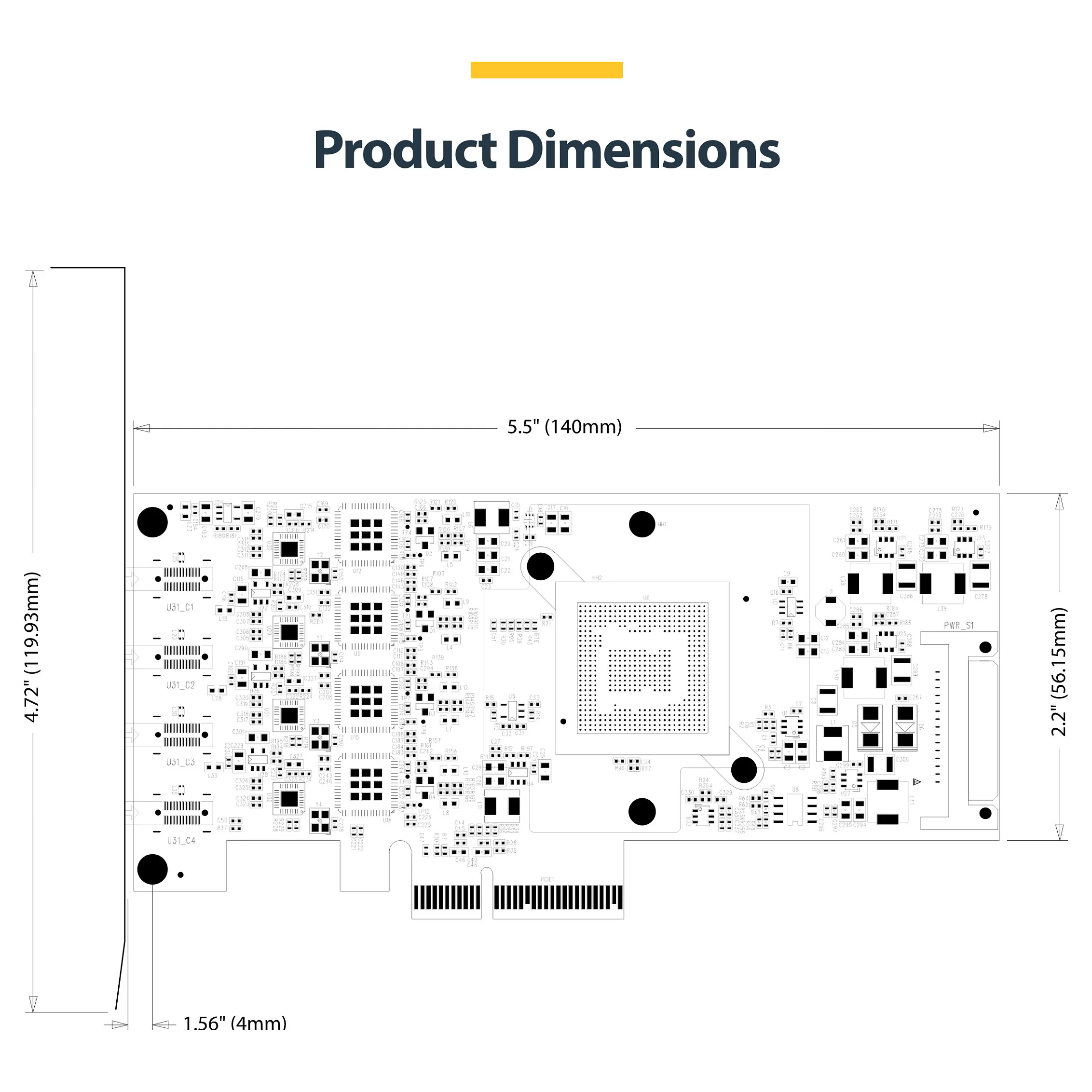

Weight & dimensions
Width: 56.2 mm
Depth: 140 mm
Height: 79.2 mm
Weight: 100 g
Packaging data
Feature: Mounting brackets included
Feature: Quick installation guide
Package width: 142 mm
Package depth: 170 mm
Package height: 30 mm
Package weight: 160 g
Logistics data
Products per master (outer) case: 60 pc(s)
Master (outer) case width: 380 mm
Master (outer) case length: 310 mm
Master (outer) case height: 500 mm
