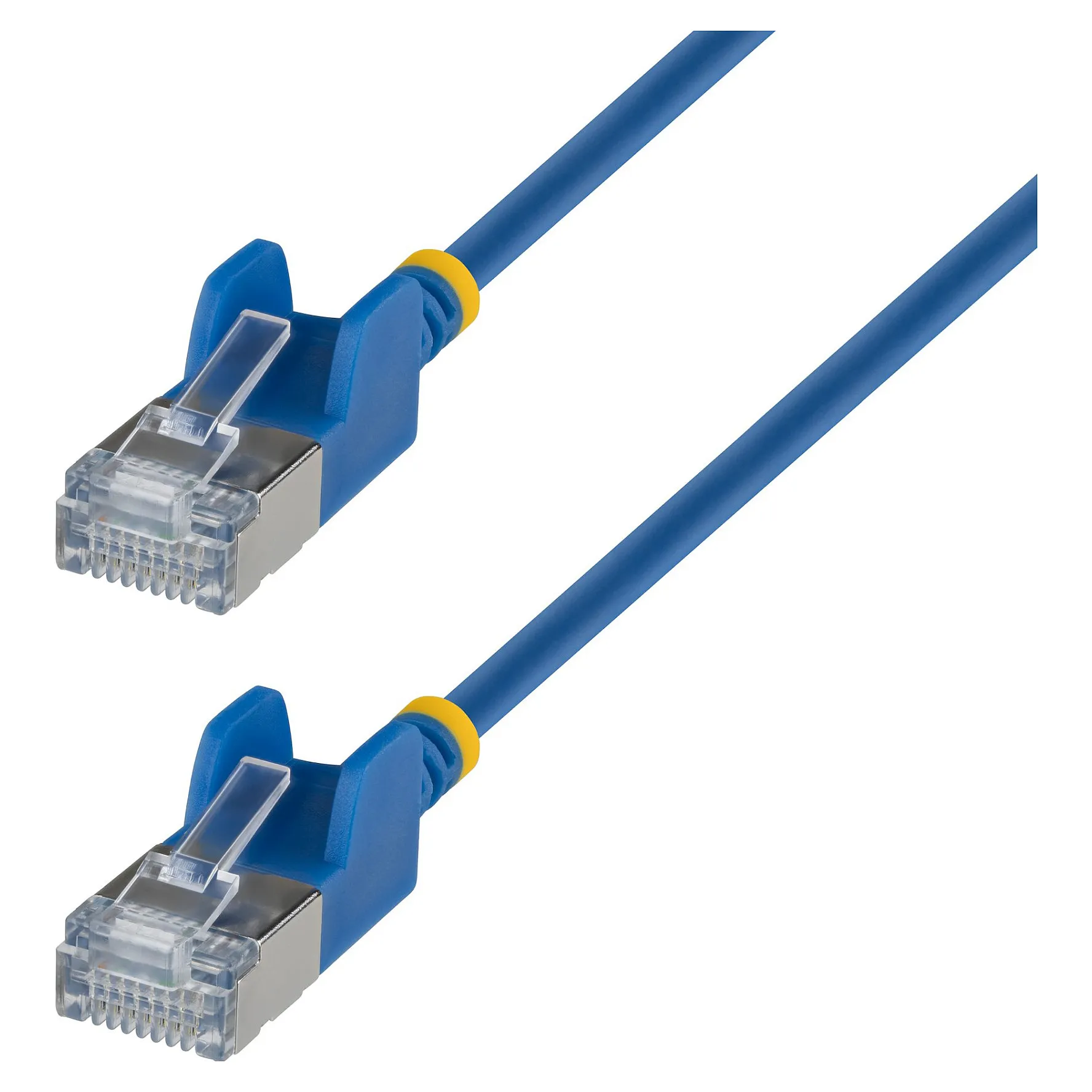

StarTech.com 1m Blue Ultra Slim Cat6A Ethernet Cable, Snagless, FTP, Pure Bare Copper Wire, 34AWG Slim RJ45 Network Patch Cord, Individually Tested. Cable length: 1 m, Cable standard: Cat6a, Cable shielding: U/FTP (STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Blue
Connect reliably to a 10Gbps network using this ultra slim Cat6a Ethernet cable, ideal for high-density network installations.
Improved Airflow
The Ultra Slim Cat6a Patch Cord is 40% thinner than standard Cat6a Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. It is also more flexible for easier cable routing in crowded network racks and patch panels.

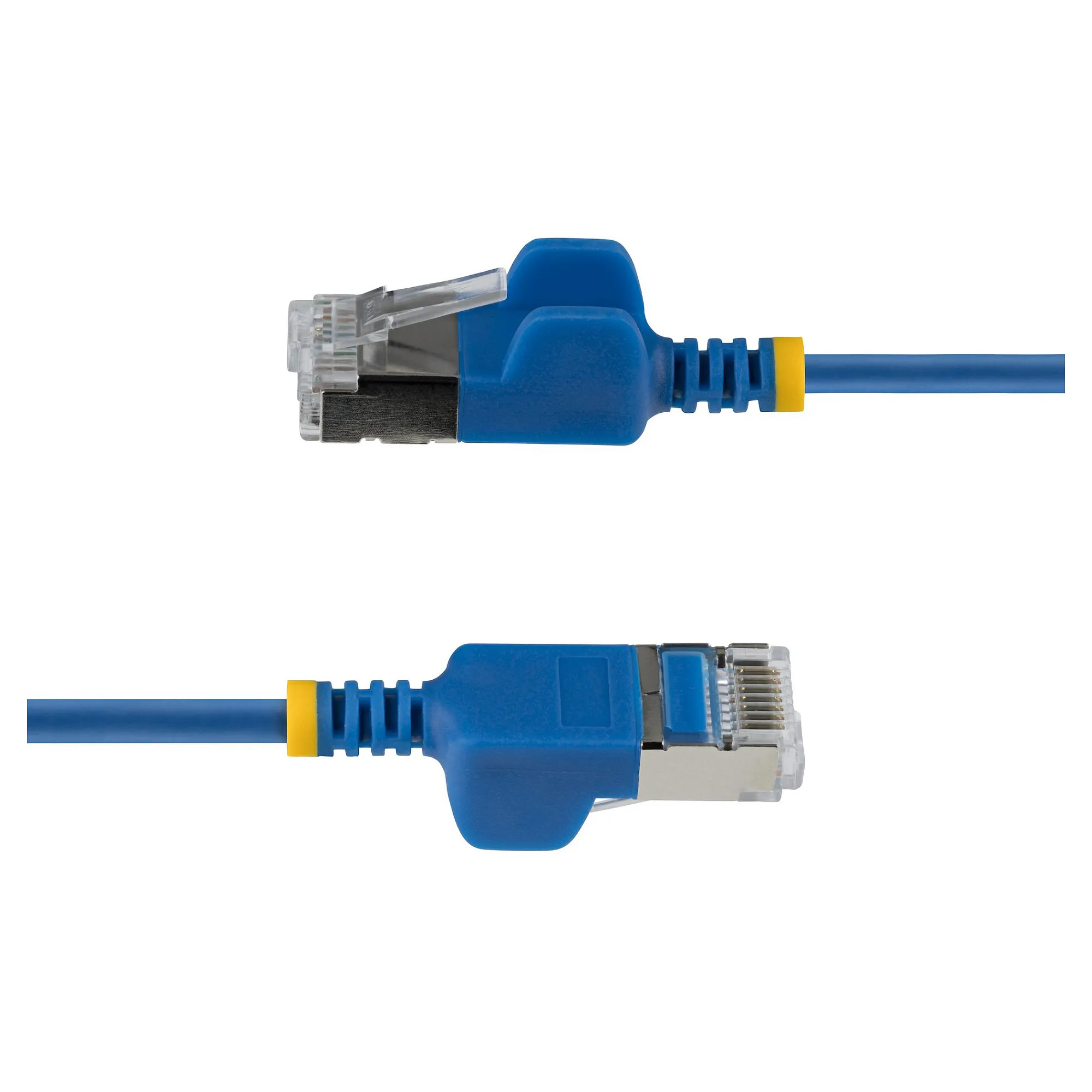

This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.
Durable Construction
The Ultra Slim Cat6a Cable features 50-micron gold-plated RJ45 contacts for precise mating and minimal signal loss. Its 4-pair Unshielded Foiled Twisted Pair (U/FTP) design with 34 AWG pure bare copper conductors ensures low resistance and reliable throughput, using pair-level foil shielding to suppress EMI and crosstalk. The flexible TPE jacket provides durability and easy handling for everyday installations. Note: This cable is not rated for PoE applications.
Tested for Reliability
Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer™ to meet ANSI/TIA 568 C.2-1 requirements for guaranteed Cat6a performance, ensuring consistent signal integrity with minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). It delivers dependable 10 Gigabit Ethernet performance for switches, routers, and other high-speed network devices.
Product colour: Blue
Cable length: 1 m
Cable standard: Cat6a
Cable shielding: U/FTP (STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Jacket material: Thermoplastic elastomer (TPE)
Cable shape: Round
Conductor type: Stranded
Conductor material: Copper
Cabling technology: 10GBase-T
Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
AWG wire size: 34
Data transfer rate: 10000 Mbit/s
Frequency: 500 MHz
Feature: Snagless cable boot
Feature: Plug and Play
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -20 – 75 °C
Operating relative humidity (H-H): 0 – 90%
Certificates
Compliance certificates: RoHS, CE
Weight & dimensions
Outer diameter: 3.7 mm
Weight: 16 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 200 mm
Package depth: 140 mm
Package height: 18 mm
Package weight: 26 g
Logistics data
Master (outer) case width: 460 mm
Master (outer) case length: 300 mm
Master (outer) case height: 200 mm
Products per master (outer) case: 80 pc(s)
