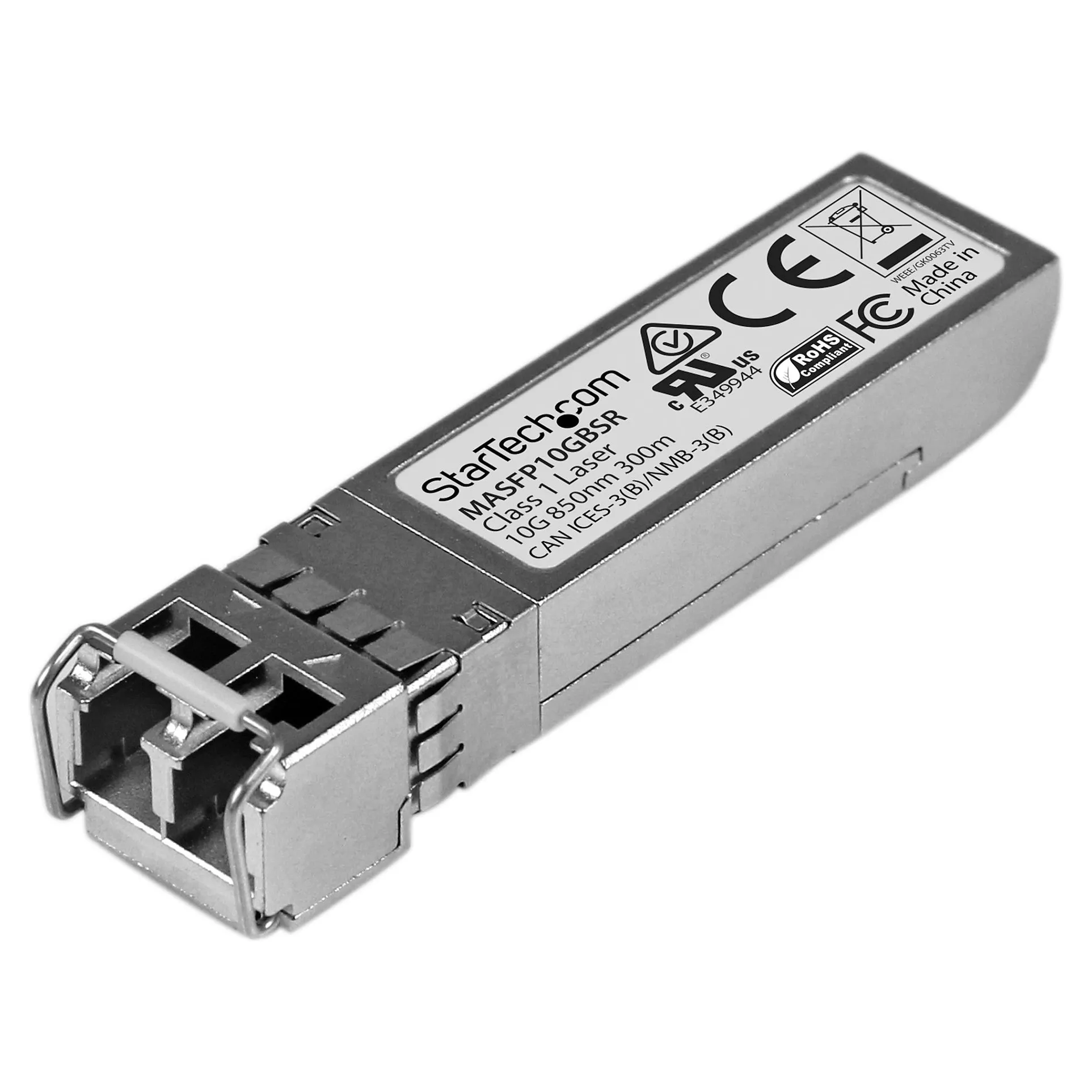

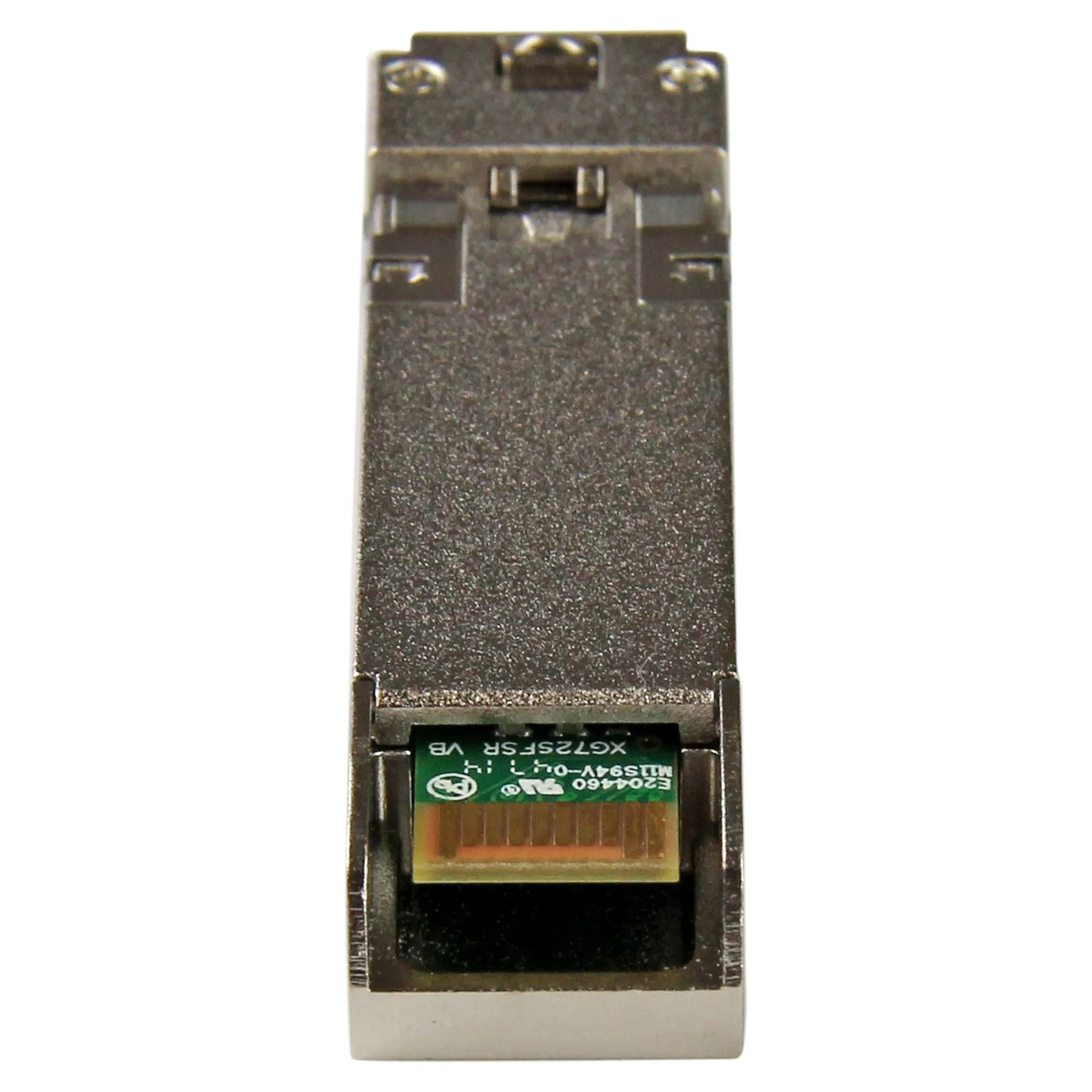

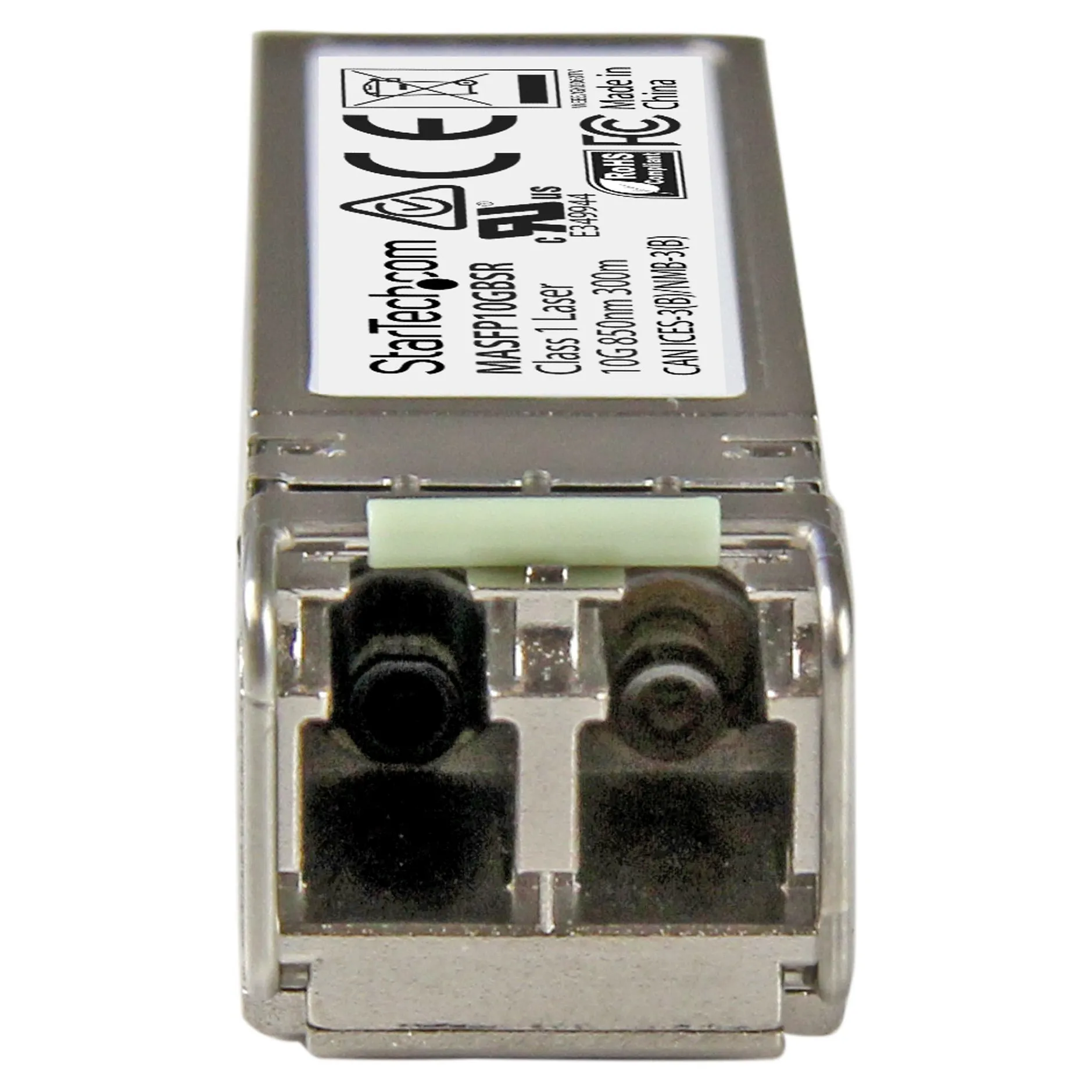

StarTech.com Cisco Meraki MA-SFP-10GB-SR Compatible SFP+ Module – 10GBASE-SR – 10GbE Multimode Fiber MMF Optic Transceiver – 10GE Gigabit Ethernet SFP+ – LC 300m – 850nm – DDM Cisco Meraki MS225, MX400, MS250. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 1967709 h. Power consumption (typical): 1.2 W. Compliance certificates: CE, RoHS. Width: 13.9 mm, Depth: 54 mm, Height: 12.6 mm
The MASFP10GBSR is a Cisco Meraki MA-SFP-10GB-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 1,967,709 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
SFP transceiver standard: SR
Maximum transfer distance: 300 m
Wavelength: 850 nm
Networking standards: IEEE 802.3ae
Duplex system: Full
Feature: Digital Diagnostics Monitoring (DDM)
Features
Product colour: Silver
Housing material: Aluminium
Feature: Hot-swap
Mean time between failures (MTBF): 1967709 h
Power
Power consumption (typical): 1.2 W
Certificates
Compliance certificates: CE, RoHS
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 5 – 95%
Weight & dimensions
Width: 13.9 mm
Depth: 54 mm
Height: 12.6 mm
Weight: 18 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 92 mm
Package depth: 113 mm
Package height: 33 mm
Package weight: 47 g
Logistics data
Master (outer) case width: 350 mm
Master (outer) case length: 410 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 355 mm
Products per master (outer) case: 100 pc(s)
Country of origin: China
