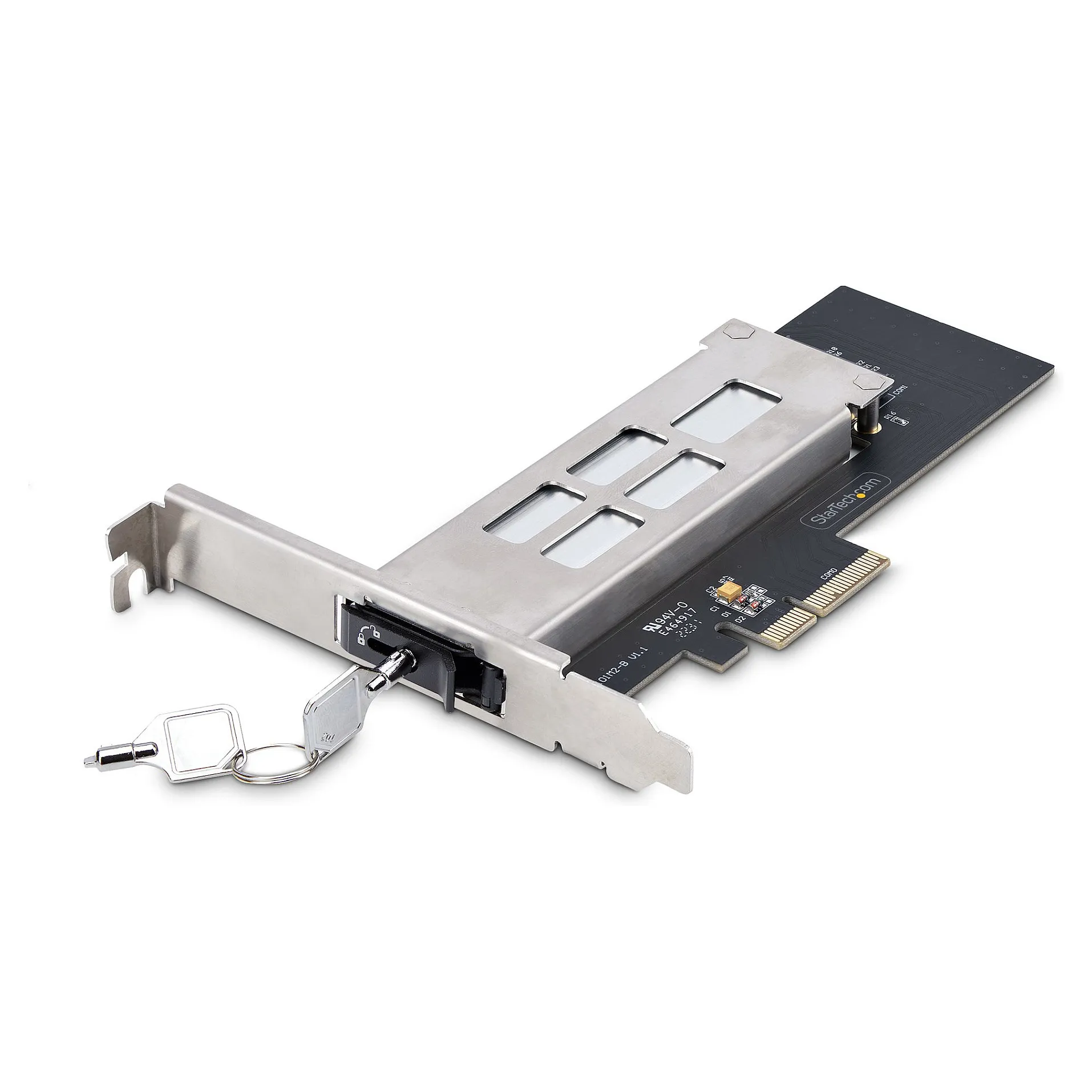

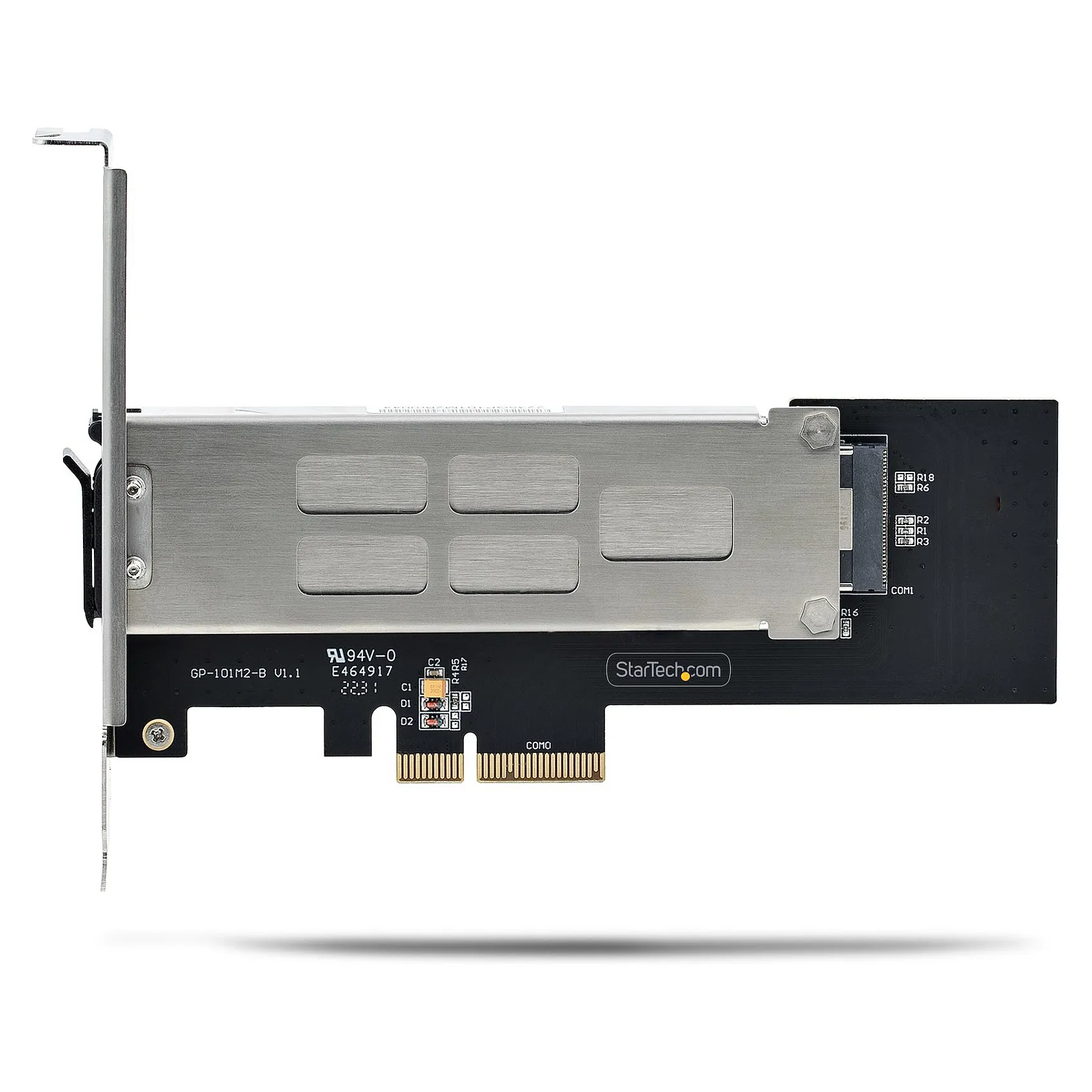

StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock – 2 Keys Included. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Black, Silver, Purpose: PC, Mean time between failures (MTBF): 10000 h. Data transfer rate (max): 64 Gbit/s. Width: 120 mm, Depth: 167 mm, Height: 19 mm. Package width: 119 mm, Package depth: 153 mm, Package height: 47 mm

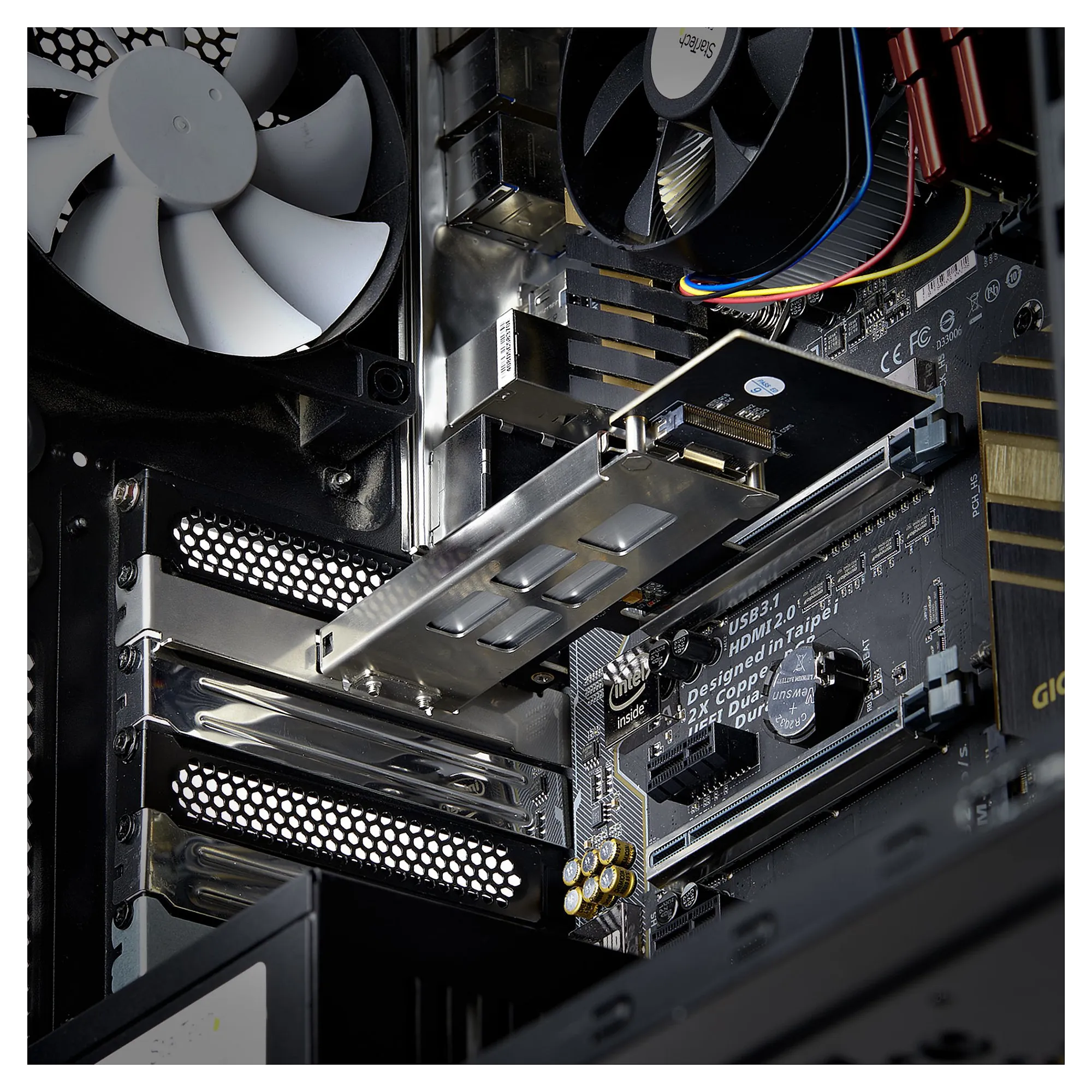

Utilize an available PCIe 4.0 x4 expansion slot for the installation, removal, or interchange of PCIe M.2 SSDs. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.
Toolless Installation

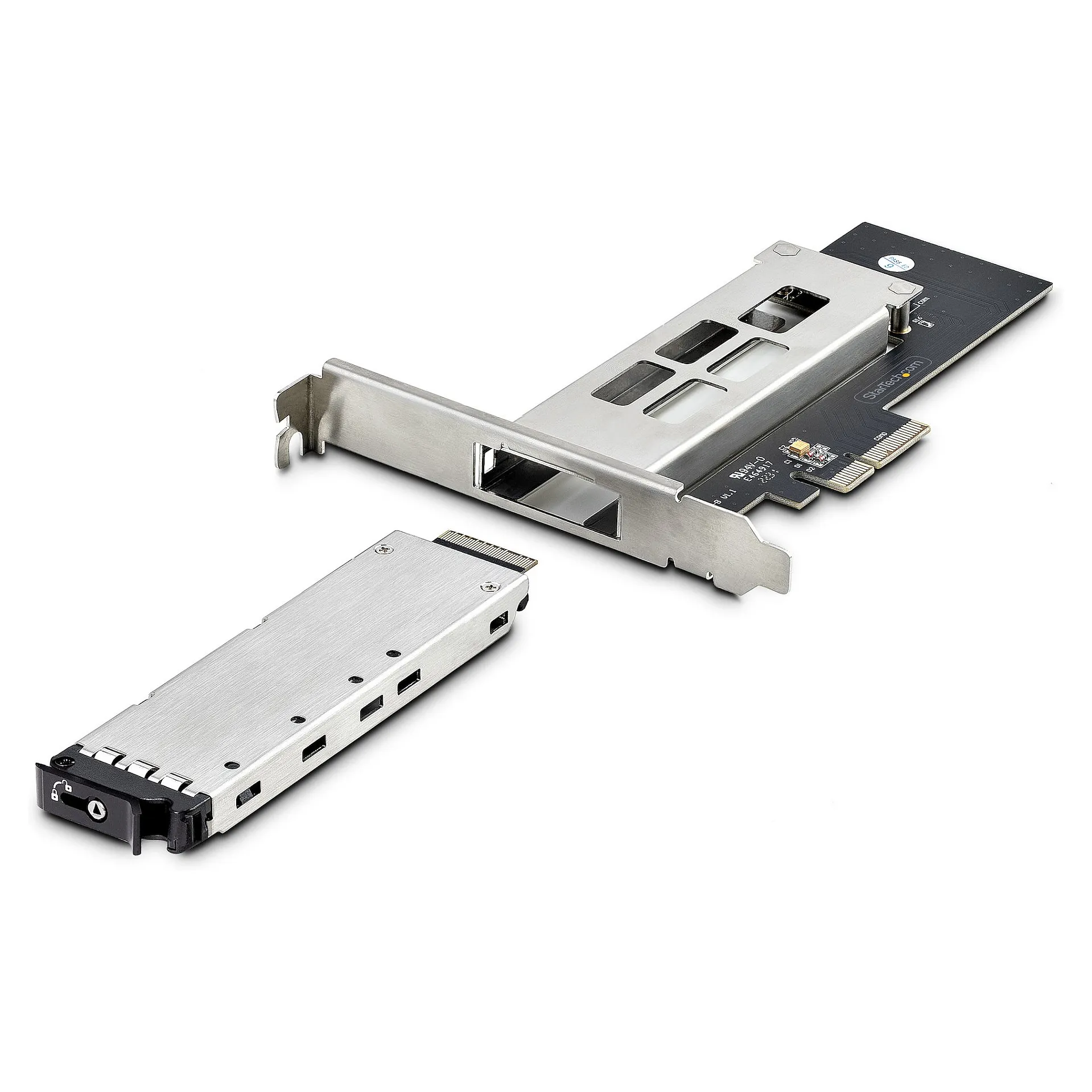

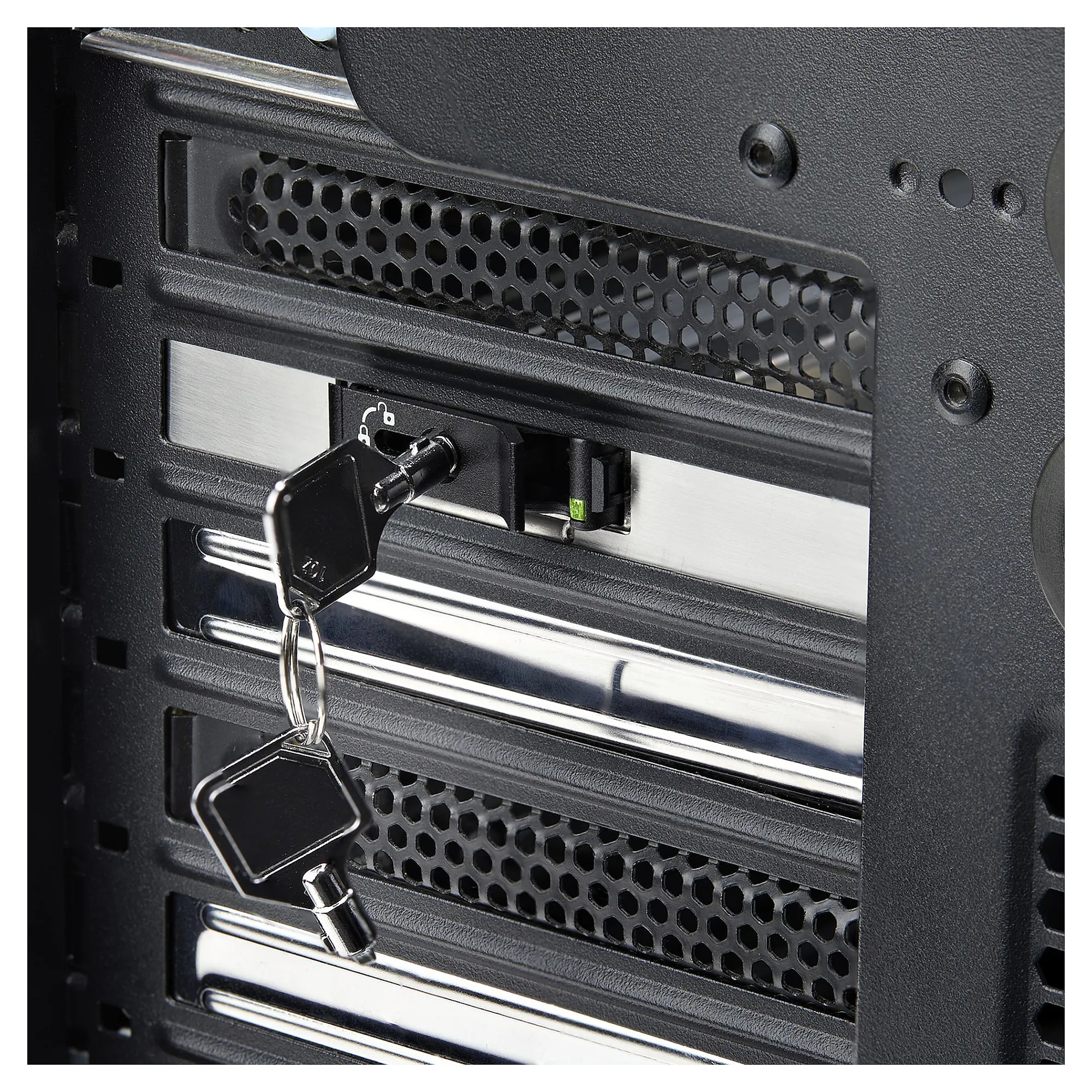

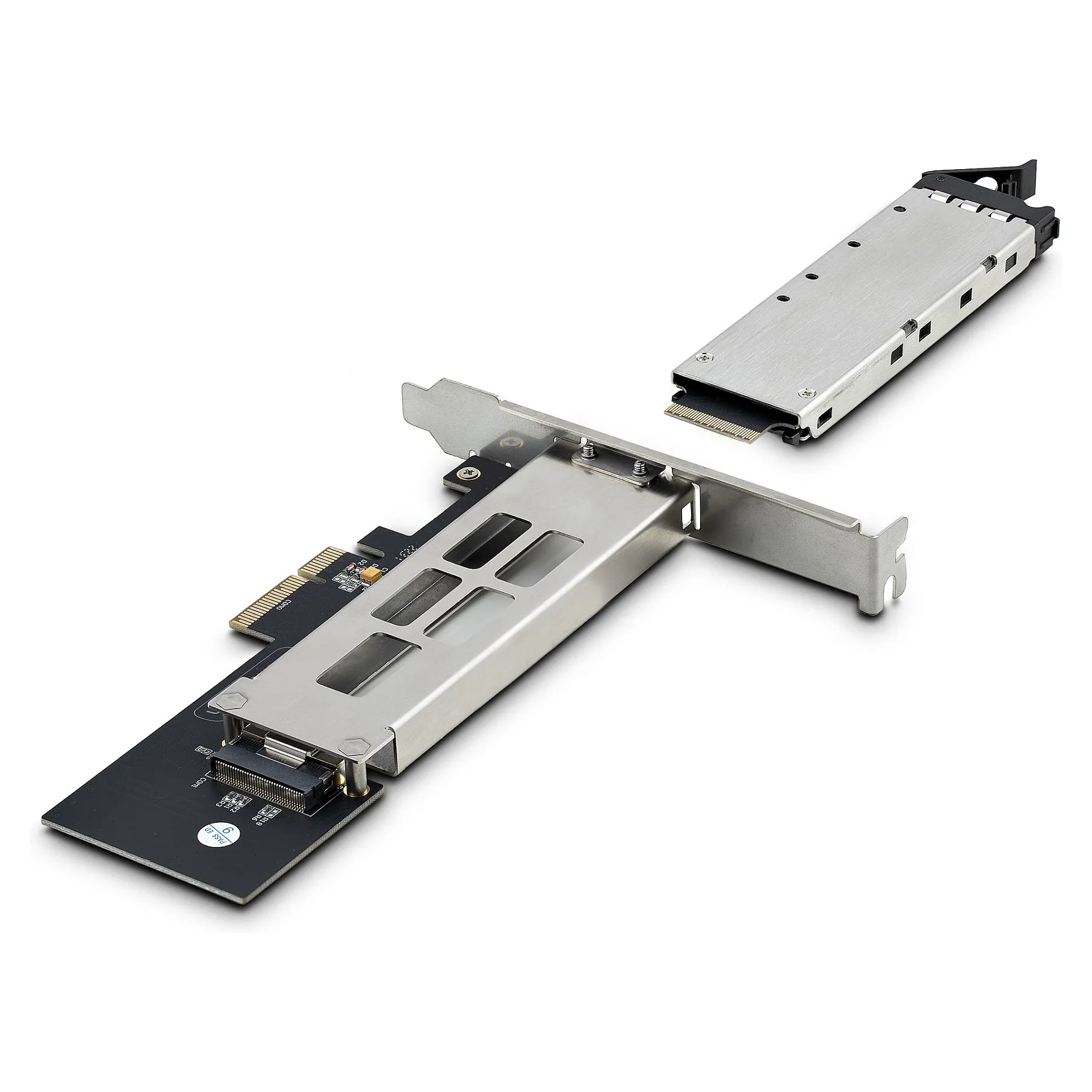

Install an M.2 drive into the drive tray and insert the tray into the drive bay, without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.
Optimal Performance

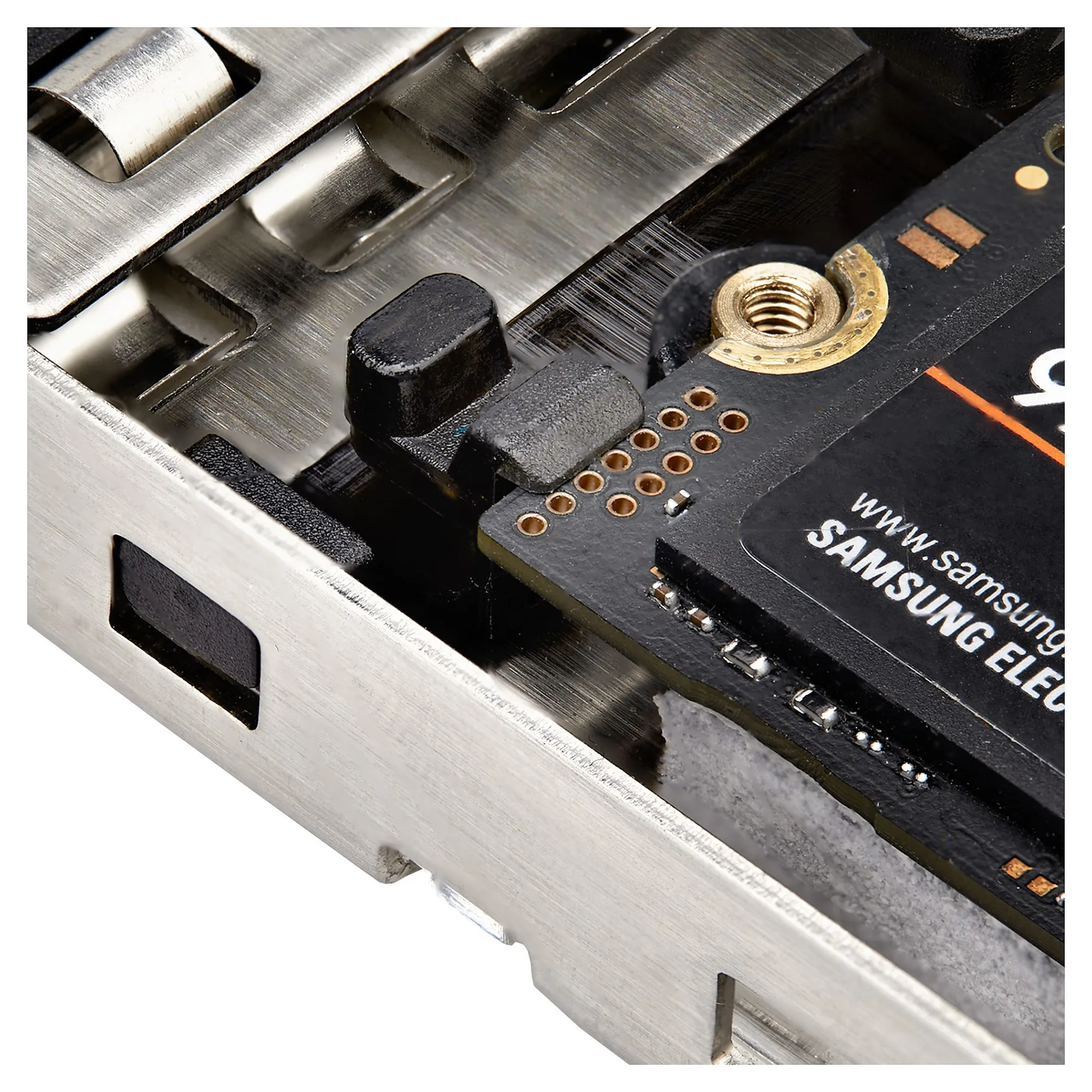

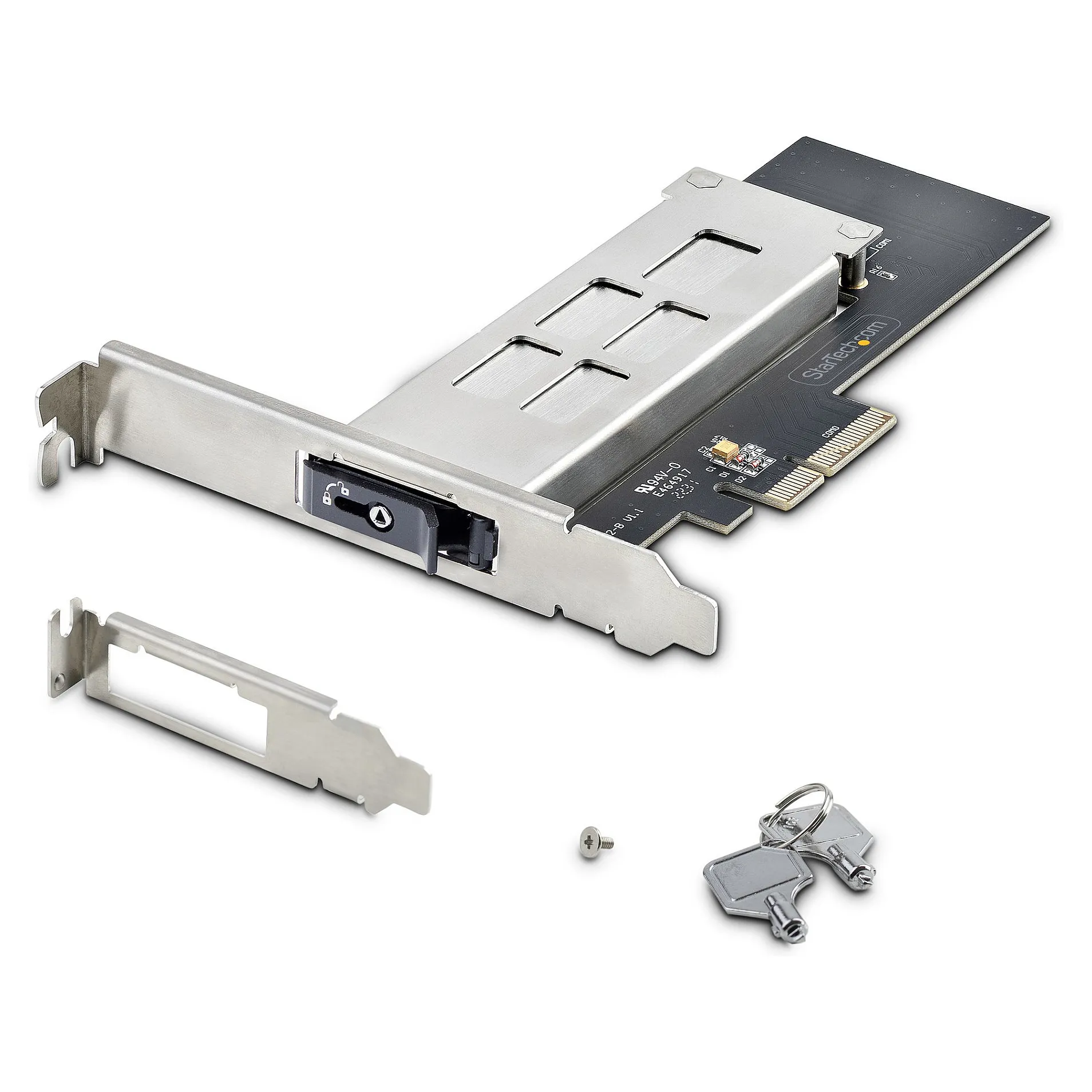

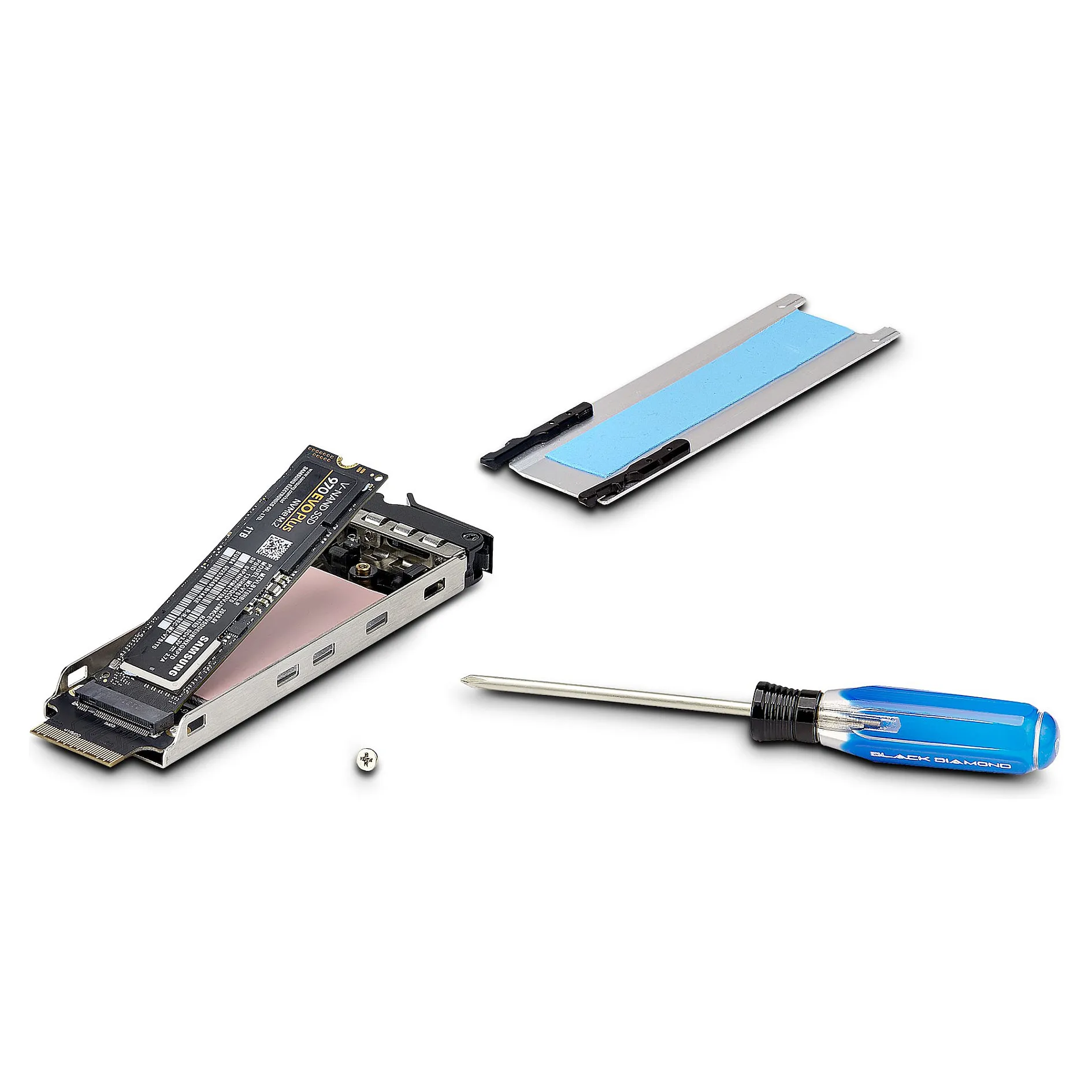

The vented stainless-steel frame and tray with thermal pads aids heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive. A low-profile bracket is included for small form-factor systems.
Hot-Swappable
Additional drive trays (TR-M2-REMOVABLE-PCIE, sold separately) provide flexibility and convenience when managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard, and for instructions regarding how to enable this feature.
Host interface: PCIe
Output interface: M.2
Expansion card standard: PCIe 4.0
Design
Feature: Internal
Product colour: Black, Silver
Purpose: PC
Number of fans: 0 fan(s)
LED indicators: Yes
Mean time between failures (MTBF): 10000 h
Feature: Hot-swap
Features
Data transfer rate (max): 64 Gbit/s
Feature: S.M.A.R.T. support
Feature: TRIM support
Feature: Plug and Play
Operational conditions
Operating temperature (T-T): 0 – 65 °C
Storage temperature (T-T): -35 – 70 °C
Operating relative humidity (H-H): 0 – 90%
Technical details
Feature: Sustainability compliance
Compliance certificates: RoHS
Weight & dimensions
Width: 120 mm
Depth: 167 mm
Height: 19 mm
Weight: 65 g
Packaging data
Feature: Mounting brackets included
Feature: Quick installation guide
Package width: 119 mm
Package depth: 153 mm
Package height: 47 mm
Package weight: 215 g
Logistics data
Products per master (outer) case: 20 pc(s)
Master (outer) case width: 325 mm
Master (outer) case length: 485 mm
Master (outer) case height: 270 mm
