StarTech.com Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension. Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold. Product colour: Silver

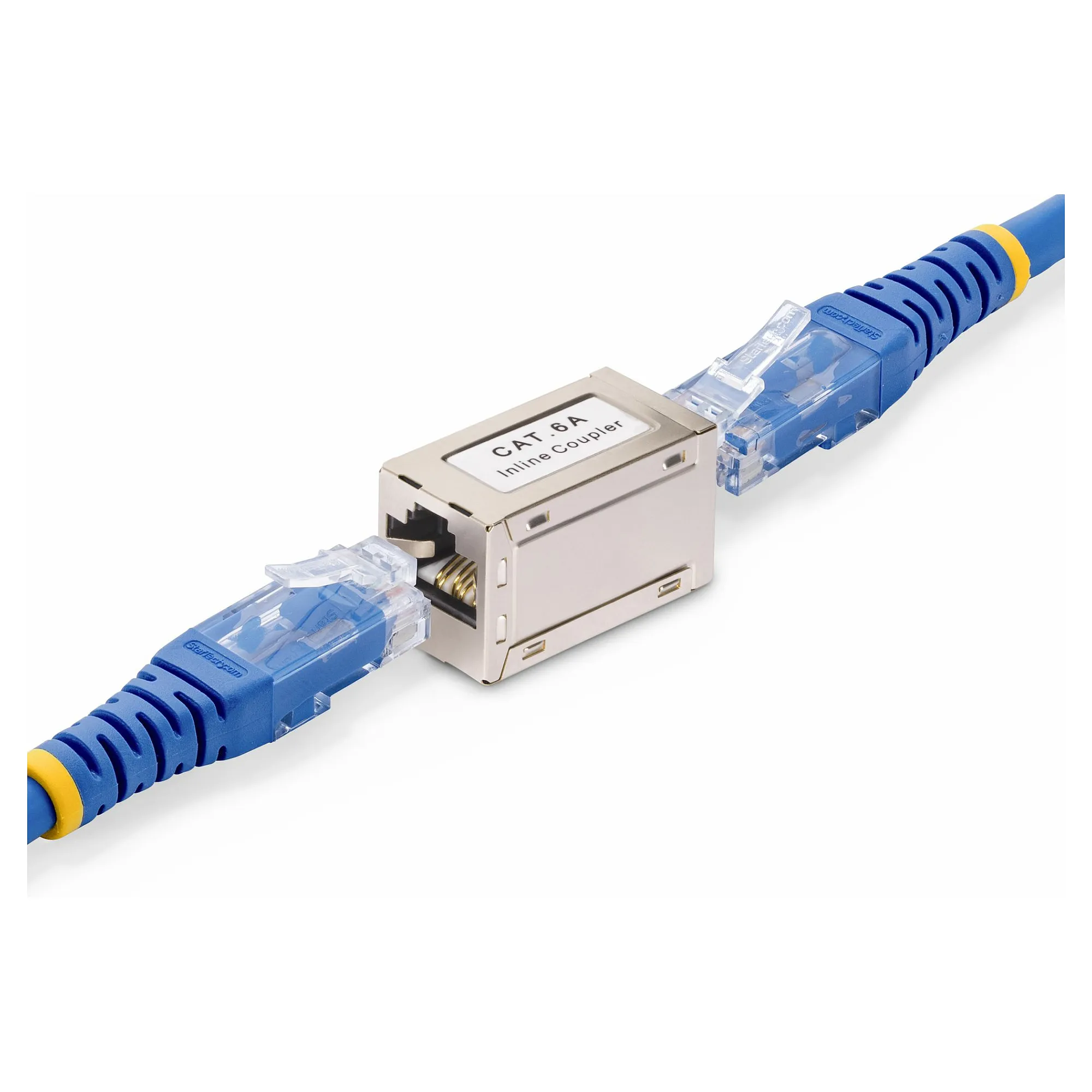

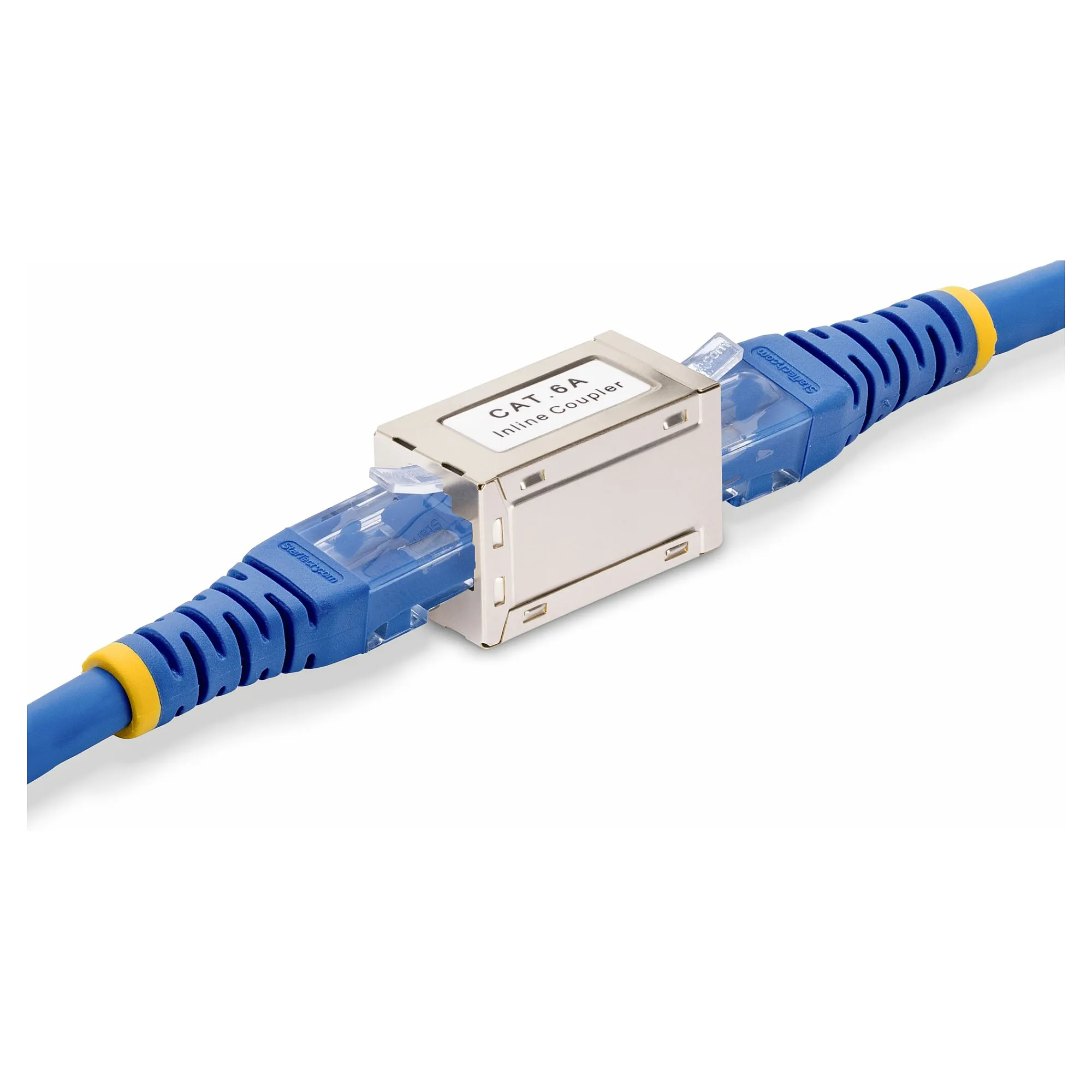

Connect two Cat 6a cables to extend a network connection, using this Shielded RJ45 Inline Coupler. The female to female Ethernet coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Wide Compatibility
The Cat6a Coupler supports up to 10Gbps and is compatible with common networking standards including 10/100/1000BASE-T, and advanced protocols such as 2.5GBASE-T/5GBASE-T. The Shielded Inline RJ45 coupler facilitates Power-over-Ethernet (PoE) to power network peripheral devices.
Durable Construction
The Shielded RJ45 Cat6a Coupler features a durable metal outer shell with ABS inner housing to enhance EMI protection, and gold-plated phosphor bronze contacts for dependable, long-lasting performance and reliability.
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Female
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Performance
Product colour: Silver
Housing material: Acrylonitrile butadiene styrene (ABS), Metal
Data transfer rate: 10 Gbit/s
Operational conditions
Operating temperature (T-T): -20 – 65 °C
Storage temperature (T-T): -25 – 75 °C
Relative humidity: 30 – 70%
Certificates
Compliance certificates: CE
Certification: TIA/EIA-T568B
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 16 mm
Depth: 31 mm
Height: 20 mm
Packaging data
Package width: 90 mm
Package depth: 57 mm
Package height: 26 mm
Package weight: 10 g
Logistics data
Products per master (outer) case: 500 pc(s)
Master (outer) case width: 355 mm
Master (outer) case length: 520 mm
Master (outer) case height: 270 mm
