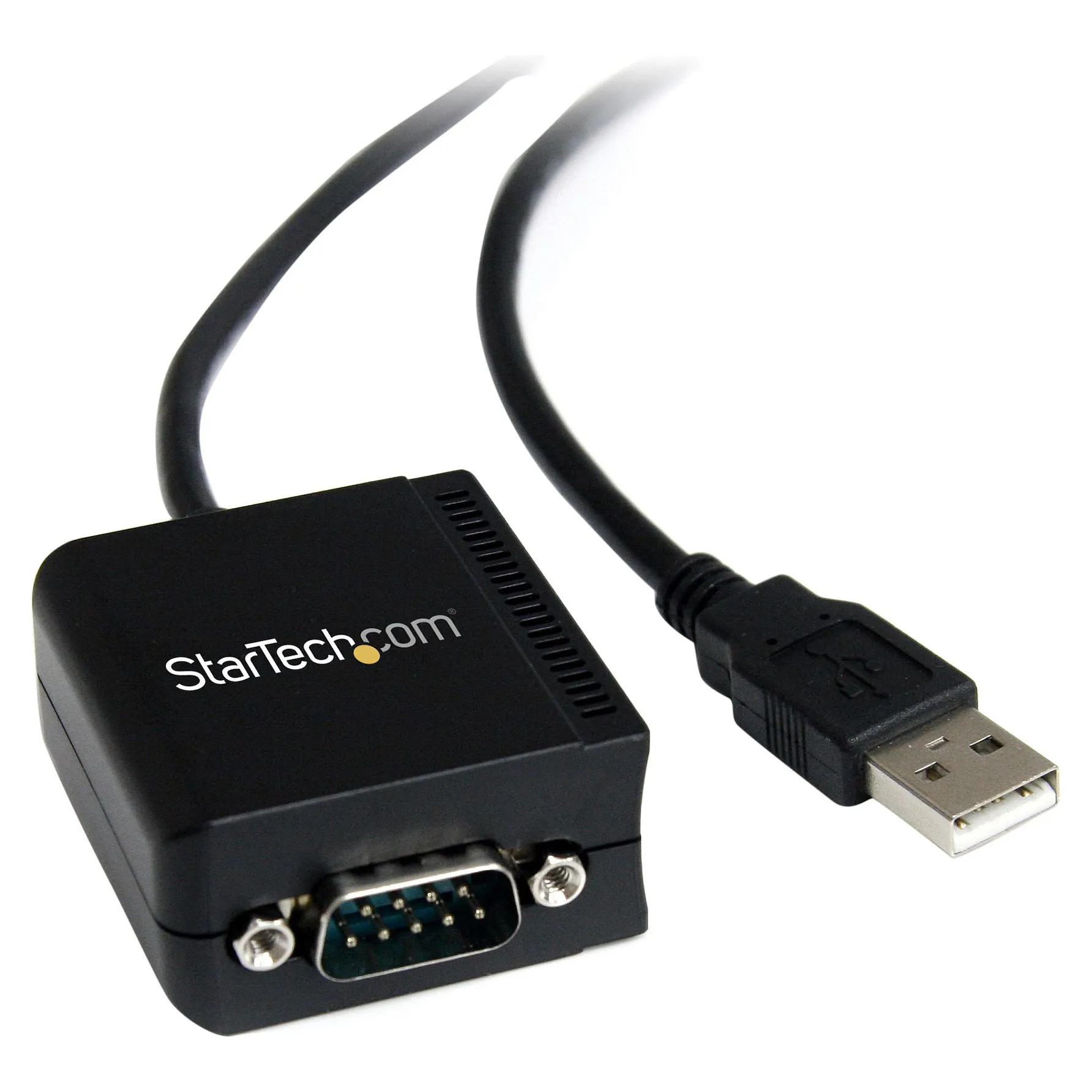

StarTech.com 8.3ft (2.5m) 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation, USB to RS232 Adapter – TAA. Connector 1: DB-9, Connector 2: USB A, Cable length: 2.5 m. Product colour: Black
The ICUSB2321FIS 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation converts an available USB 1.1 or 2.0 port into an RS232 DB9 port that can be used to connect, monitor and control your serial devices.
The USB to serial adapter features integrated optical isolation circuits and surge protection to protect your critical, sensitive control equipment against electrical damage, making it a viable solution for costly industrial serial devices.
The versatile FTDI chipset also supports COM retention, additional customization/features, and compatibility not offered by most other solutions. Broad operating system compatibility including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Connector 1: DB-9
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Male
Cable length: 2.5 m
Performance
Product colour: Black
Housing material: Plastic
Feature: USB required
Chipset: FTDI – FT232RL
Data bits: 7, 8
Stop bits: 1, 2
Baud rate: 921.6 Kbit/s
Parity bit: Even, Mark, No, Odd, Space
Isolation: 2500 kV
FIFO (First In, First Out): 256 B
Operational conditions
Operating temperature (T-T): 0 – 55 °C
Storage temperature (T-T): -20 – 85 °C
Relative humidity: 5 – 95%
Certificates
Compliance certificates: CE, RoHS
Certification: CE, FCC, Microsoft WHQL
Sustainability
Feature: Sustainability compliance
Weight & dimensions
Width: 40 mm
Depth: 2400 mm
Height: 20 mm
Weight: 86 g

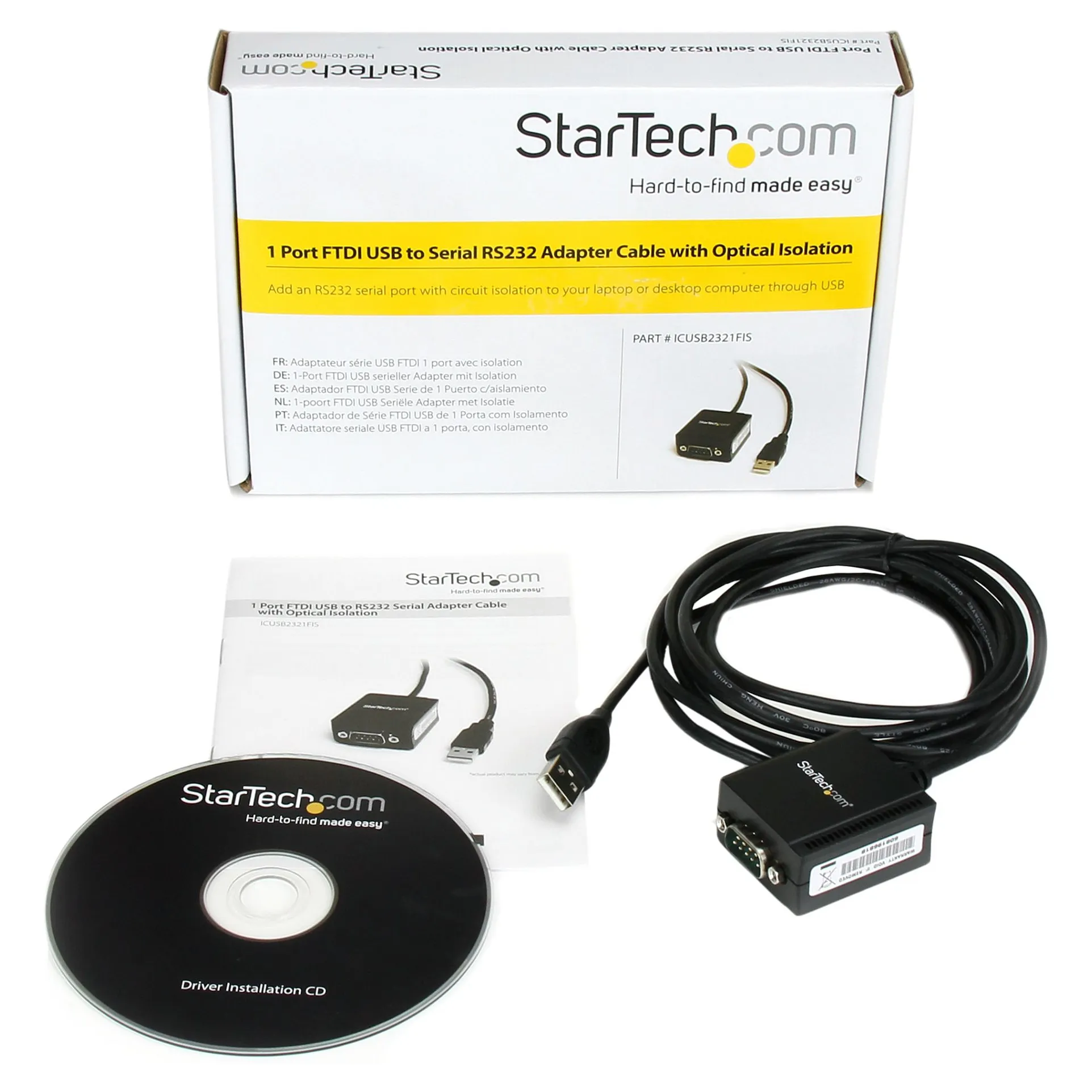

Packaging content
Feature: Manual
Feature: Drivers included
Packaging data
Package width: 145 mm
Package depth: 212 mm
Package height: 41 mm
Package weight: 222 g
Logistics data
Products per master (outer) case: 50 pc(s)
Master (outer) case width: 448 mm
Master (outer) case length: 530 mm
Master (outer) case height: 126 mm
Other features
Gross weight (imperial): 0.2 kg (0.44 lbs)
