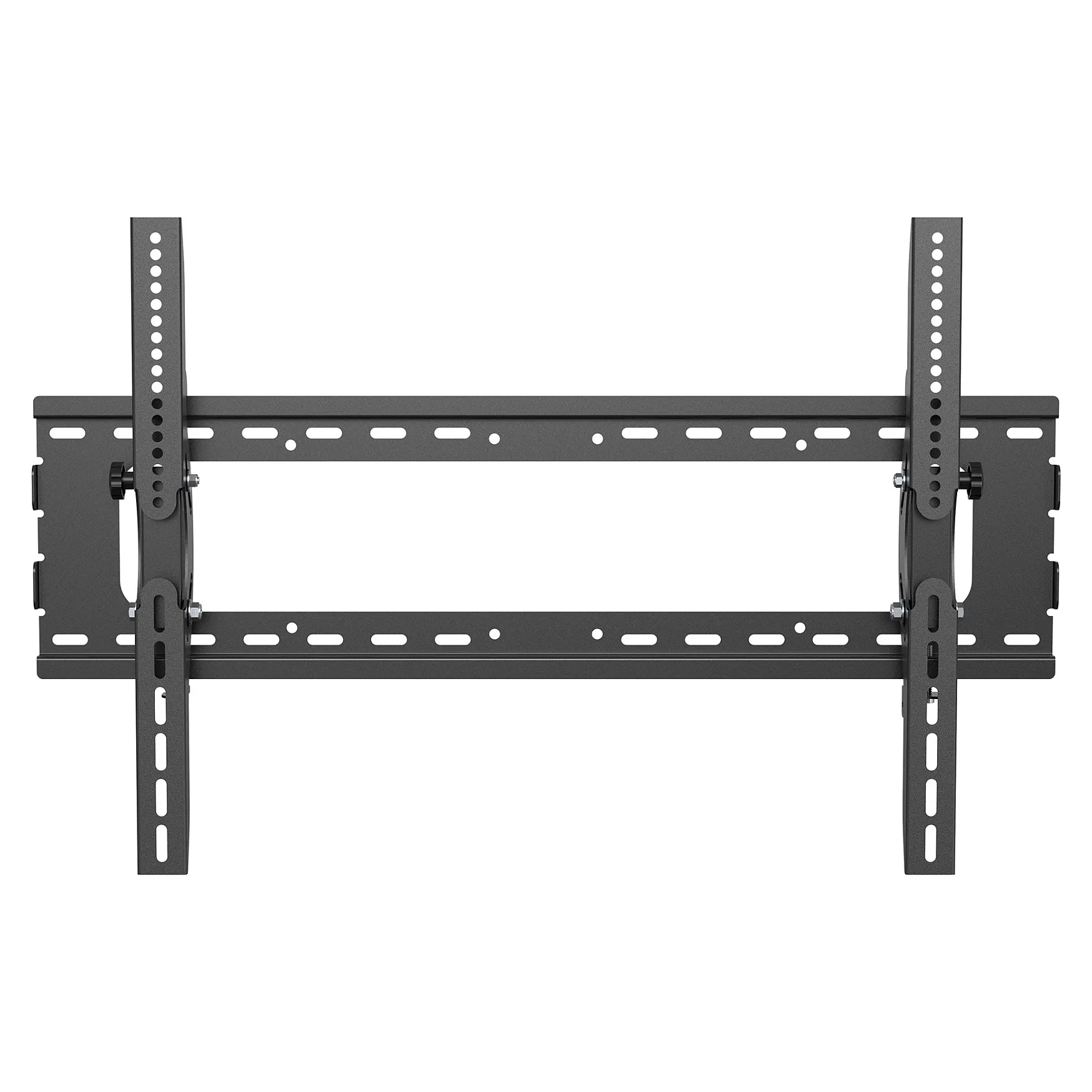

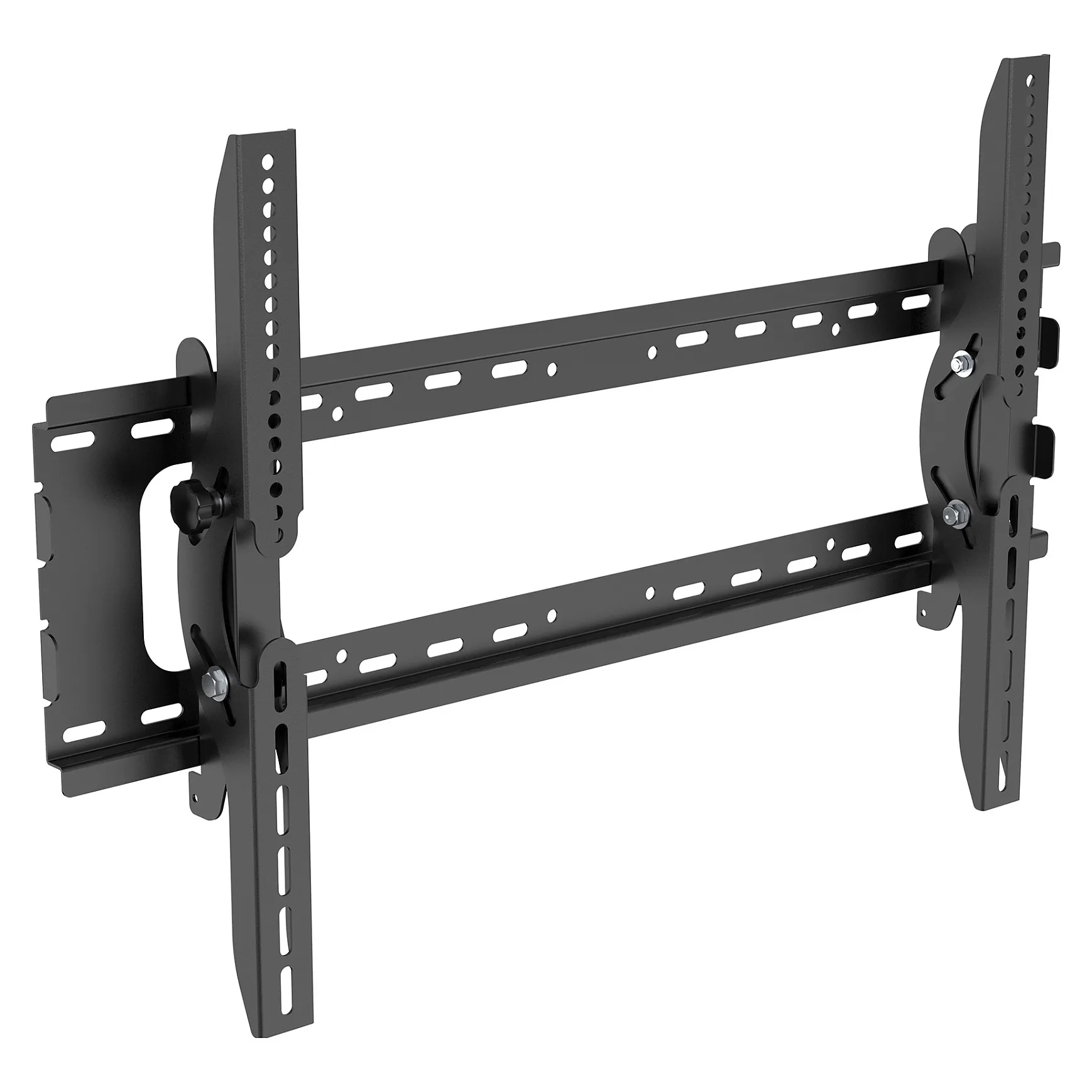

StarTech.com Flat-Screen TV Wall Mount – Tilting. Maximum weight capacity: 75 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -15 – 15°, Distance to the wall (min): 8.3 cm. Product colour: Black
Maximize space while creating an impressive display with this flat-screen TV wall mount for large TVs or monitors. The heavy-duty wall mount securely supports a VESA Mount compliant TV from 32″ to 75″; with easy-to-use tilt adjustment for comfortable viewing.
Ideal for the Boardroom, or Digital Signage
Mount your flat-screen TV in a location that’s convenient for visitors, clients and employees, while saving valuable space. The wall mount is ideal for boardrooms, lobbies or other venues providing an impressive and secure way to display a large flat-panel TV or create digital signage. The robust wall mount supports a large 32″ to 75″ flat-screen TV weighing up to 165 lb. (75 kg).

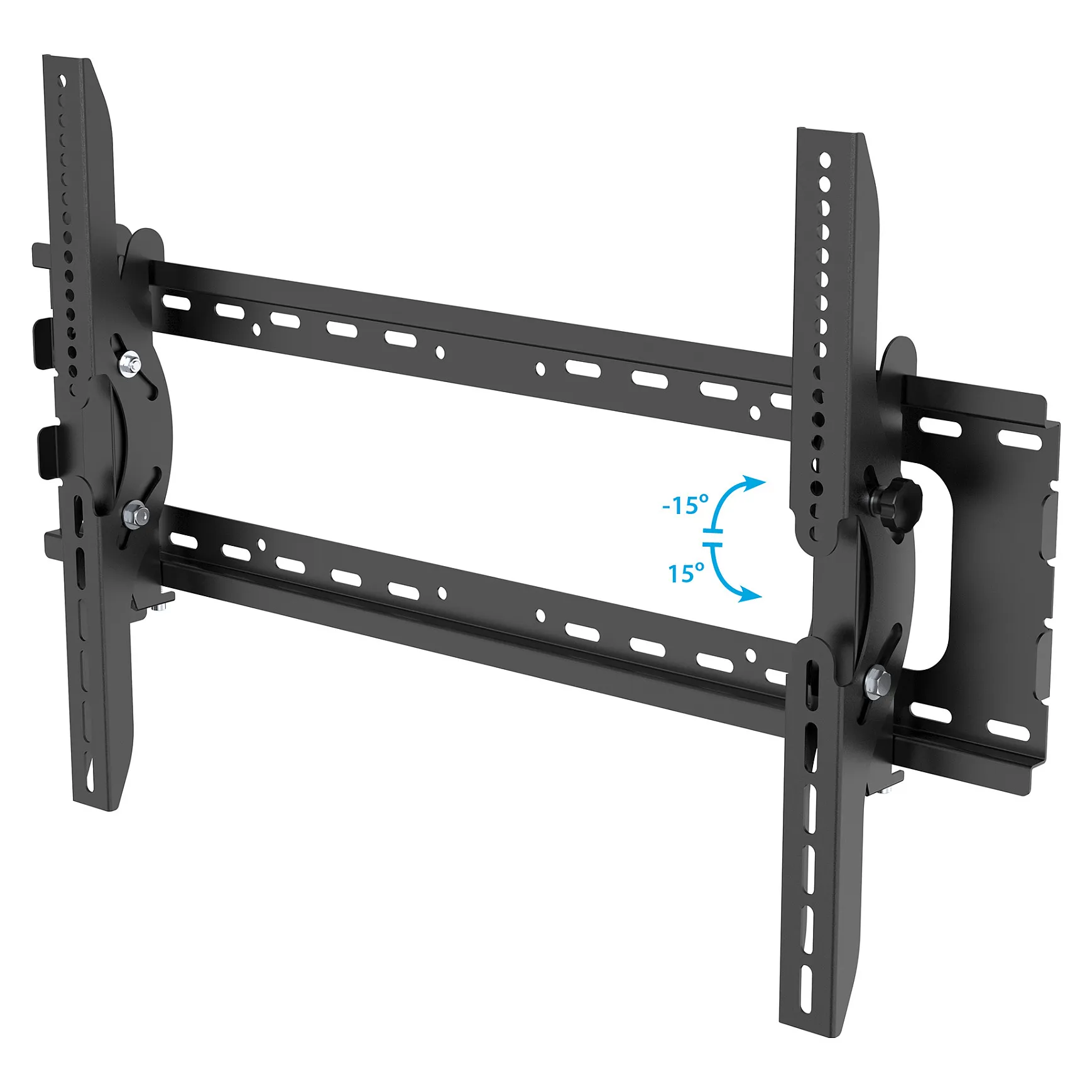

Tilt Your Display to the Ideal Viewing Angle
The TV wall mount lets you angle your TV display toward your audience. With the tilt feature, you can mount your TV lower or higher than eye level and still view it comfortably. The tilt-adjusting knobs make it easy to adjust your TV to the ideal viewing angle.

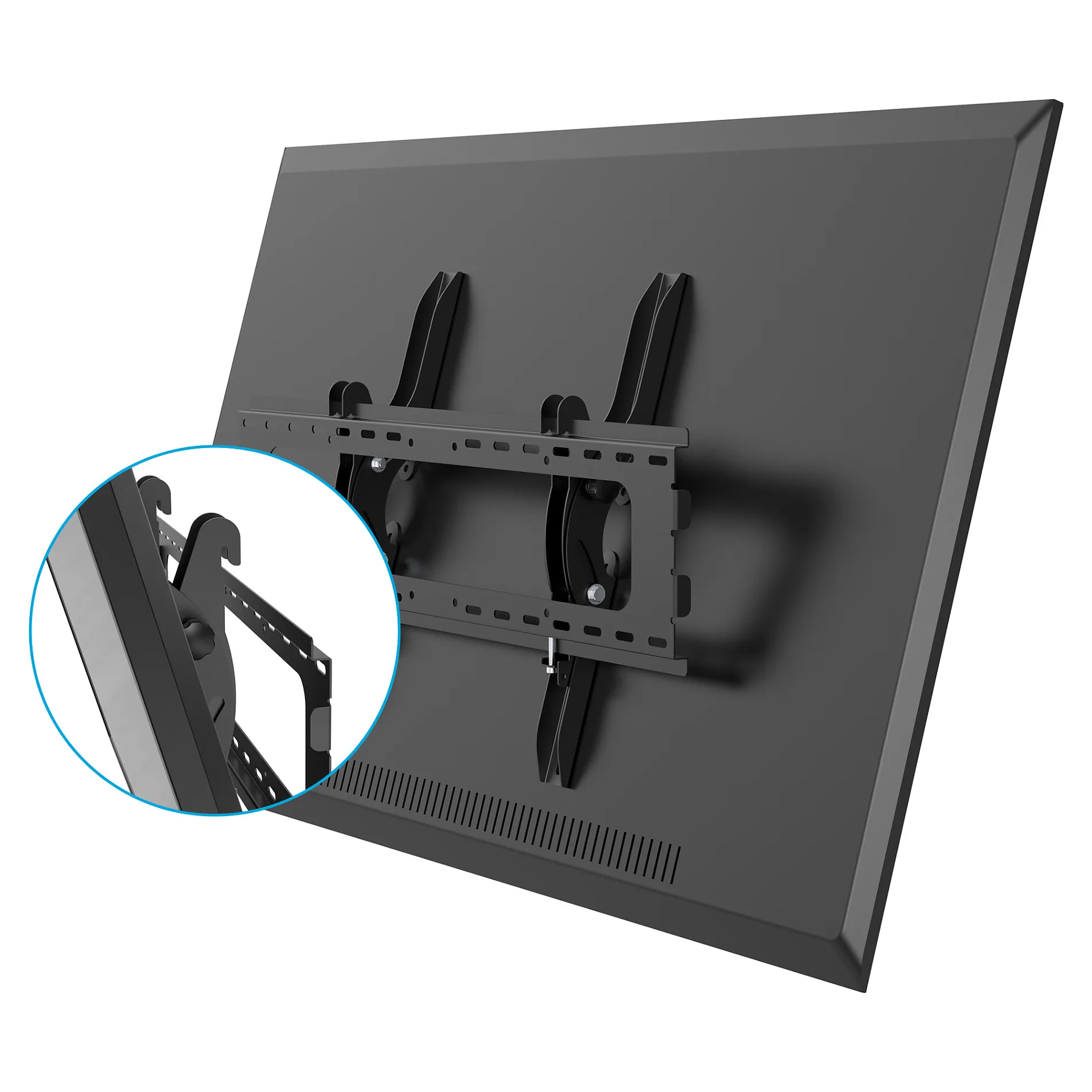

Easy and Secure Setup

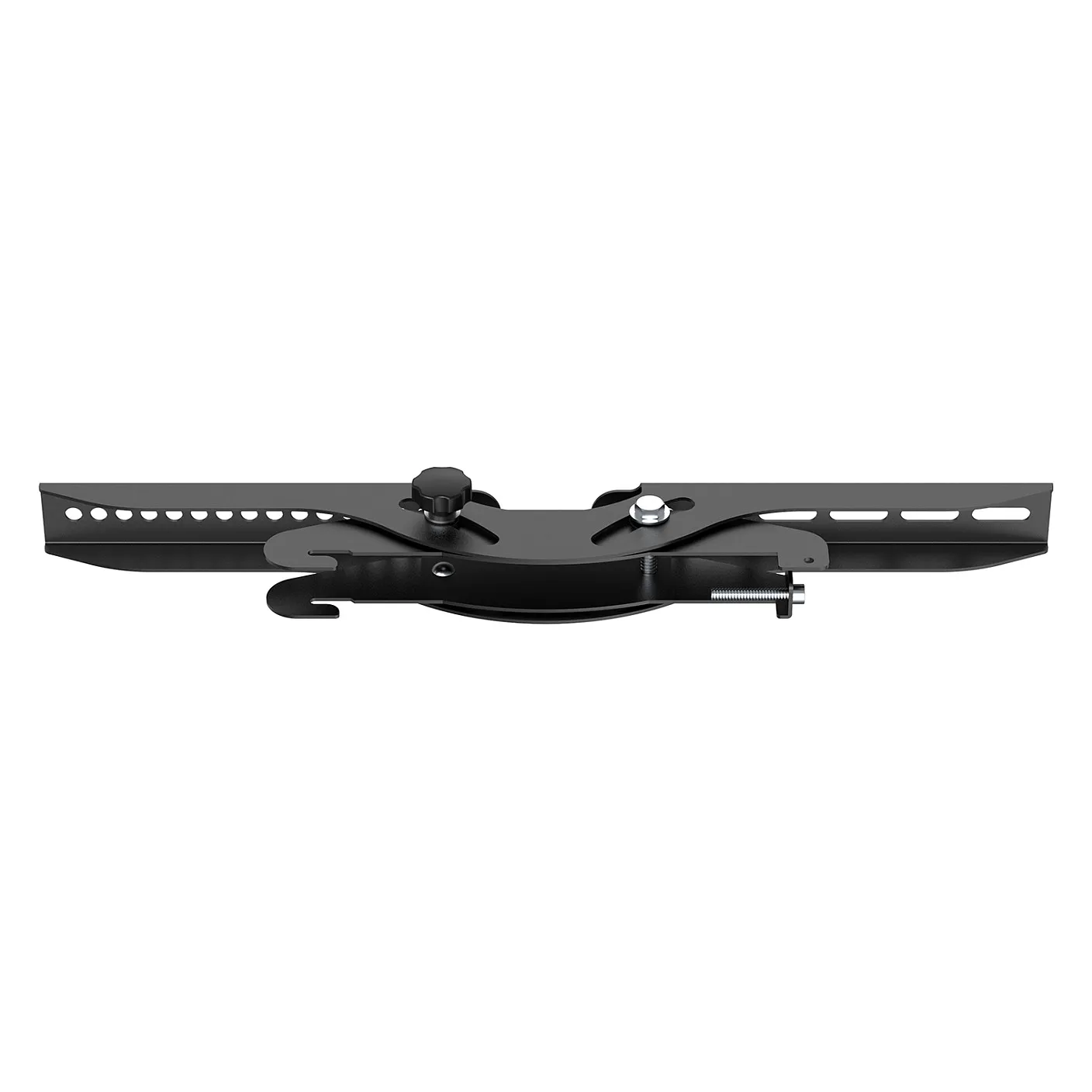

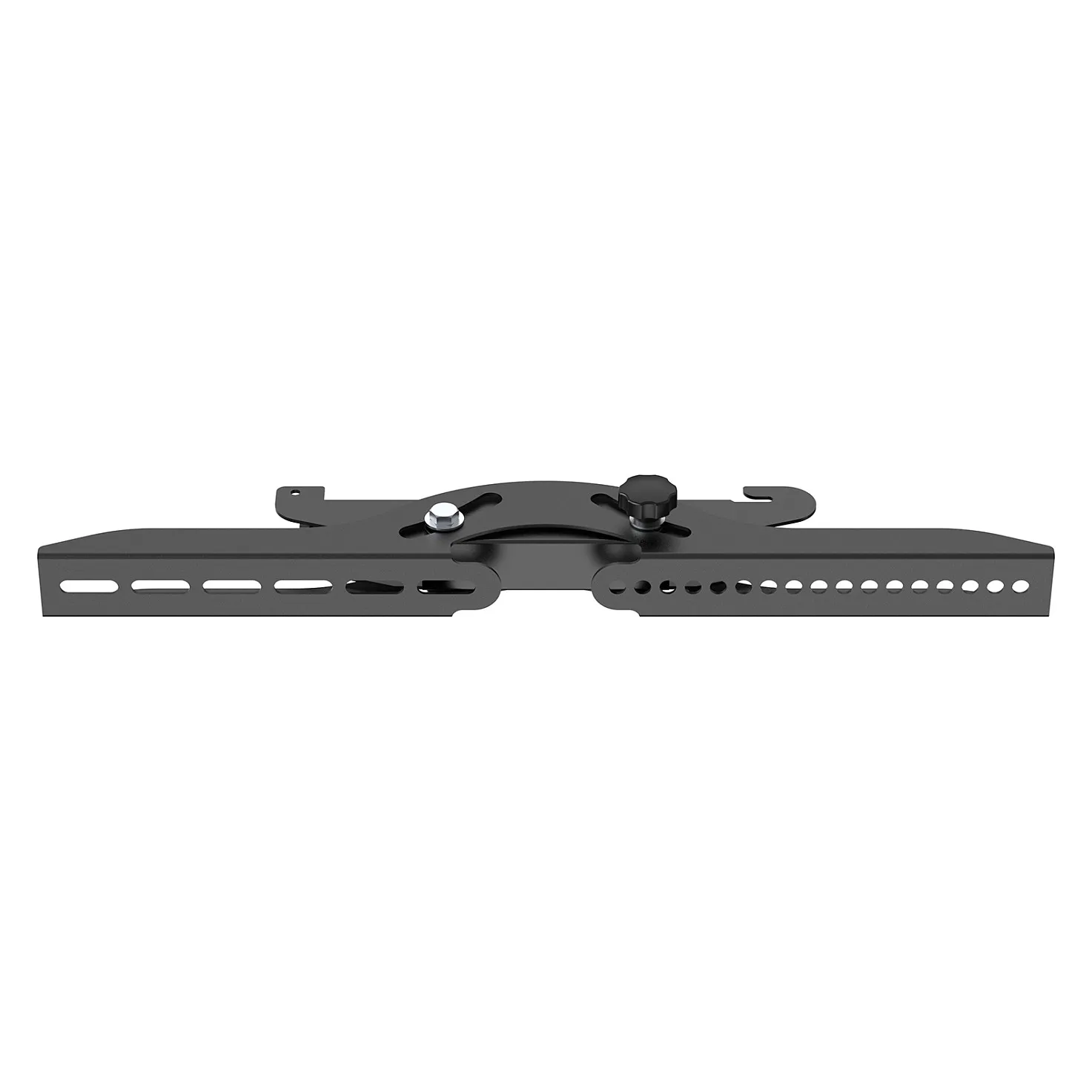

The hook-and-mount design of the TV wall mount makes setup fast and easy. You simply attach the vertical brackets, with built-in hooks, to the back of your TV. Once the brackets are attached, you then hang your TV securely onto the wall mount. Cable management helps to keep cables out of view.
Maximum weight capacity: 75 kg
Minimum screen size: 81.3 cm (32″)
Number of displays supported: 1
Maximum screen size: 190.5 cm (75″)
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 75 x 75,100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400
Mounting type: Wall
Ergonomics
Tilt angle range: -15 – 15°
Feature: Cable management
Distance to the wall (min): 8.3 cm
Design
Product colour: Black
Technical details
Compliance certificates: RoHS

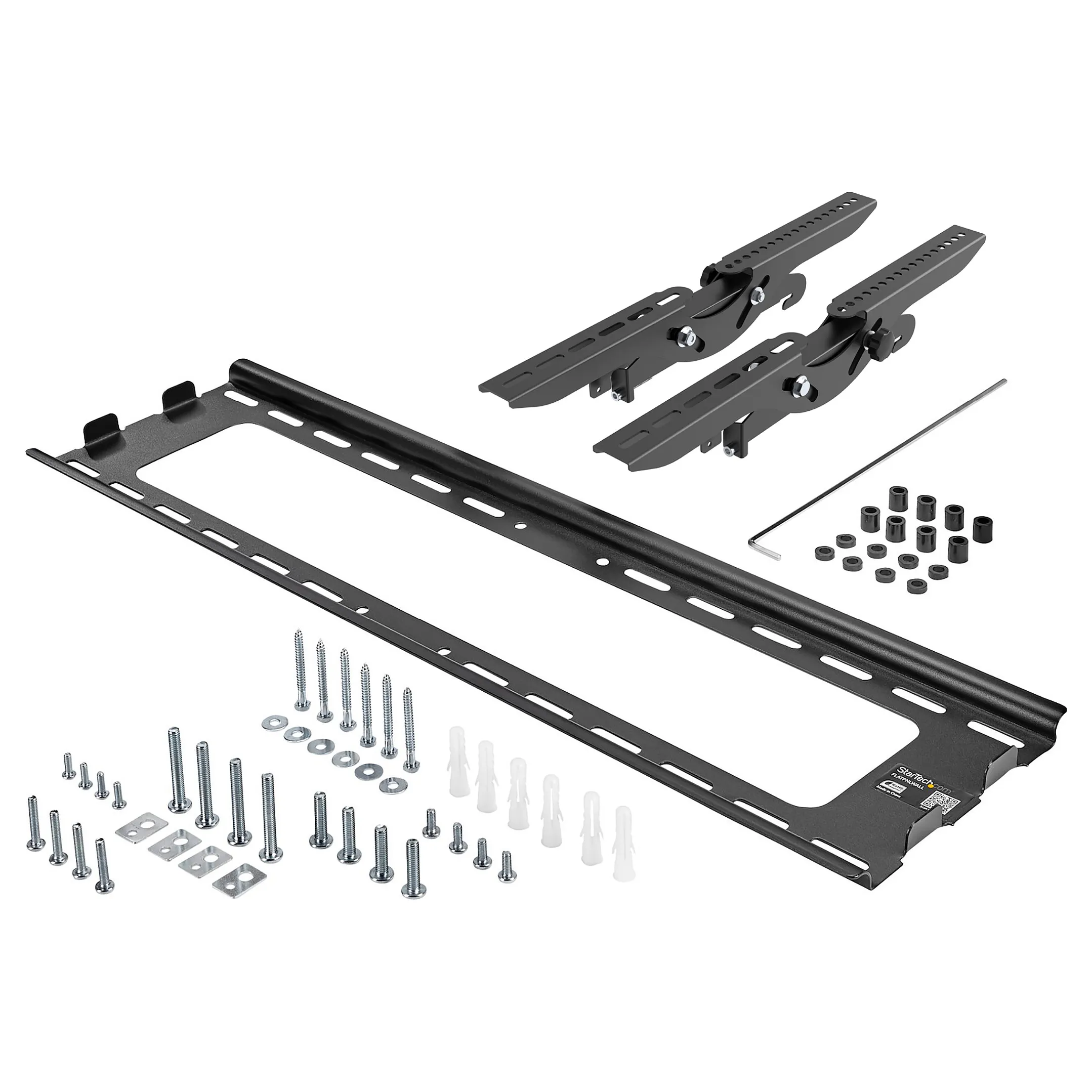

Packaging content
Feature: Adapter bracket included
Number of adapter brackets included: 2
Feature: Anchors included
Number of anchors included: 6
Feature: Wrench included
Feature: Washers included
Wrench type: Hexagonal wrench
Number of washers included: 10
Feature: Spacer included
Number of spacers included: 16
Feature: Screws included
Number of screws: 26
Feature: Manual
Feature: Mounting kit
Weight & dimensions
Width: 83 mm
Depth: 810 mm
Depth (max): 81 cm
Height: 500 mm
Weight: 3.8 kg
Packaging data
Package width: 843 mm
Package depth: 238 mm
Package height: 90 mm
Package weight: 4.9 kg
Logistics data
Master (outer) case width: 846 mm
Master (outer) case length: 287 mm
Master (outer) case height: 266 mm
Products per master (outer) case: 3 pc(s)
Harmonized System (HS) code: 85299097
