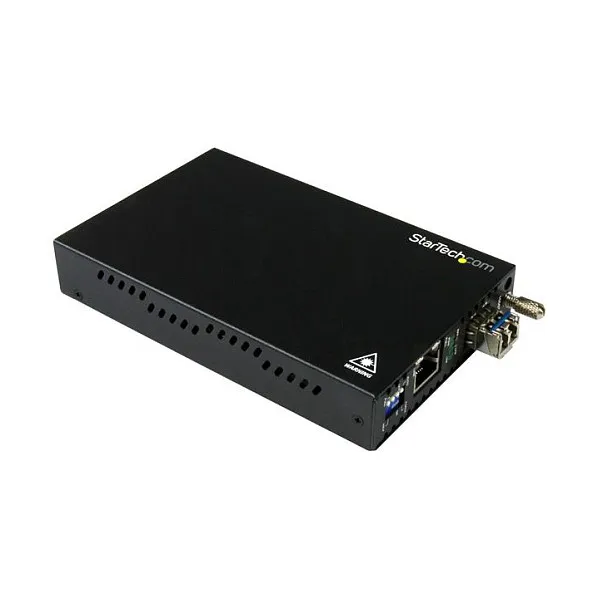

StarTech.com Gigabit Ethernet Copper-to-Fiber Media Converter – SM LC – 20 km. Maximum data transfer rate: 2000 Mbit/s, Converter input interface: 1000Base-T, Converter output interface: 1000Base-LX. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Link, Power, Product colour: Black, Housing material: Plastic, Steel. Fiber optic connector: LC, Connectivity technology: Wired. Input voltage: 100 – 240 V, Input current: 0.48 A, Output voltage: 12 V
Fiber network connections provide greater distance and security, with less electromagnetic interference (EMI) than typical RJ45 copper-based networks, making it perfect for IT professionals and secure setups in government, business, or educational applications.
Flexible integration into mixed network environments
This versatile copper-to-fiber converter supports standalone operation, or alternatively it can be installed into the StarTech.com Rackmount Chassis (ETCHS2U – sold separately), giving you more options for integration into your existing network. The card module can also be inserted back into the ET91000SM20 enclosure, plus it’s compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately).
The converter features a pre-installed Gigabit SFP transceiver with LC connectors. Should your network infrastructure change in the future, you can easily swap and replace the module to adapt the media converter to your new network requirements.

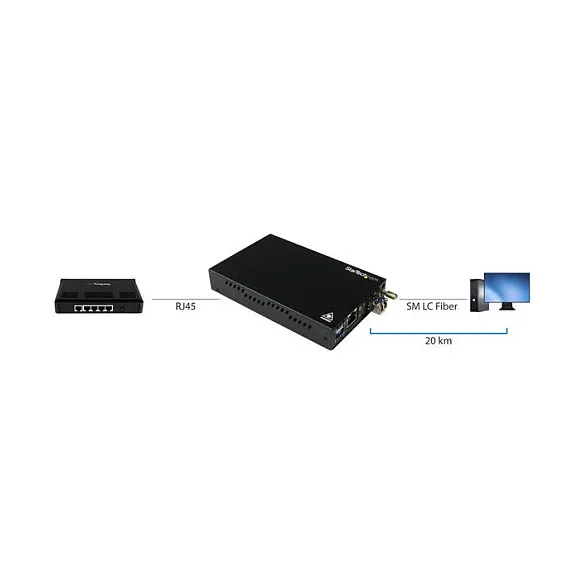

With flexible integration and connectivity up to 20 km away, you can provide network access to remote areas in other buildings, or in areas where Wi-Fi® is unreliable or unavailable.
Rugged and reliable
This heavy-duty fiber media converter is designed for maximum reliability. It features a metal (steel) enclosure, so it can withstand the demands of harsh environments such as factories or warehouses.
Plus, by relying on this more durable fiber media converter, you can reduce the strain on your existing copper-based network equipment and potentially extend the life of those devices, which helps save future expenses.
Diagnose and correct issues easily
This high-performance media converter supports a range of network setup and diagnostic protocols (for example, Link Fault Passthrough, Auto Laser Shutdown (ALS), and Auto MDIX, so you can set up and troubleshoot your network easily.
Prepare your network for the future
If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together.
The ET91000SM20 is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
Maximum data transfer rate: 2000 Mbit/s
Converter input interface: 1000Base-T
Converter output interface: 1000Base-LX
Networking standards: IEEE 802.3ab, IEEE 802.3z
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Jumbo frames support
Jumbo frames: 9600
Feature: Auto MDI/MDI-X
Duplex system: Full, Half
Performance
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode
Mean time between failures (MTBF): 65000 h
Features
LED indicators: Link, Power
Product colour: Black
Housing material: Plastic, Steel
Ports & interfaces
Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: LC
Power
Input voltage: 100 – 240 V
Input current: 0.48 A
Output voltage: 12 V
Output current: 1.6 A
Power consumption (max): 19.2 W
Power plug type: Type M
Weight & dimensions
Width: 88 mm
Depth: 159 mm
Height: 23 mm
Weight: 410 g
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -10 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Packaging content
Feature: AC adapter included
Feature: Manual
Packaging data
Package width: 137 mm
Package depth: 207 mm
Package height: 90 mm
Package weight: 778 g
Certificates
Compliance certificates: RoHS
Certification: CE, FCC
Logistics data
Harmonized System (HS) code: 85176990
