StarTech.com USB C Multiport Adapter – USB-C to 4K 60Hz HDMI 2.0, 100W Power Delivery Pass-Through Charging, 3-Port USB 3.0 Hub, Audio – USB-C Mini Dock – Portable USB Type-C Travel Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Power consumption (typical): 8 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3…, Mobile operating systems supported: Android, iPadOS. Width: 90 mm, Depth: 32 mm, Height: 8.5 mm

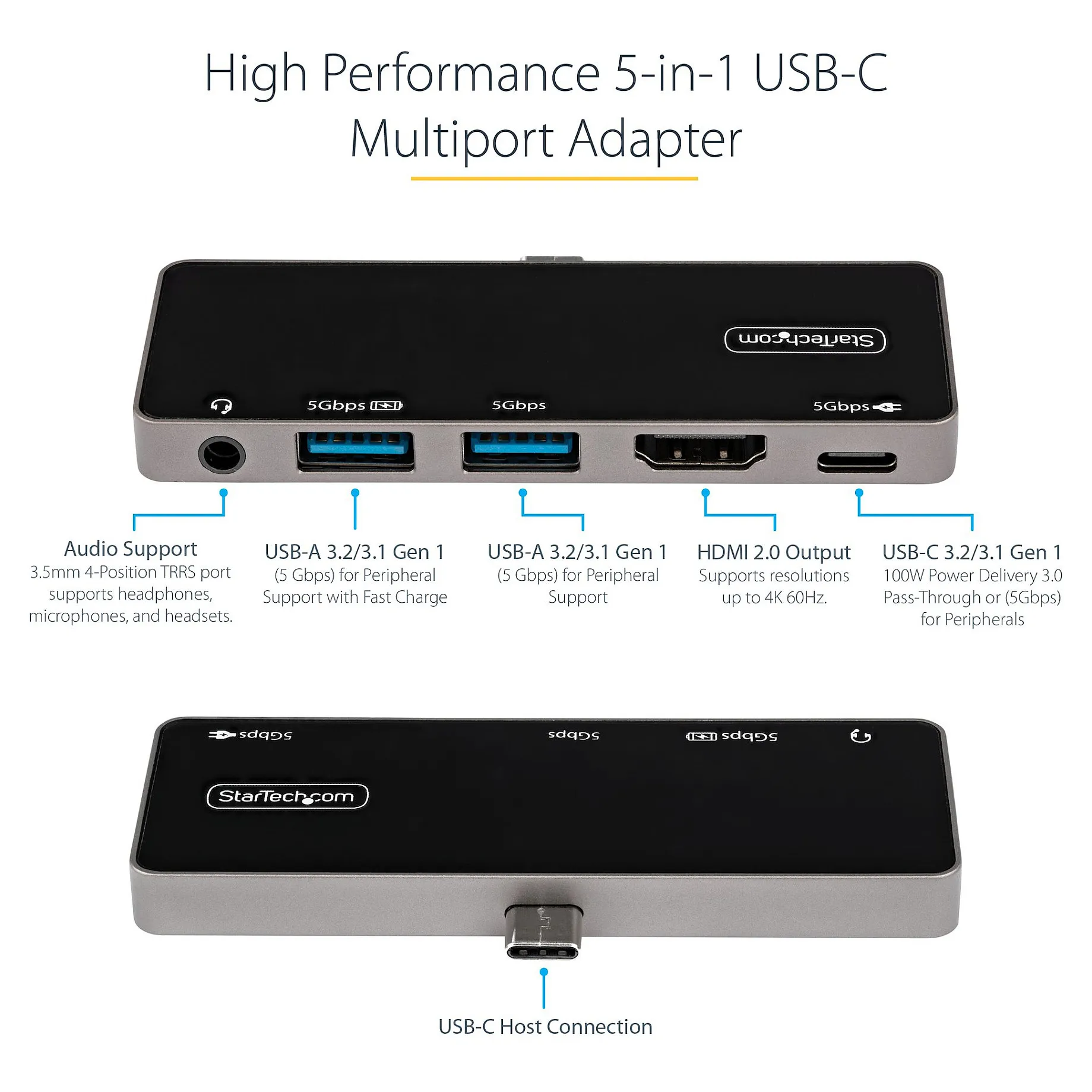

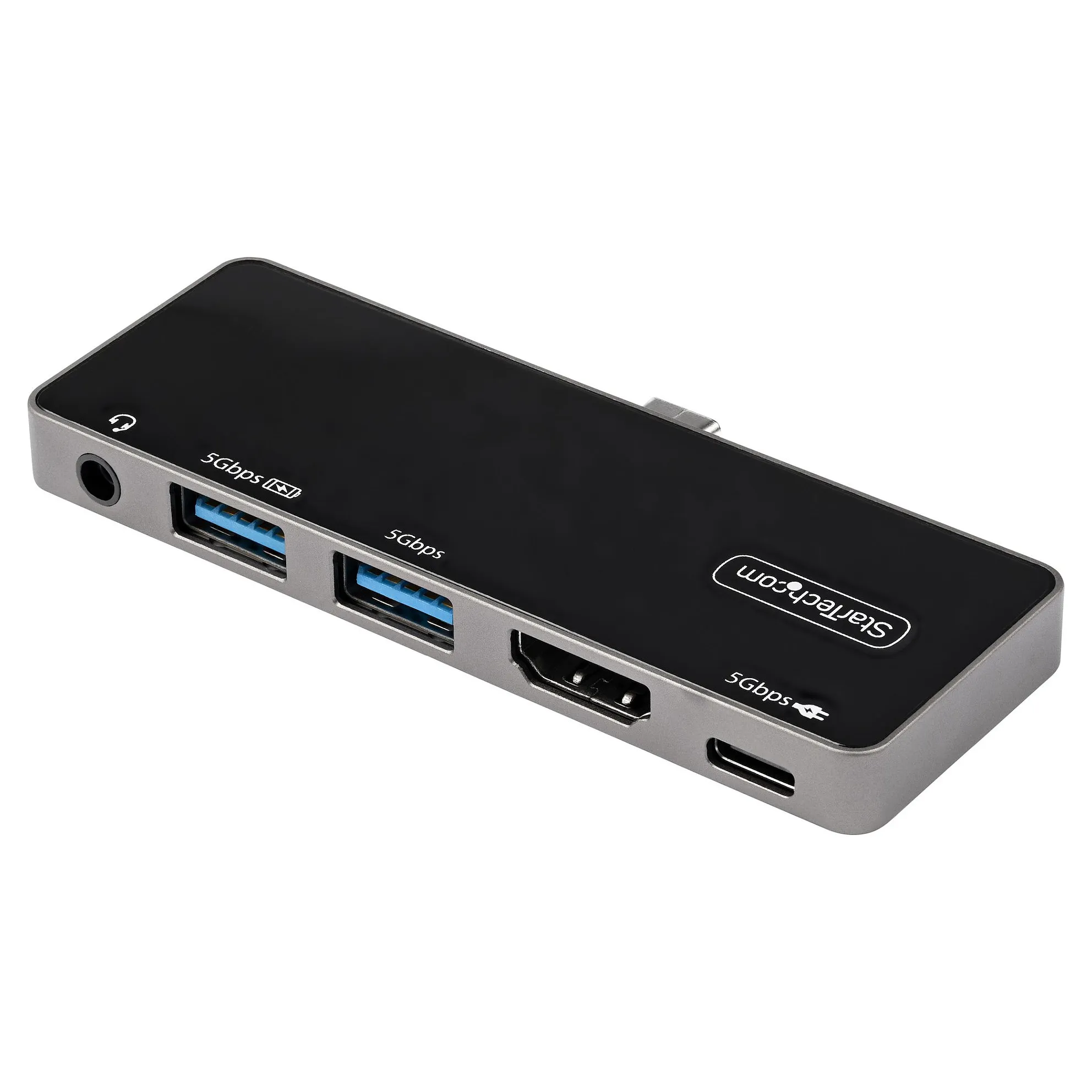

This USB-C multiport adapter with DP 1.4 compatibility turns your iPad Pro, Surface Pro 7, Google Pixelbook and other USB-C™ tablets and laptops into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K 60Hz HDMI (HDR10) video output, a USB Type-C™ port (data/power), two USB 3.2 Gen 1 Type-A (5Gbps) ports, and a TRRS 4-channel audio port for headset and mic, all through a single connection to your laptop’s USB-C or Thunderbolt 3™ port.
It offers advanced charging through USB 100W Power Delivery 3.0 and eliminates the need for an attached cable with a direct/flush USB-C connection
Enhance Productivity
The portable docking station features DP 1.4 support from the host side and supports a single HDMI monitor resolution up to 4K 60Hz (4096 x 2160p), when connected to devices that support DP 1.4, to create a powerful workstation.
DP Alt Mode Required
Maximum Resolution
DP 1.2 Alternate Mode
Up to 4K 30Hz
DP 1.4 Alternate Mode
Up to 4K 60Hz
Connect Your Devices

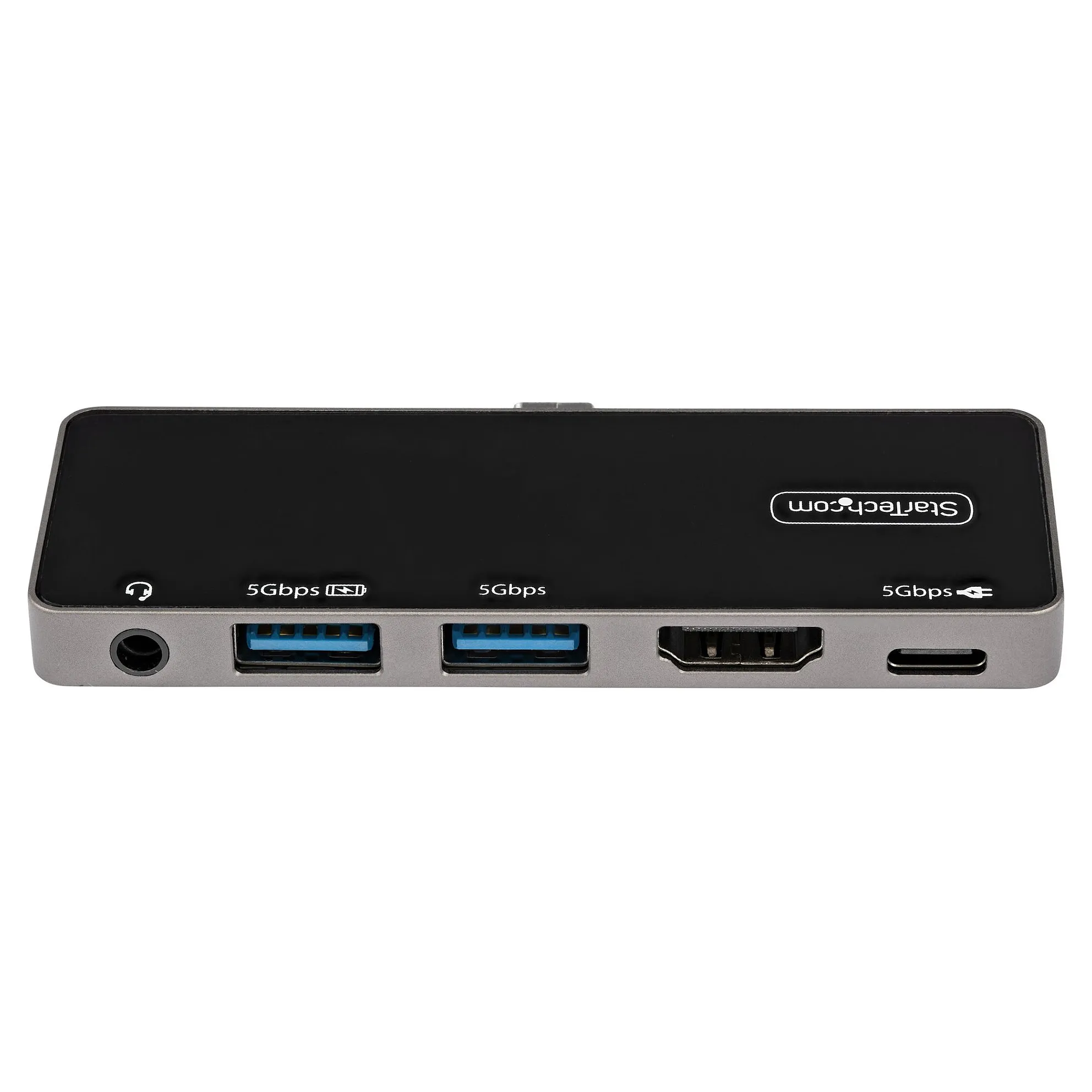

The USB-C to USB 3.2 Gen 1 hub gives you two USB-A ports (one BC 1.2 charging port) and a USB-C port (shared for power or data) to connect your USB devices.
Charge Your Laptop and Peripherals
With support for USB Power Delivery 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The multiport adapter itself reserves 8W leaving up to 92W of power for charging. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
The DKT30ICHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery.
The StarTech.com Advantage
Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
HDMI version: 2.0
Feature: Combo headphone/mic port
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Performance
Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 1
Maximum refresh rate: 60 Hz
Product colour: Black, Silver
Power
Power consumption (typical): 8 W
Software
Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Mobile operating systems supported: Android, iPadOS
Other operating systems supported: ChromeOS
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -10 – 70 °C
Operating relative humidity (H-H): 10 – 85%

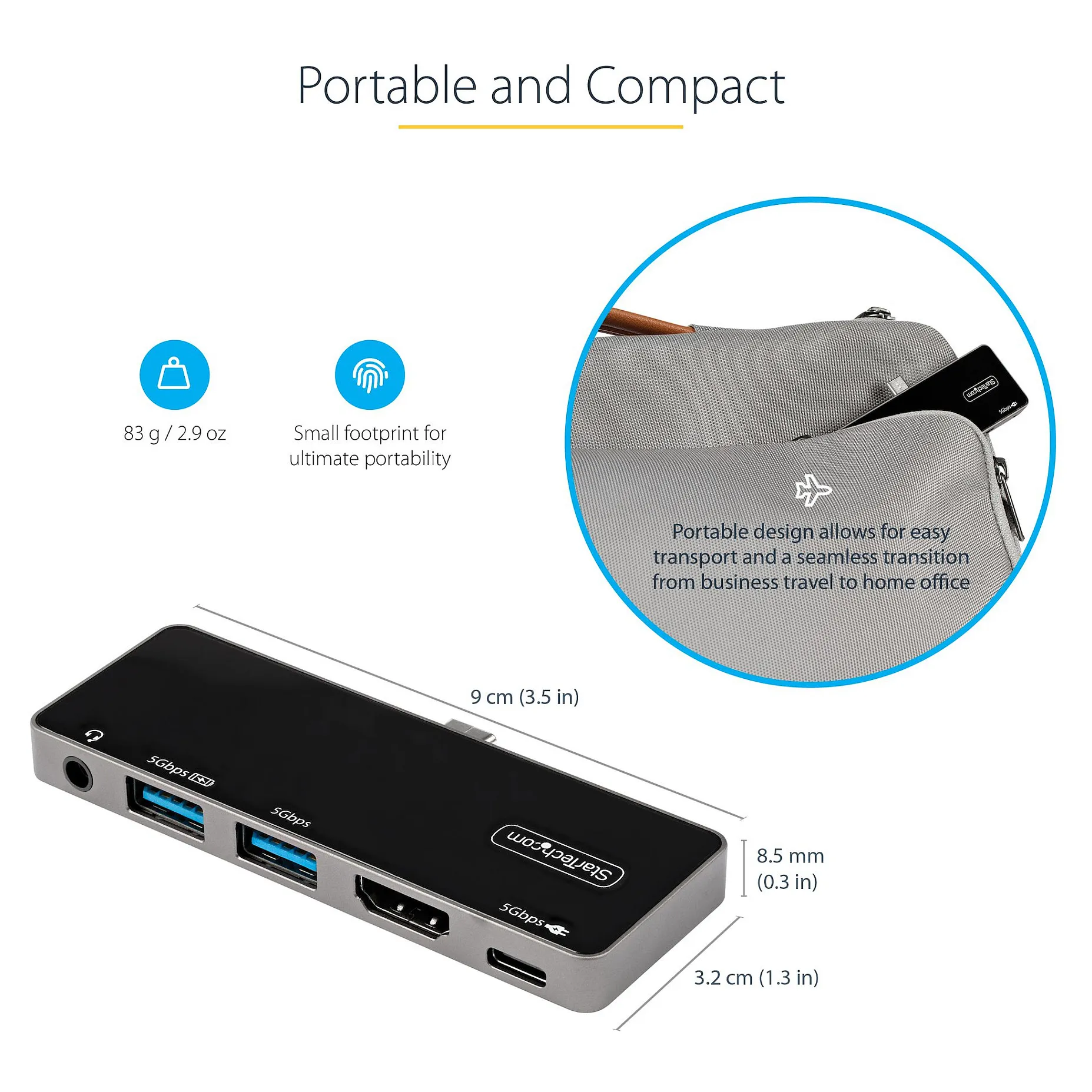

Weight & dimensions
Width: 90 mm
Depth: 32 mm
Height: 8.5 mm
Weight: 83 g
Packaging data
Quantity per pack: 1 pc(s)
Package width: 142 mm
Package depth: 170 mm
Package height: 30 mm
Package weight: 110 g
Packaging content
Feature: User guide
Technical details
Compliance certificates: CE, RoHS
Logistics data
Products per master (outer) case: 30 pc(s)
Master (outer) case width: 450 mm
Master (outer) case length: 340 mm
Master (outer) case height: 200 mm
Harmonized System (HS) code: 84733020
Other features
Chipset: VIA Labs – VL102, VIA Labs – VL817, Parade – PS186
