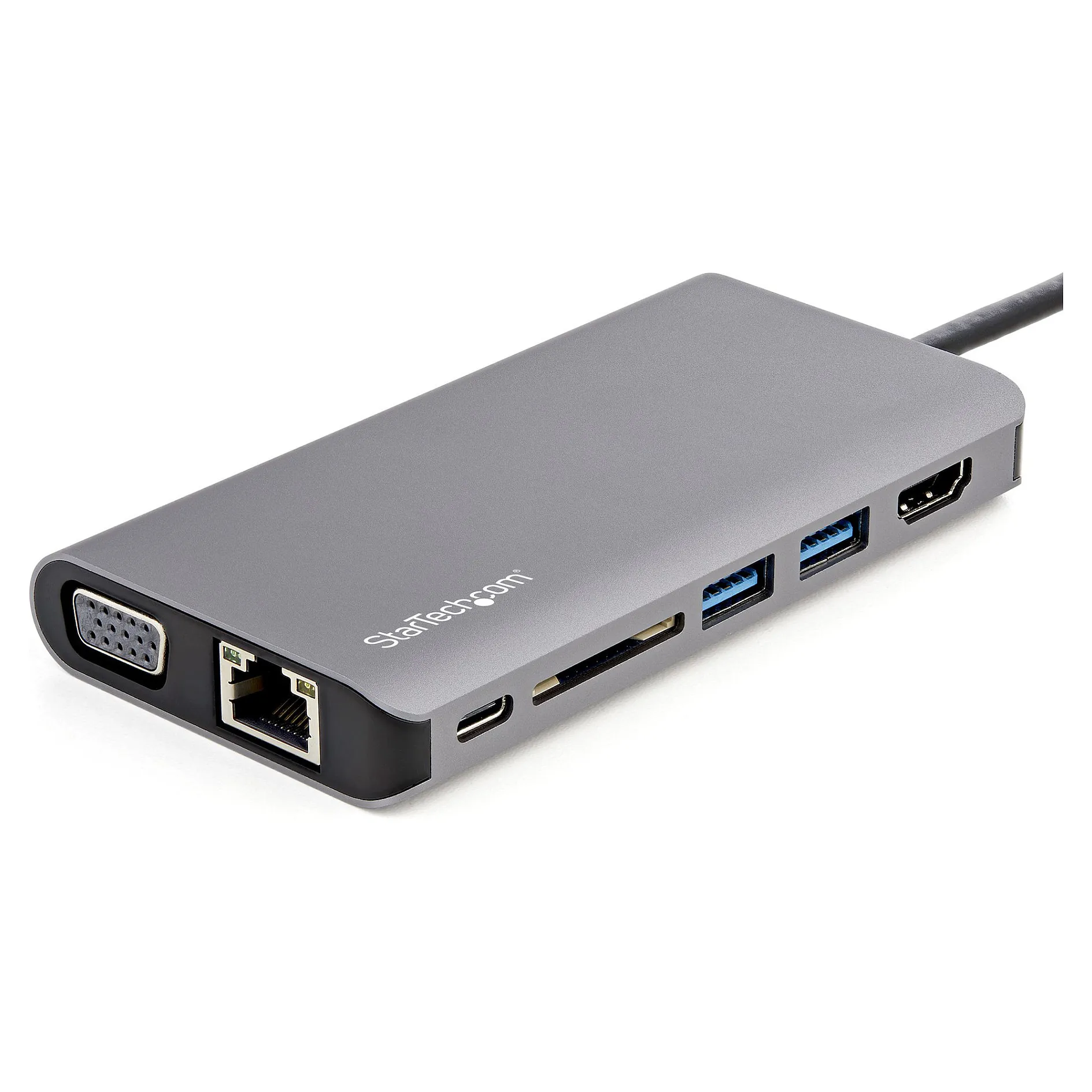

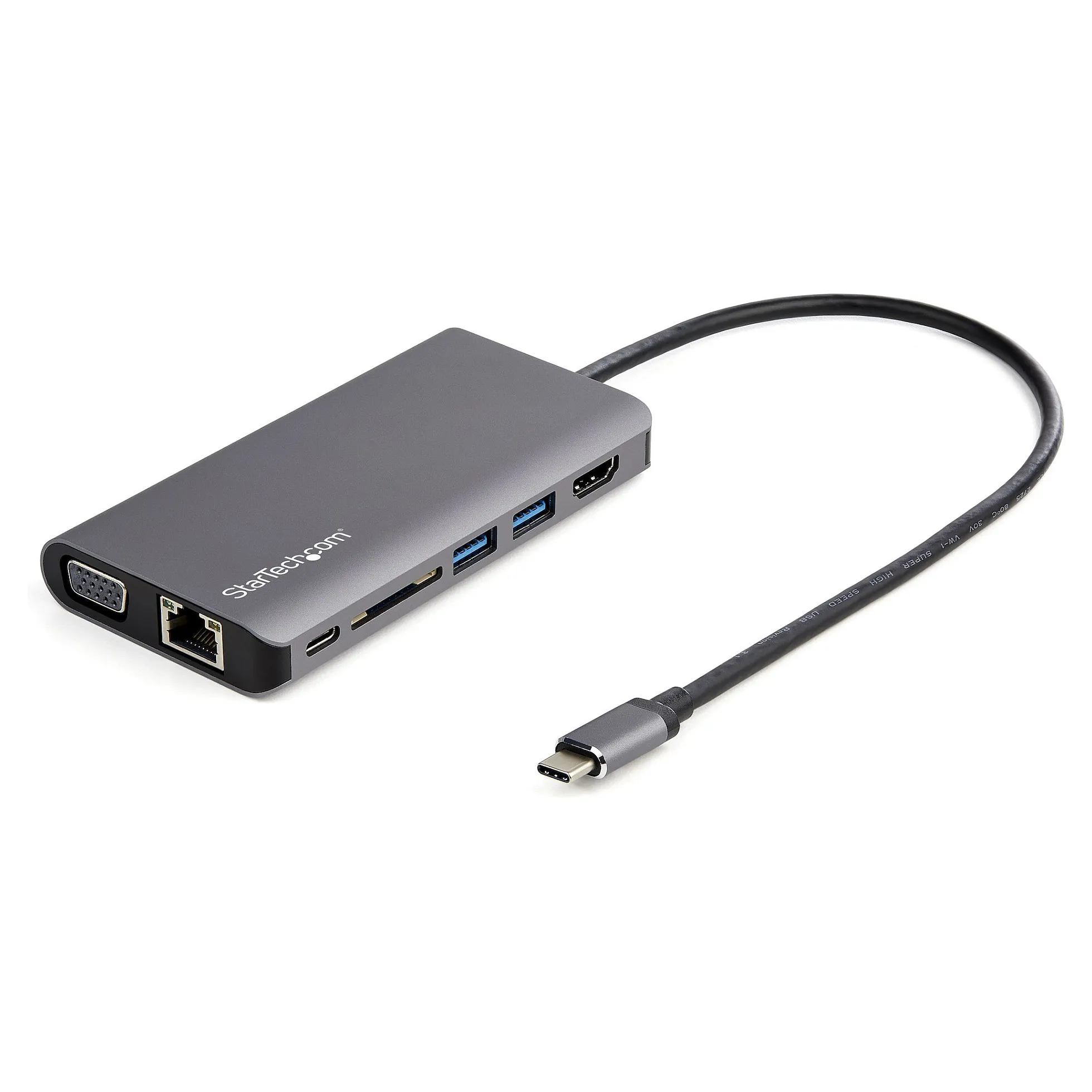

StarTech.com USB C Multiport Adapter – USB-C Mini Travel Dock w/ 4K HDMI or 1080p VGA – 3x USB 3.0 Hub, SD, GbE, Audio, 100W PD Pass-Through – Portable Docking Station for Laptop/Tablet. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Compatible memory cards: SD, SDHC, SDXC, Data transfer rate: 5 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14…, Mobile operating systems supported: Android, iOS. Width: 61 mm, Depth: 460 mm, Height: 15 mm

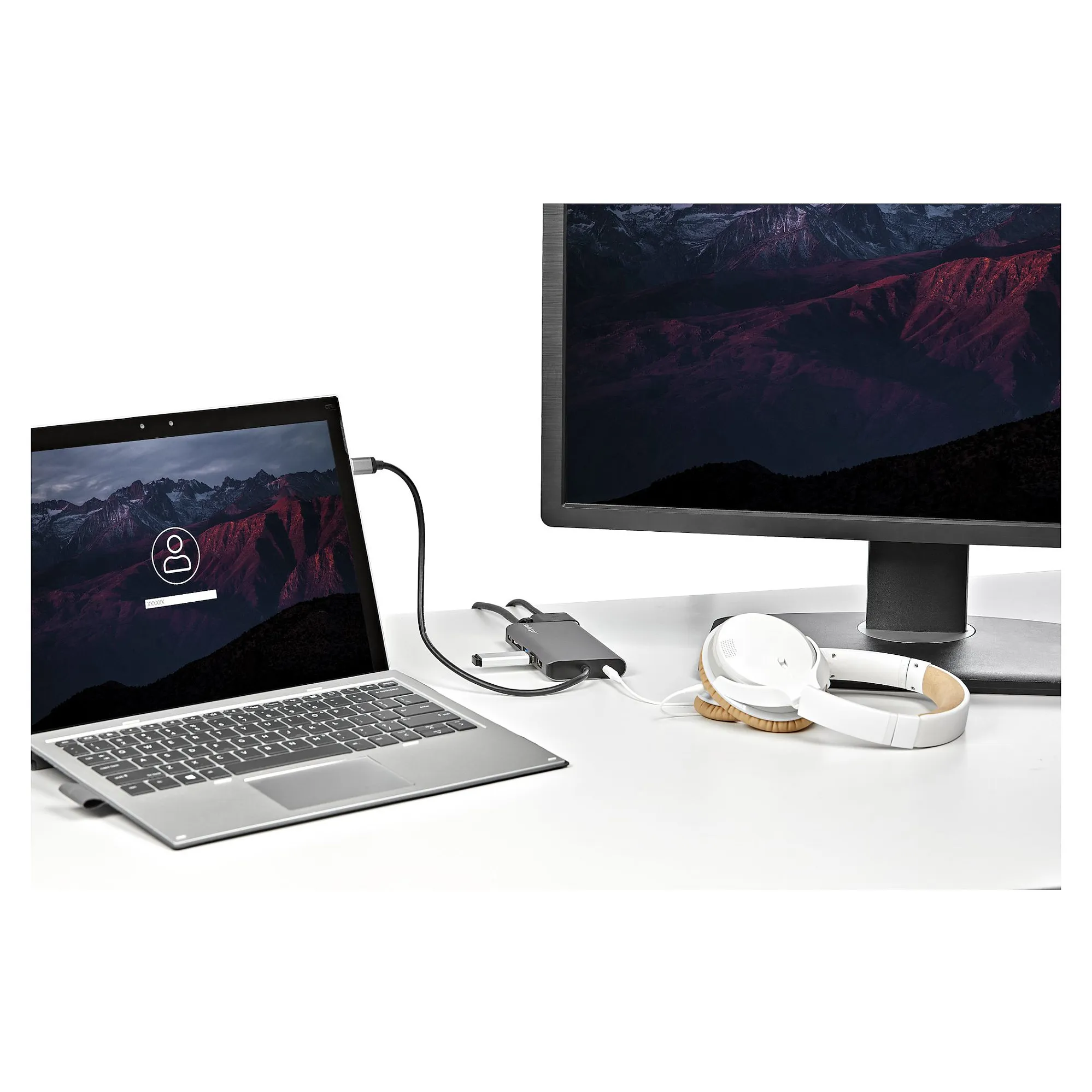

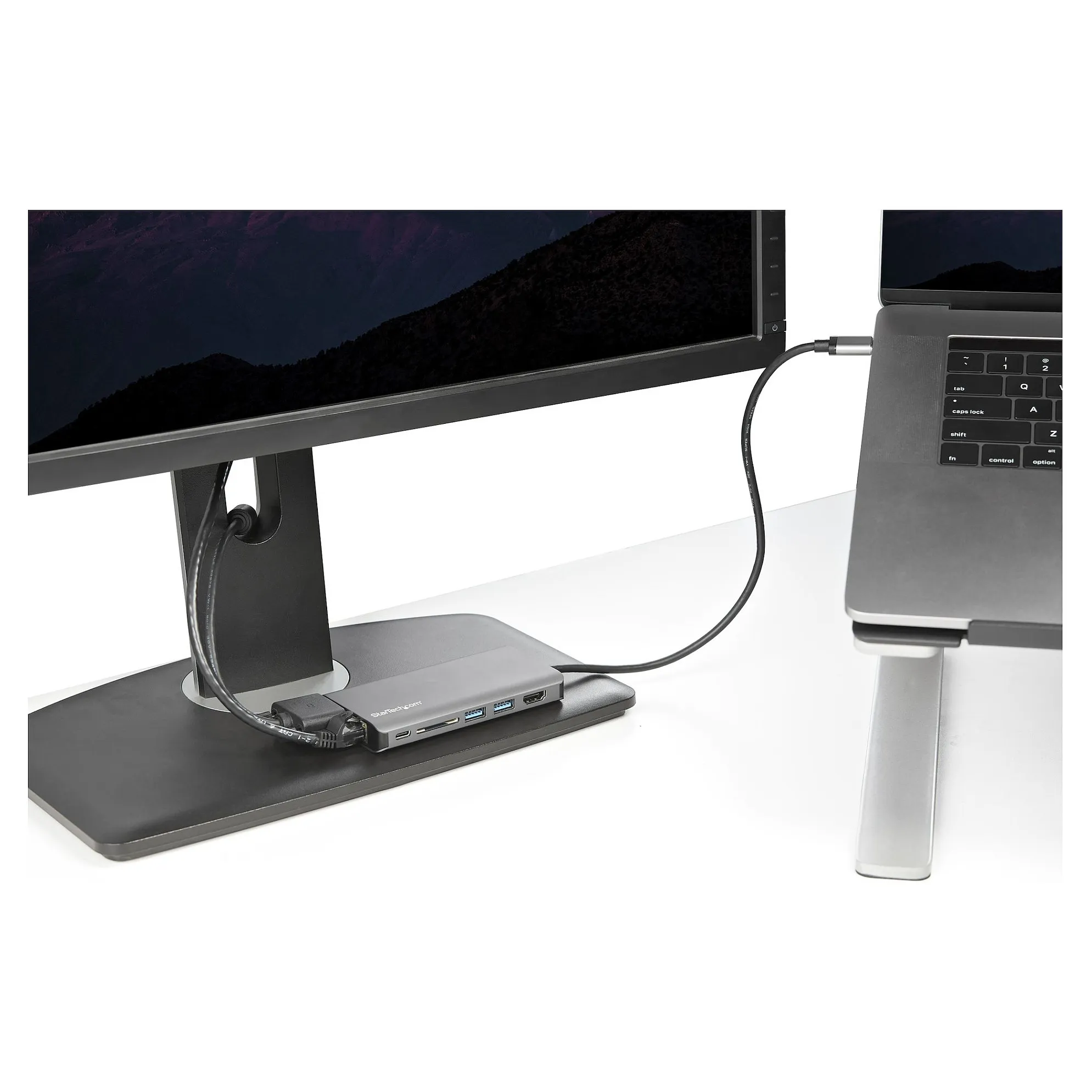

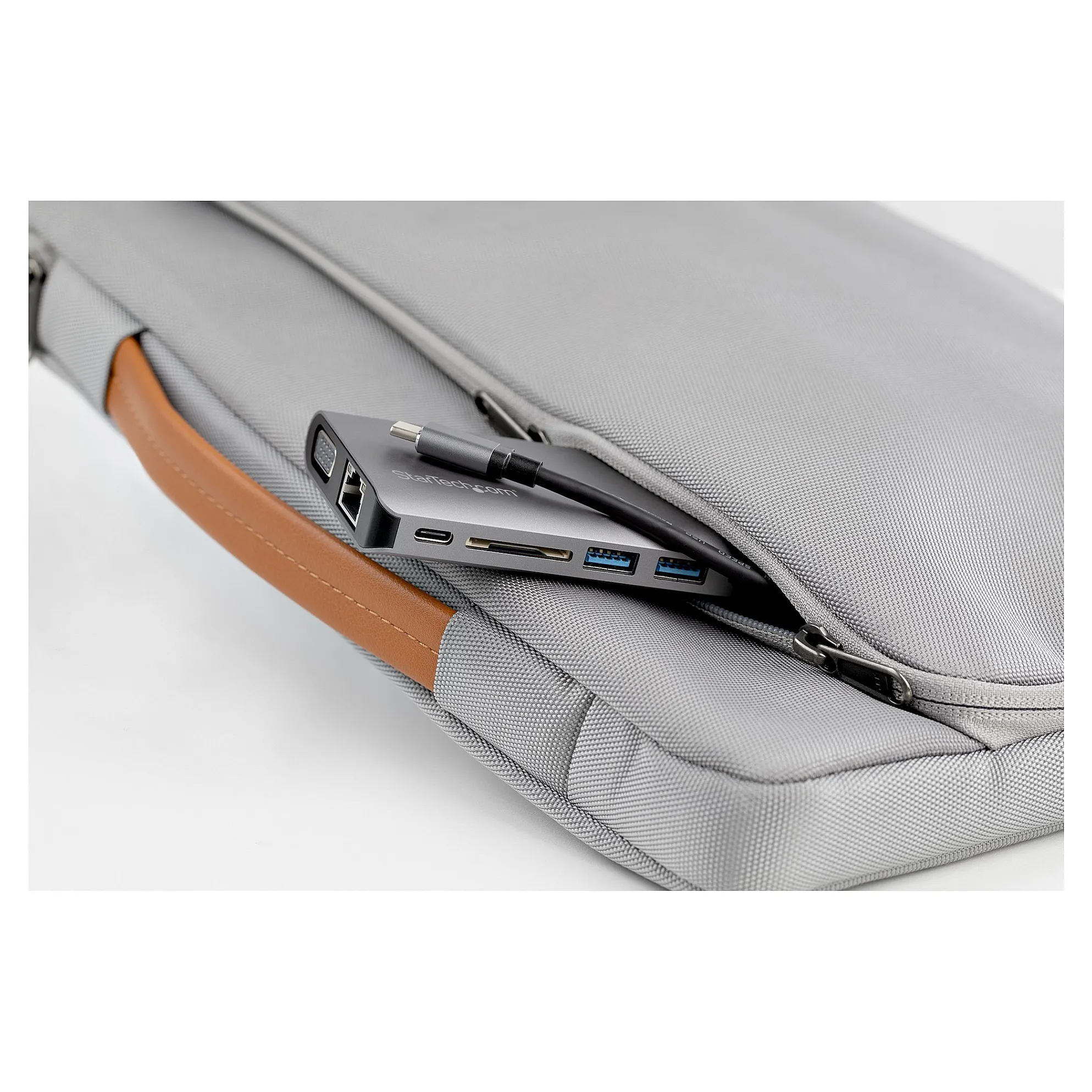

This USB-C multiport adapter turns your MacBook Pro, USB-C™ laptop, Chromebook, or Android (Samsung Galaxy S8, Note 9 and above) device into a workstation, anywhere you go. A USB Type-C adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs and USB ports to an SD card reader and 100W PD including PD passthrough. All through a single extended length 30 cm, Thunderbolt 3 or USB-C attached host cable, providing more flexibility for harder to reach laptop and tablet connections.
To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.
Two Video Output Options with HDMI or VGA

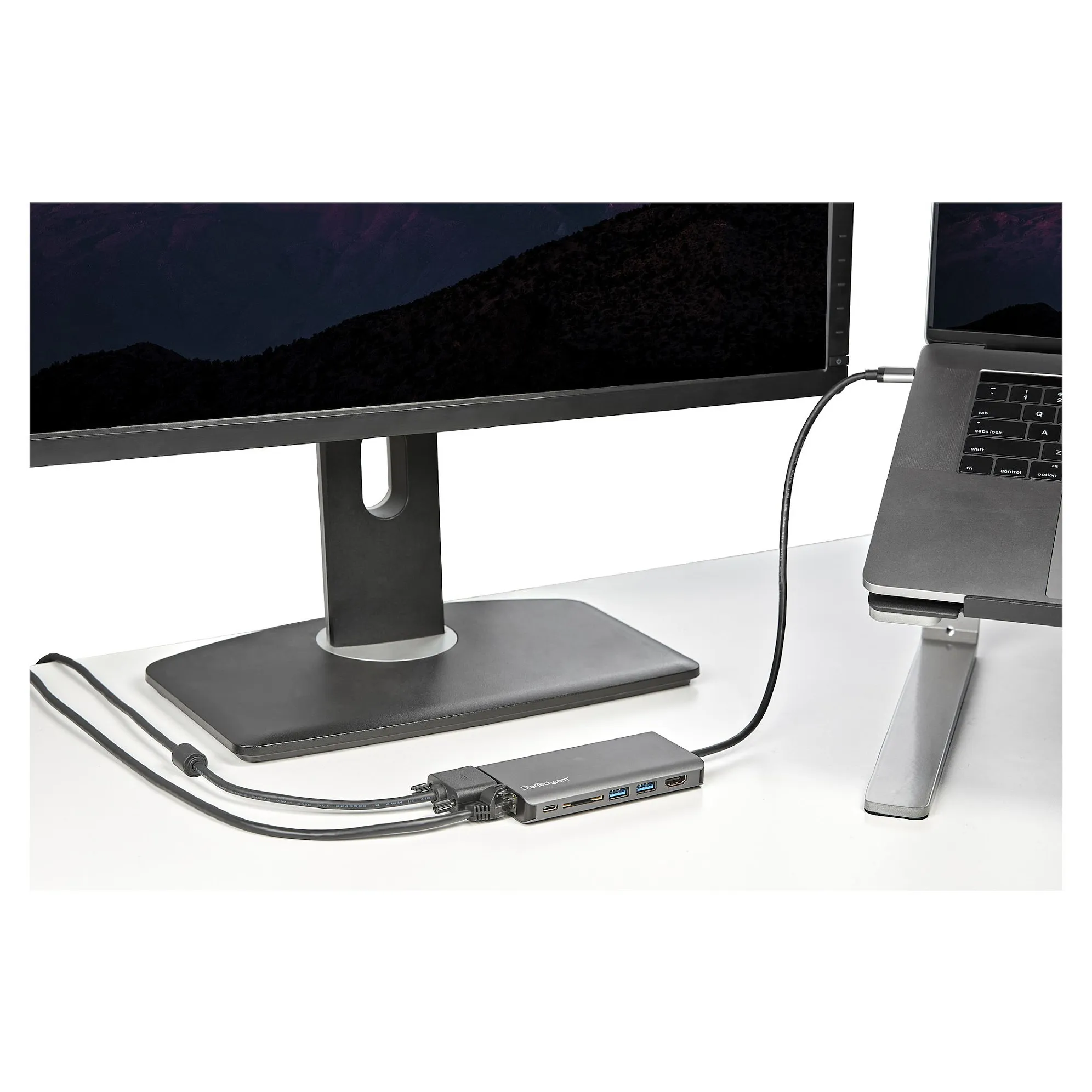

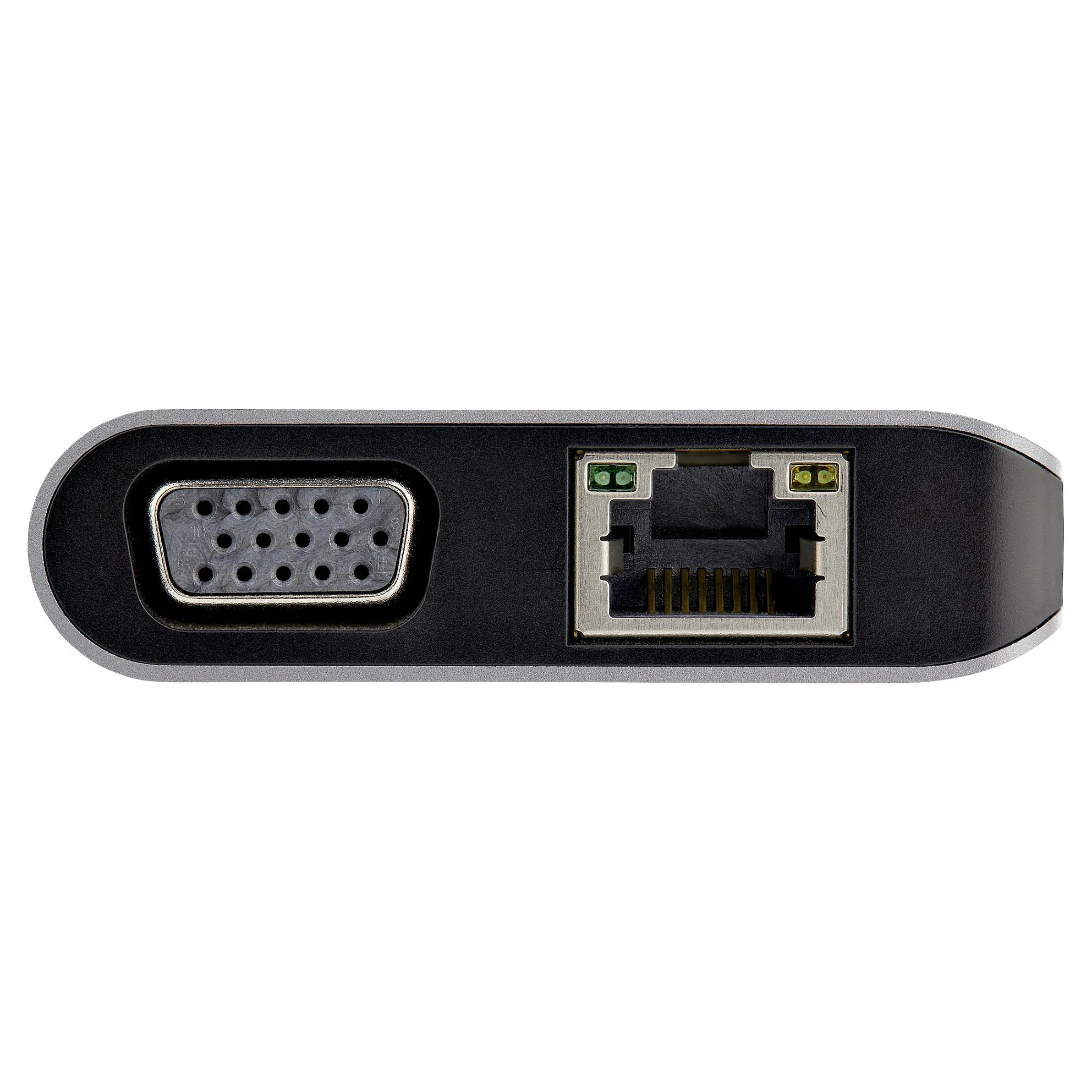

This USB-C multiport adapter features both an HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.
Power & Charge with 100W Power Delivery 3.0
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The USB-C hub features PD passthrough so you can use your laptop’s own charger to power the hub (requires 15W) and power or charge your laptop simultaneously.
All the Essential Ports with USB

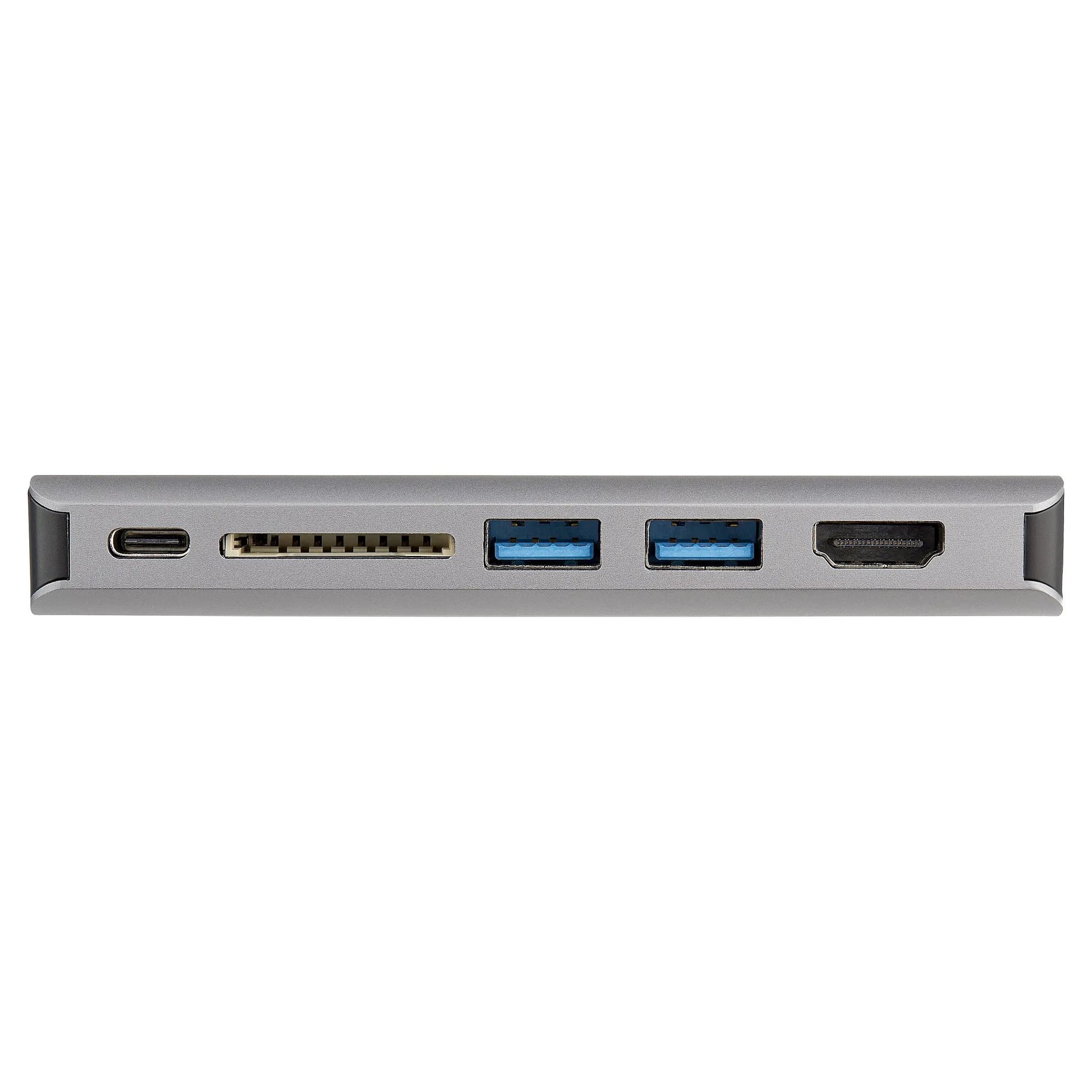

The USB-C to USB 3.0 hub gives you one USB-C port (power & data) and two USB-A ports to connect your latest and legacy USB devices.
Includes Ports to Do More with SD, Audio & Gigabit Ethernet
Access your multimedia content, audio, and network with ease. The multiport adapter provides direct access to your:
• SD, SDHC™ and SDXC™ memory cards or microSD cards via the SD card slot

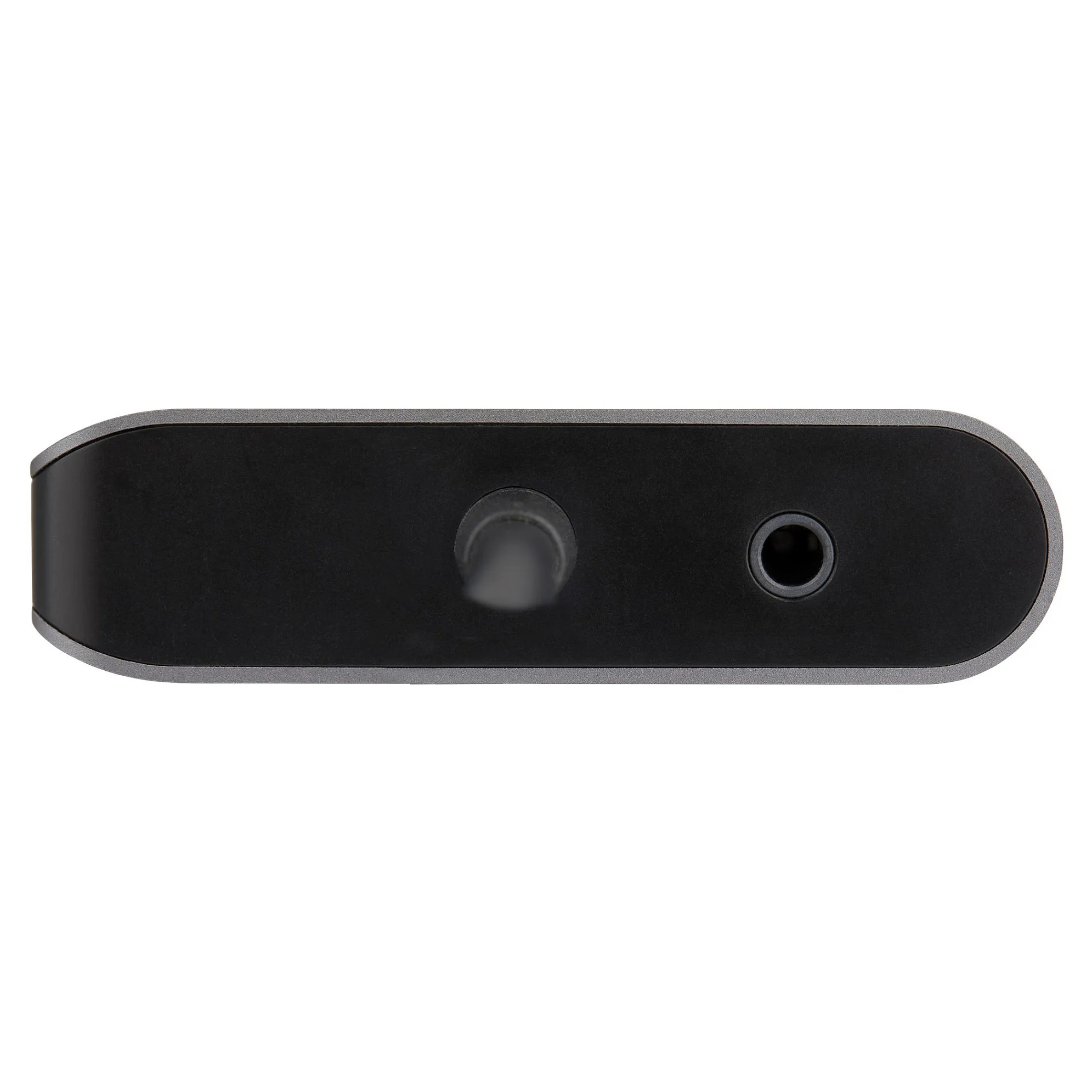

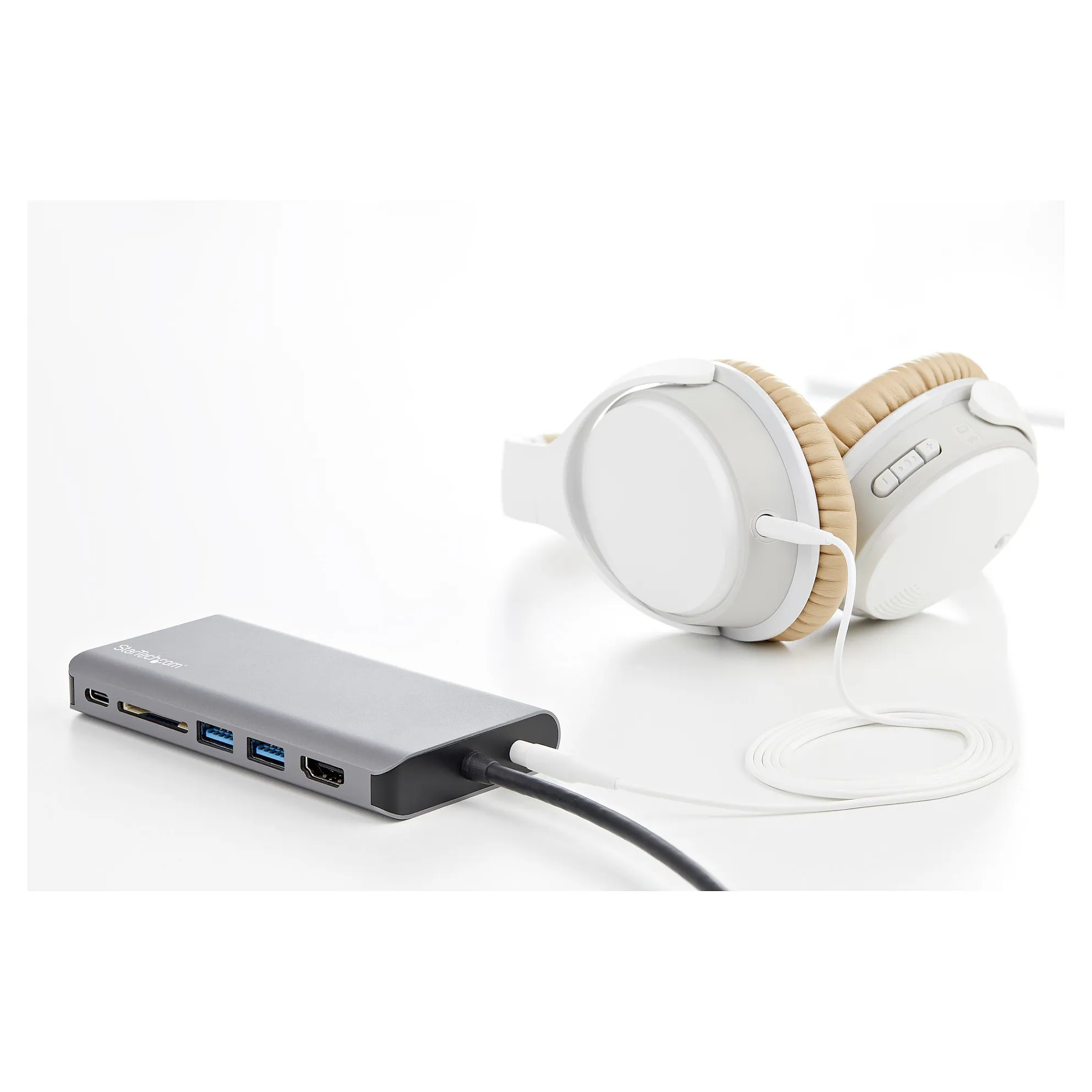

• Audio content via headphones or microphone through the 3.5mm 4- position audio port
• Ethernet network via the GbE port using a hard-wired connection

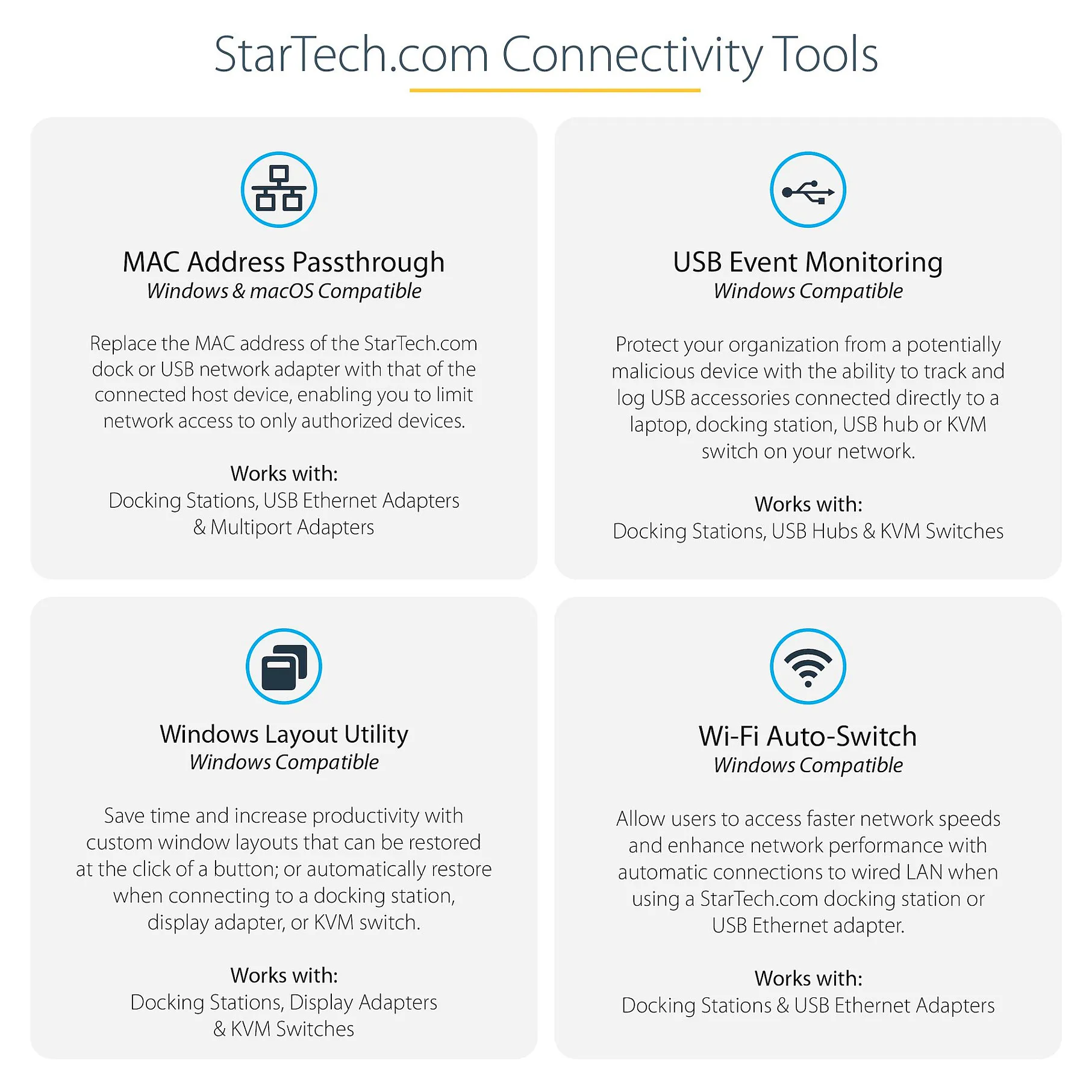

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
DKT30CHVAUSP is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: Combo headphone/mic port
Headphone outputs: 1
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Performance
Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 4096 x 2160 pixels
Maximum analog resolution: 1920 x 1200 pixels
Product colour: Black, Grey
Housing material: Aluminium, Plastic
Certification: CE, FCC, REACH
Software
Mobile operating systems supported: Android, iOS
Other operating systems supported: ChromeOS
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -10 – 82 °C
Operating relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 61 mm
Depth: 460 mm
Height: 15 mm
Weight: 125 g
Packaging data
Package width: 145 mm
Package depth: 117 mm
Package height: 30 mm
Package weight: 190 g
Packaging content

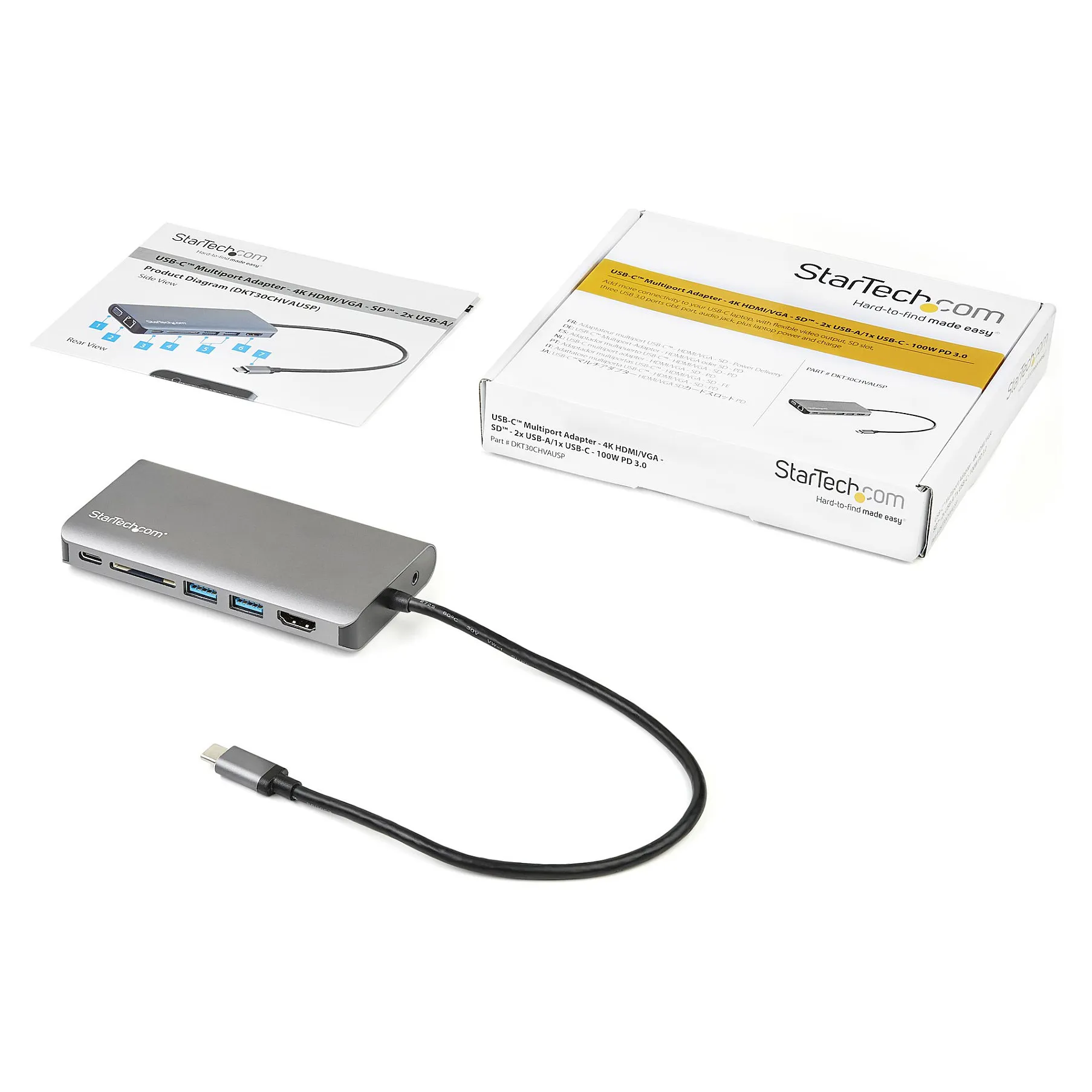

Feature: Quick start guide
Technical details
Compliance certificates: RoHS
Logistics data
Products per master (outer) case: 70 pc(s)
Master (outer) case width: 335 mm
Master (outer) case length: 470 mm
Master (outer) case height: 440 mm
Harmonized System (HS) code: 84733020
Other features

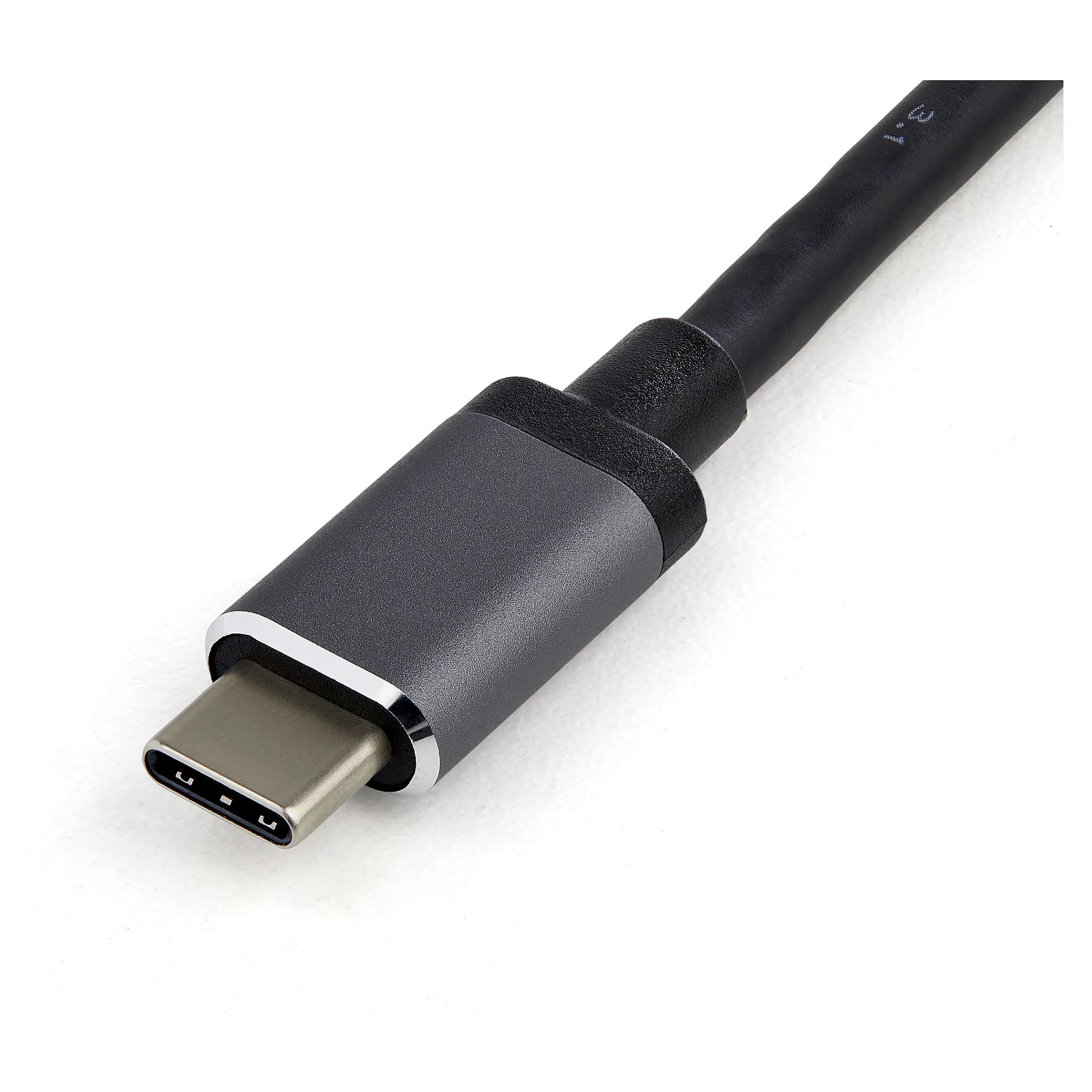

Cable length: 0.3 m
Chipset: VIA Labs – VL102, VIA Labs – VL161, VIA Labs – VL817, Genesys Logic – GL823K, ITE Tech – IT6564, Realtek – RTL8153B, Cmedia – HS100-B
