StarTech.com USB-C & USB-A Dock – Hybrid Universal Triple Monitor Laptop Docking Station DisplayPort & HDMI 4K 60Hz – 85W Power Delivery, 6x USB Hub, GbE, Audio – USB 3.1 Gen 2 10Gbps – TAA. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Data transfer rate: 10 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 100 – 240 V, Input current: 2.5 A, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High…

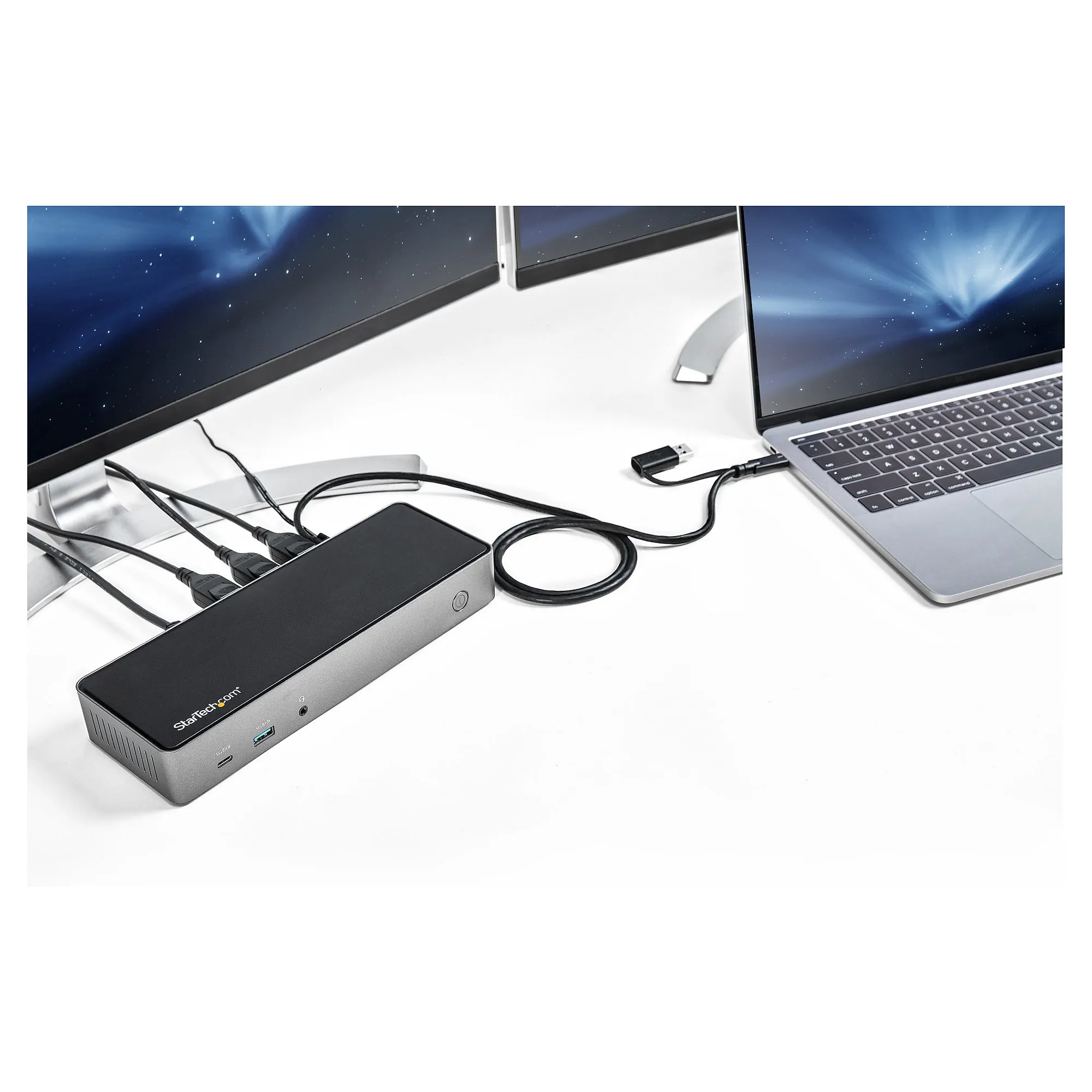

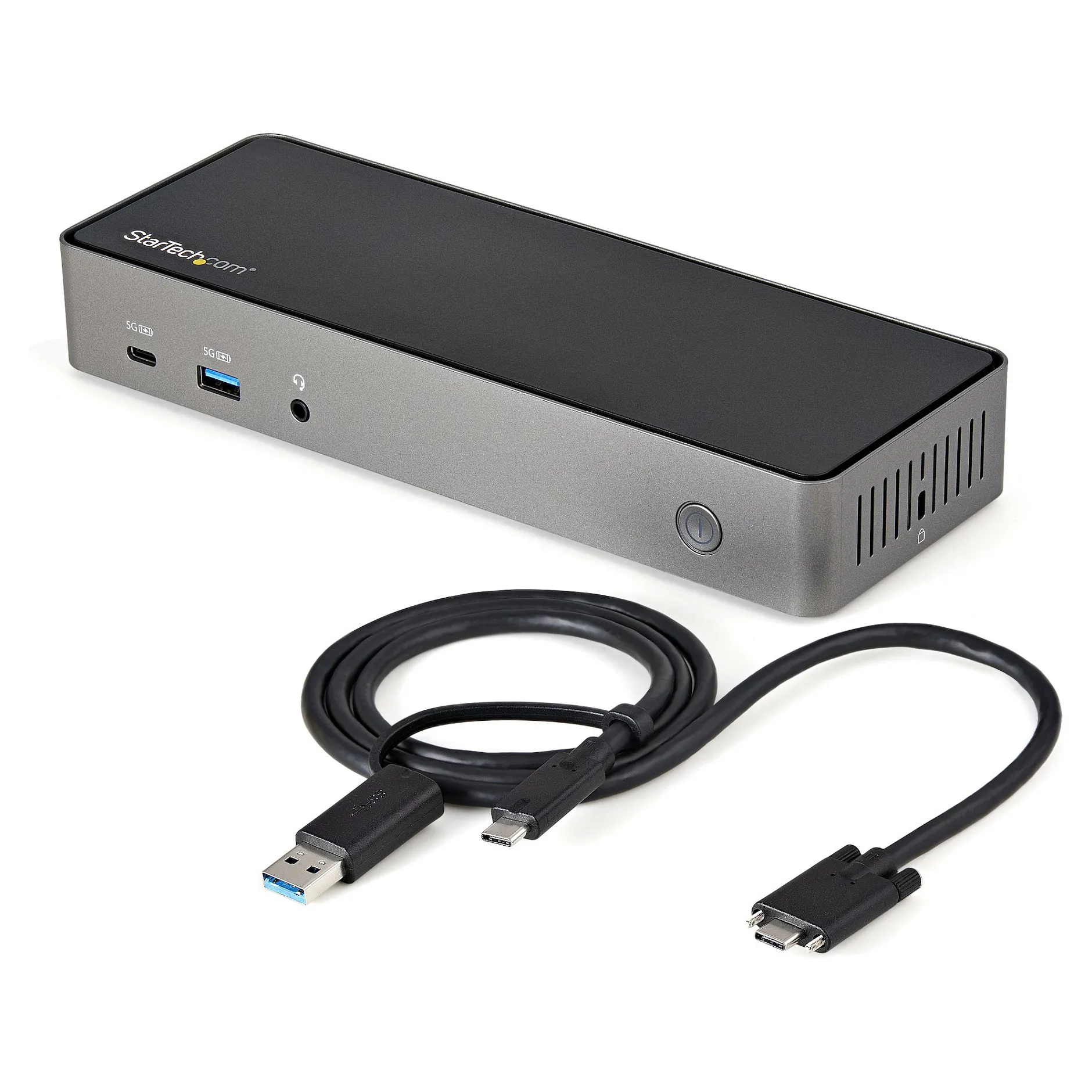

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery. Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included.

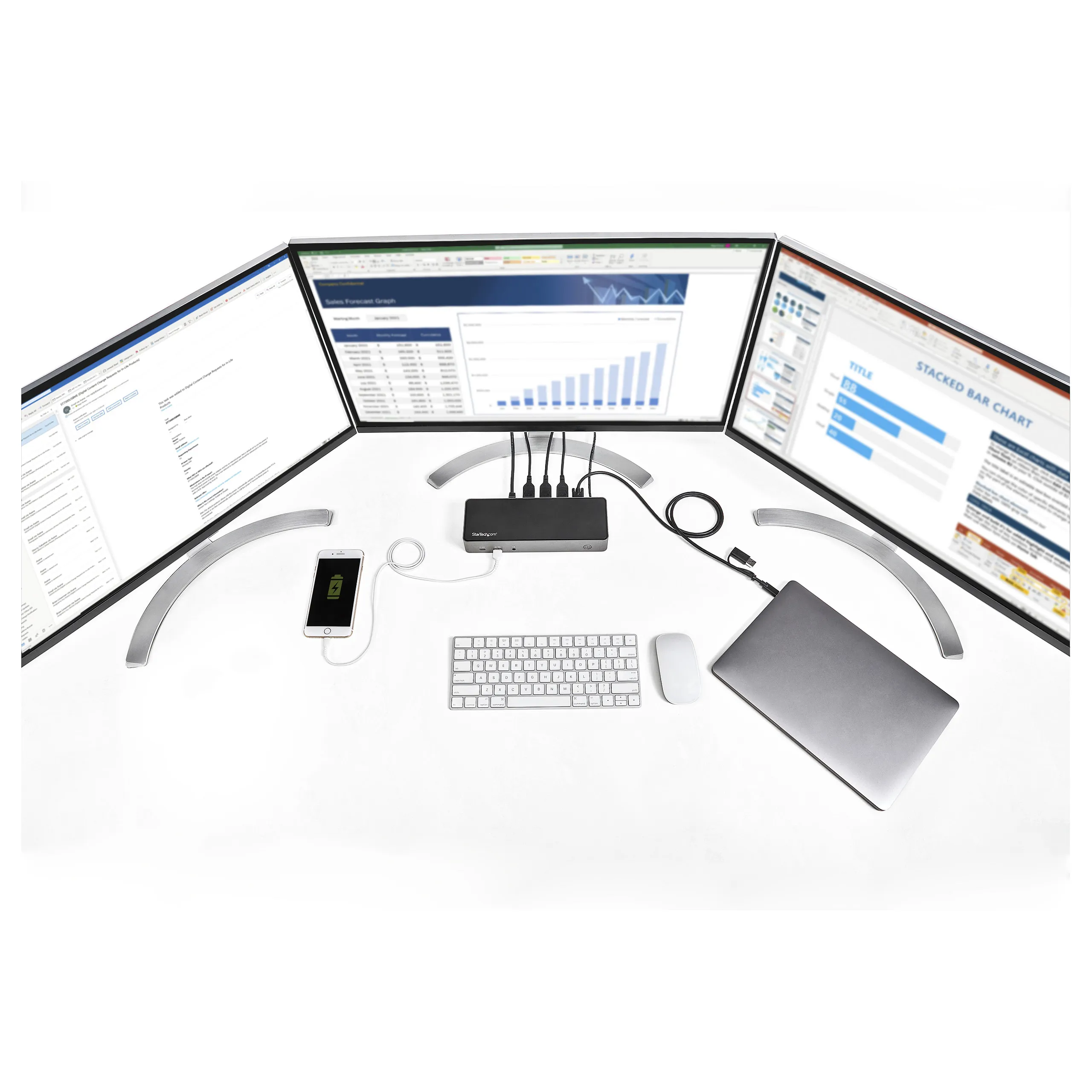

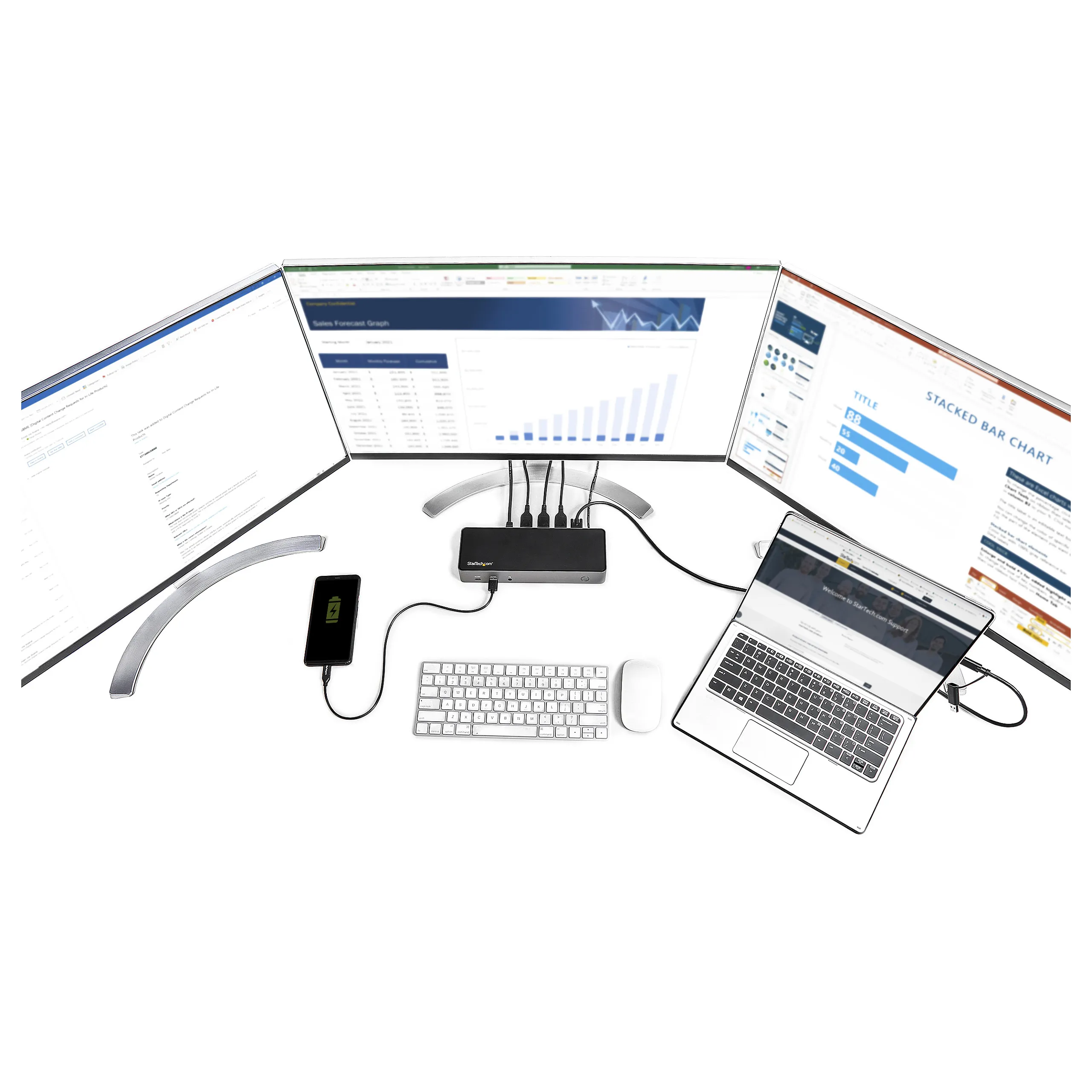

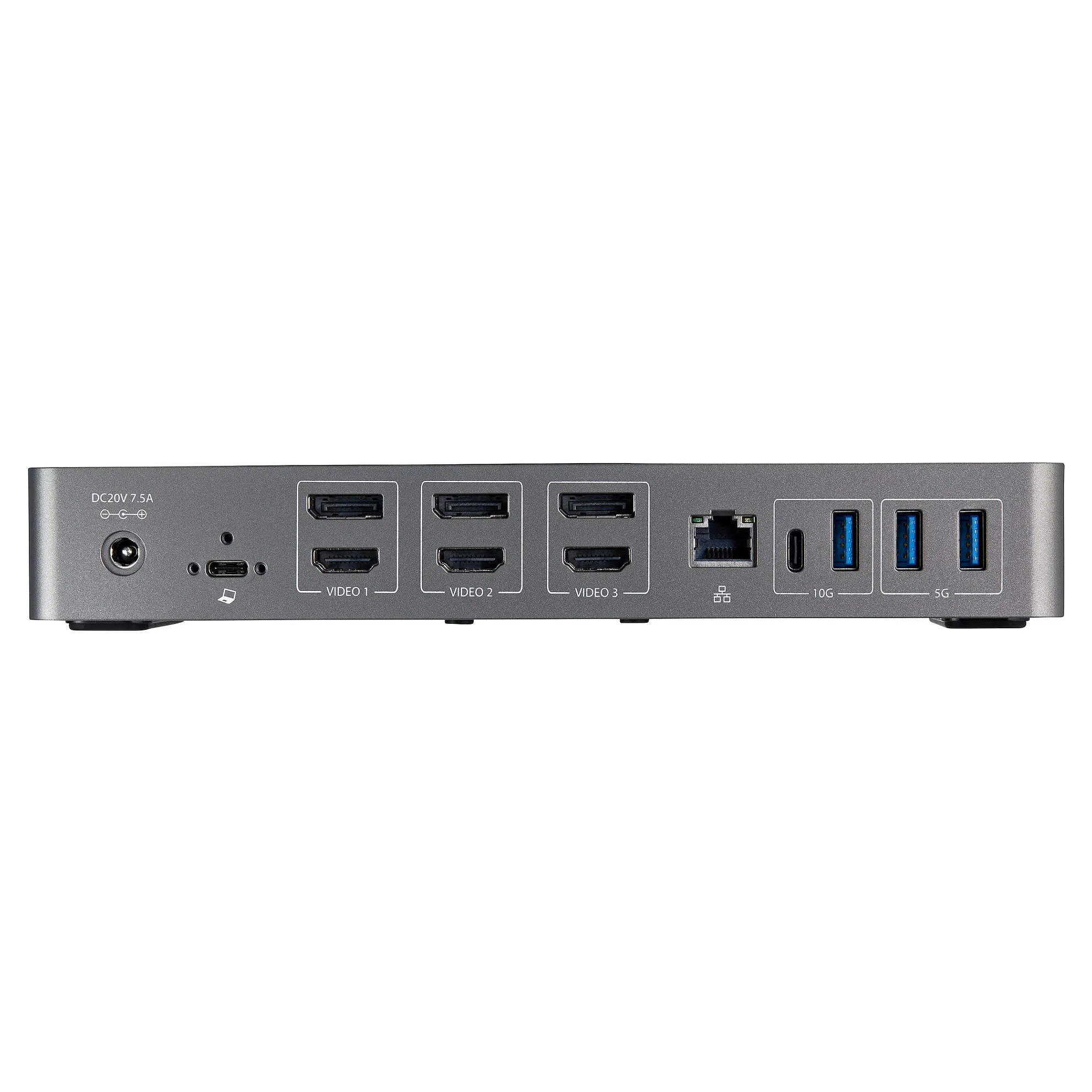

HDMI & DisplayPort for Triple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup.
Host
Display Output
USB-C Gen 1 or 2 (with DP 1.4)
Triple Display – 3x 4K 60Hz
Thunderbolt 3 (DP 1.4 Supported)
Triple Display – 3x 4K 60Hz
USB-C Gen 1 (with DP 1.2)
Triple Display – 2x 4K 60Hz; 1x 4K 30Hz
USB-A or USB-C (No DP Alt Mode)
Dual Display – 2x 4K 60Hz
Power & Charge with 85W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PD

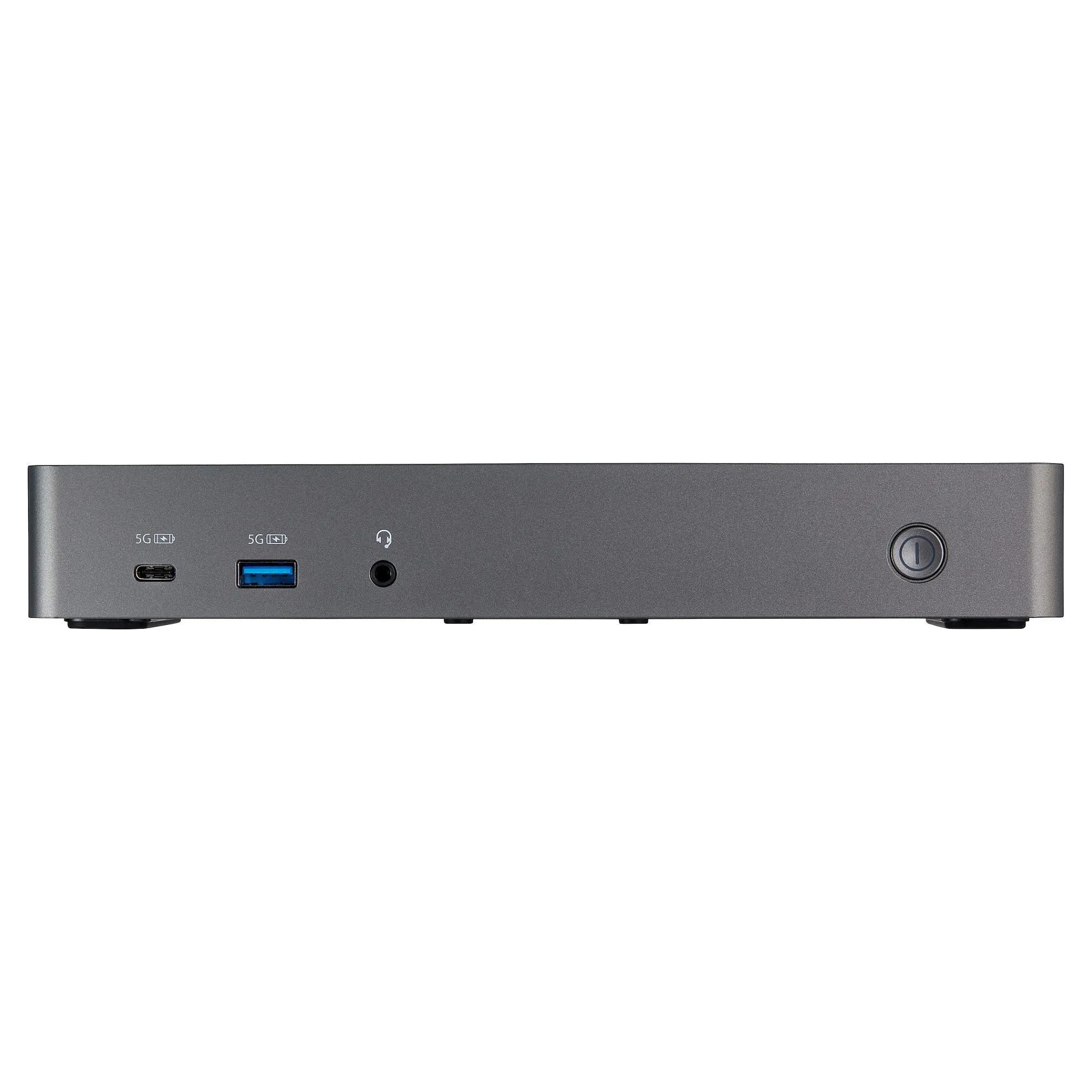

Higher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Plenty of Downstream USB Ports

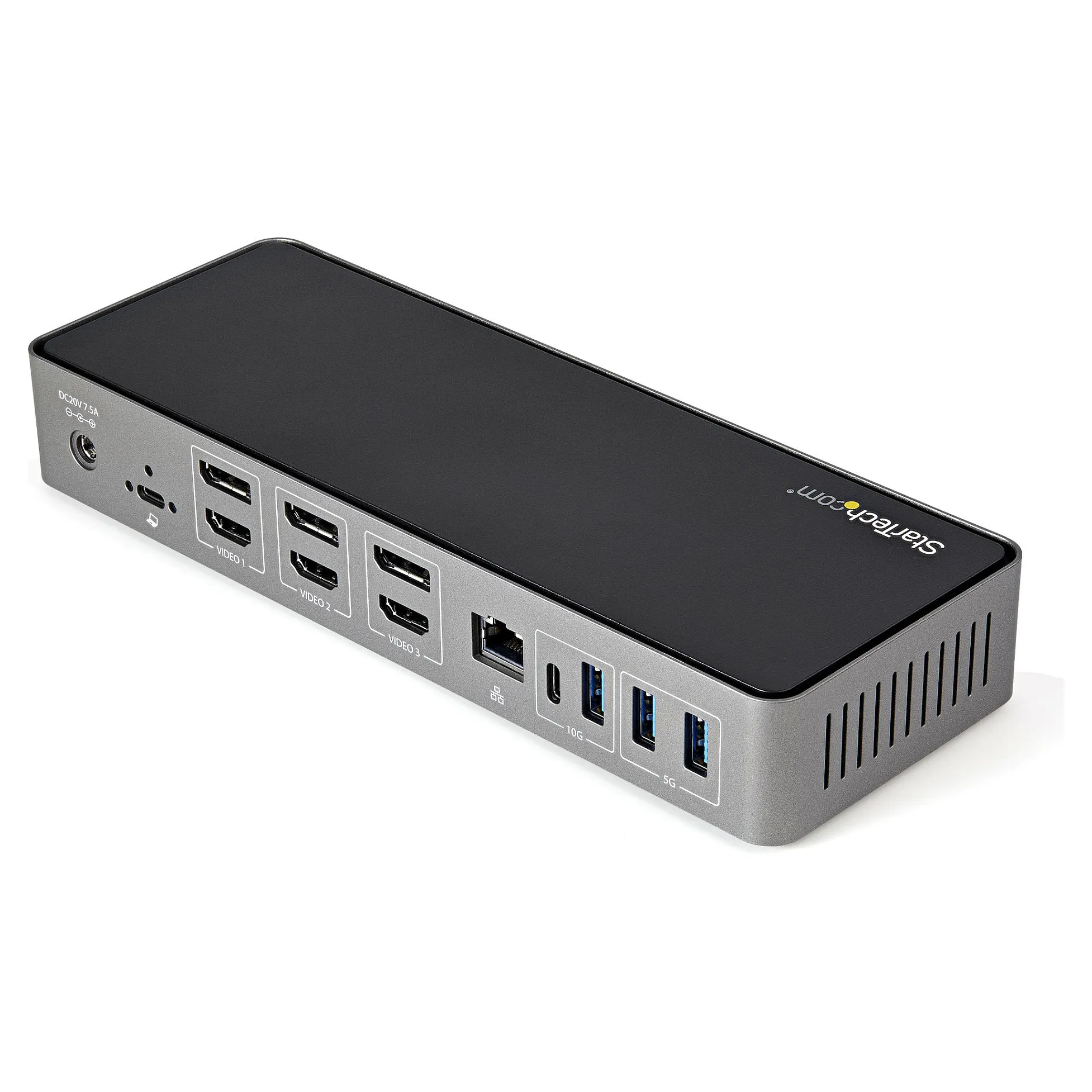

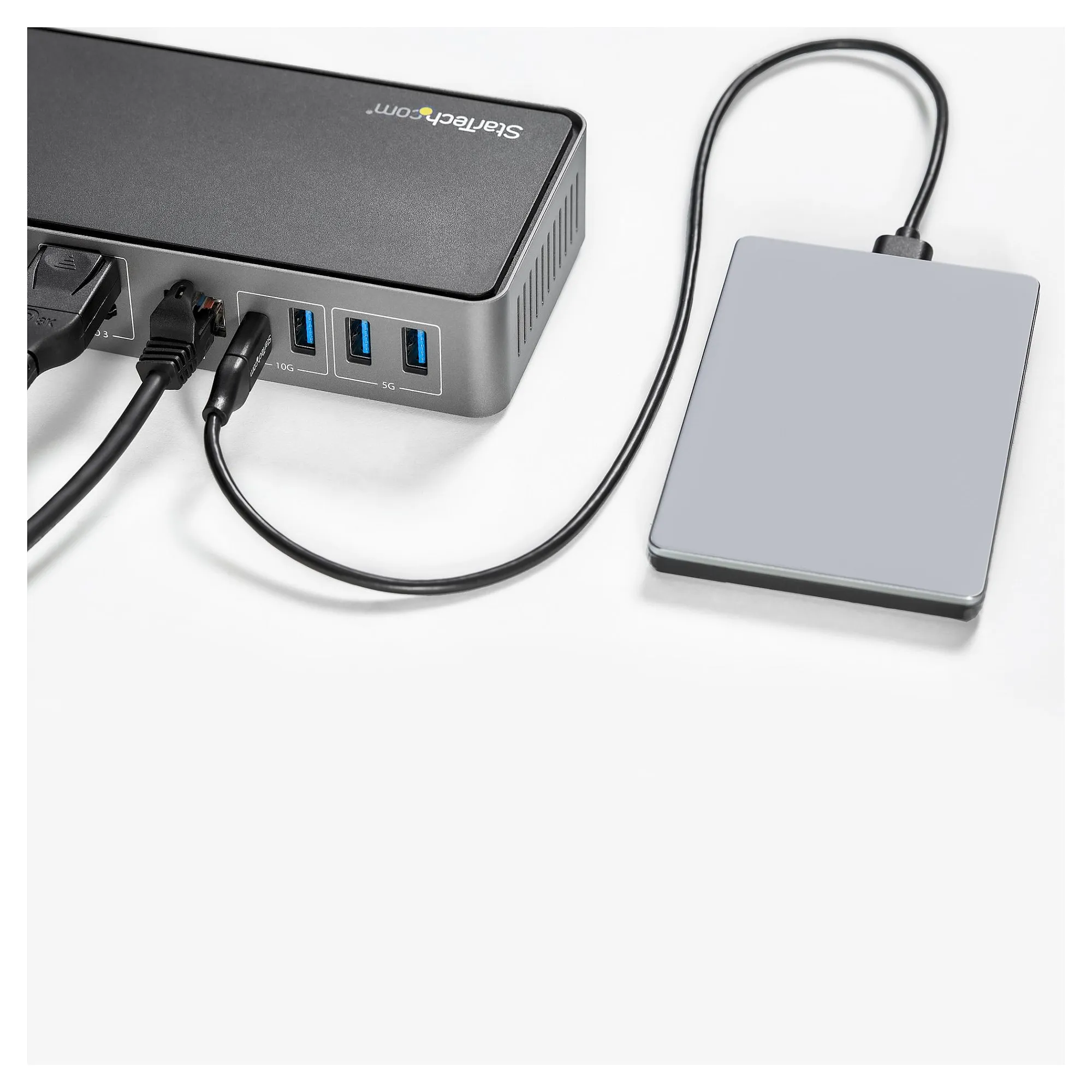

This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.
• 1x USB-C 3.2 Gen 2 (10 Gbps)
• 1x USB-A 3.2 Gen 2 (10 Gbps)
• 1x USB-C 3.2 Gen 1 (5 Gbps)
• 3x USB-A 3.2 Gen 1 (5 Gbps)
Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.
Additional Security Features

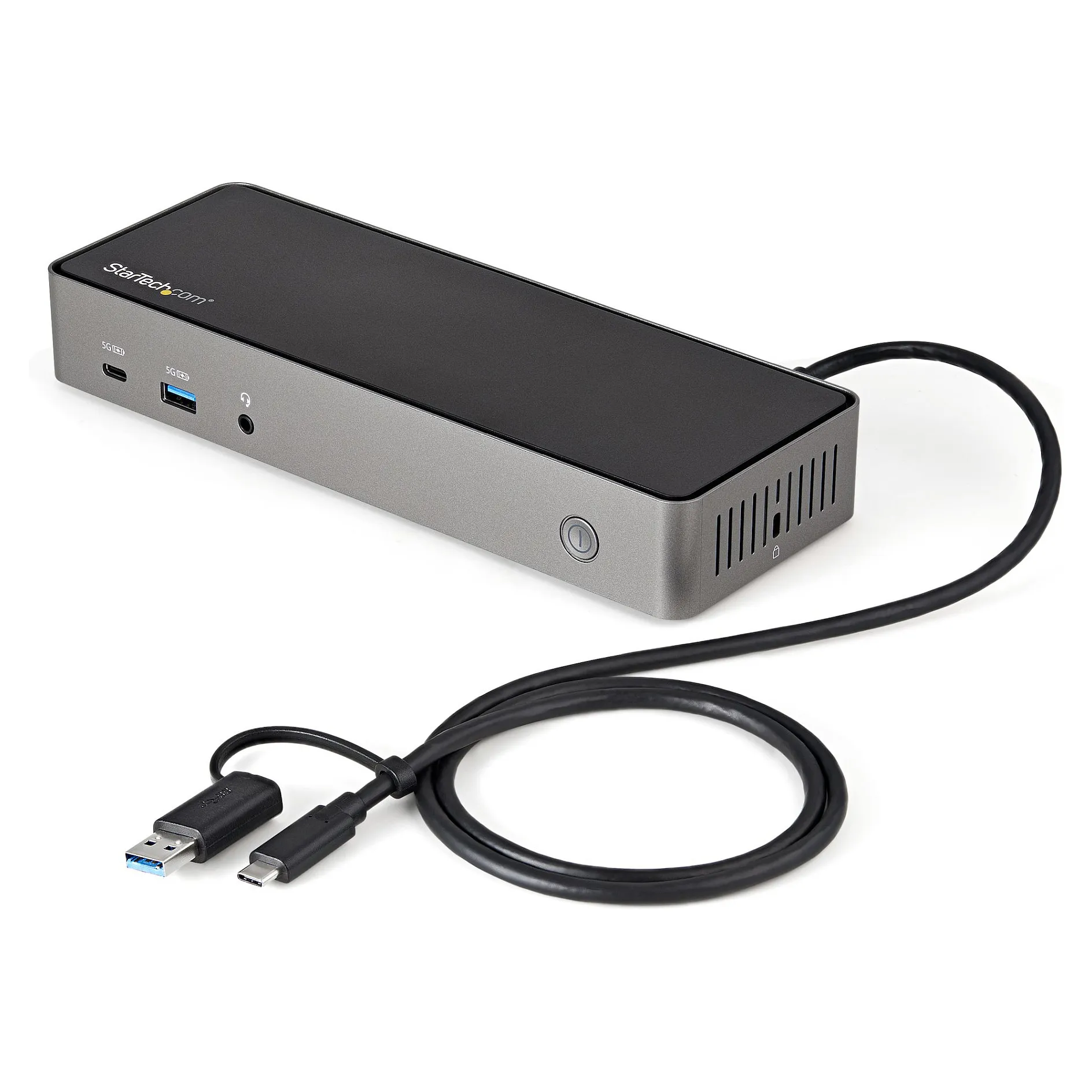

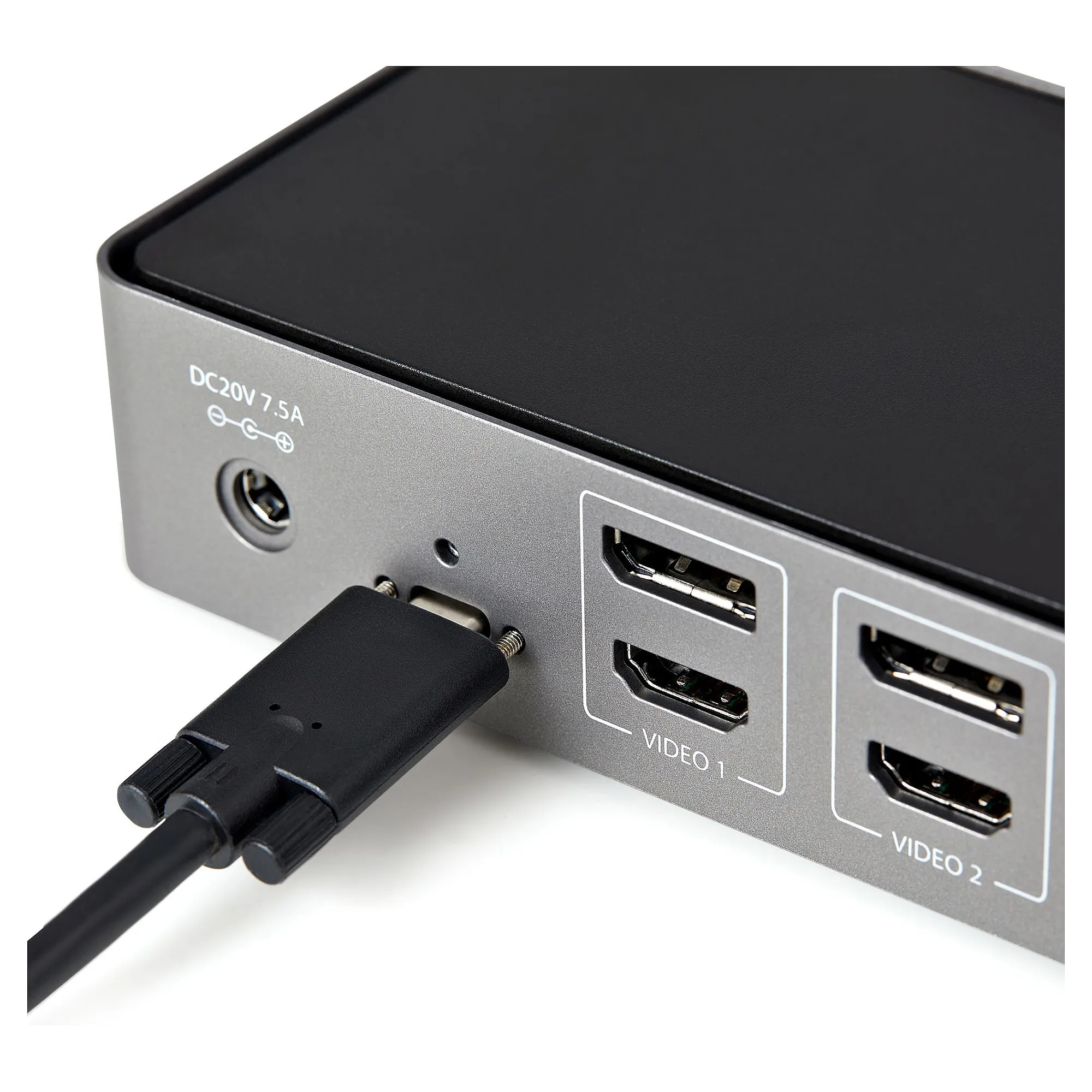

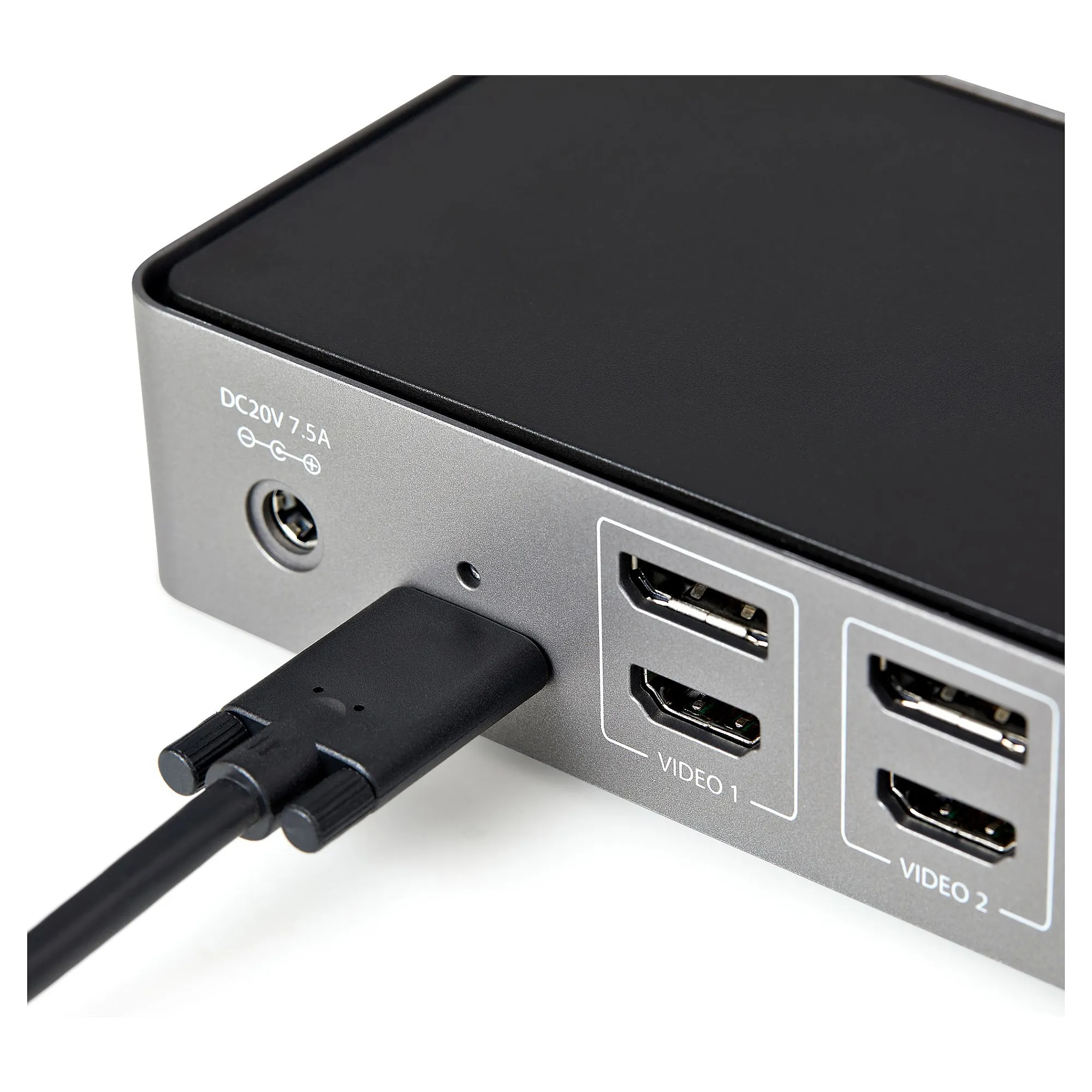

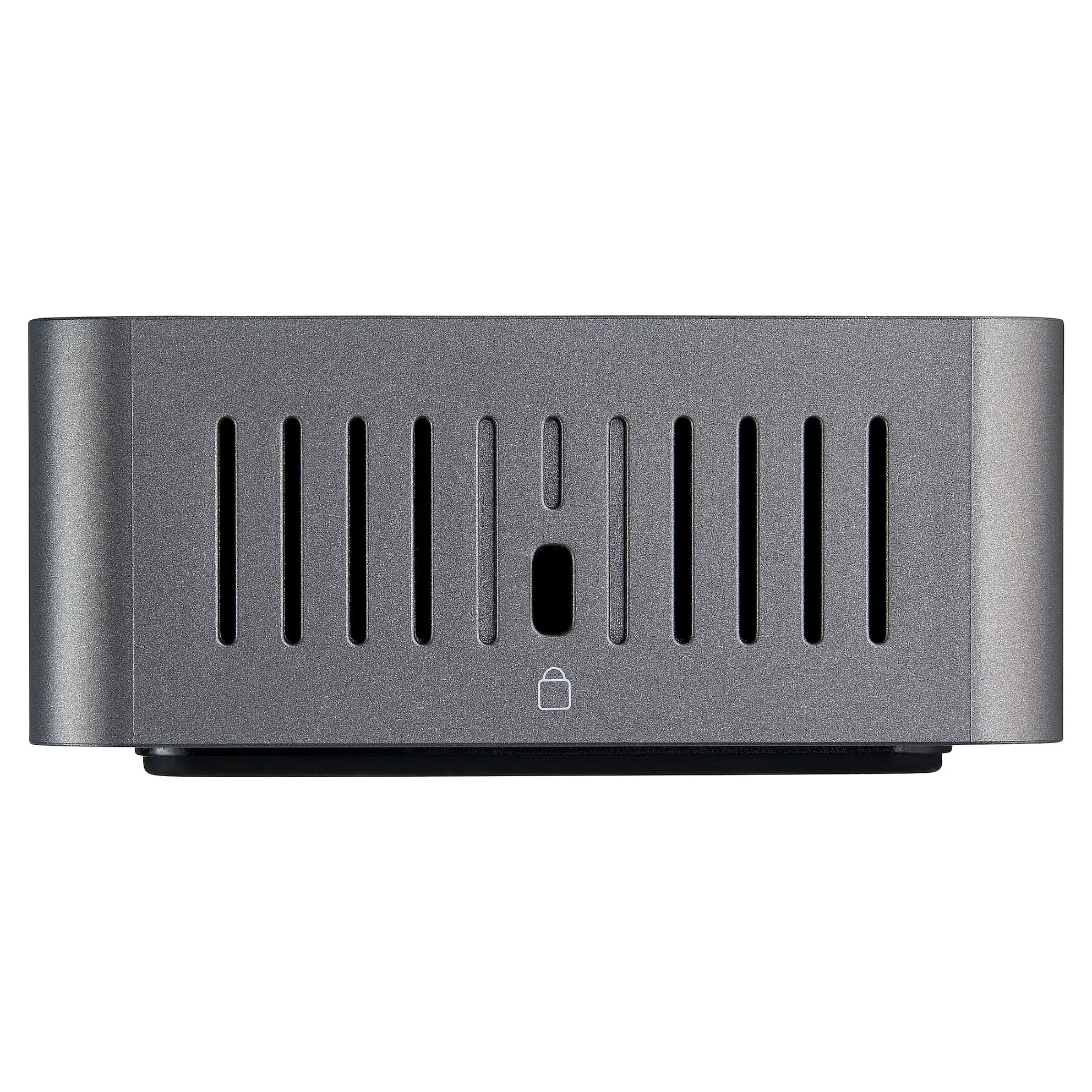

This USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable, and a K-slot for a Kensington style laptop lock.

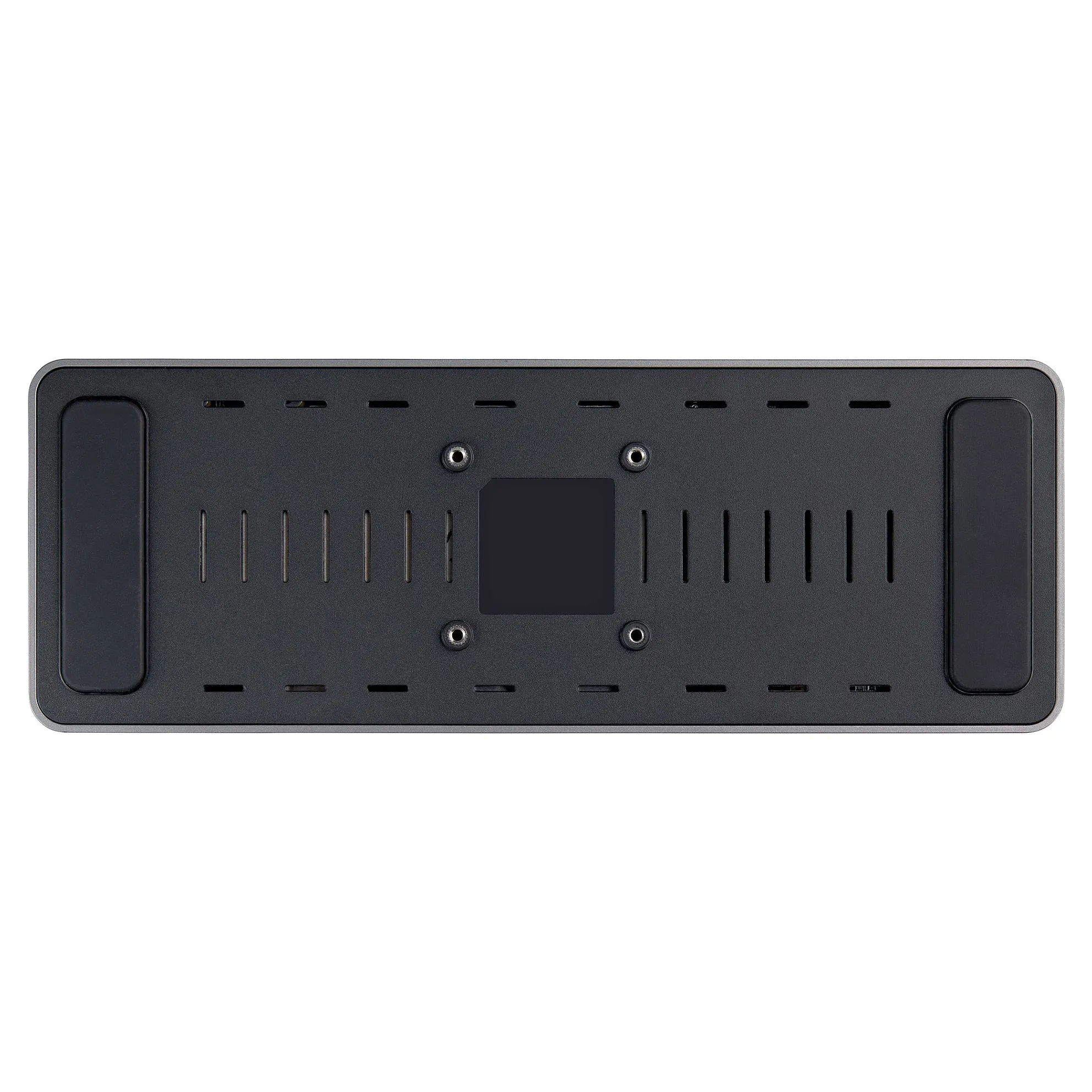

For added security, or flexibility where desk space is limited, this dock can be mounted to the wall, monitor, or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets (not included) are specifically designed for our docks and hubs to give you the customized setup you need.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 85 W
HDMI ports quantity: 3
HDMI version: 2.0
DisplayPorts quantity: 3
Feature: Combo headphone/mic port
Headphone outputs: 1
Feature: DC-in jack
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Performance
Data transfer rate: 10 Gbit/s
Maximum digital resolution: 3840 x 2160 pixels
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black, Grey
Housing material: Aluminium, Plastic
Certification: CE, FCC
Power
AC input voltage: 100 – 240 V
Input current: 2.5 A
Output voltage: 20 V
Output current: 7.5 A
Power plug type: Type M
Compatible power plug types: EU, UK
Operational conditions
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -20 – 70 °C
Operating relative humidity (H-H): 0 – 95%
Weight & dimensions
Width: 84 mm
Depth: 233 mm
Height: 37 mm
Weight: 365 g
Packaging data
Package width: 172 mm
Package depth: 253 mm
Package height: 91 mm
Package weight: 1.7 kg
Packaging content
Cables included: USB Type-A to USB Type-C
Feature: AC adapter included
Feature: Quick start guide
Technical details
Compliance certificates: RoHS
Logistics data
Products per master (outer) case: 6 pc(s)
Master (outer) case width: 315 mm
Master (outer) case length: 395 mm
Master (outer) case height: 300 mm
Harmonized System (HS) code: 84733020
Other features
Cable length: 1 m
Chipset: Realtek RTS5423, Realtek RTS5411, Realtek RTS5412, Realtek RTS5451, Realtek RTD2142, DisplayLink DL6950
