StarTech.com USB C to DisplayPort Adapter – 8K/4K 60Hz USB-C to DisplayPort 1.4 Adapter Dongle – USB Type-C to DP Monitor Video Converter – Works w/Thunderbolt 3 – w/12" Long Attached Cable. USB connector type: USB Type-C, USB connector gender: Male, USB connector form factor: Straight. Product colour: Black, Grey, Housing material: Plastic. Width: 38 mm, Depth: 390 mm, Height: 15 mm. Package width: 125 mm, Package depth: 173 mm, Package height: 24 mm. Products per master (outer) case: 200 pc(s), Master (outer) case width: 330 mm, Master (outer) case length: 500 mm

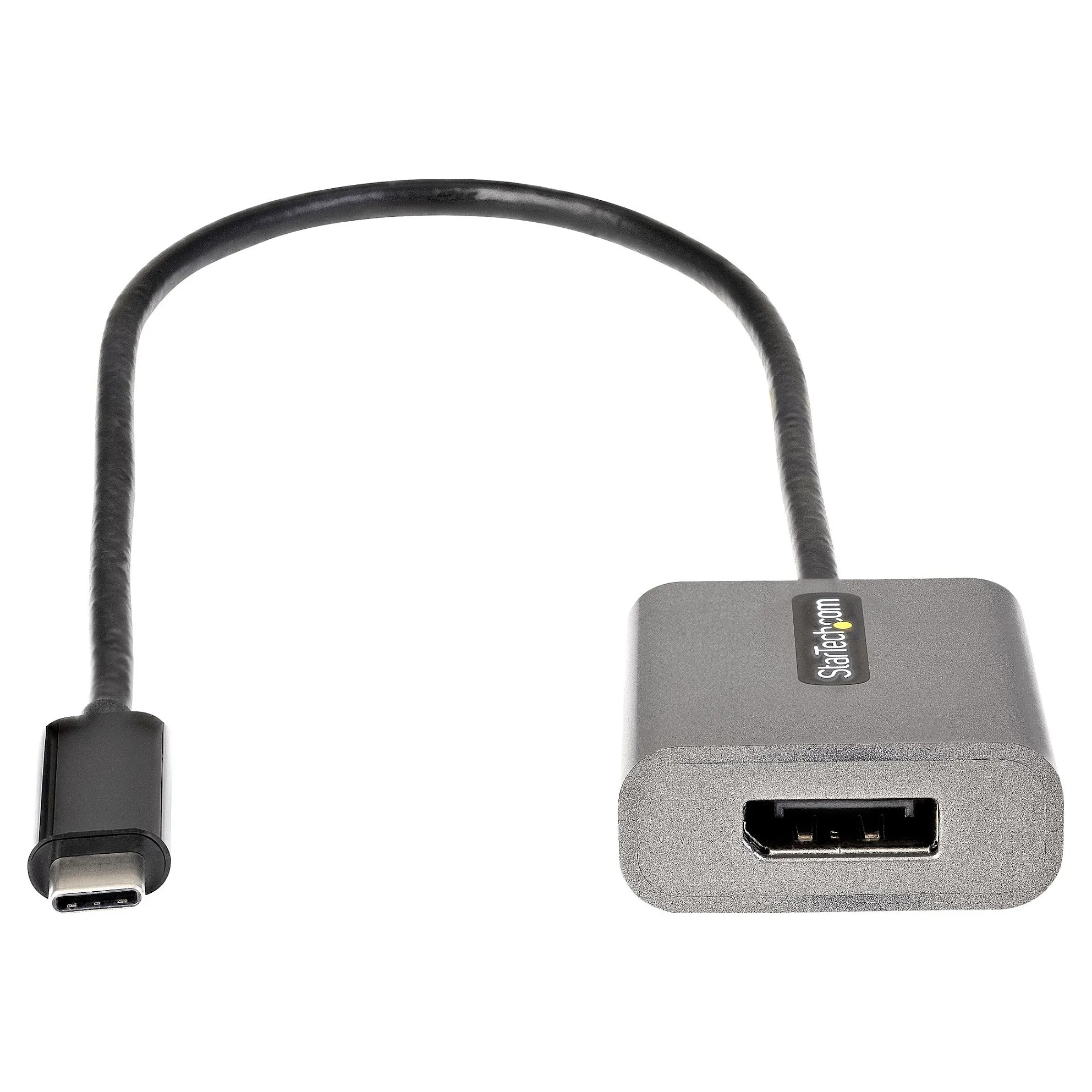

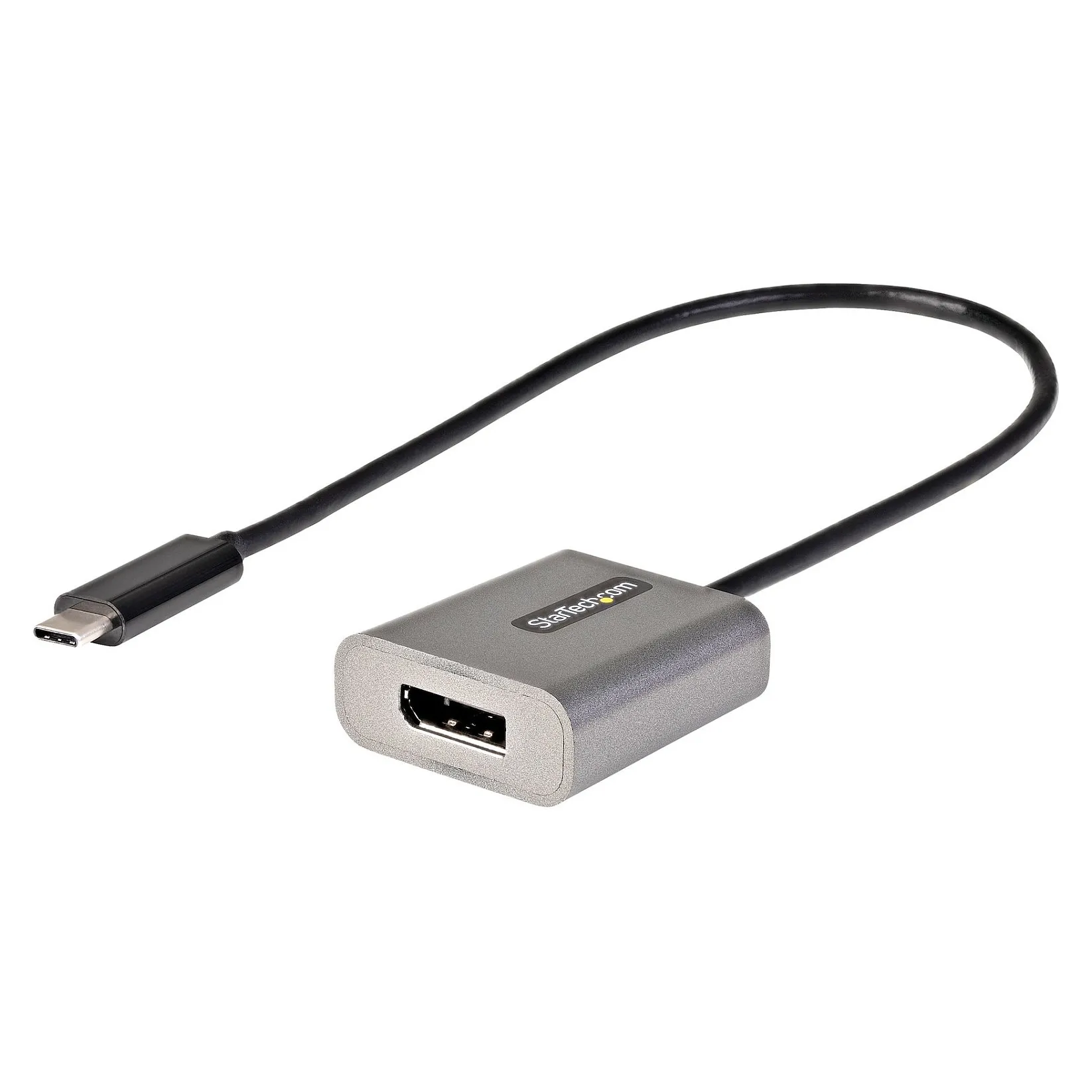

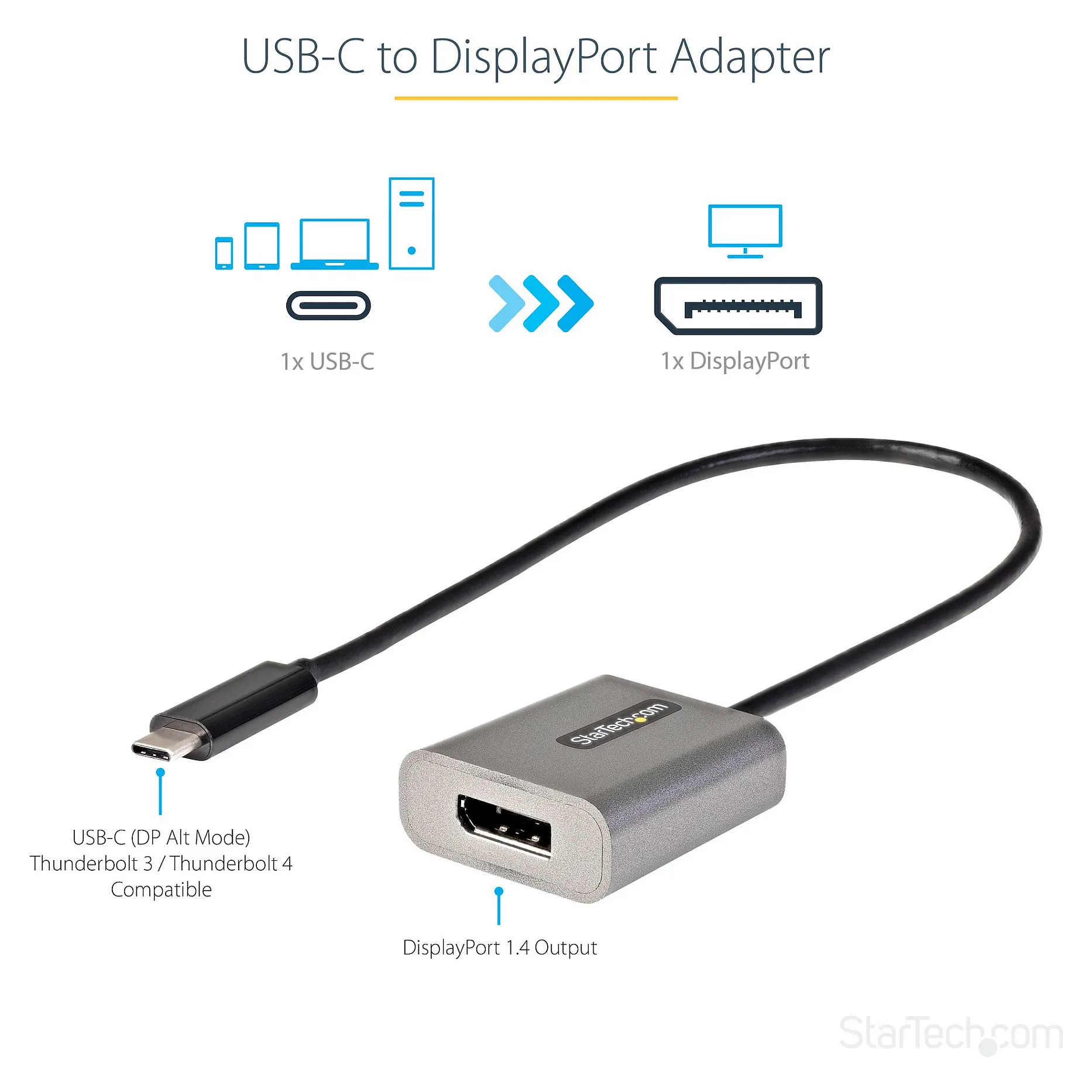

This USB-C™ to DisplayPort™ adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop, tablet, smartphone or other USB C device.
Extended Cable Length

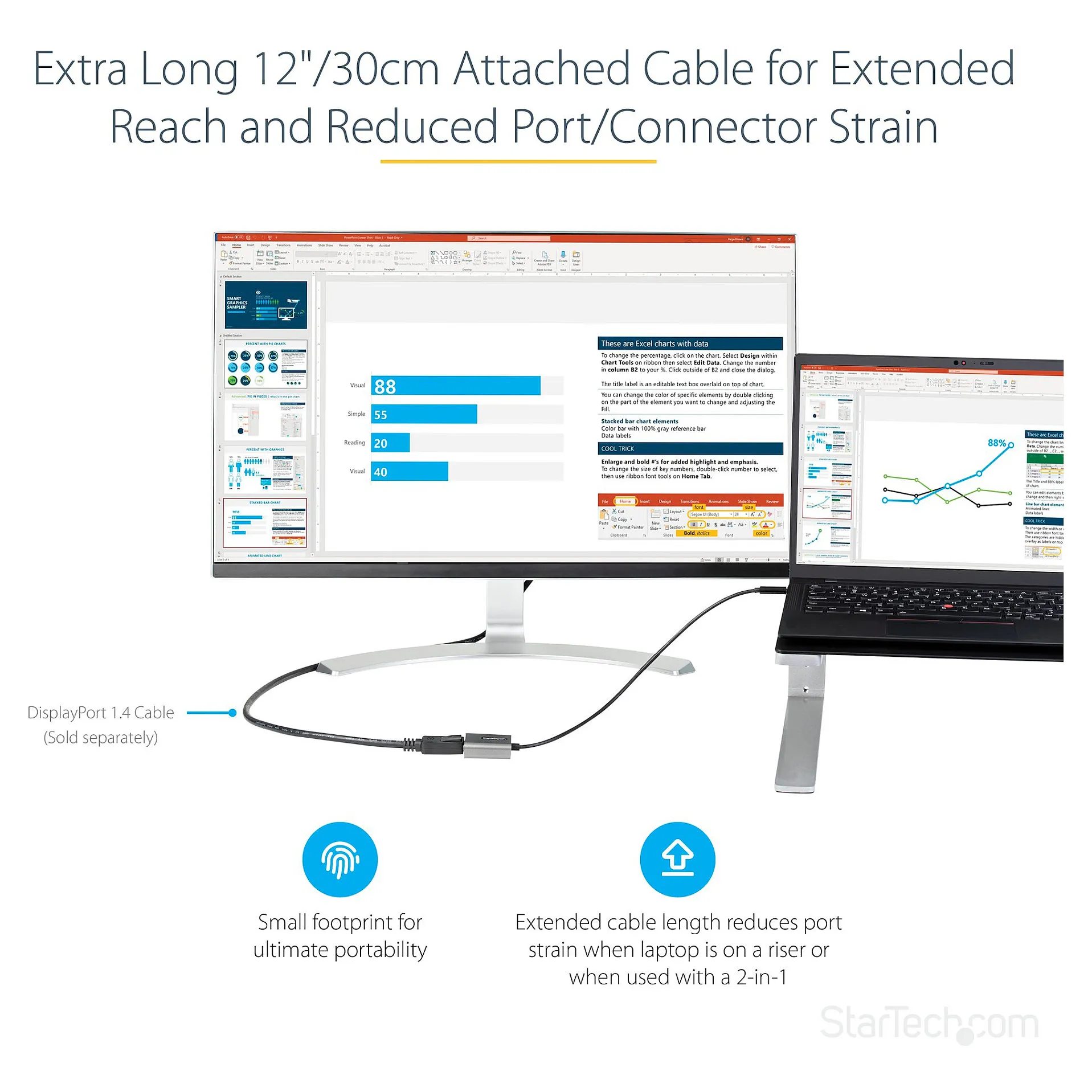

This USB C adapter is equipped with an extra-long 12″ (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.
Ultra HD 4K & 8K Resolution
The adapter lets you harness the video capabilities that are built into your computer’s USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.
With this adapter, you can also achieve an output resolution of up to 7680×4320 at 60Hz (with a laptop supporting DP 1.4 and DSC) or 7680×4320 at 30Hz (without DSC), which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.

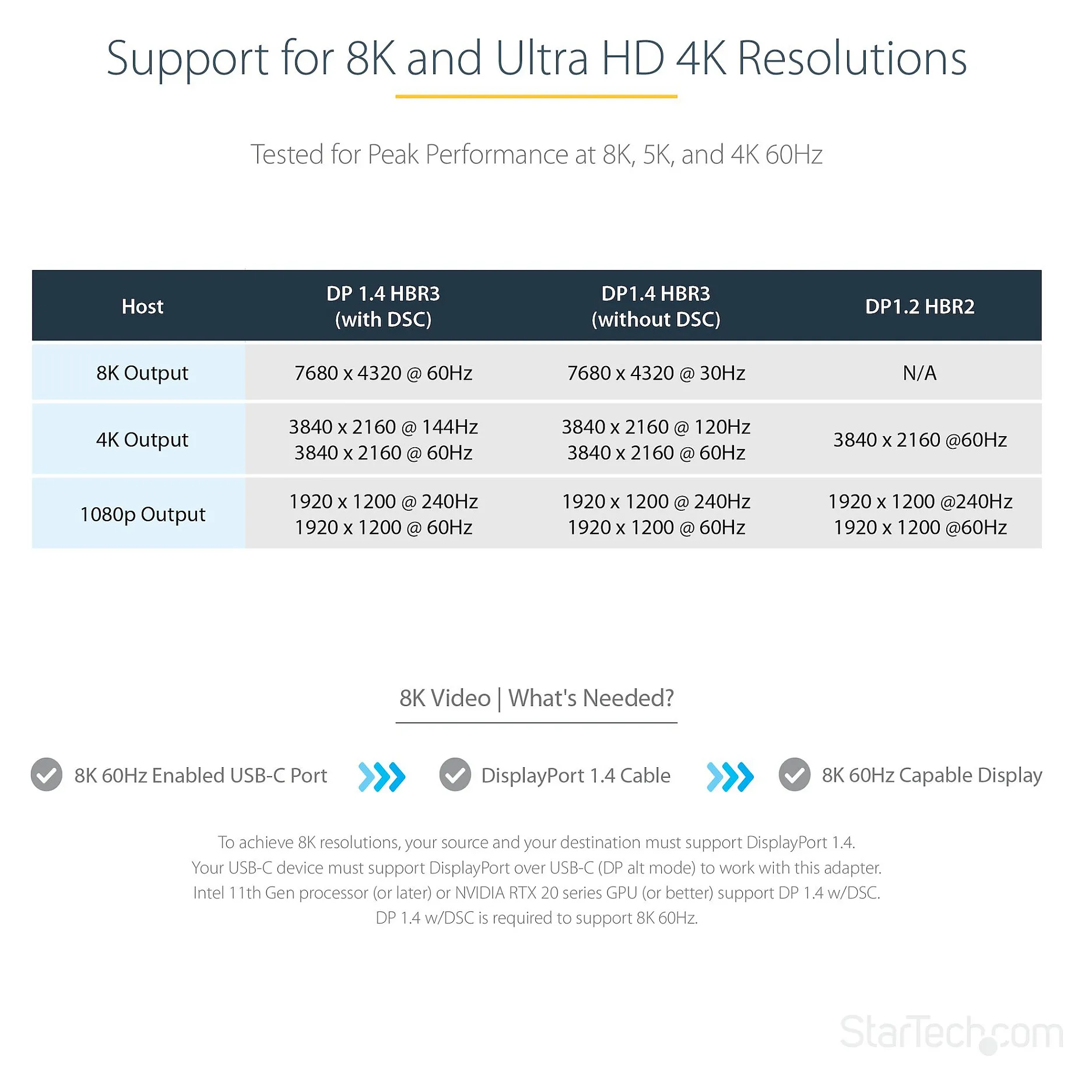

Host
DP 1.4 HBR3 (with DSC)
DP 1.4 HBR3 (without DSC)
DP 1.2 HBR2
8K Output
7680×4320 @ 60Hz
7680×4320 @ 30Hz
N/A
4K Output
3840×2160 @ 60Hz
3840×2160 @ 60Hz
3480×2160 @ 60Hz
1080p Output
1920×1200 @ 60Hz
1920×1200 @ 60Hz
1920×1200 @ 60Hz
Ultimate Portability
This USB Type-C video adapter is highly portable with a small footprint and lightweight design that’s easy to tuck into your laptop bag while commuting between your home, office or traveling for business.
The CDP2DPEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4

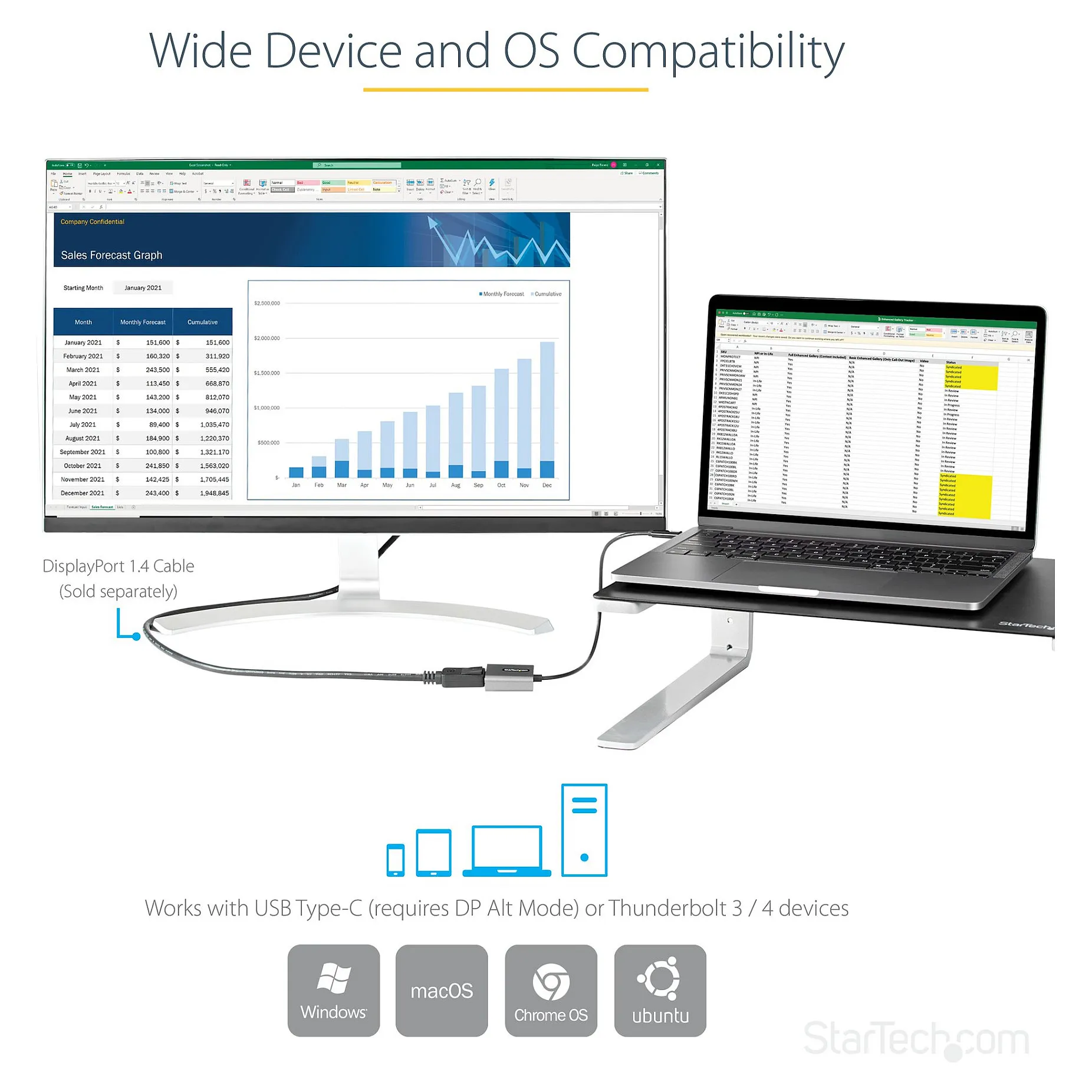

• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
USB connector type: USB Type-C
USB connector gender: Male
USB connector form factor: Straight
Feature: DisplayPort output
Number of displays supported: 1
DisplayPorts quantity: 1
Feature: HDCP
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Refresh rate at maximum resolution: 60 Hz
Audio output channels: 2.0 channels
Chipset: VL103
Data transfer rate (max): 32.4 Gbit/s
Design
Product colour: Black, Grey
Housing material: Plastic
Feature: Integrated USB cable

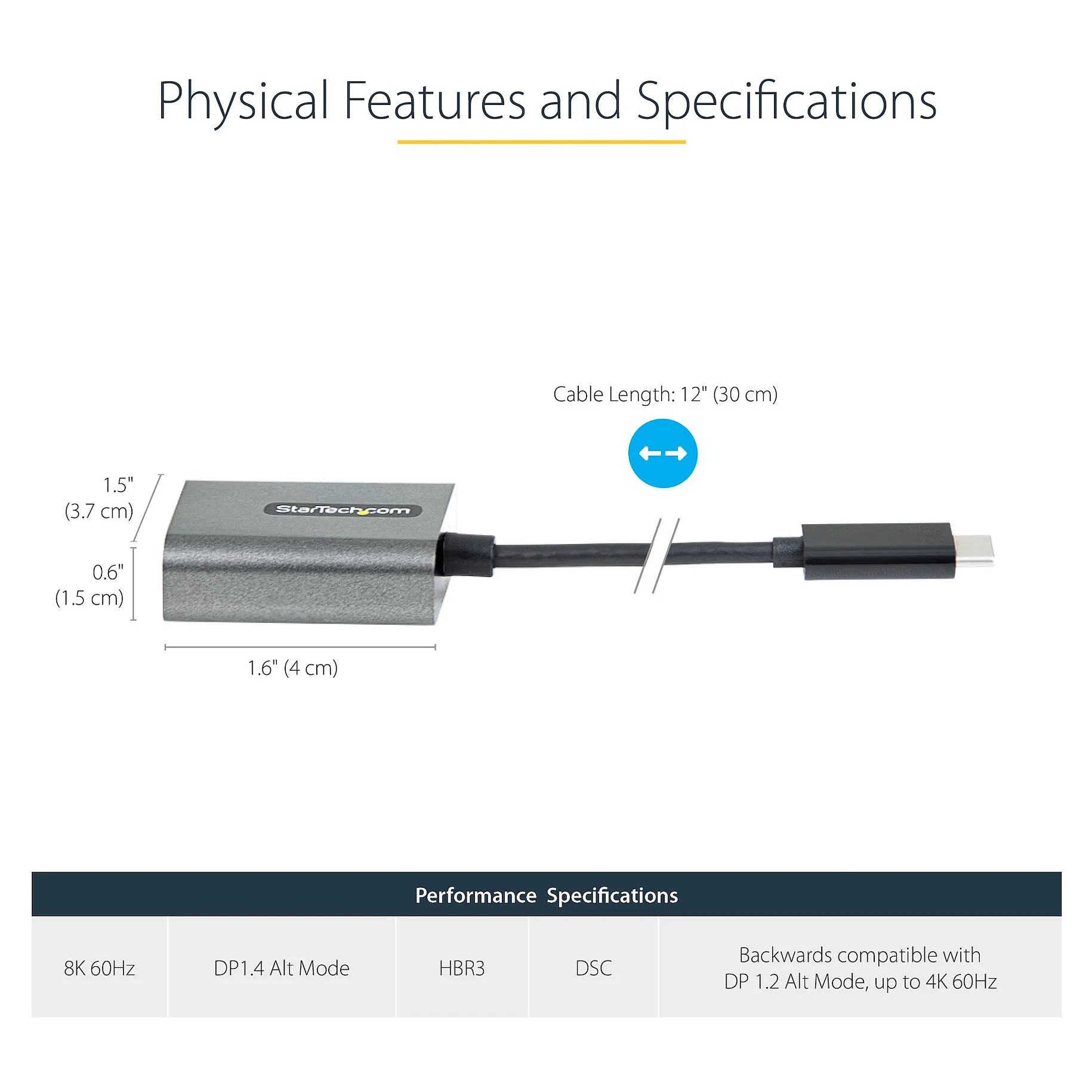

Weight & dimensions
Width: 38 mm
Depth: 390 mm
Height: 15 mm
Weight: 26 g
USB cable length: 0.3 m
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -10 – 70 °C
Operating relative humidity (H-H): 10 – 85%
Packaging data
Package width: 125 mm
Package depth: 173 mm
Package height: 24 mm
Package weight: 32 g
Technical details
Compliance certificates: CE, RoHS
Logistics data
Products per master (outer) case: 200 pc(s)
Master (outer) case width: 330 mm
Master (outer) case length: 500 mm
Master (outer) case height: 220 mm
Harmonized System (HS) code: 84733020
