StarTech.com 4-Port USB-C Hub with 100W Power Delivery Pass-Through – 2x USB-A + 2x USB-C – USB 3.0 5Gbps – 1ft (30cm) Long Cable – Portable USB Type-C to USB-A/C Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Data transfer rate: 5000 Mbit/s, Product colour: Grey, Housing material: Plastic. Power supply type: USB, Power consumption (typical): 15 W, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10…, Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14…, Other operating systems supported: Android. Width: 75 mm, Depth: 42 mm, Height: 14 mm

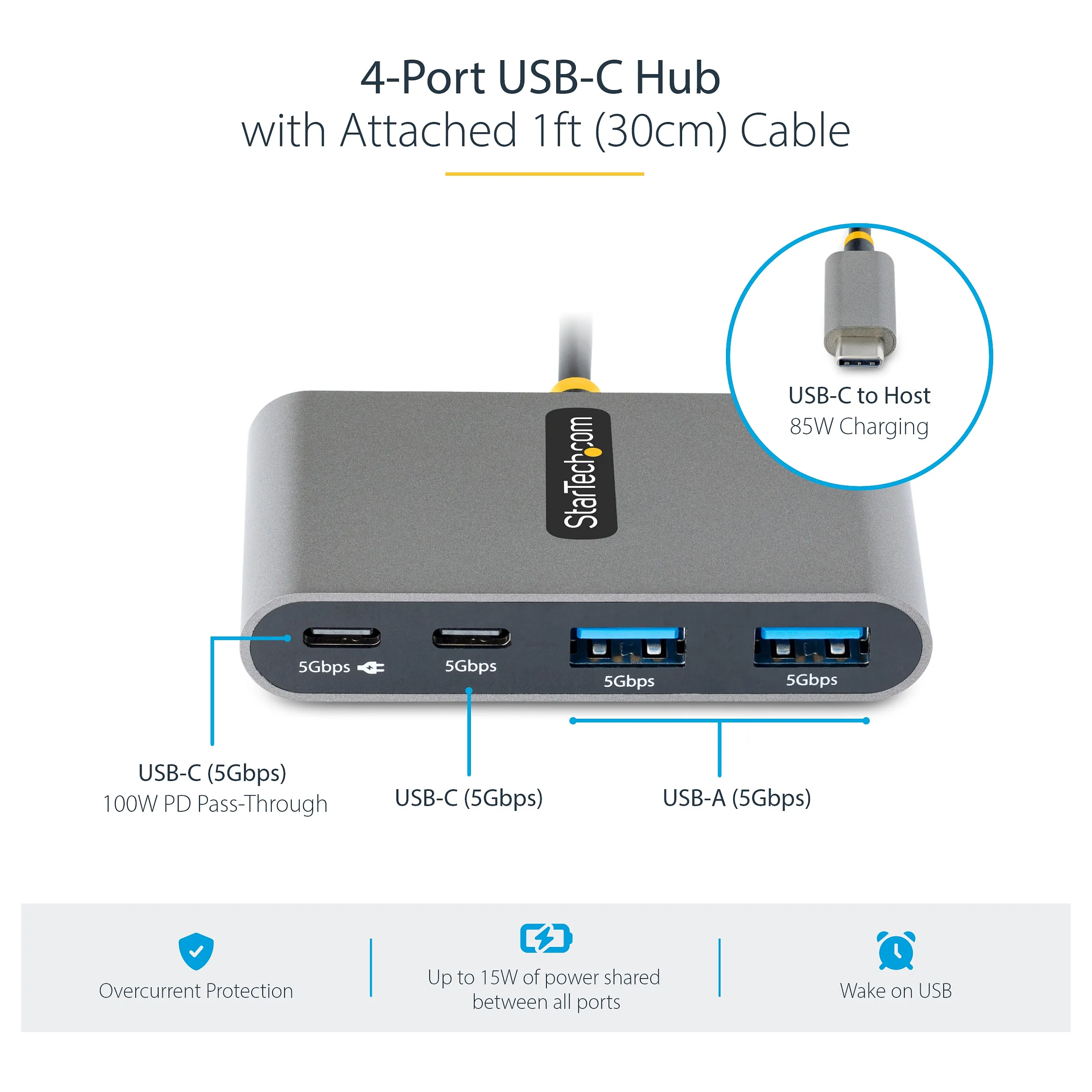

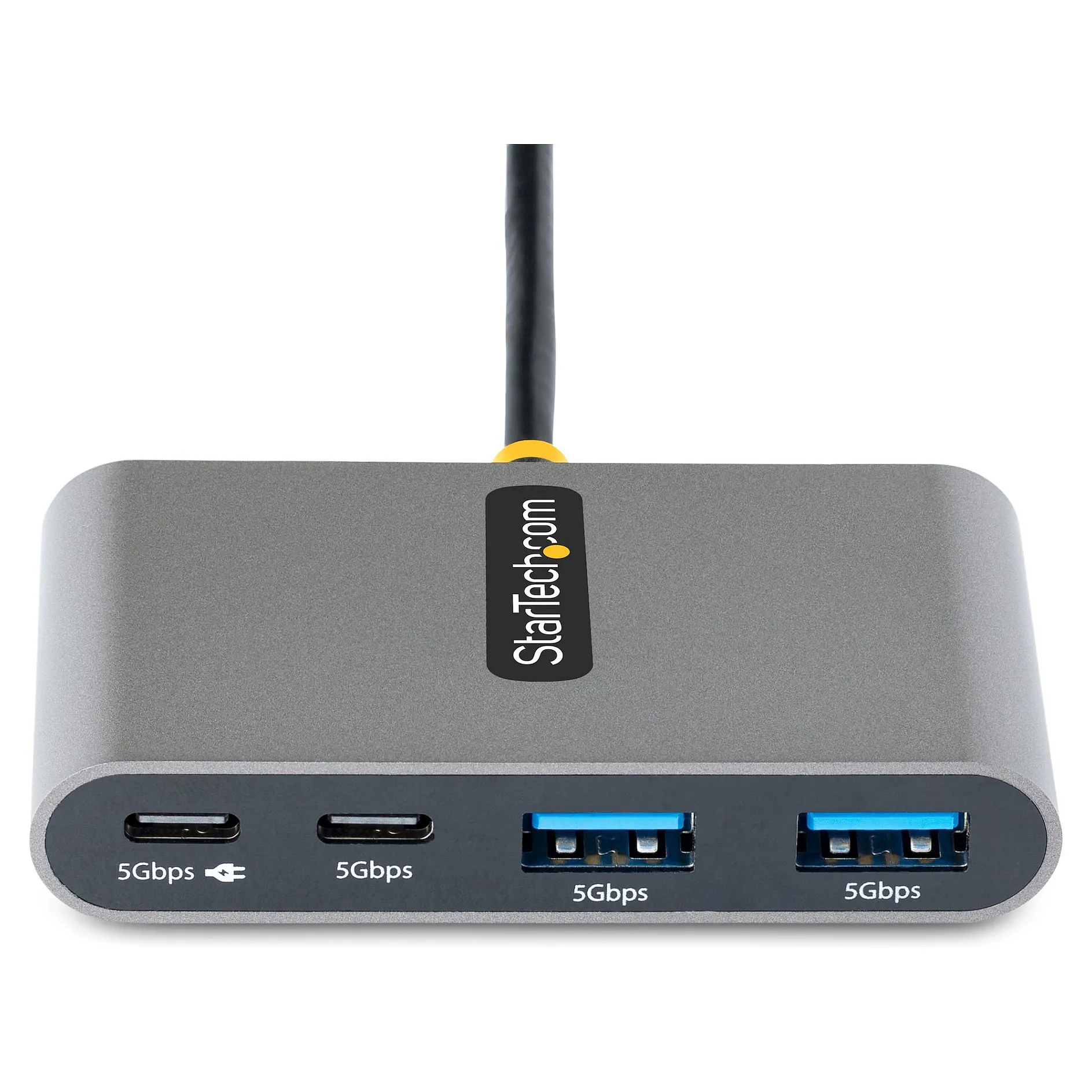

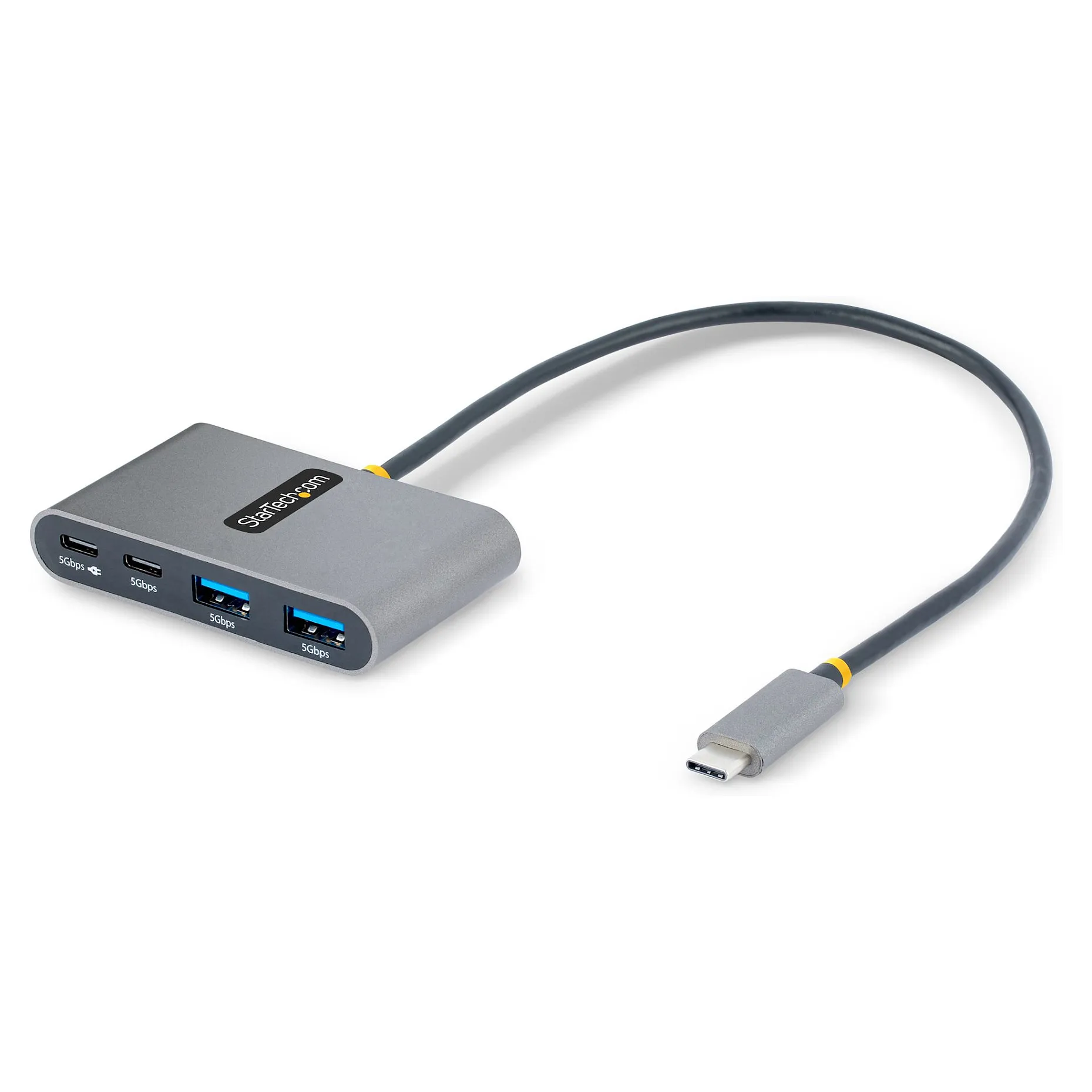

This USB-C Hub with 100W USB Power Delivery pass-through adds four USB 3.2 Gen 1 (5Gbps) ports (2x USB-A, 2x USB-C) to a USB-C enabled computer. Connect the USB hub to a USB-C port on a laptop, using the built-in 1ft (30cm) USB-C host cable. Charge a host laptop by connecting the host laptop’s USB-C power supply to the USB Power Delivery (PD) 3.0 port. Backward compatible with USB 2.0 (480Mbps) devices ensures support for a wide range of modern and legacy USB peripherals (e.g., external storage devices – thumb drives, HDDs/SSDs, HD cameras, mice, keyboards, webcams, and audio headsets). The USB hub supports Wake on USB and is compact in size, facilitating portability when travelling.
USB Power Delivery Pass-Through
This USB hub features USB Power Delivery 3.0 pass-through (up to 100W). This features enables the USB Type-C Hub to provide the option to use one of the downstream USB-C ports to connect a USB-C power source (up to 100W) to power and charge a laptop. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when switching power sources (USB-C power adapter to bus power).
The USB Hub can operate with a USB-C power adapter connected or with bus-powered alone. It draws up to 15W of power from the USB-C host computer that’s dynamically shared across the downstream ports. For added protection to this USB hub and the connected host device, the USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.
Plug and Play

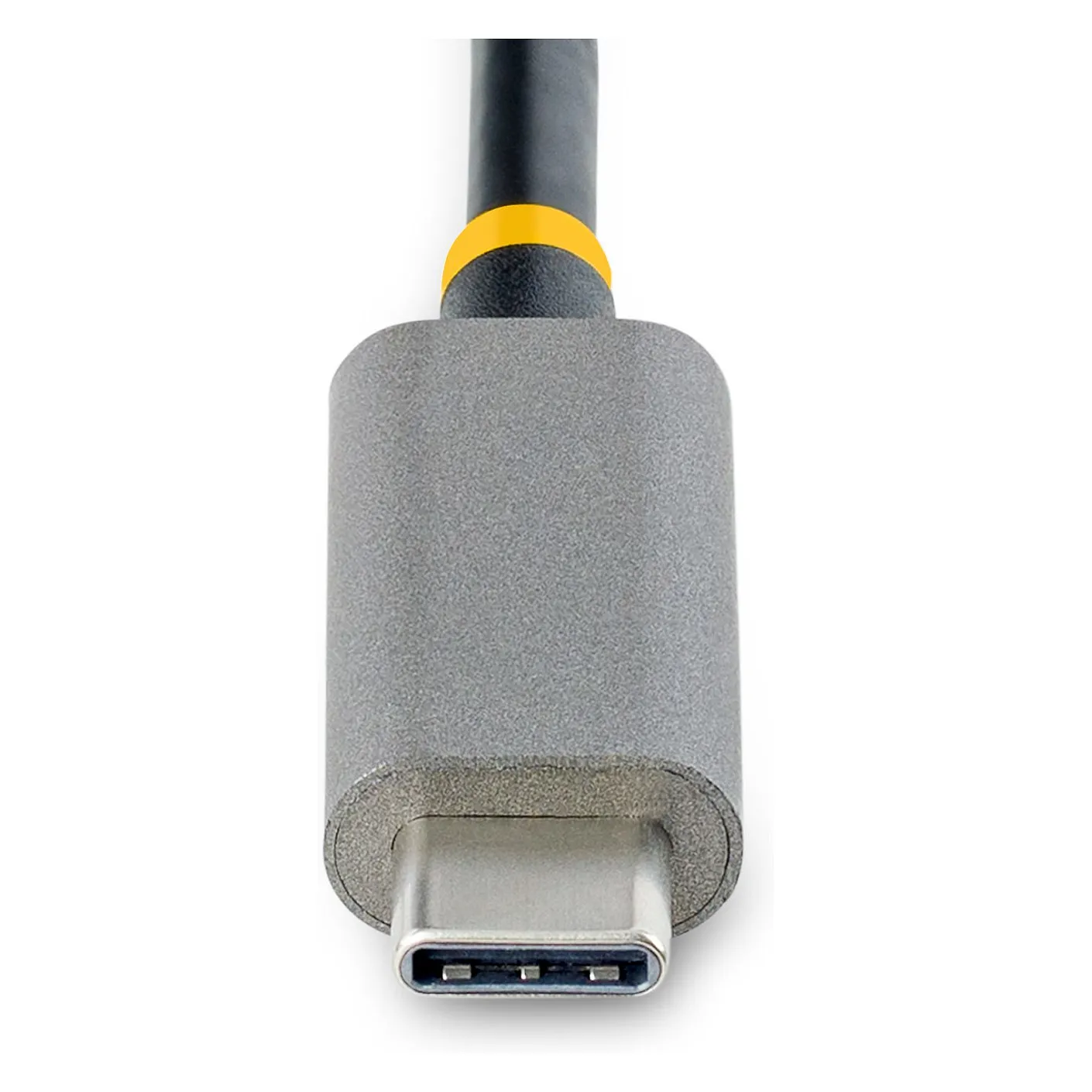

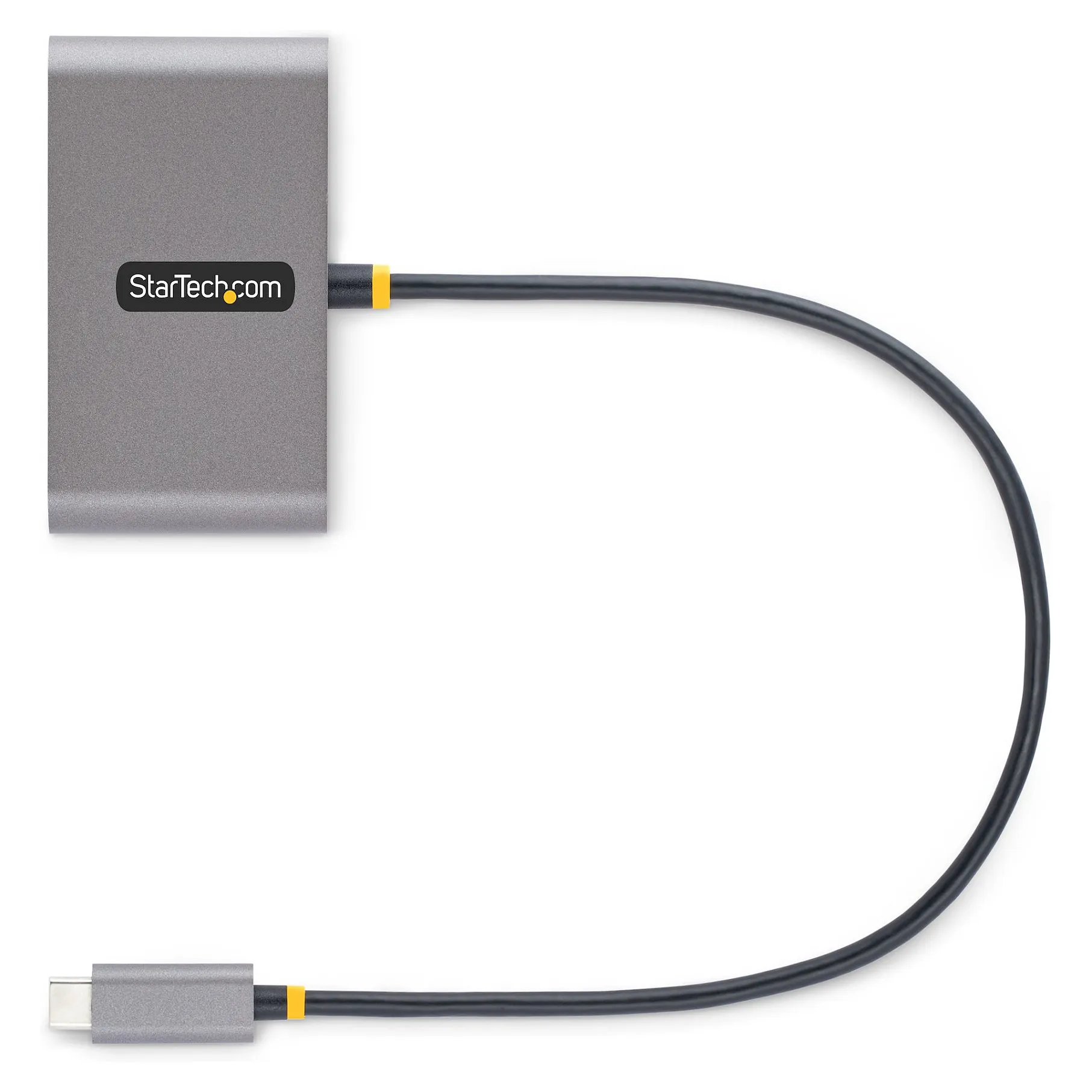

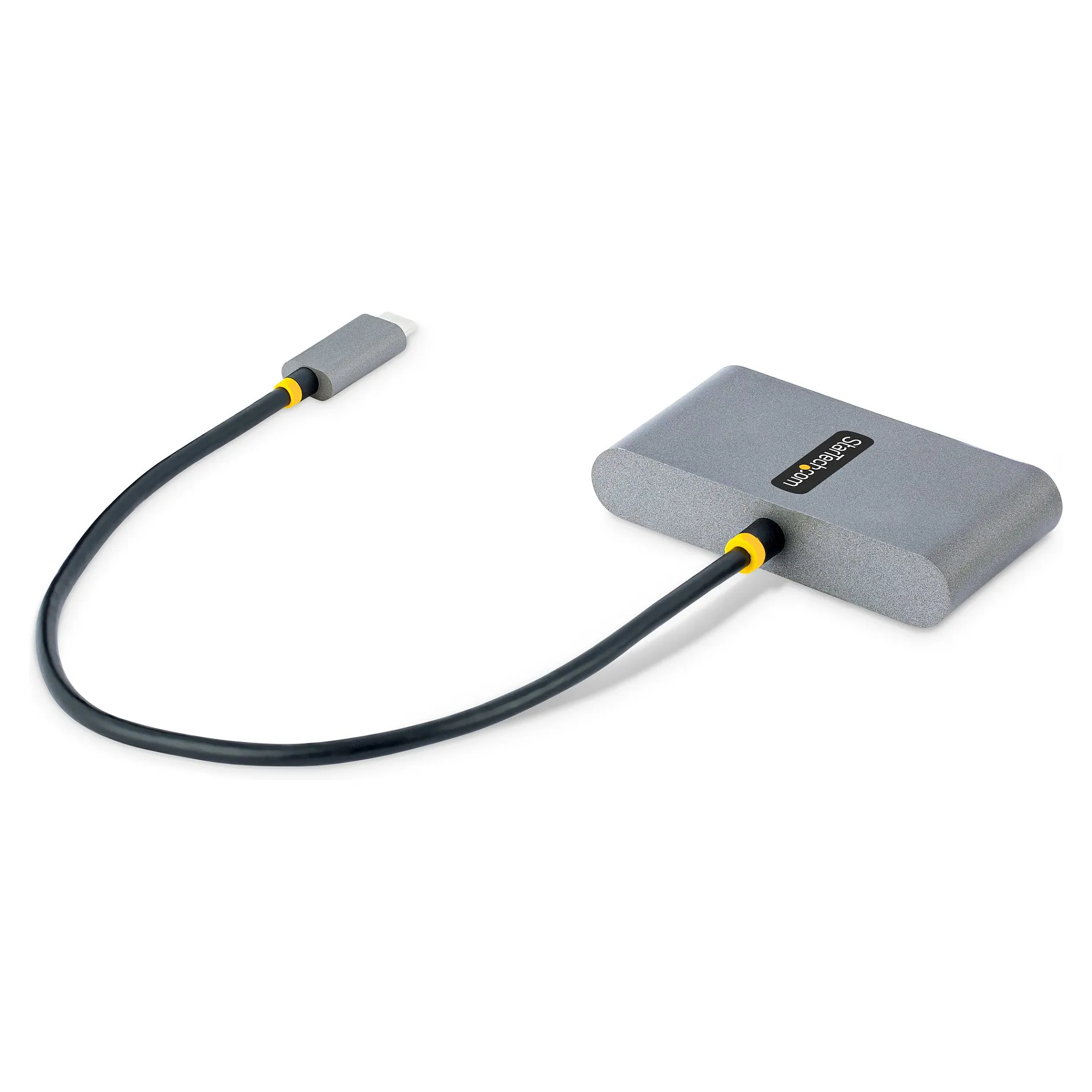

This device is compatible with all major operating systems, including Windows, macOS, ChromeOS, iPadOS, and Android. The Hub is automatically detected, configured, and installed upon connection to a host computer. This ensures automatic installation and setting configuration with any USB-C laptop, including Thunderbolt 3, Thunderbolt 4 and USB4 computers such as Apple MacBook (Intel/M1/M2), Lenovo X1 Carbon and Dell XPS. The built-in extra-long 1 ft. (30 cm) USB-C host cable ensures easy setup and reduces connector strain on 2-in-1 devices such as the Surface Pro 7, iPad Pro, HP Elite X2 and laptops on riser stands.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The applicable software for this product is the USB Event Monitoring Utility. Use this utility to track and log any connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools
This product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Ports quantity: 4
Features
Data transfer rate: 5000 Mbit/s
Product colour: Grey
Housing material: Plastic
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
Cable length: 0.3 m
Network
Feature: UASP support
Power
Power supply type: USB
Power consumption (typical): 15 W
Output voltage: 5 V
Output current: 0.9 A
System requirements
Linux operating systems supported: Yes
Other operating systems supported: Android

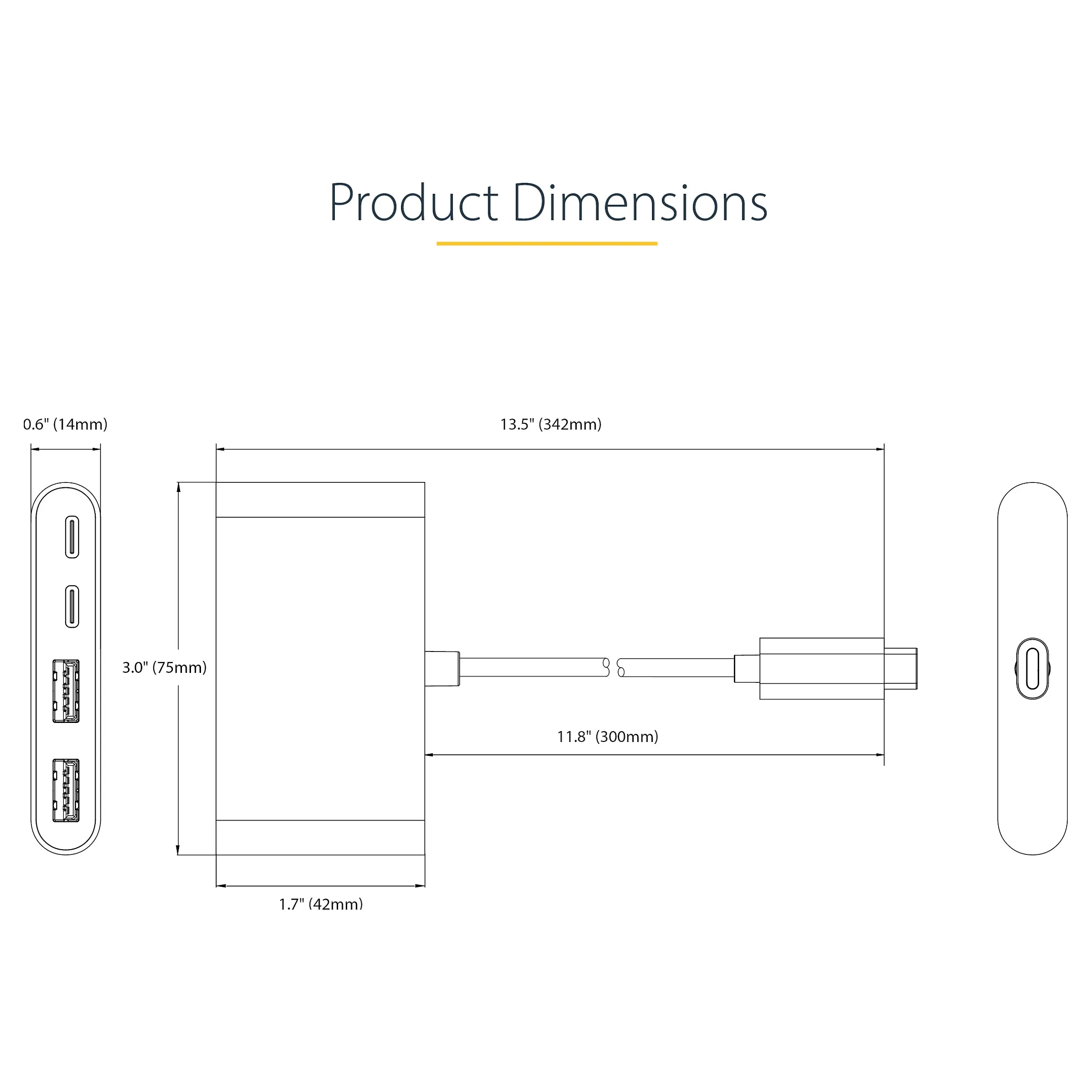

Weight & dimensions
Width: 75 mm
Depth: 42 mm
Height: 14 mm
Weight: 41 g
Packaging data
Package width: 173 mm
Package depth: 144 mm
Package height: 31 mm
Package weight: 94 g
Operational conditions
Operating temperature (T-T): 0 – 45 °C
Storage temperature (T-T): -5 – 70 °C
Operating relative humidity (H-H): 5 – 85%
Sustainability
Feature: Sustainability compliance
Logistics data
Master (outer) case width: 544 mm
Master (outer) case length: 343 mm
Master (outer) case height: 324 mm
Products per master (outer) case: 60 pc(s)
Technical details
Compliance certificates: RoHS
Other features
Chipset: Fresco – FL7102, Fresco – FL5001
