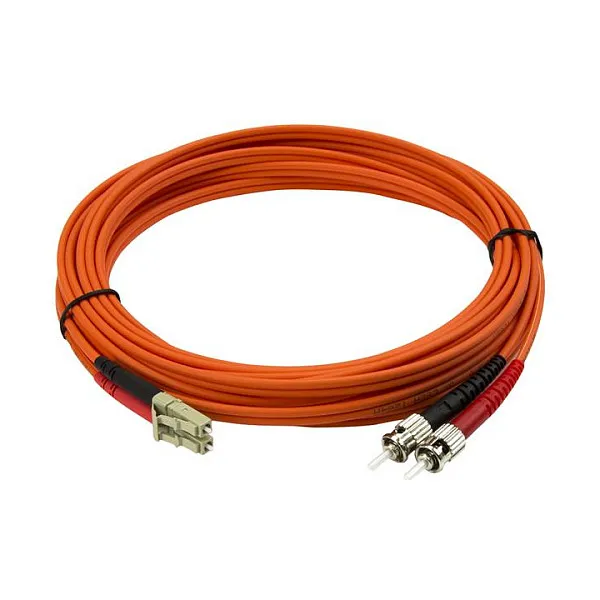

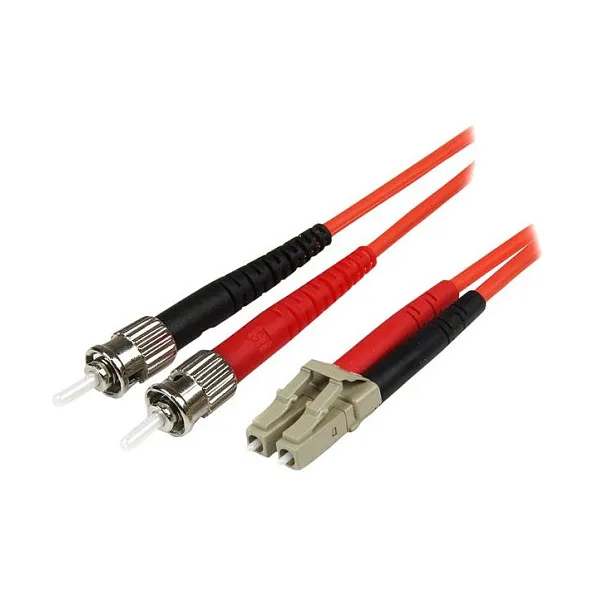

StarTech.com 5m Fiber Optic Cable – Multimode Duplex 50/125 – LSZH Fiber Jumper Cord – LC/ST. Cable length: 5 m, Fibre optic type: OM2, Connector 1: LC, Connector 2: ST, Core diameter: 50 µm, Full duplex
The 50FIBLCST5 5m LSZH LC to ST Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.
This LC-ST patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.
Cable length: 5 m
Fibre optic type: OM2

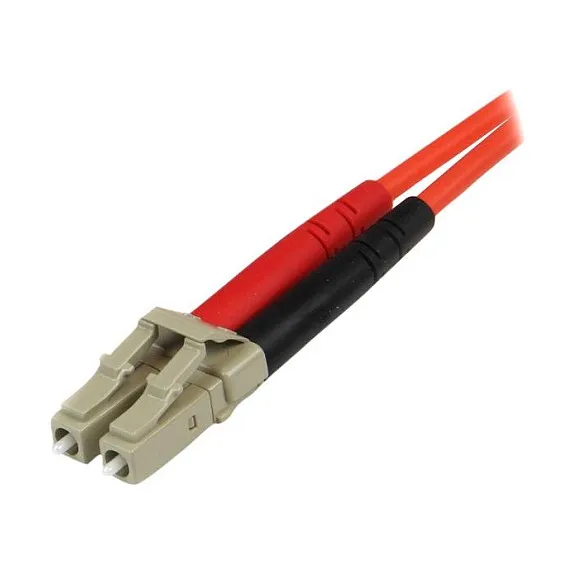

Connector 1: LC

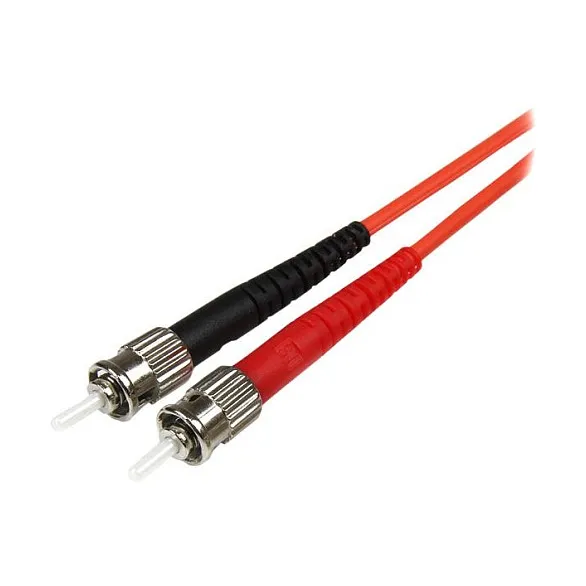

Connector 2: ST
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Red
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Data transfer rate: 10 Gbit/s
Jacket material: Low smoke zero halogen (LSZH)
Sustainability
Doesn’t contain: Halogen
Certificates
Compliance certificates: REACH, RoHS
Certification: CE
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -20 – 60 °C
Weight & dimensions
Weight: 76 g
Packaging data
Package width: 200 mm
Package depth: 220 mm
Package height: 20 mm
Package weight: 100 g
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Master (outer) case width: 405 mm
Harmonized System (HS) code: 85447000
Master (outer) case length: 426 mm
Master (outer) case height: 405 mm
Products per master (outer) case: 160 pc(s)
