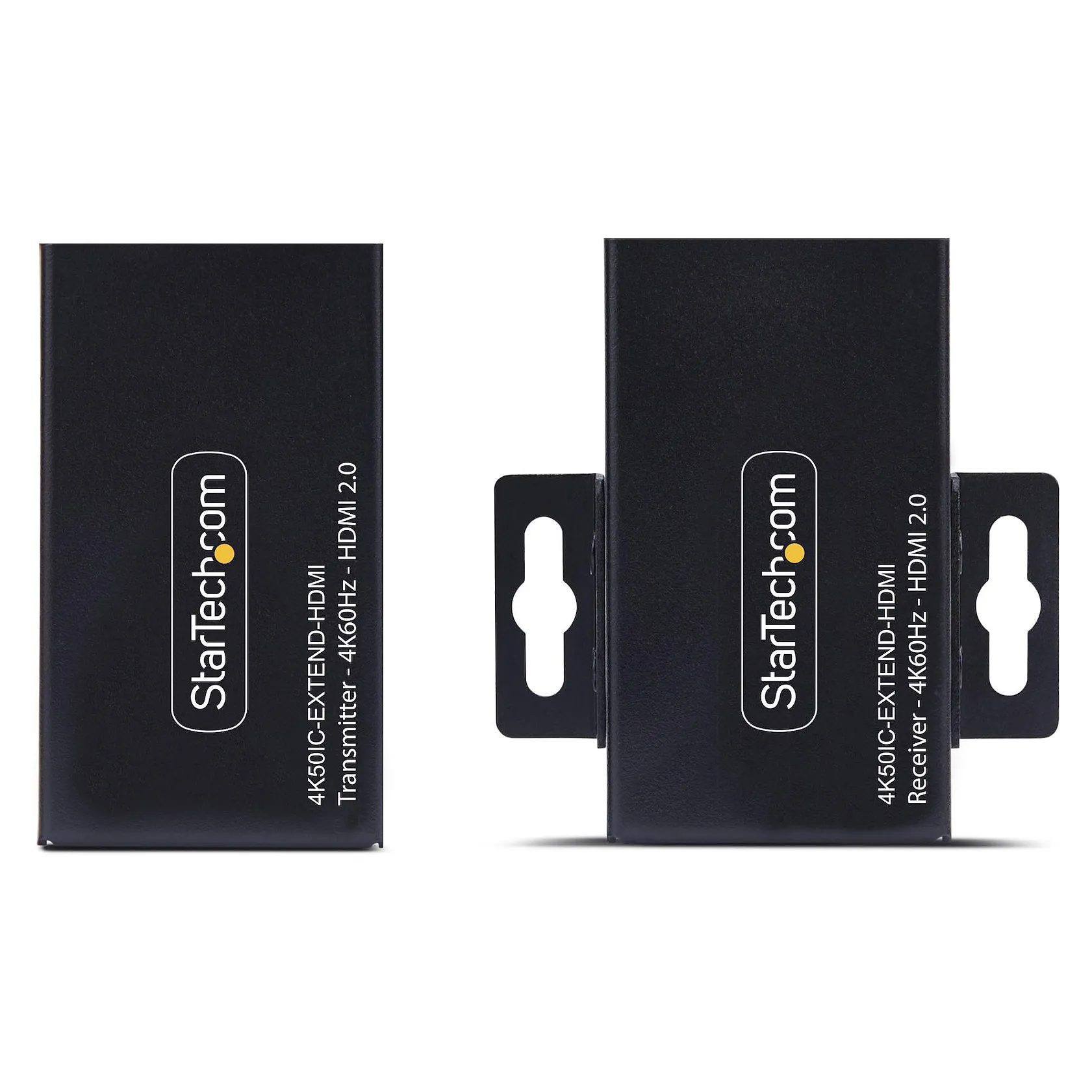

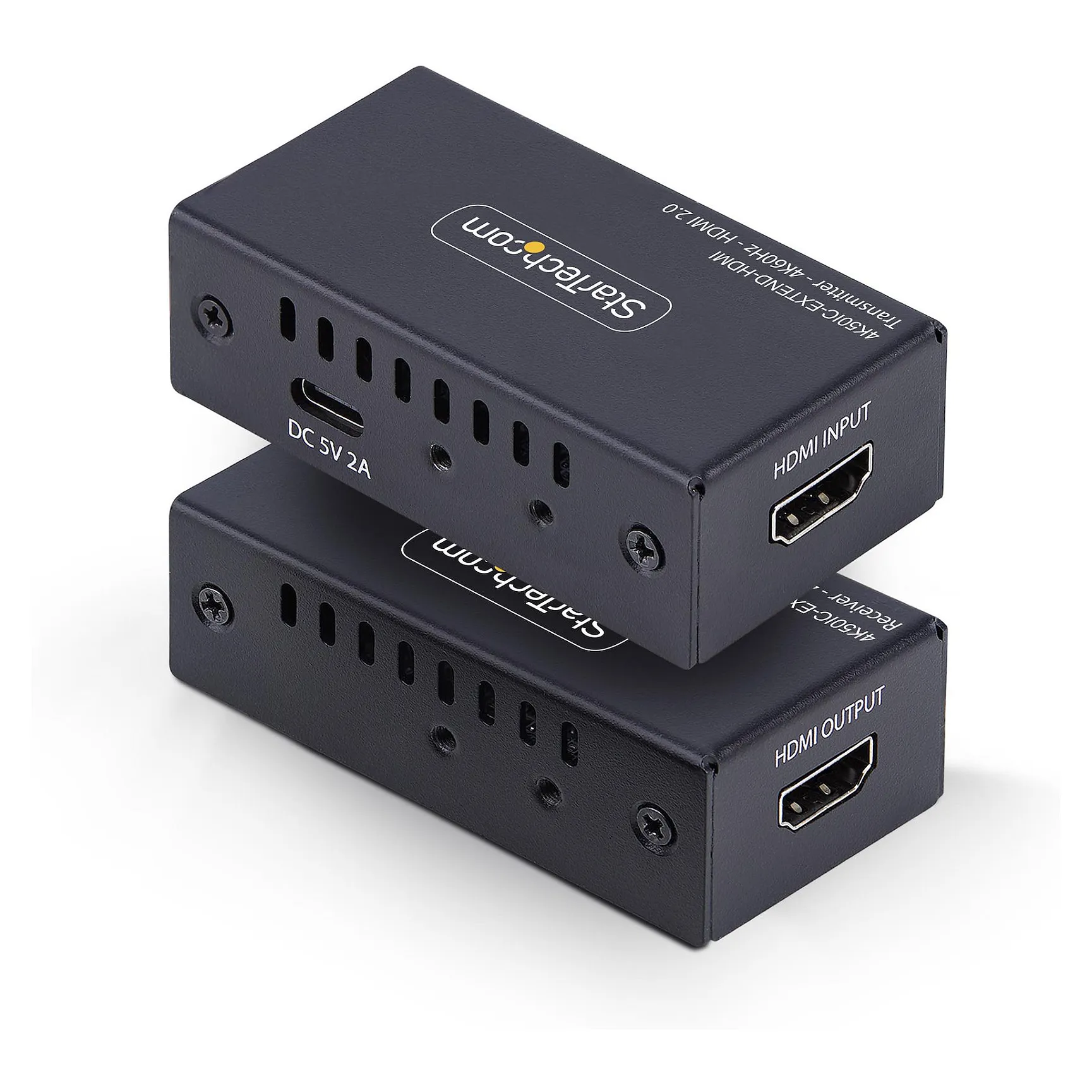

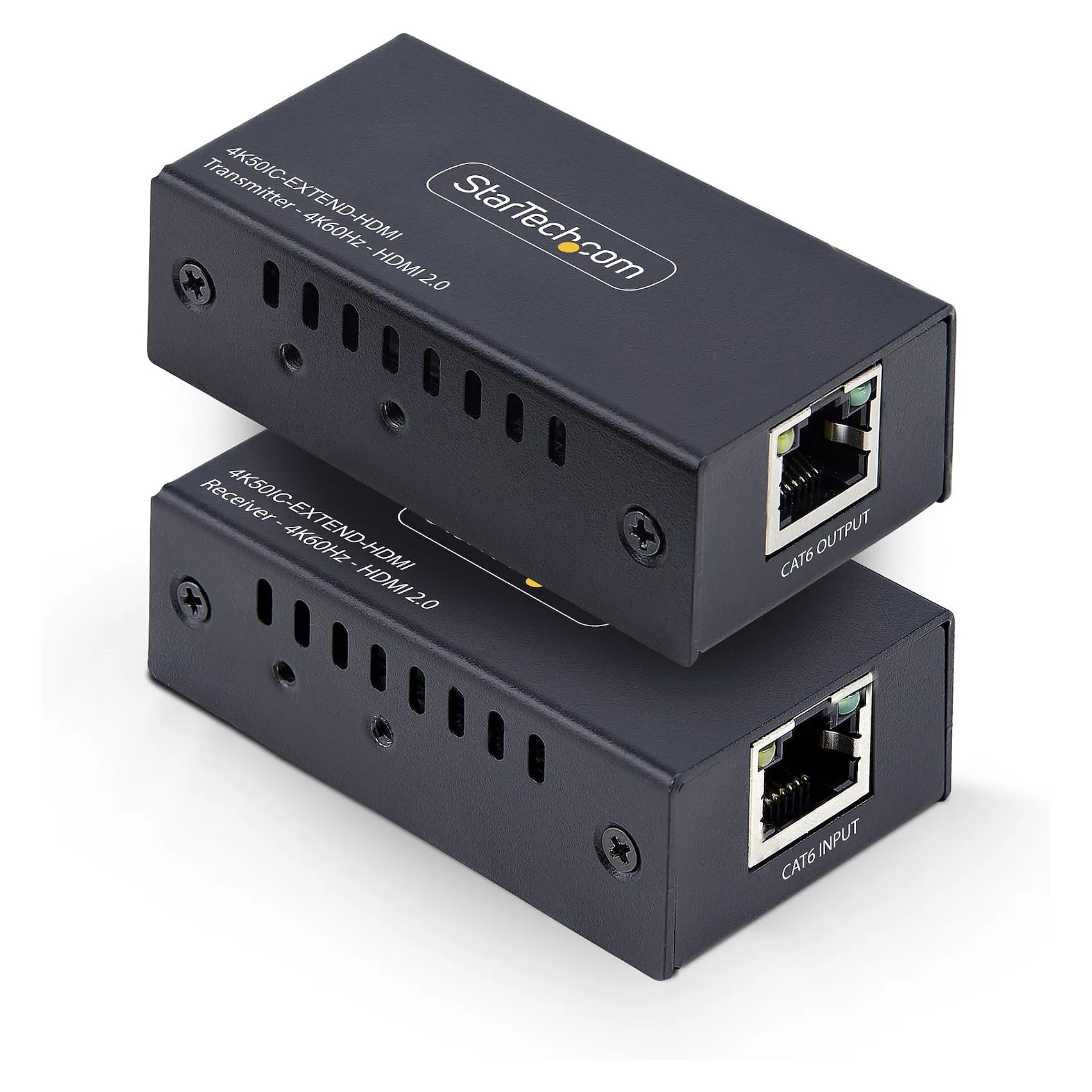

StarTech.com HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable, Compact Form Factor. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired, USB connector type: USB Type-C. Power source type: USB, AC input voltage: 100 – 240 V, Input current: 0.3 A. Receiver dimensions (WxDxH): 40 x 67 x 23 mm, Receiver weight: 92 g, Transmitter dimensions (WxDxH): 40 x 67 x 23 mm. Package width: 150 mm, Package depth: 117 mm, Package height: 77 mm
The HDMI Extender is designed to transmit visually lossless and low latency 4K 60Hz video and 7.1 channel audio up to 200 feet (60 meters) over a single network cable.
4K 60Hz Resolution
This HDMI over CAT5e extender is HDMI 2.0 compliant and supports up to 4K 60Hz resolutions, HDR, HDCP 2.2, DTS, and Dolby Digital audio. This makes it suitable for high-quality video and audio transmission over long distances.
Power-Over-Cable
The extender features Power-over-Cable (PoC) technology, allowing the included power adapter to connect only to the transmitter while providing power to both the transmitter and receiver through the CAT5e/6 cable. This feature reduces the need for additional power sources at the receiver end.
Versatile Installation Options

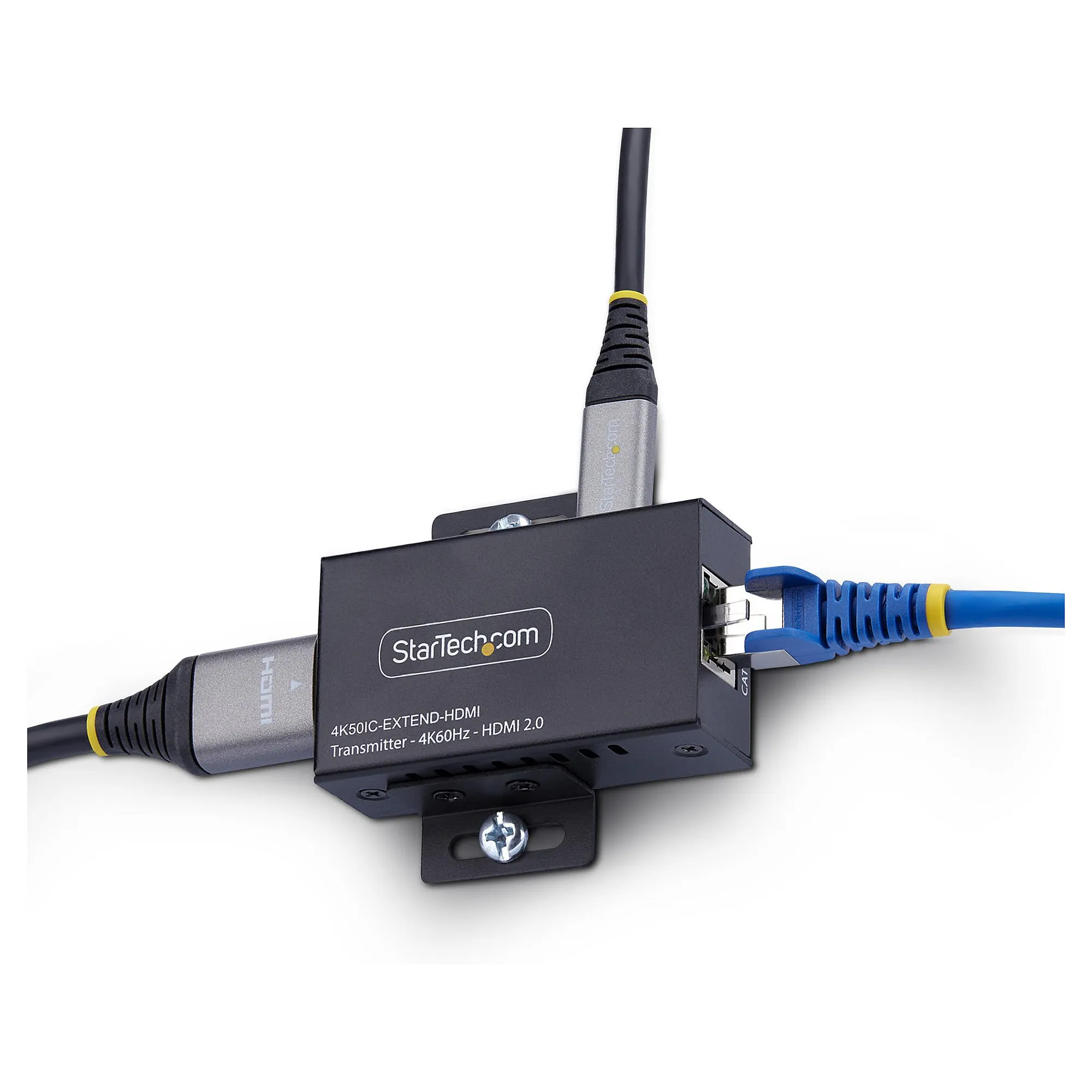

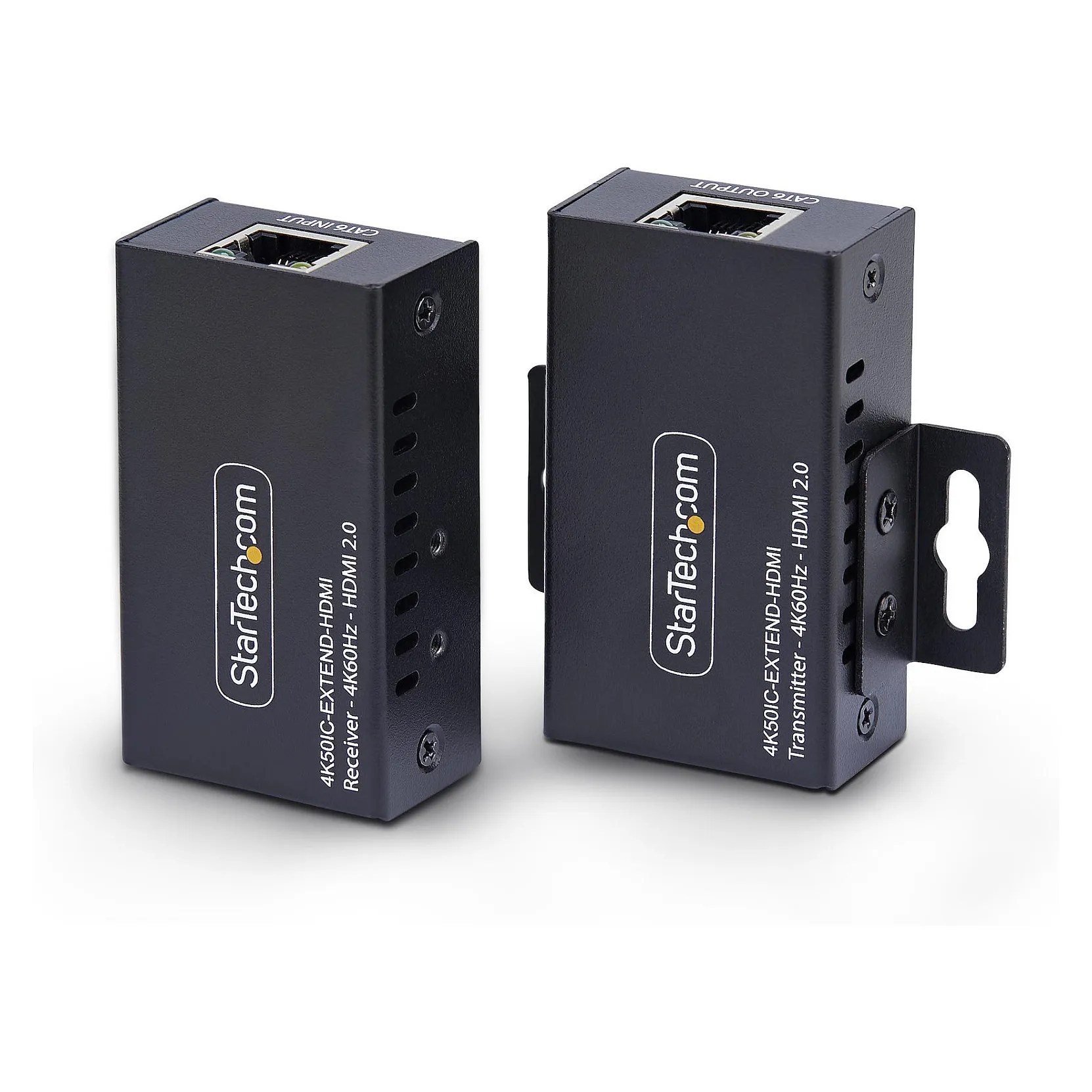

A point-to-point connection uses a single CAT6/5e cable and requires no drivers, software, or IP configuration, significantly reducing setup time. The HDMI extender can be mounted on a wall, ceiling, or the underside of a table using the included brackets, offering versatile professional installation options. The HDMI extender offers a longer range than HDMI cables, and Ethernet cables are easier to run in walls, behind furniture, or through cable trays. Its compact form factor makes it ideal for boardrooms, digital signage, trade shows, and classrooms.
Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat5e, Cat6
Maximum transfer distance: 60 m
Maximum refresh rate: 60 Hz
Audio output channels: 7.1 channels
Feature: HDCP
Material: Metal
HDCP version: 2.2
Product colour: Black
Ports & interfaces
Connectivity technology: Wired

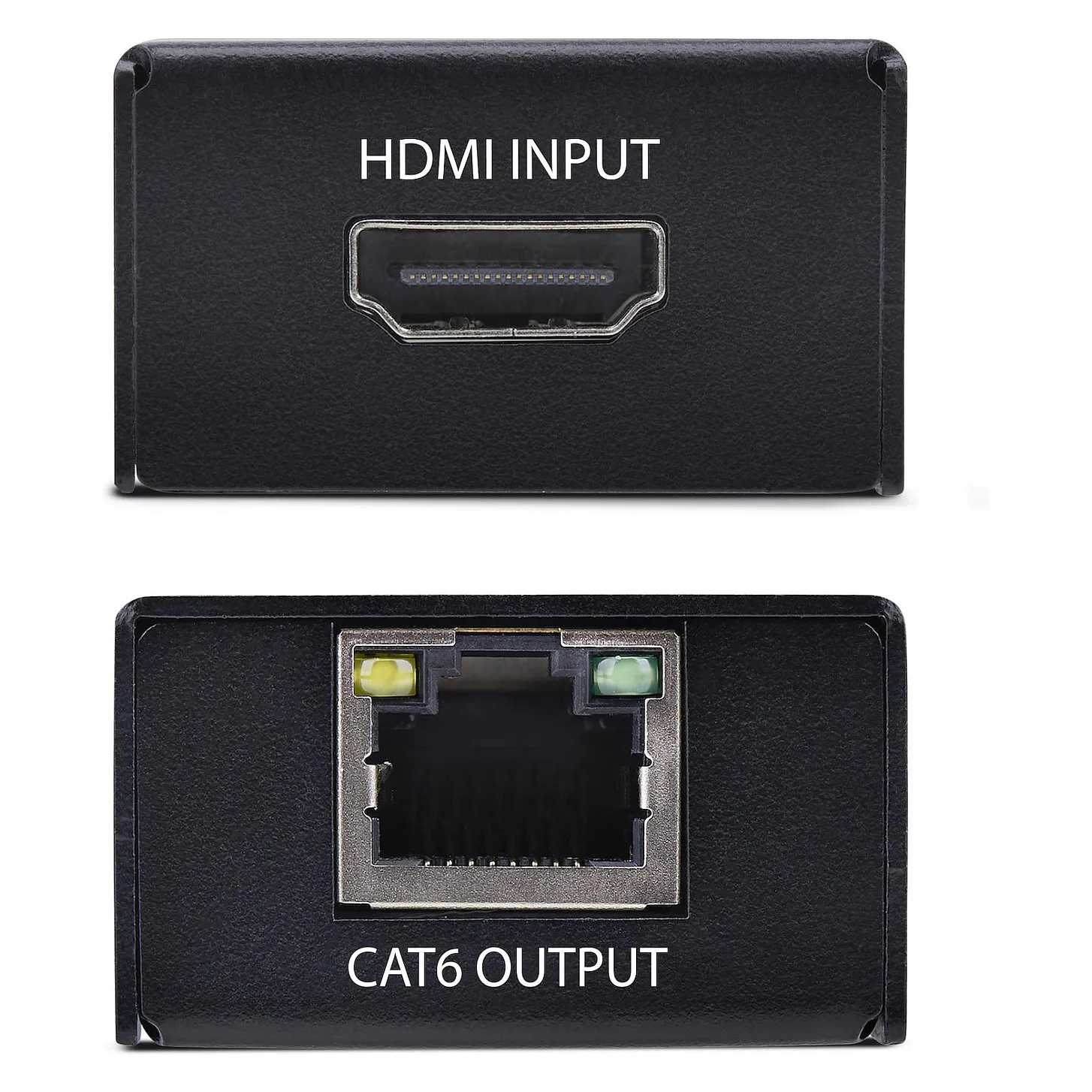

RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 1
HDMI version: 2.0
USB ports quantity: 1
USB connector type: USB Type-C
Power
Power source type: USB
AC input voltage: 100 – 240 V
Input current: 0.3 A
Operating voltage (transmitter): 5 V
Output current: 2 A
Operating voltage (receiver): 5 V
Power consumption (typical): 10 W
Feature: USB Power Delivery (USB PD)
Feature: External power adapter
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -30 – 70 °C
Operating relative humidity (H-H): 0 – 90%
Weight & dimensions
Receiver dimensions (WxDxH): 40 x 67 x 23 mm
Receiver weight: 92 g
Transmitter dimensions (WxDxH): 40 x 67 x 23 mm
Transmitter weight: 92 g
Packaging data
Package width: 150 mm
Package depth: 117 mm
Package height: 77 mm
Package weight: 364 g

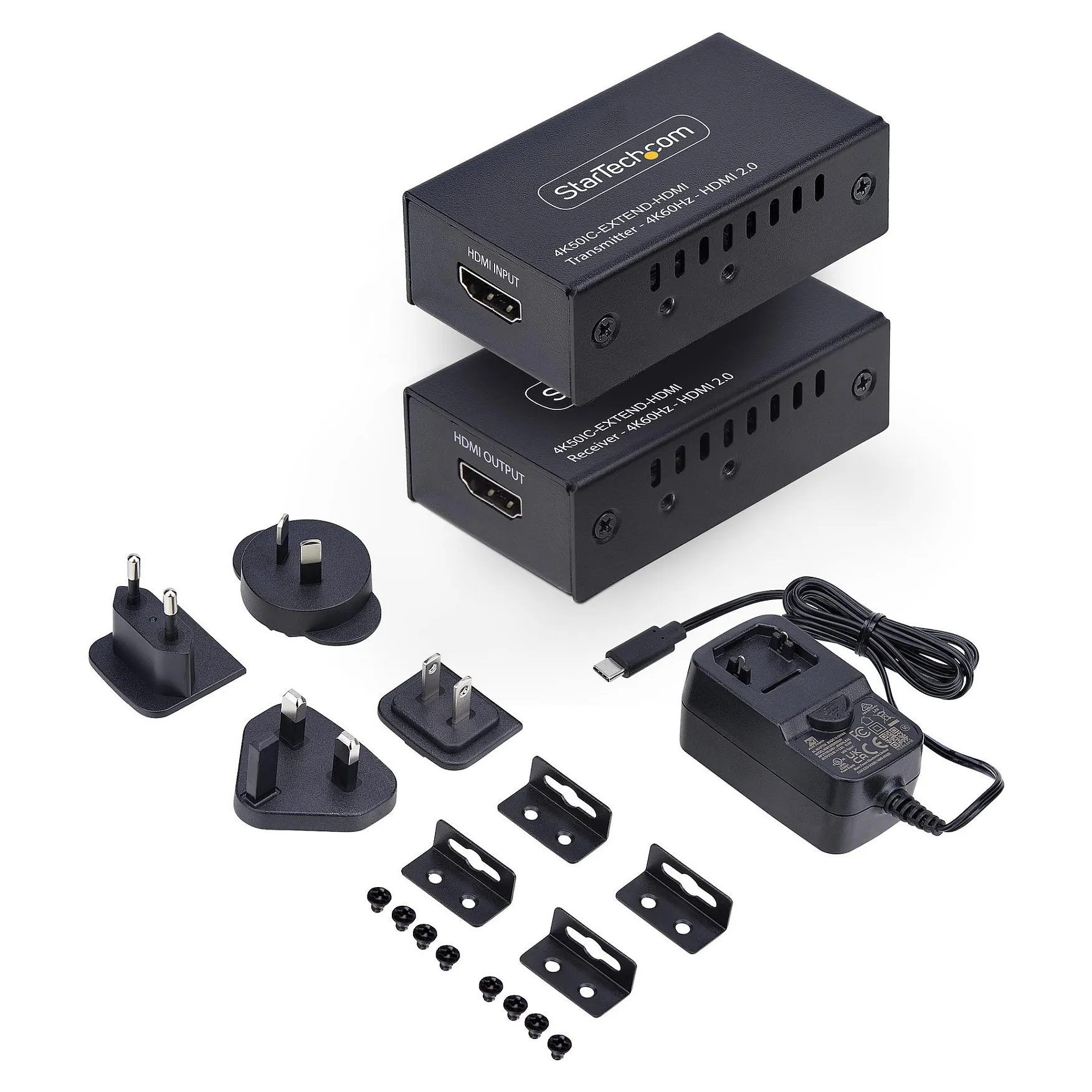

Packaging content
Feature: AC adapter included
Included power plug types: ANZ, EU, NA, UK
Feature: Quick start guide
Feature: Mounting brackets included
Technical details

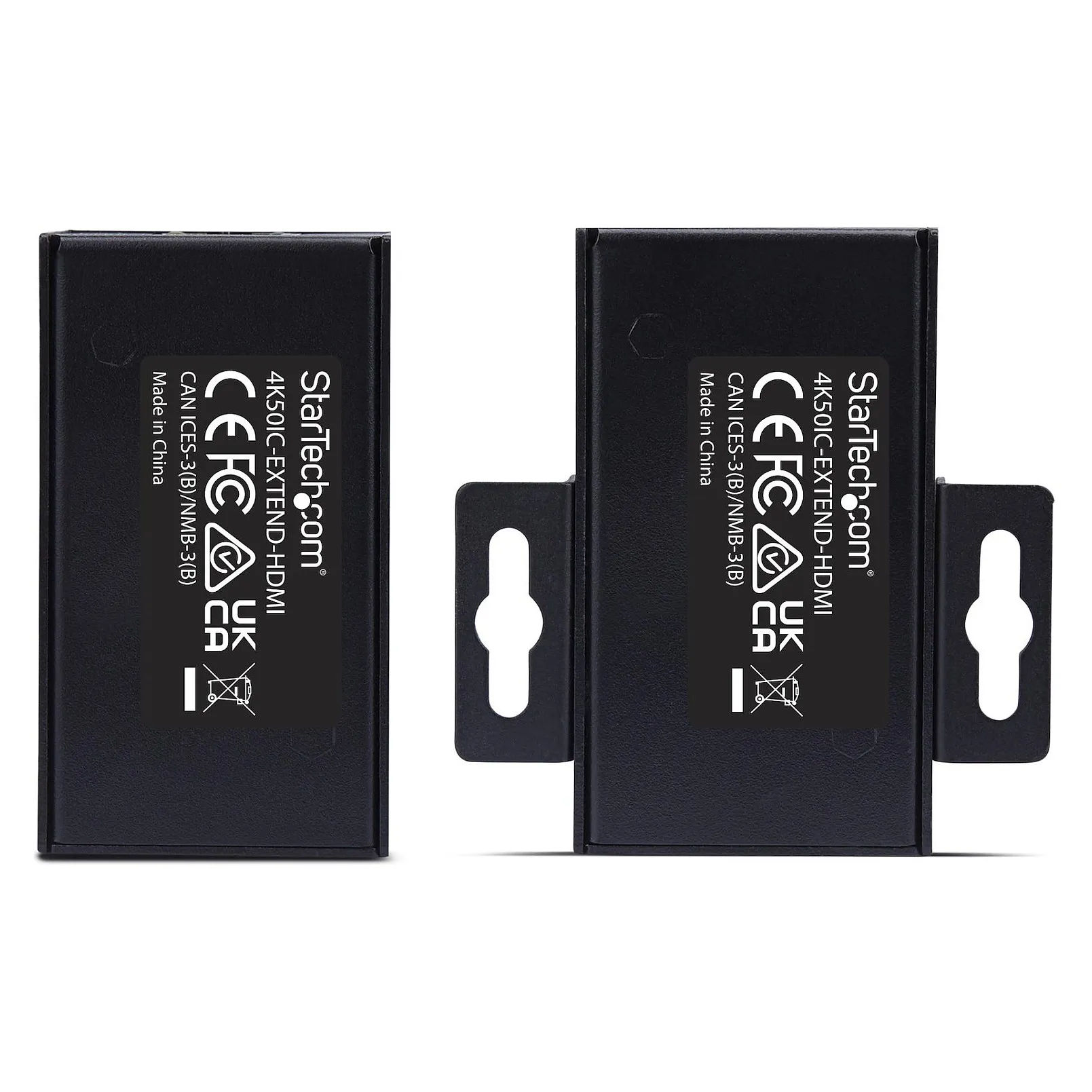

Compliance certificates: Federal Communications Commission (FCC), RoHS
Logistics data
Master (outer) case width: 430 mm
Master (outer) case length: 330 mm
Master (outer) case height: 380 mm
Products per master (outer) case: 30 pc(s)
